TRANSMISSION & AXLES

Proven mechanical simplicity

A key to versatile performance is having the right transmission speed for the application. With T4S tractors, there are two gearbox configurations; dual range 8x8, for the T4.55S and T4.65S and three range 12 x 12 for the T4.75S. All transmissions share the same proven four synchromesh speeds in each range for easy on the move gear changes. A theoretical top speed of 40 Kp/h is applicable to the T4.75S transmission. Befitting the extra power, this transmission is perfect for utilising the 75hp’s superior torque at low groundspeeds.


Read More

Two working ranges

• Ideally suited to small farm and dairy unit demands, the T4.55S and T4.65S utilise an 8x8 transmission which offers a broad speed selection.
• Split into two ranges, with four speeds in each, the operator uses the foot clutch to change speeds on-the-go. The steering column mounted direction lever selects forward or reverse without using the foot clutch.


Read More

Three ranges, twelve working speeds

• Applications calling for more power and a broader range of speeds have the 12x12 transmission as standard on the T4.75S.
• Featuring four speeds in each of the three working ranges, this transmission retains the traditional ‘H’ shift pattern and column mounted direction lever across the T4S range.


Read More

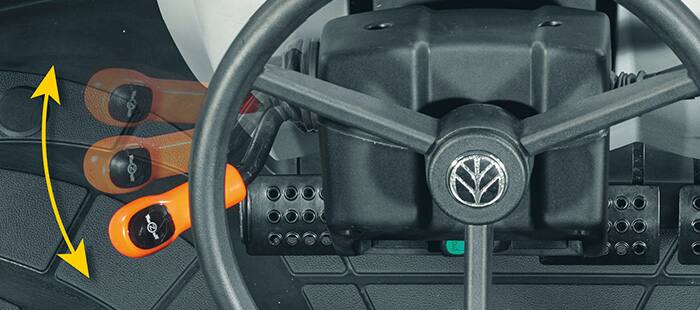

Loader friendly powershuttle

• T4S models are offered with a column mounted hydraulic powershuttle.
• For front loader applications or speedy headland turns, the hydraulic powershuttle really boosts productivity.


Read More

Four-wheel drive traction

• Four-wheel drive models feature an un-braked turn radius of just 4.7m.
• Fitted with a limited slip front differential, a T4S delivers traction when you need it and brilliant agility when you don’t.
• Electro-hydraulic engaged rear differential lock comes as standard.


Read More

Wheel and Tyre offering

• T4.55S and T4.65S come with 20” fronts and 28” rear wheel equipment. The front is a Heavy-duty type suited to the demands of the loader.
• T4.75S has 24” fronts and 30” rear wheel equipment as standard, befitting a specification that can be used for more specialised traction demands.


Read More

Dynamic front fenders*

• Steering angle is maximized thanks to the dynamic front fenders optional on 4WD models.
• A spring mechanism prevents the fenders touching the tractor chassis, but allows the wheel to continue to its maximum lock.

*Not available with Loader


Read More
