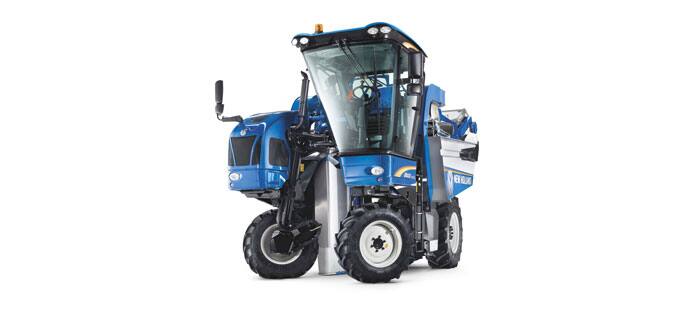

BRAUD High and Extra High Capacity Grape Harvesters

MORE POWER. MORE PERFORMANCE.

The BRAUD 9000L Series and BRAUD 9000X Series are powered by ultra-efficient FPT Industrial 4- or 6-cylinder common rail electronic engines. Outputs range from 141 to 175 horsepower (CV).

MODERN FUELS AND WATER ECONOMY

All engines in the BRAUD 9000L and 9000M Series are engineered to run on 100% biodiesel (subject to conditions). A semi-automatic wash system reduces water consumption by up to 30%.

OUTSTANDING FUEL ECONOMY

The common rail electronic engines and IMS Intelligent Management System offer outstanding fuel economy with an average of 35% fuel savings.

IMS - INTELLIGENT MANAGEMENT SYSTEM

In work, IMS will constantly monitor the demand on the engine. In light load conditions, or at the end of a row when the operator switches off the shakers and fans, IMS will vary the engine speed to precisely match demand but with no impact upon performance. This saves fuel, with no need for any operator input.

HYDROSTATIC TRANSMISSION

A hydrostatic transmission delivers enhanced traction and improved performance in demanding terrain. Anti-skid automatically manages drive to the wheels for optimum performance on slopes and in wet soil conditions.

AUTOMATIC HEIGHT AND LEVELING

The system automatically controls the height and the levelling. Once the operator sets the desired picking head height, it is maintained automatically. Sensors prevent the picking head from contacting the ground in difficult terrain.

TIGHT TURN RADIUS

With a 90° turn angle, BRAUD 9000L and 9000M harvesters have the tightest turn radius on the market. The standard Soft Shift system automatically monitors wheel speed and manages oil flow to the traction motors. Power is always diverted to the wheel with the best grip, boosting traction and safety in difficult conditions.

PRECISE CRUISE CONTROL

Working in conjunction with the true ground speed radar, the electronically controlled hydrostatic pump and IMS system enable the operator to set and maintain a constant harvest speed. The system also accommodates changes in terrain.
