BRAUD High and Extra High Capacity Grape Harvesters

ALL-YEAR PRODUCTIVITY

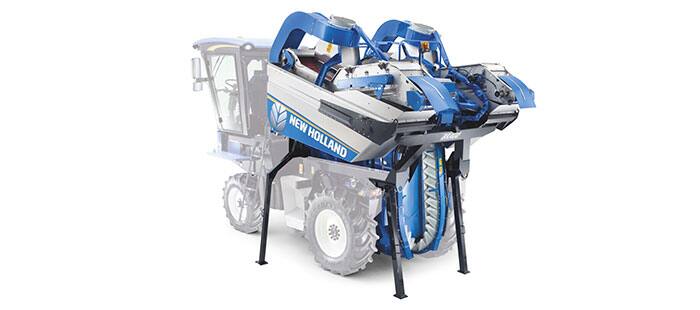

The base unit is designed to be used all year round, from pre-pruning to grape harvesting. To achieve this, we developed a patented system to couple and uncouple the picking head and a front tool carrier that can be fitted with implements.

SIMPLE PICKING HEAD IMPLEMENTS

One person can remove the picking head, without special tools, in 10 minutes. All hydraulic and electrical connections are grouped together for easy access.

FRONT TOOL CARRIER

The front implement carrier attaches to the harvester quickly and easily. Operators can attach implements, including a trimmer, pre-pruner and leaf-remover, with fully integrated control via the IntelliView™ touchscreen. The implement carrier telescopically adjusts both horizontally and vertically to suit the implements. It can be set to move away from the cab during a turn.

BERTHOUD CO-DESIGN

Berthoud spraying equipment*, co-designed with BRAUD New Holland, attaches in around 10 minutes, with full touchscreen operation via the IntelliView™ III monitor.

_{* The use of a sprayer requires the operator to wear specific and appropriate personal protective equipment. Observe the manufacturers safety instructions for the use of pesticides, and also the operating instructions for personal safety equipment.}

PRE-PRUNER MP 122 PROVITIS

The MP122 features a pre-pruning head with two-disc modules equipped with multiple cutting blades. The working height ranges from 19 to 39 inches.

LEAF REMOVER LR 350 PROVITIS

The LR 350 leaf remover frame is composed of two leaf removing heads. Each head follows the plane of vegetation and offers hydraulic width adjustment.

TRIMMER ST 120 PROVITIS

Adjustable cutting bars with 16.9-inch rotary blades rotate at 2000 rpm. Choose a one-row model or a model with one row plus two half rows, with cutting heights of 48, 60, and 69 inches.
