PROROTOR™ C RAKES

PROROTOR™ C RAKES

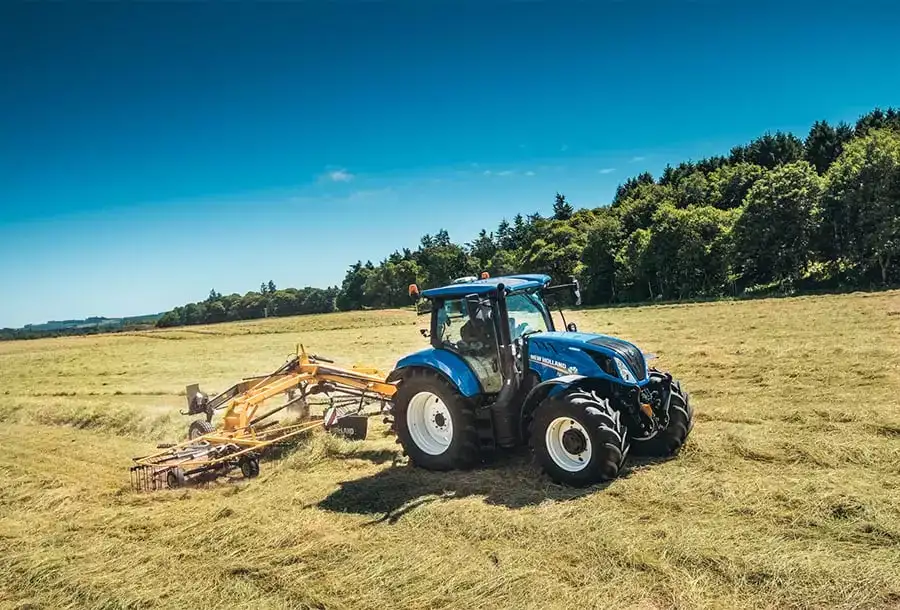

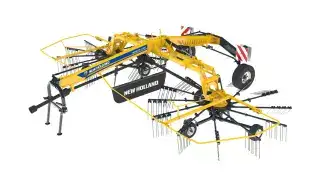

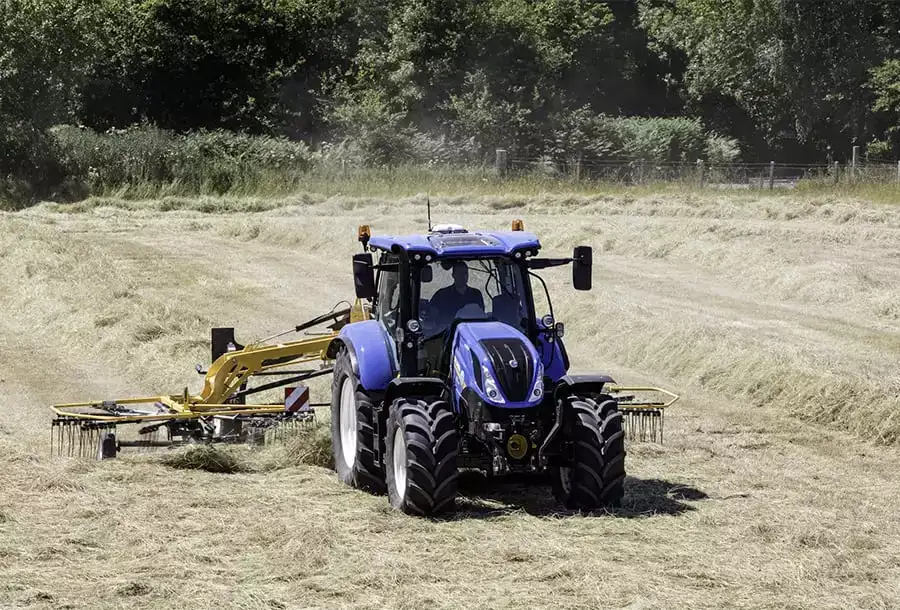

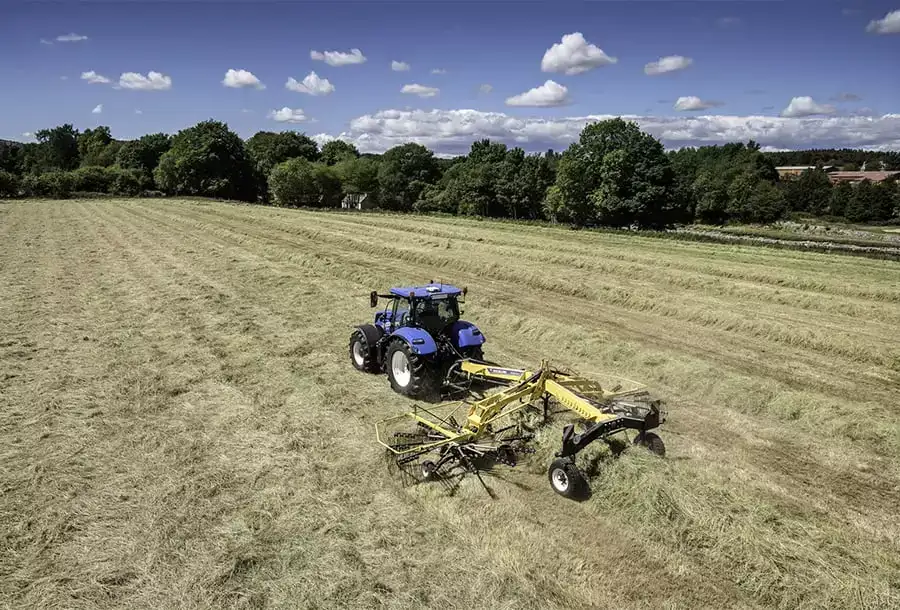

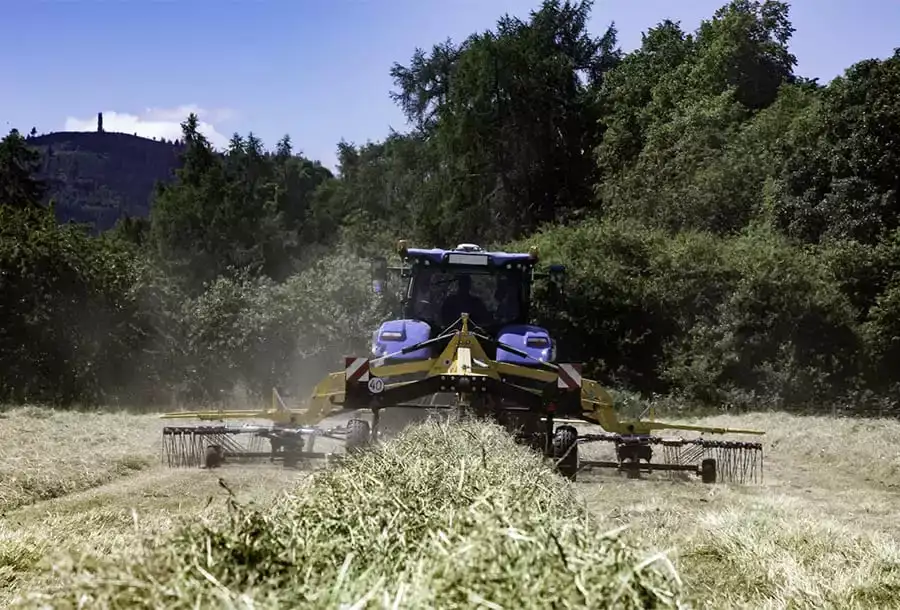

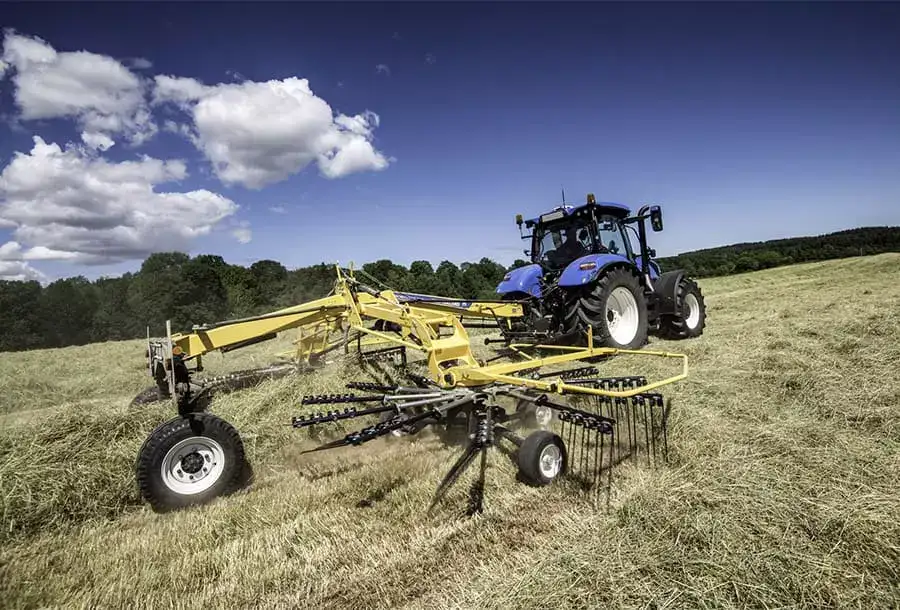

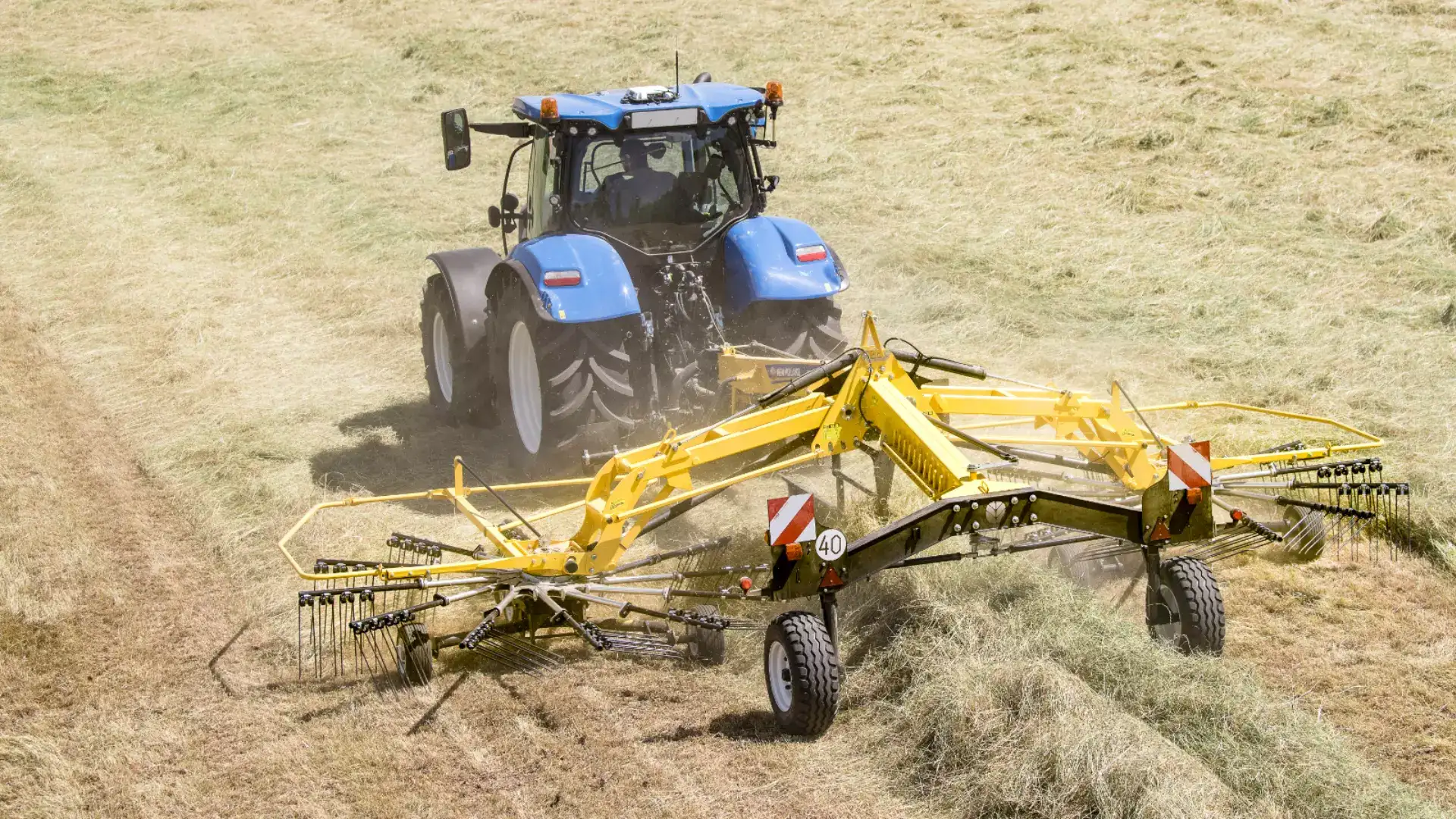

ProRotor™ C double rotor rakes ensure central crop delivery. Attached to the linkage arms, it can be hydraulically folded for transport, and when in transport configuration, it is less than four metres in height, ideal when transporting in areas with overhanging foliage. Benefitting from high ground clearance, this range is ideal when working with large swaths of dense crop. Available on the 760 and 820 the Cardanic rotor suspension technology means that the rotors can move both laterally and fore-aft freely for efficient operation.

DISCOVER MORE

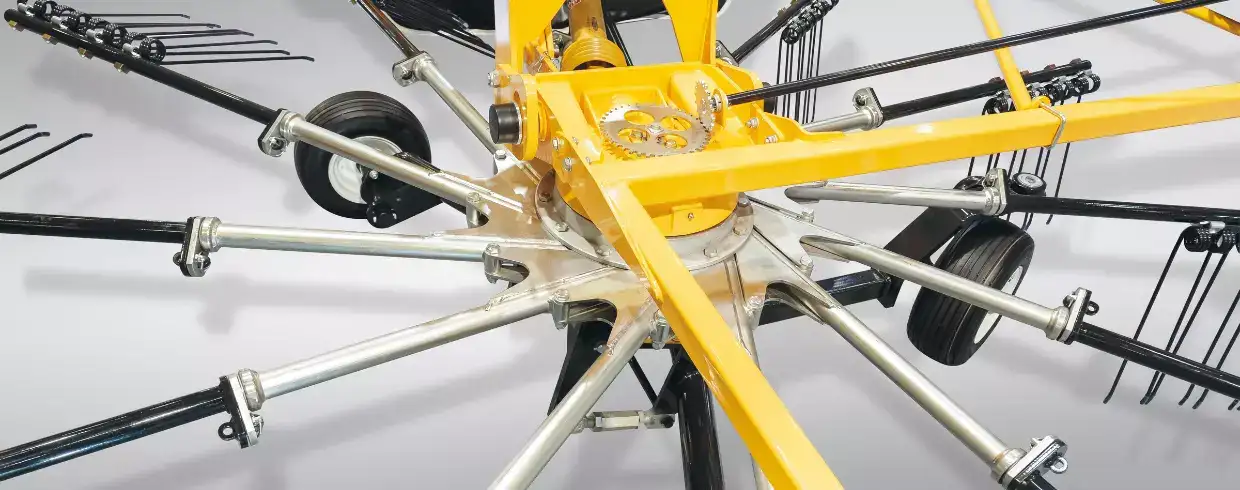

Maintenance free rotor arms
The rotor arms on the ProRotor 420, 450, L 630, L 640 Auto-Steer, L 640, C 760 and C 820 models feature maintenance-free ball bearings at either end. Manufactured from solid steel, they have been engineered by design to withstand intensive usage.

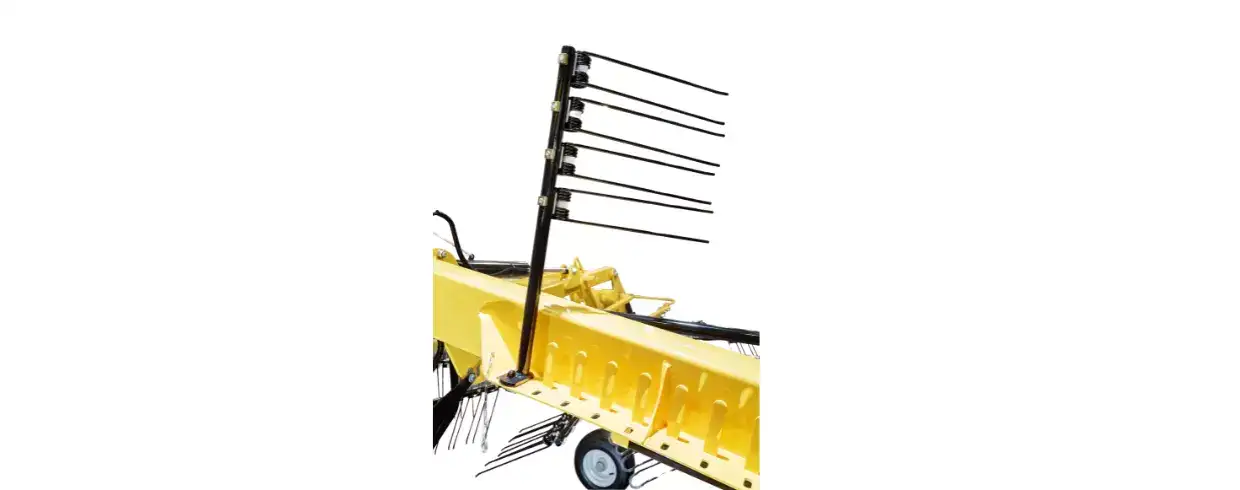

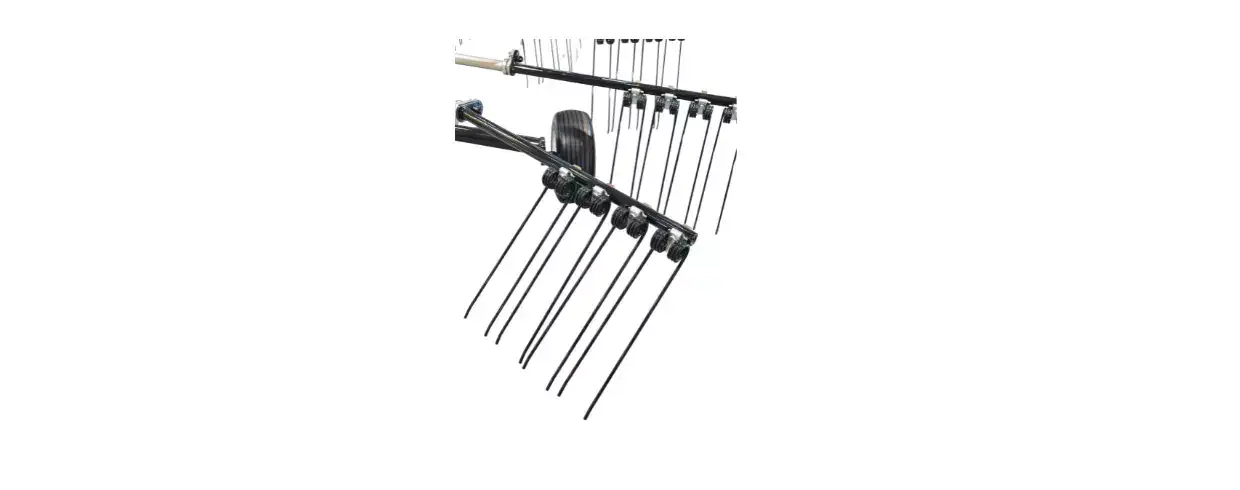

Efficient tine arm storage
For easy transport and storage, the tine arms can be easily dismounted and stored in a dedicated tine arm storage area. This enables better visibility during transport, and also reduces the overall width of the rake, ideal when travelling down narrow country lanes or when being stored away during winter.

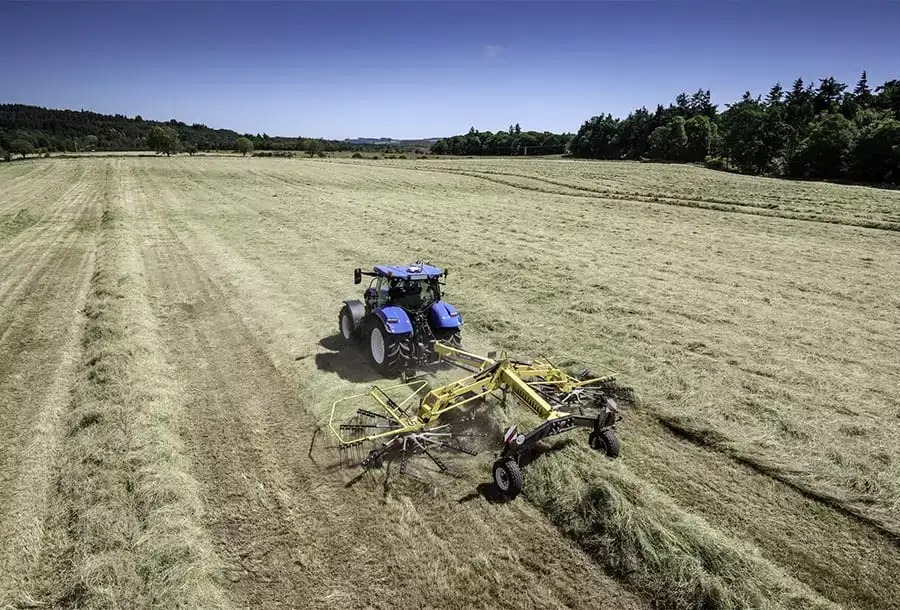

Tangential tine arm technology
The rake’s tine arms are not mounted in the traditional 90° configuration, rather they are placed tangentially to ensure optimal delivery and soft handling of the crop.

MODELS

Explore available models

TECHNICAL SPECIFICATIONS

New Holland ProRotor™ C 660

New Holland ProRotor™ C 660M

New Holland ProRotor™ C 760

New Holland ProRotor™ C 820

Specifications


Specifications
Type of rake
Mounting type
Working width (m)
Number of swaths
Rotor diameter (m)
Tine arms per rotor / double tines per tine arm
MIN-trans detachable tine arms
Tangential tine arm control
Covered cam track
3 wheel multi-touch chassis
Advanced wide-track axle
Drive chassis
3-D tandem bogie axle
Tandem caster wheels
Central height adjustment
Central height adjustment
Transport height without/with rake arms (m)
Shock absorber
Active steering of the frame
Central cardanic suspension
Rotors tyres
Main frame tyres standard
Main frame tyres optional
Minimum PTO Power [kW/hp(CV)]
PTO speed (rpm)
Hydraulic remote required
Weight (kg)
