PROROTOR™ RAKES

PROROTOR™ RAKES

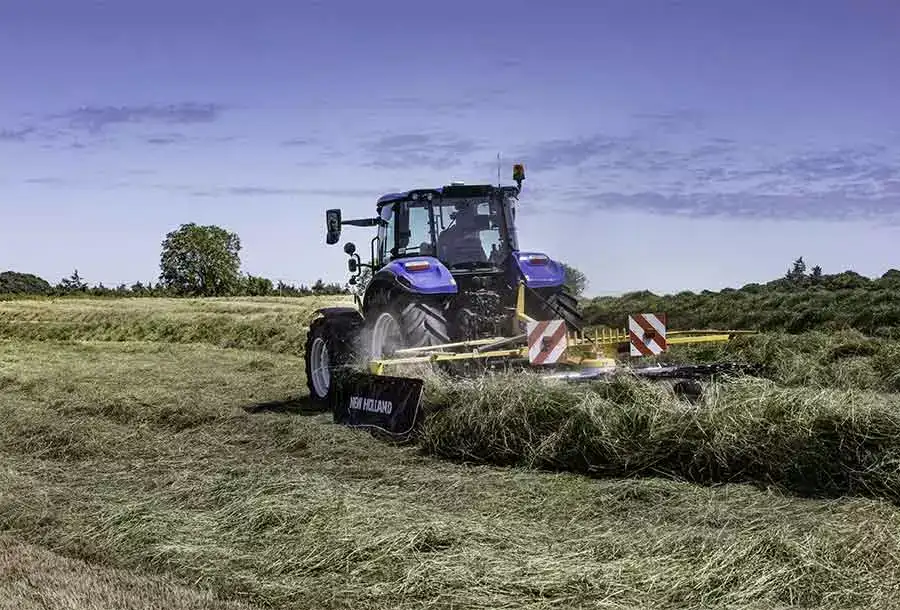

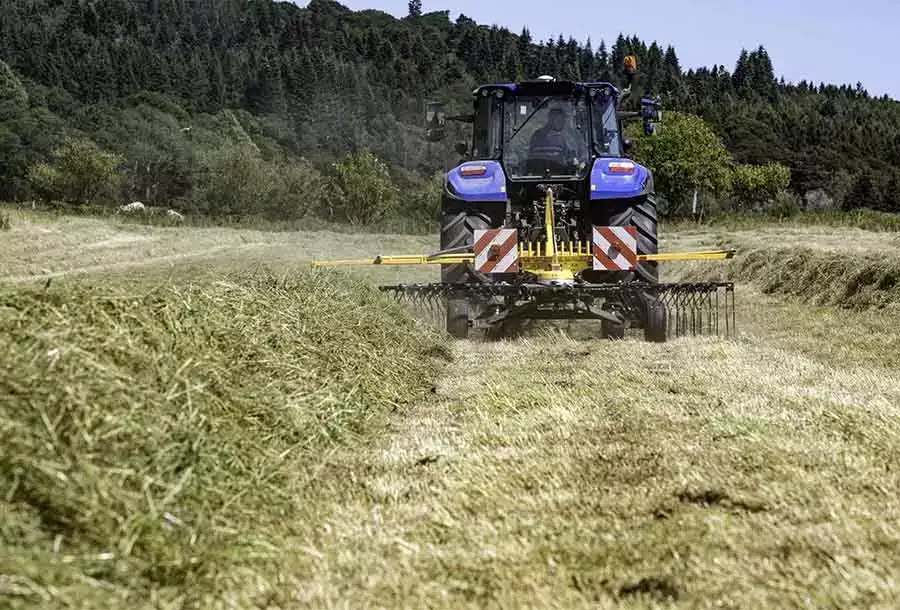

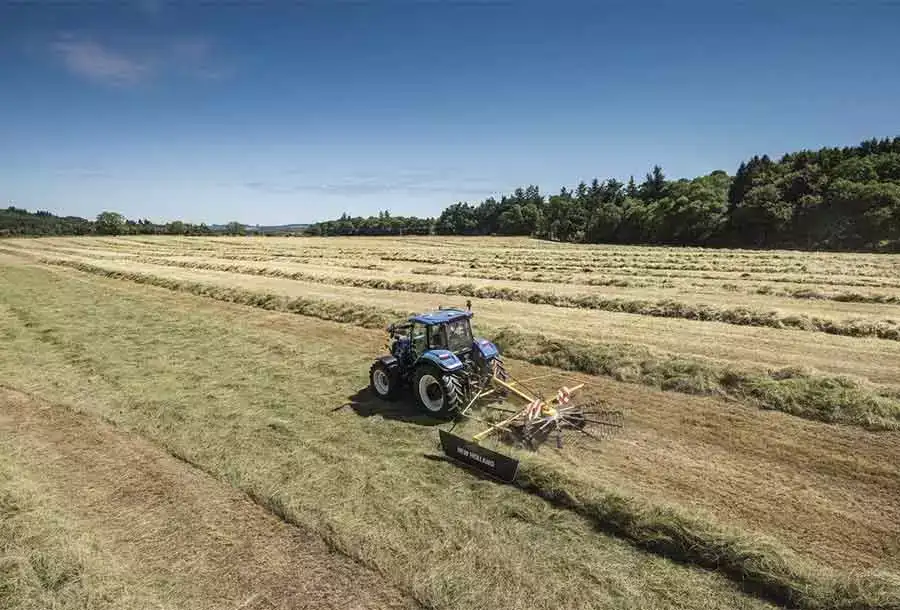

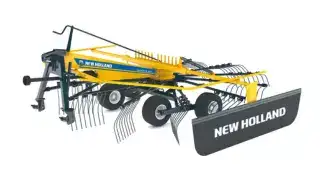

ProRotor™ single rotor rakes enable side delivery of the crop and feature a swath curtain, which can be adjusted to match the width of the swath being worked.
The range also enables different wheel options:
• Four wheel bogie axle delivers smooth operation in undulating terrain.
• Three D bogie axle enables the front wheel to follow the rake whilst turning to better follow the arc of the turn.

DISCOVER MORE

Maintenance free rotor arms
The rotor arms on the ProRotor 420, 450, L 630, L 640 Auto-Steer, L 640, C 760 and C 820 models feature maintenance-free ball bearings at either end. Manufactured from solid steel, they have been engineered by design to withstand intensive usage.
Efficient tine arm storage
For easy transport and storage, the tine arms can be easily dismounted and stored in a dedicated tine arm storage area. This enables better visibility during transport, and also reduces the overall width of the rake, ideal when travelling down narrow country lanes or when being stored away during winter.
Tangential tine arm technology

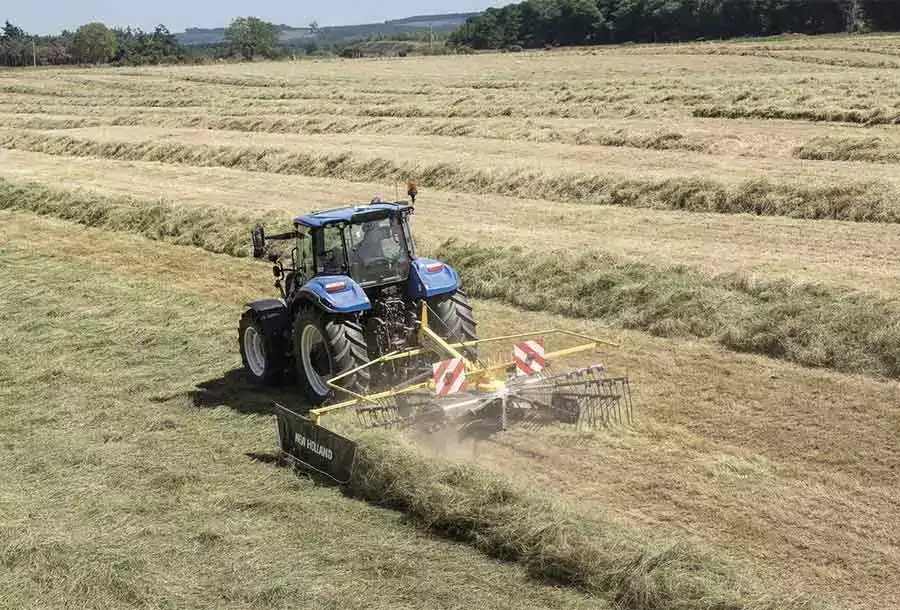

The rake’s tine arms are not mounted in the traditional 90° configuration, rather they are placed tangentially to ensure optimal delivery and soft handling of the crop.

MODELS

Explore available models

TECHNICAL SPECIFICATIONS

New Holland ProRotor™ 290

New Holland ProRotor™ 320

New Holland ProRotor™ 360

New Holland ProRotor™ 420

New Holland ProRotor™ 450

Specifications


Specifications
Type of rake
Mounting type
Working width (m)
Number of swaths
Rotor diameter (m)
Tine arms per rotor / double tines per tine arm
MIN-trans detachable tine arms
Tangential tine arm control
Covered cam track
3rd wheel at 3-pt headstock optional
Advanced wide-track axle
Drive chassis
4-wheel bogie axle
Central height adjustment
Transport width (m)
Shock absorber
Rotors tyres
Minimum PTO Power [kW/hp(CV)]
PTO speed (rpm)
Hydraulic remote required
Weight (kg)
