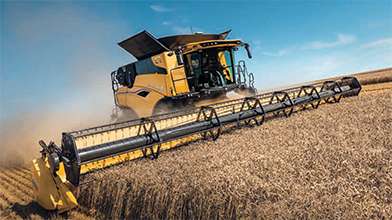

New Holland's CR Revelation combine with header, streamlining the agricultural harvest process in the field
HARVEST SUPREMACY

CR RANGE

white dots

OUTSTANDING CAPACITY The range topping 700hp(CV) FPT Industrial Cursor 16, powering the CR10.90, delivers efficient power and when combined with advanced harvesting technology.

SUPERIOR HARVEST QUALITY Unsurpassed grain and straw quality is guaranteed courtesy of gentle, yet highly efficient Twin Rotor™ technology.

LOWER OPERATING COSTS The entire CR Range benefits from industry leading ECOBlue™ HI-eSCR 2 technology to comply with the more stringent Stage V emission regulations and it maintains the efficiency you’ve come to expect of a CR Range combine.

ABSOLUTE DRIVING PLEASURE The Harvest Suite™ Ultra cab has been designed to deliver ultimate harvesting comfort and ergonomics.

CR RANGE
  • Overview
  • Features
  • Models
  • Specifications
  • Brochure

CR RANGE - THE WORLD’S HIGHEST CAPACITY COMBINE. FACT*
CR RANGE

THE WORLD’S HIGHEST CAPACITY COMBINE. FACT*.

New Holland revolutionized the way farmers harvested over 45 years ago with the introduction of groundbreaking Twin Rotor™ technology for combines. Today’s latest generation of CR combines continues the pure rotary bloodline and offers the world’s farmers world-beating grain and straw quality thanks to the gentle multi-pass action. The range topping CR10.90 is the most powerful and productive CR to date, and now has up to 700hp on tap. Innovative features such as the new award-winning IntelliSense™ combine automation system, Dynamic Flow Control™ remotely adjustable rotor vanes, concave reset, the deep cut Dynamic Feed Roll™ technology and the all-new patented Opti-Spread™ Plus super wide spreading residue management system, continue to ensure that the CR range is among the most advanced and productive harvesters in the world.


*Learn more under World Record section below


DISCOVER MORE
New Holland's CR Revelation combine and tractors collaborating in the field

Features

  • HISTORY

  • GRAIN HEADERS

  • MACDON FD2 FLEXDRAPER® HEADER

  • MAIZE HEADERS

  • FEEDING

  • INTELLICRUISE II SYSTEM

  • THRESHING AND SEPARATION

  • CLEANING

  • INTELLISENSE™ SYSTEM

  • GRAIN HANDLING AND STORAGE

  • MANAGING RESIDUE

  • ENGINE AND DRIVELINE

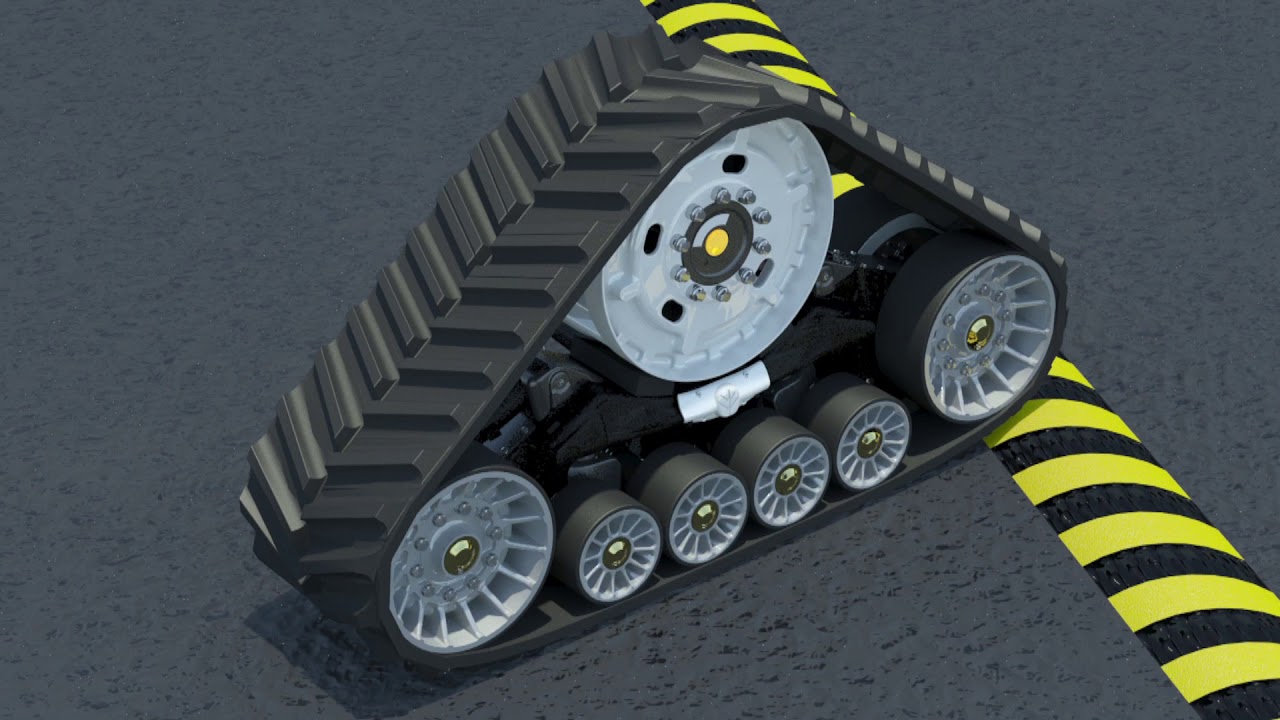

  • SMARTTRAX™ SYSTEM

  • OPERATOR COMFORT

  • CONTROL CENTRE

  • PLM GUIDANCE

  • PLM CROP MANAGEMENT

  • PLM DATA MANAGEMENT

  • SERVICE AND BEYOND THE PRODUCT

  • INNOVATIONS ＆ AWARDS

  • WORLD RECORD

  • UPTIME SOLUTIONS

MODELS

Explore available models

TECHNICAL SPECIFICATIONS
CR RANGE

CR7.80

Cutting width: High Capacity grain header (m)
5.18 - 9.15
Folding covers capacity standard / optional (l)
10500
CR RANGE

CR7.90

Cutting width: High Capacity grain header (m)
5.18 - 9.15
Folding covers capacity standard / optional (l)
11500
CR RANGE

CR8.80

Cutting width: High Capacity grain header (m)
6.10 - 9.15
Folding covers capacity standard / optional (l)
12500
CR RANGE

CR8.90

Cutting width: High Capacity grain header (m)
6.10 - 9.15
Folding covers capacity standard / optional (l)
12500 / 14500
CR RANGE

CR9.90

Cutting width: High Capacity grain header (m)
6.10 - 9.15
Folding covers capacity standard / optional (l)
12500 / 14500
CR RANGE

CR10.90

Cutting width: High Capacity grain header (m)
6.10 - 9.15
Folding covers capacity standard / optional (l)
14500

Technical specifications

CONVERT TO EXCELPRINT
CR7.80
CR7.90
CR8.80
CR8.90
CR9.90
CR10.90

Grain header

Cutting width: High Capacity grain header (m)
5.18 - 9.15
5.18 - 9.15
6.10 - 9.15
6.10 - 9.15
6.10 - 9.15
6.10 - 9.15
Cutting width: Varifeed™ grain header - 575mm knife travel (m)
4.88 - 9.15
4.88 - 10.67
6.10 - 10.67
6.70 - 12.50
6.70 - 12.50
6.70 - 12.50
Cutting width: Superflex headers cutting width (m)
6.10 - 9.15
6.10 - 10.67
6.10 - 10.67
7.62 - 10.67
9.15 - 10.67
9.15 - 10.67
Cutting width: MacDon FD2 FlexDraper® header (m)
7.60 - 10.60
7.60 - 10.60
7.60 - 12.50
9.10 - 13.70
10.60 - 15.20
10.60 - 15.20
Cutting width: MacDon D2 Rigid Draper® header (m)
7.60 - 10.60
7.60 - 10.60
7.60 - 12.50
9.10 - 13.70
10.60 - 15.20
12.20 - 13.70
Knife speed Standard / Varifeed™ grain header (cuts/min.)
1150 / 1300
1150 / 1300
1150 / 1300
1150 / 1300
1150 / 1300
1150 / 1300
Spare knife and spare bolted knife sections
Standard
Standard
Standard
Standard
Standard
Standard
Feeding auger with full-width retractable fingers
Standard
Standard
Standard
Standard
Standard
Standard
Reel diameter Standard / Varifeed™ grain header (m)
1.07
1.07
1.07
1.07
1.07
1.07
Electro-hydraulic reel position adjustment
Standard
Standard
Standard
Standard
Standard
Standard
Automatic reel speed synchronisation to forward speed
Standard
Standard
Standard
Standard
Standard
Standard
Hydraulic quick coupler (single location)
Standard
Standard
Standard
Standard
Standard
Standard

Maize headers

Automatic header control systems

Straw elevator

Harvest Suite™ Ultra cab glass area

FieldOps™

Uptime Solutions – Training & Support Systems

Twin Rotor™ technology

Threshing concaves

Separation concaves

Beater

Cleaning

Cleaning fan

Return system

Grain elevator

Graintank

Unloading auger

Electrical

Engine*

Fuel tank

Transmission

Residue management

* Developed by FPT Industrial

** Extra power is available when unloading and chopping

*** Biodiesel blend must fully comply with the latest fuel specification EN14214:2009 and operation is in accordance with operator manual guidelines
