Skid Steer Loaders

white dots
POWERFUL PERFORMANCE 300 Series Loaders deliver performance in all conditions. While meeting extremely strict emissions requirements, the New Holland Tier 4 Final engines also use less fuel and are easy to maintain which decreases operating costs.
SPEED AND EFFICIENCY The 300 Series Skid Steer Loaders have dual-range transmission which provides travel speeds in excess of 11 mph. This helps operators save time on and between worksites which optimizes efficiency.
SMOOTH OPERATION The hydraulic system on New Holland Skidsteers delivers fast-cycle times. In-line hydraulic pumps also produce less noise and provide extra-smooth operation.
COMFORT AND VISIBILITY The Skidsteeer Loader has one of the most spacious cabs in the industry and provides outstanding visibility. The cab contains a see-through area on the roof for a clear view and a huge glass door for visibility at all corners.
SKID STEER LOADERS

BUILT AROUND YOU

New Holland 300 Series are built around you with reliable engines that deliver a more powerful performance, whilst using less fuel than previous models. They are durable, easy to maintain and will reduce your operating costs. Three different auxiliary hydraulics packages give maximum versatility.  Offering class-leading space, comfort and ergonomics, the cab also affords excellent all-round visibility and reduced blind spots.

Features

  • POWERFULLY COMPACT 300 SERIES

    The revised new 300 Series range of skid steer loaders and compact track loaders are the evolution of New Holland skid steer loader design. The unique New Holland machines deliver comfort and performance in a compact package:

    • Compact dimensions – under 6.5 feet high & just over 5 feet wide on the smallest model
    • Excellent stability and weight distribution maximize performance and safety
    • All-round visibility ensures high maneuverability and faster work cycles
    • Comfort Deluxe Cab features excellent ergonomics and best-in-class comfort
    • New color display featuring integrated reversing camera
    • Wheels or tracks, Super Boom or Radial Lift - the choice is yours
    • Choose simple mechanical or smooth electro-hydraulic controls offering advanced settings

  • FAST IN EXECUTION, SMOOTH IN OPERATION

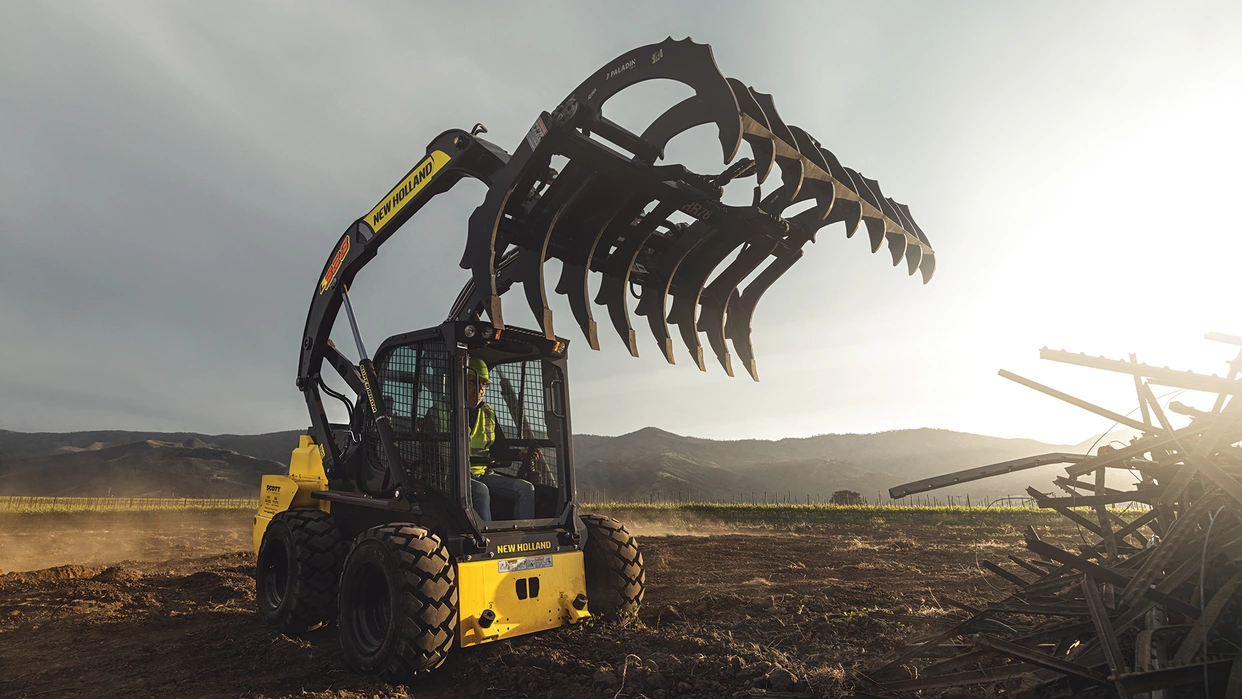

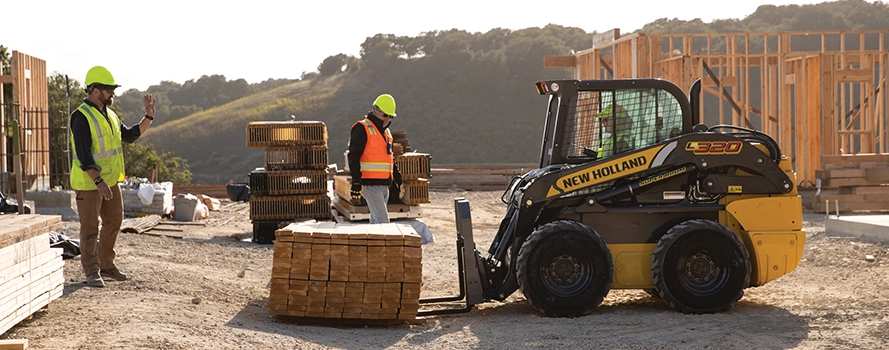

    The New Holland skid steer loaders & compact track loaders feature a total of 12 models, with operating loads ranging from 1300lbs to 4508lbs and lift heights from 9.35ft to 11ft. New Holland knows that these machines will be used in a wide variety of applications, so they’ve been engineered by design to offer versatility as standard. Whether you are handling bales, sweeping yards, feeding your cattle in winter or snow blowing, you’ve found your perfect farming partner. You can boost your productivity with fast cycle times resulting from perfect balance, excellent stability and powerful hydraulic systems.

  • MAKE COMFORT A PRIORITY

    The Comfort Deluxe Cab offers up to 25% more internal width than competition with greater head room and leg room. New features include the color display with integrated rear camera, improved joystick controls to reduce thumb fatigue, Bluetooth radio and a USB port to charge mobile devices. 300 Series loaders also provide automatic straight-line tracking (on EH models only) to improve productivity and precision when working with a trencher or cold planer.

  • ENVIRONMENTALLY FRIENDLY

    New Holland 300 Series comply with Tier 4A & Tier 4B regulations, cutting emissions levels, with over 90% less particulate matter (PM) and 50% less nitrogen oxide (NOx) than the previous generation. In addition, when you don’t need the full power of the machine, the variable flow hydraulic pump only uses the power required leading to significant extra-fuel savings as well as reduced operating noise.

    • Diesel PM (particulate matter) Catalyst traps the residual particulate contained in the exhaust gas of the engine
    • Cooled Exhaust Gas Recirculation (CEGR) process is now controlled electronically to achieve greater performance and fuel efficiency, as well as even greater reliability - for example, to help protect the engine from overheating
    • The external Cooled EGR (Exhaust Gas Recirculation) system ensures efficient air handling and high engine power density with the shortest load response time
    • Diesel Oxidation Catalyst (DOC) utilizes a chemical process in order to break down pollutants from diesel engines in the exhaust stream, turning them into less harmful components. DOC does not require regeneration and it is a maintenance-free component
    • Diesel Particulate Filter (DPF) physically traps particulate matter from the engine exhaust. Electronic controls will trigger an automatic regeneration of the DPF system. Additionally, the system can notify the machine operator to manually regenerate the DPF system occasionally when the soot load in the DPF exceeds the range defined for automatic regeneration

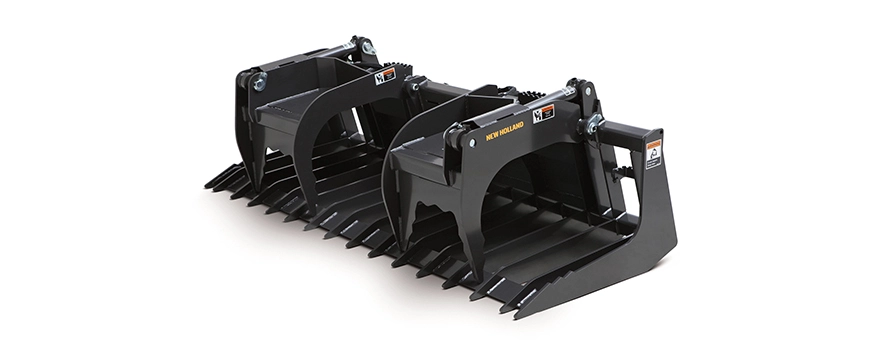

  • READY FOR ANY JOB. MAXIMUM CHOICE, MAXIMUM VERSATILITY.

    New Holland skid steers and compact track loaders do a lot more than lift and load. Take a look at the wide array of attachments, you’ll quickly see how the versatility of these machines can make you more productive.

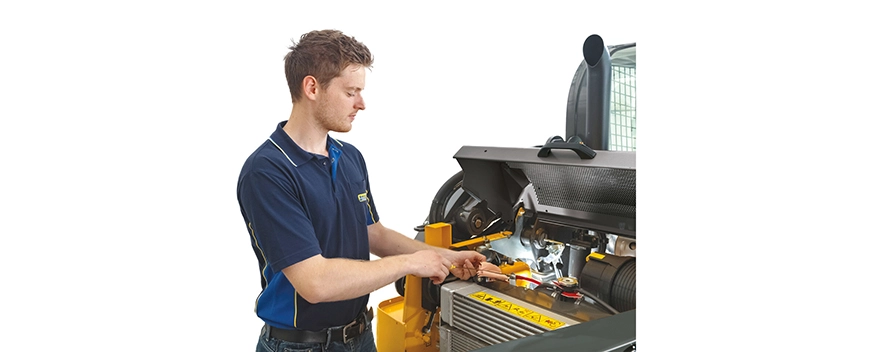

  • EASY ACCESS, SIMPLIFIED SERVICE

    Easy access makes daily service and maintenance that much easier. Consequently, all daily service points are grouped together, and all major service points can be easily reached by flipping the cab forward.
MODELS

Explore available models

TECHNICAL SPECIFICATIONS
300-series-skid-steer-loaders-models

L316

Overall operating height with foundry/excavating bucket short lip in (mm)
141.4 (3591)
Overall operating height with low profile/standard lip bucket in (mm)
146.9 (3732)
300-series-skid-steer-loaders-models

L321

Overall operating height with foundry/excavating bucket short lip in (mm)
154.3 (3920)
Overall operating height with low profile/standard lip bucket in (mm)
158.3 (4050)
300-series-skid-steer-loaders-models

L318

Overall operating height with foundry/excavating bucket short lip in (mm)
150.4 (3820)
Overall operating height with low profile/standard lip bucket in (mm)
154.6 (3927)
300-series-skid-steer-loaders-models

L320

Overall operating height with foundry/excavating bucket short lip in (mm)
151.4 (3845)
Overall operating height with low profile/standard lip bucket in (mm)
155.6 (3952)
300-series-skid-steer-loaders-models

L328

Overall operating height with foundry/excavating bucket short lip in (mm)
159.7 (4056)
Overall operating height with low profile/standard lip bucket in (mm)
163.7 (4159)
300-series-skid-steer-loaders-models

L334

Overall operating height with foundry/excavating bucket short lip in (mm)
161.3 (4096)
Overall operating height with low profile/standard lip bucket in (mm)
165.3 (4199)

Technical specifications

Overall operating height

Overall operating height with foundry/excavating bucket short lip in (mm)
Overall operating height with low profile/standard lip bucket in (mm)
Overall operating height with low profile extended/long lip bucket in (mm)

Height to

Overall length

Dump

Maximum attachment rollback

Wheelbase and clearance

Clearance circle

Engine

Engine speeds

Horsepower per SAE J1349

Drive pump mechanical

Drive pump electro hydraulic

Drive motors

Travel speed with spec tires

Drive chain

Axles

Parking brake

Pumps

Loader control valve

Lift cylinder

Bucket cylinders

Weights

Service Capacities

Hydraulic system

Rated operating load

Breakout forces

Cycle times

Lift Style

– Not applicable
* 50% of tipping load
** max values, according priority to flow or pressure
