T3F
THE NEW LIGHTWEIGHT COMPACT TRACTOR FOR PROFESSIONAL FRUIT GROWERS

T3F

white dots

POWERFUL AND COMPACT Powered by lively three-cylinder turbocharged and inter-cooled engines, with the flagship T3.75F model producing 72hp, the T3F tractor series offers unrivalled performance in a compact package.

SPECIALIST VERSATILITY Few specialist tractors can match the all-round versatility of a T3F tractor.

PRODUCTIVE COMFORT Class leading ergonomics define this tractor.

HYDRAULIC SUPERIORITY The T3F is well equipped in terms of hydraulics, boasting a lift capacity of 2277kg, aided by two external lift rams, and a separate pump for hydraulics and for steering.

T3F

THE NEW LIGHTWEIGHT COMPACT TRACTOR FOR PROFESSIONAL FRUIT GROWERS.

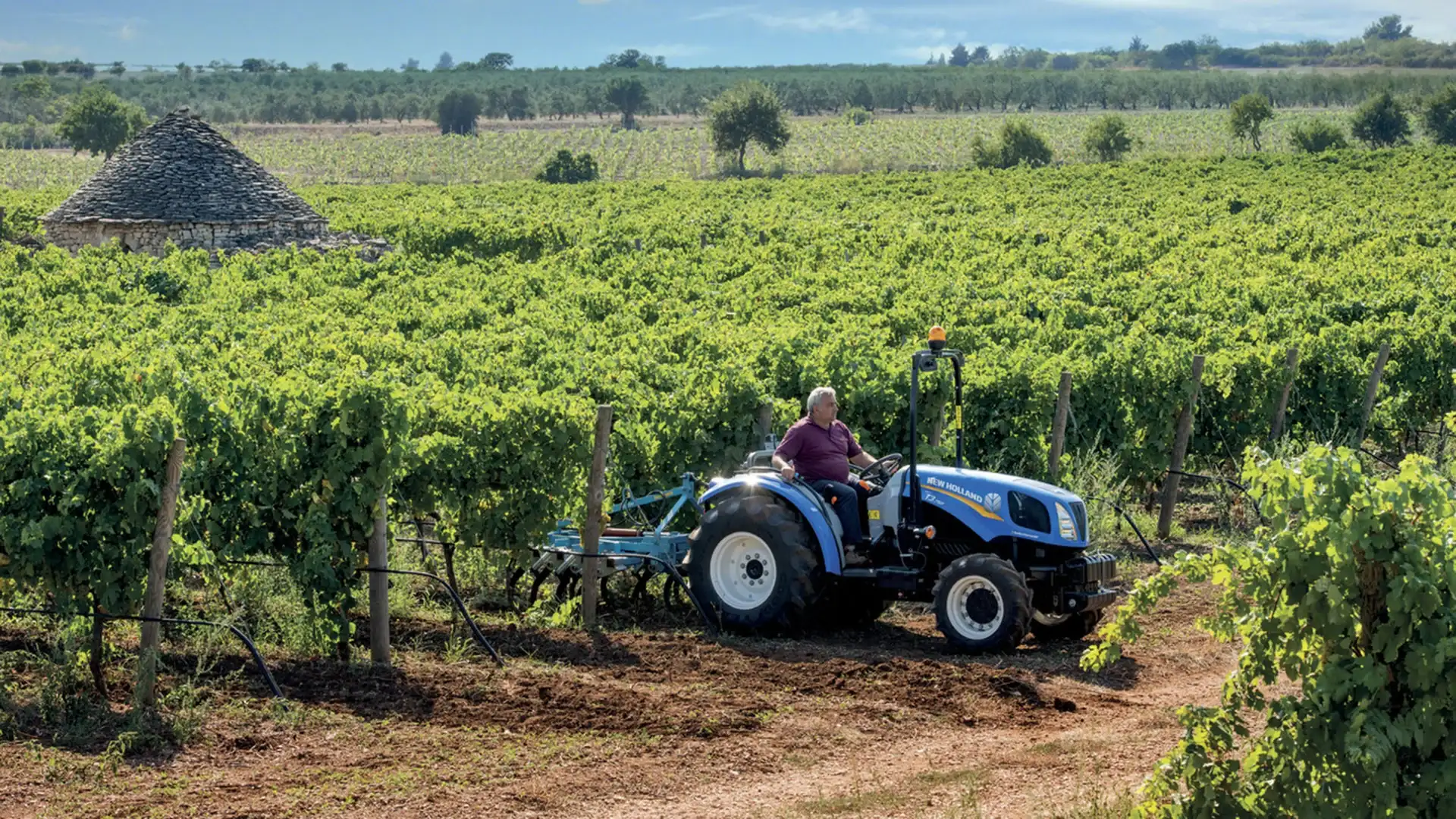

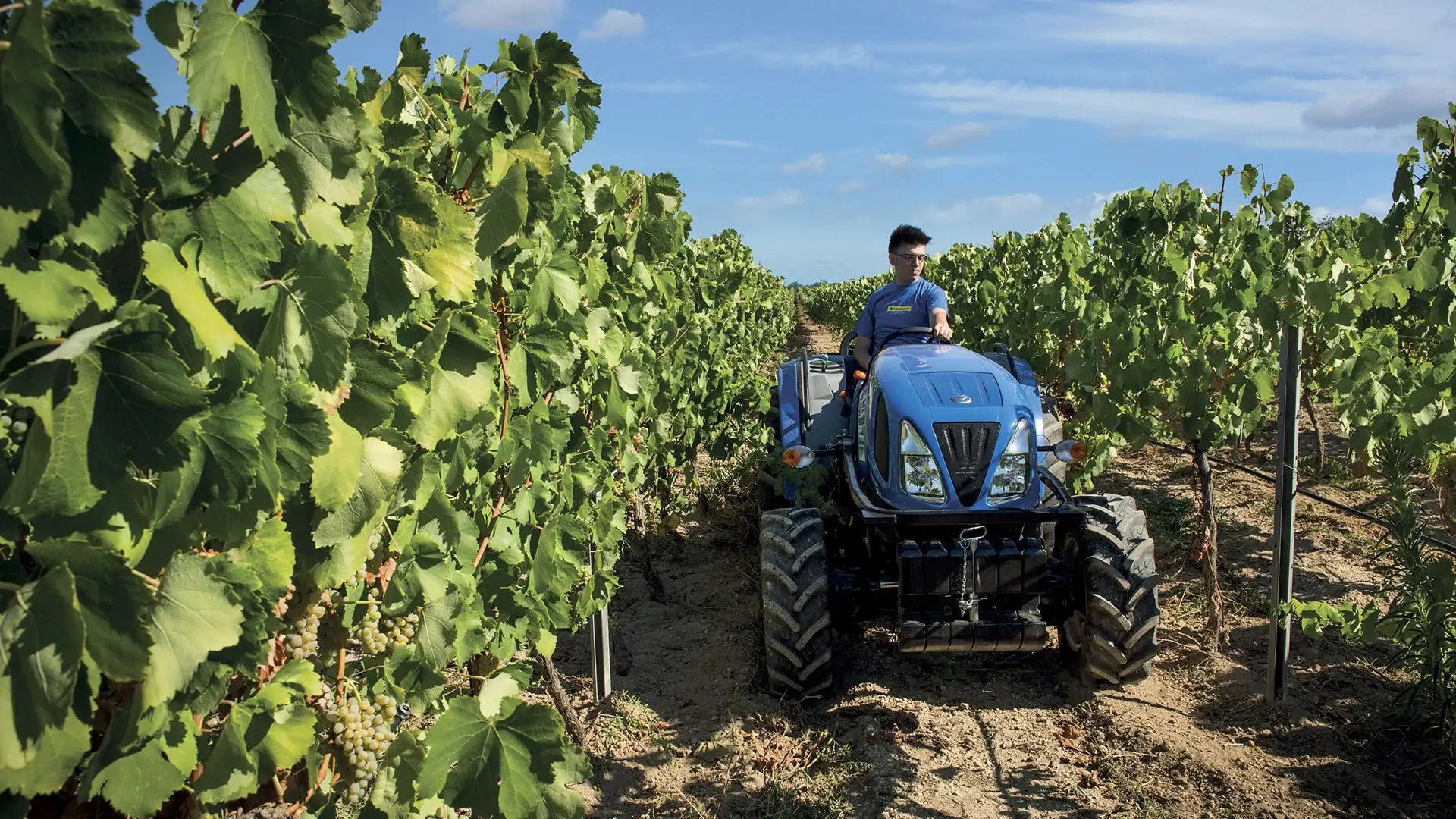

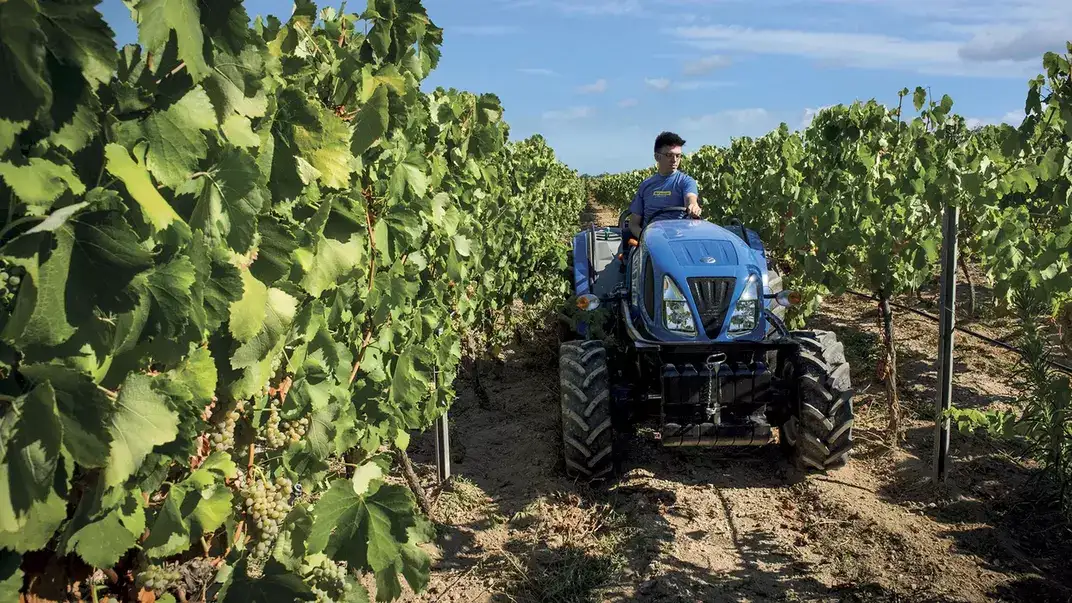

New Holland has a long tradition of excellence and consolidated leadership in the production of specialised orchard tractors. Designed and built to meet the needs of professional fruit growers seeking a compact machine offering exceptional performance in the power range from 50 to 72hp, the new T3F Series tractors can move with ease between rows, offering excellent performance for spraying, cultivation and road transport. In addition, these machines continue the New Holland tradition of ergonomic excellence, by providing the operator with a comfortable working environment with simple and intuitive controls. In the field of compact orchard tractors, there’s only space for New Holland between your rows.
DISCOVER MORE
T3F

Features

  • t3f-engine-01a

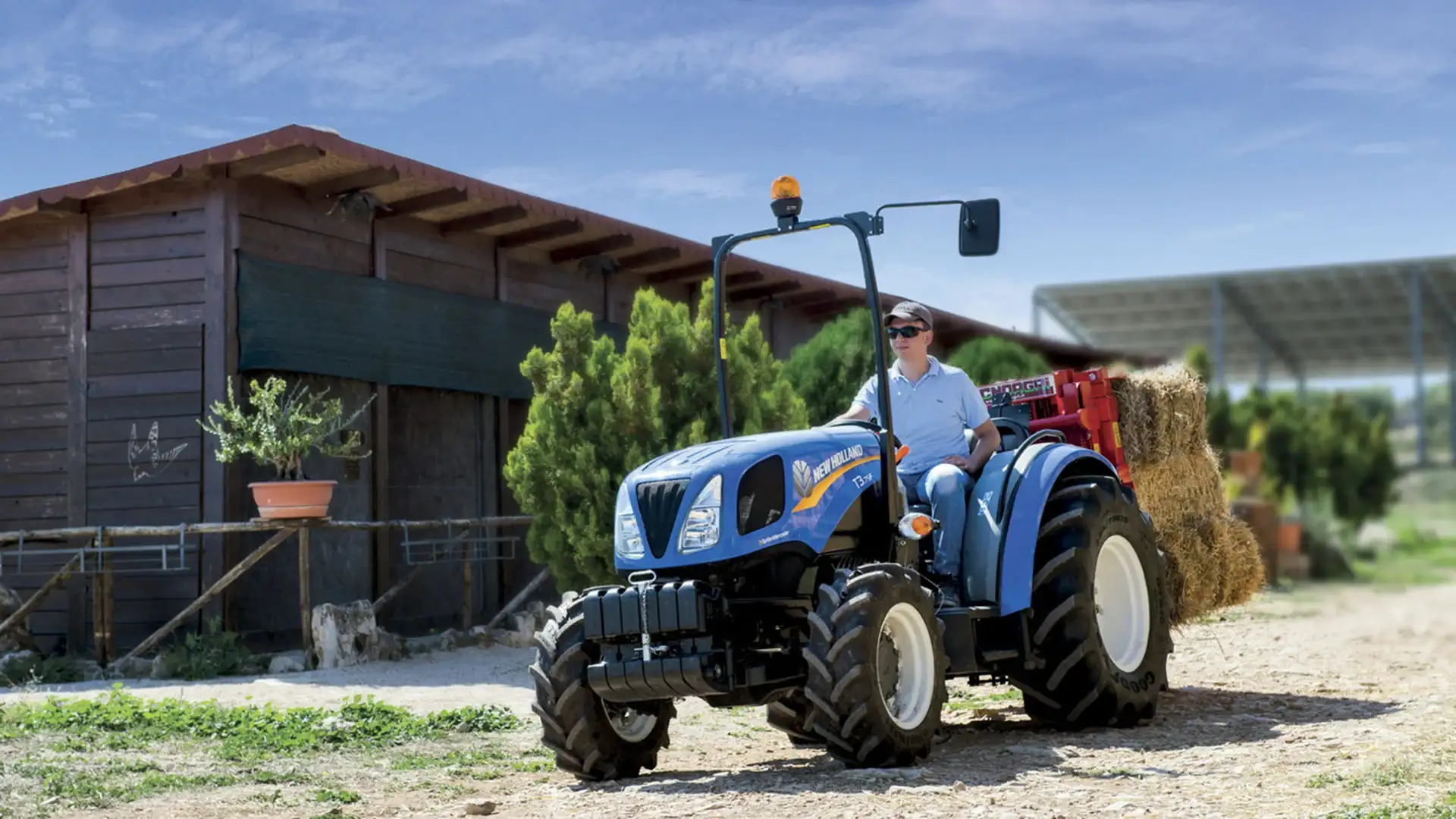

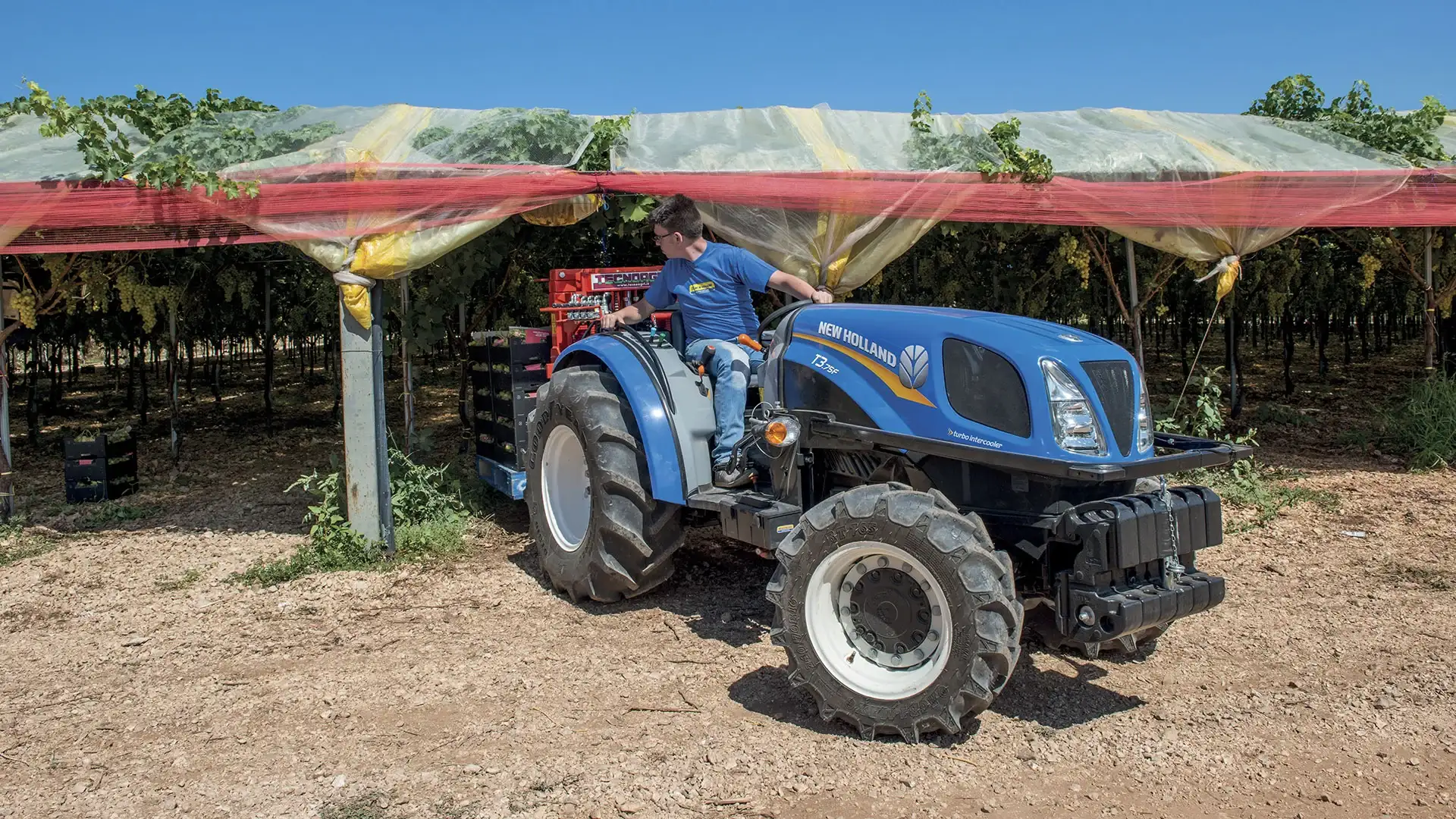

    CLEAN PERFORMANCE. RESPONSIVE PRODUCTIVITY

    All models of the new T3F series are equipped with FPT Industrial S8000 turbocharged and intercooled engines with rated power of 50, 55, 65 and 72hp at 2300rpm. These tough and well proven power units demonstrate impressive performance, delivering peak torque at low rpm, while being simple and cost effective to maintain. Compact and responsive, these primarily mechanical 2,9 litres, 3-cylinder engines are in compliance with Tier 3A emissions legislation, produce low noise and vibration levels, are compatible with 100% biodiesel blend, and provide excellent fuel economy.
  • FLEXIBLE TRANSMISSIONS FOR EVERY NEED

    FLEXIBLE TRANSMISSIONS FOR EVERY NEED

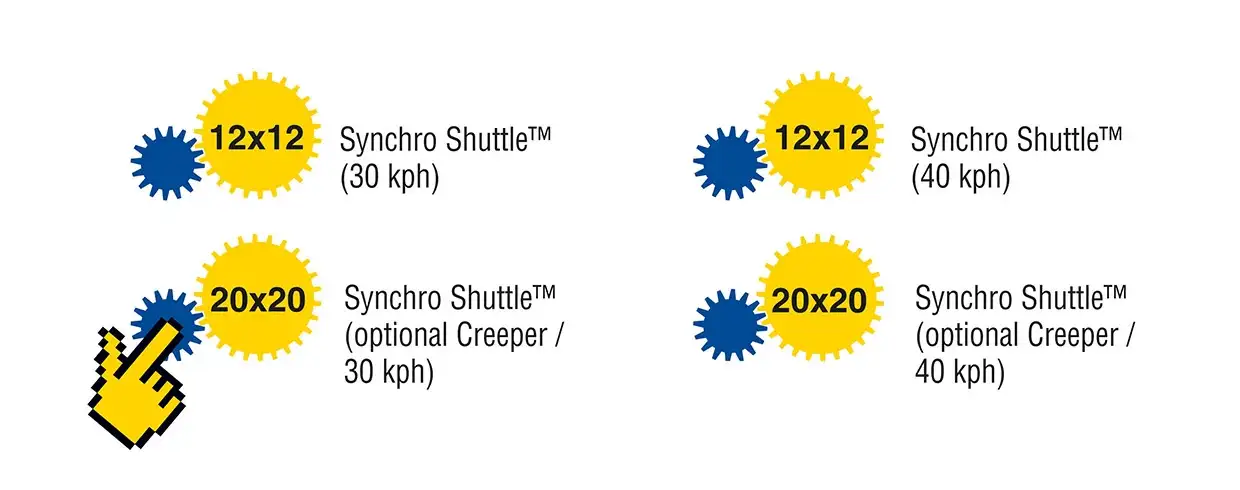

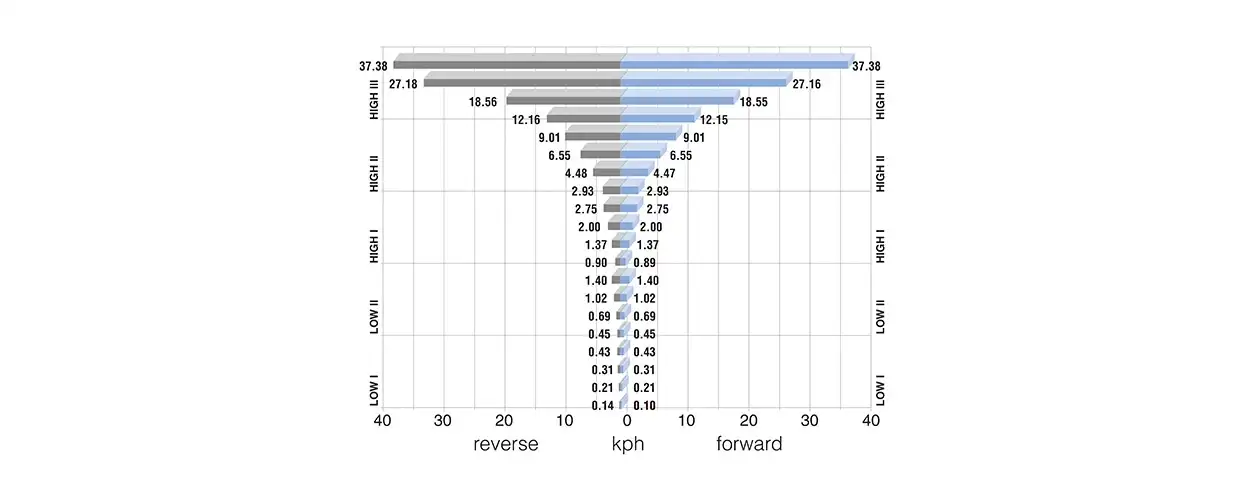

    The result of a painstaking study into customers’ needs, the Synchro Shuttle™ transmission is available in 12x12 versions at up to 30 or 40kph and 20x20 up to 40kph with creeper. Thanks to the inching speeds of the creeper, the new T3F can proceed at just 0.10kph, ideal, for example, for specialist planting applications. For intensive PTO applications, forward speeds as low as 0.2kph can be achieved.
    DISCOVER MORE
  • t3f-operator-environment-01a

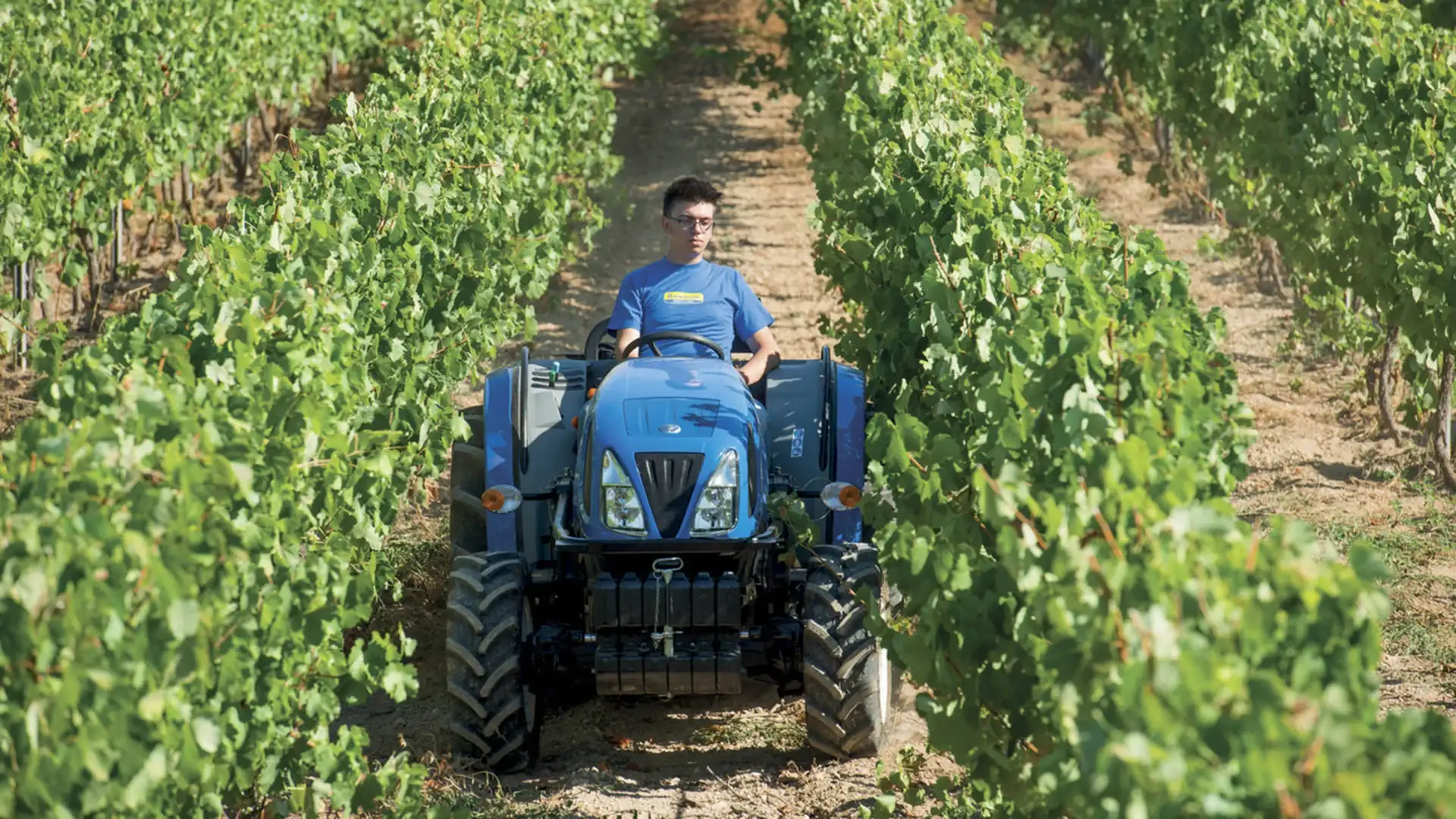

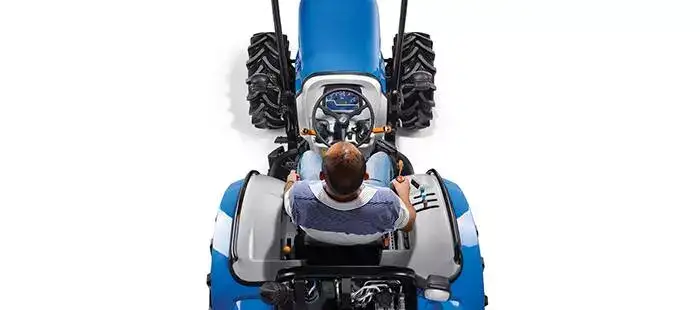

    THE LAST WORD IN ERGONOMICS AND OPERATOR COMFORT

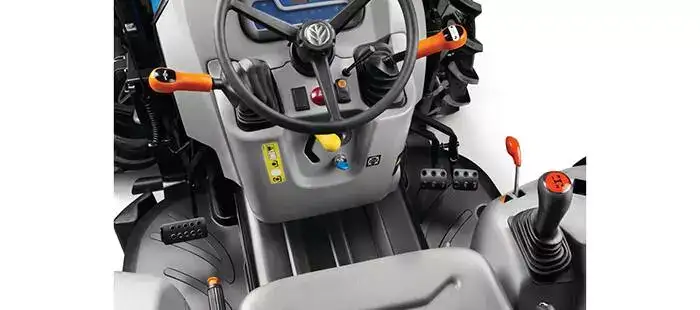

    The suspended platform of the new T3F machines assures perfect noise and vibration isolation, and supports an operator environment featuring unbeatable comfort, ergonomics and ease of use. From the generously sized adjustable seat the operator enjoys perfect visibility on all sides of the machine and a clear view of the implements. All controls are positioned logically and within easy reach. The clear and intuitive instrument panel provides key information concerning the main operating parameters at a glance. The practical shuttle lever allows smooth direction changes. Everything is designed to reduce fatigue, maximise workrates and boost productivity. Typically New Holland.
    DISCOVER MORE
  • t3f-hydraulics-01

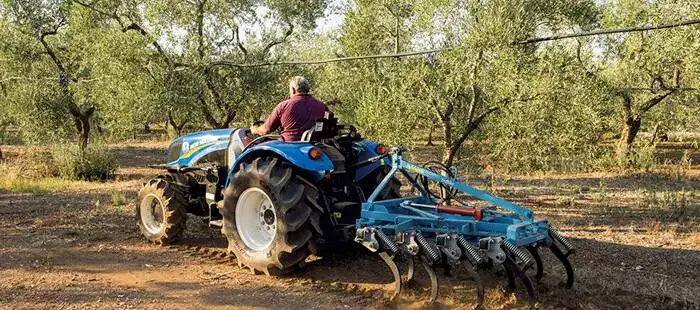

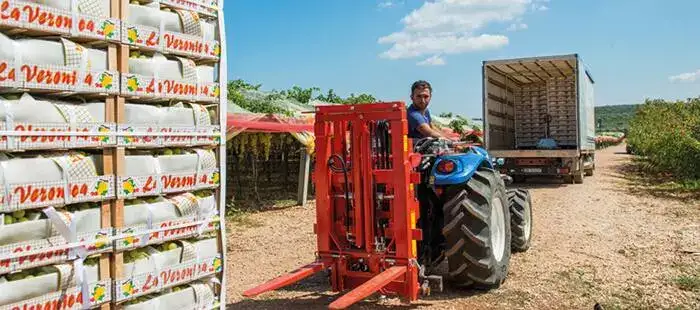

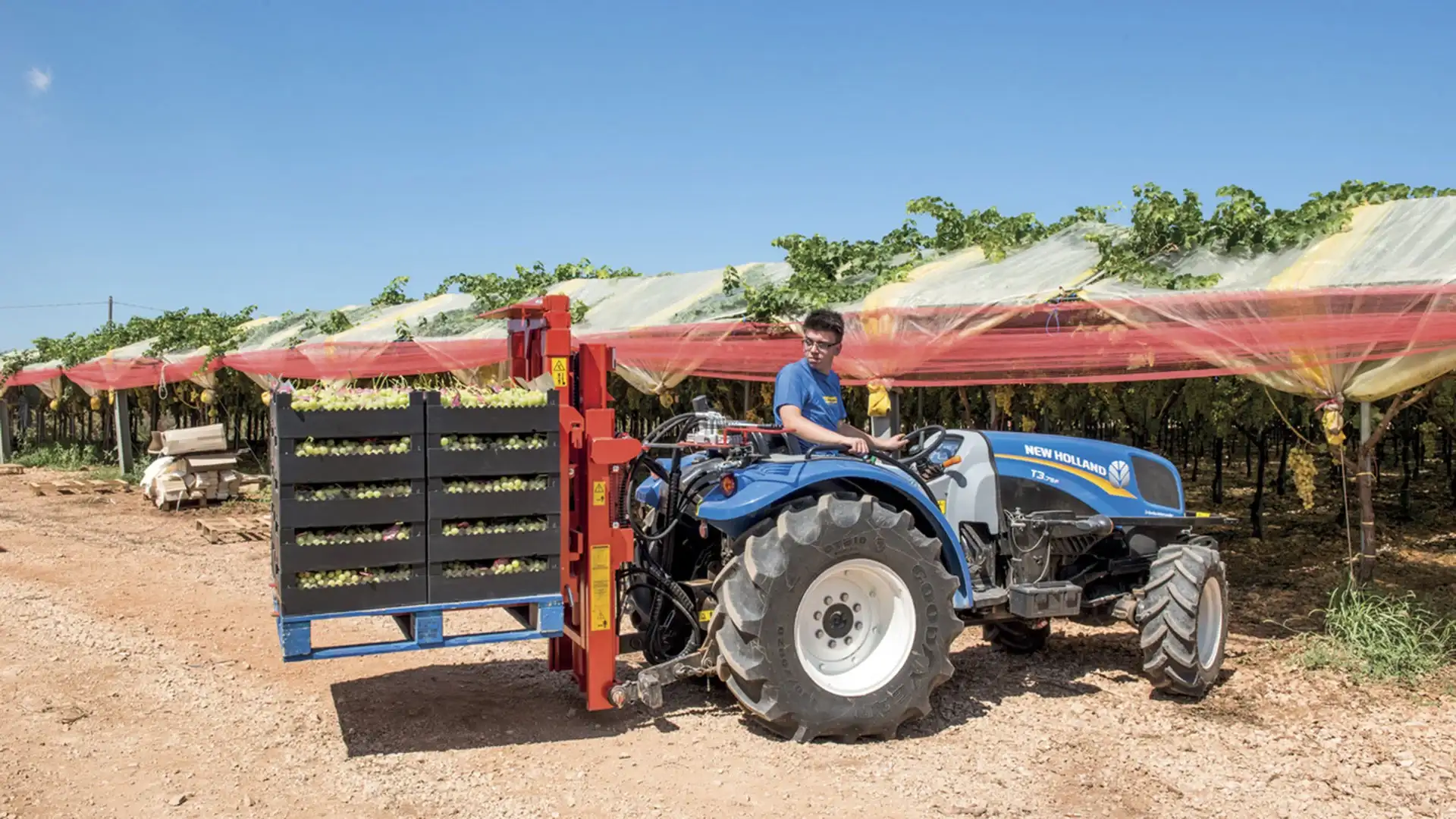

    COMPACT DIMENSIONS, EXCEPTIONAL FEATURES, PREMIUM PERFORMANCE

    Lighter and shorter than the award winning specialised T4000F/N/V series tractors, the new T3F machines are on a par with their “big brothers” in terms of features. Hydraulic rear hitch with two external hydraulic rams, lift capacity of up to 2277kg and Lift-O-Matic™ system supplied as standard. Two separate pumps for the hydraulic circuit and steering. Up to 3 remote valves. Servo-assisted PTO with up to 3 speeds.
    DISCOVER MORE
  • t3f-pto-01

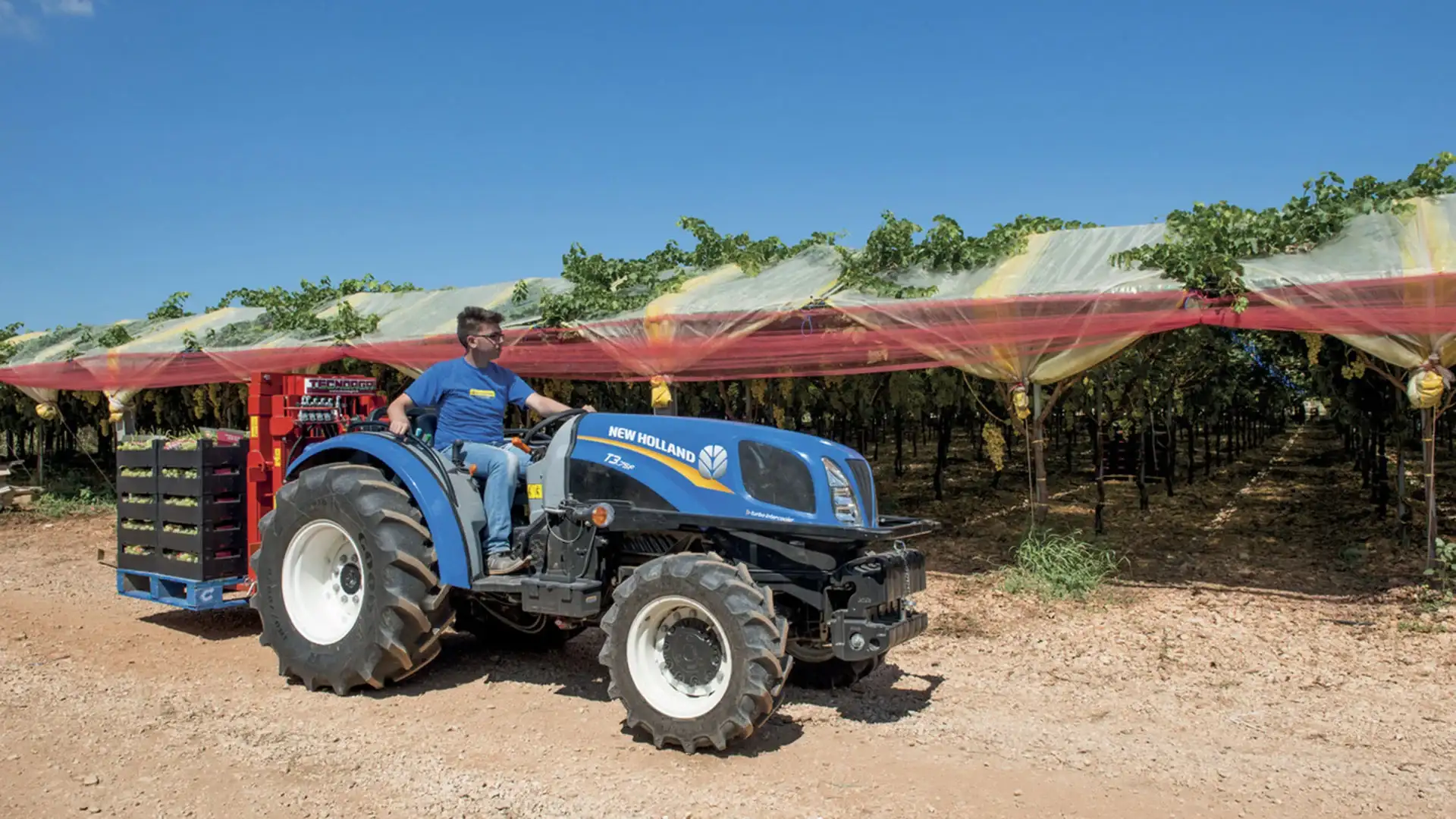

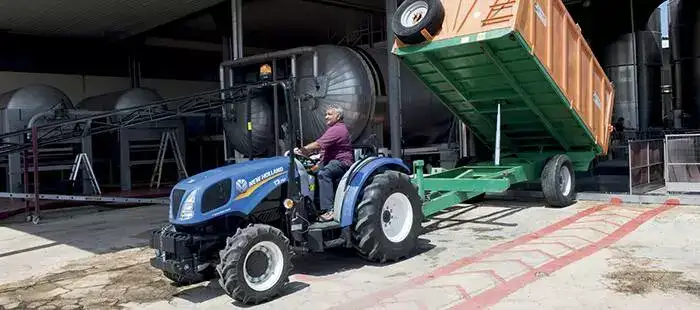

    WIDE CHOICE OF PTO SPEEDS

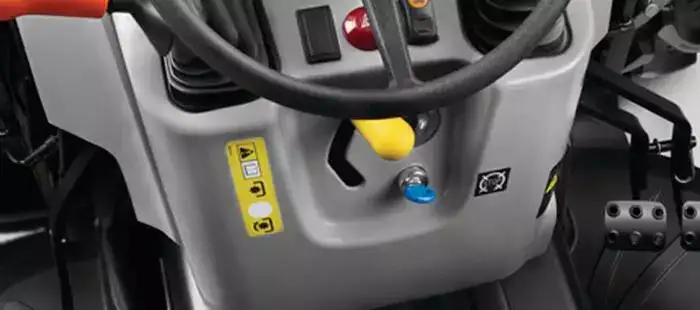

    All T3F models are equipped as standard with two PTO speeds: 540 and 540E. A 3-speed version; 540, 540E and proportional groundspeed is available as an option. The speed selector is located on the console. PTO engagement is controlled by a servo-assisted lever that reduces the operating pressure required to engage the clutch, making it a simple task to manually modulate power fed to the implement.

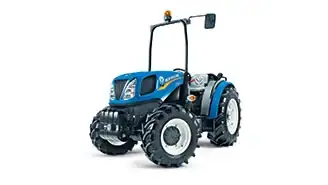

MODELS

Explore available models

TECHNICAL SPECIFICATIONS

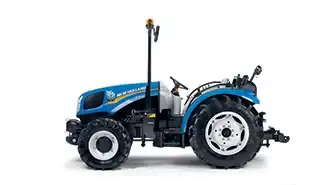

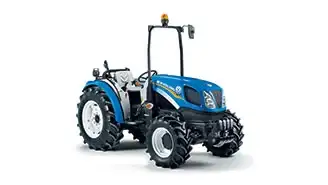

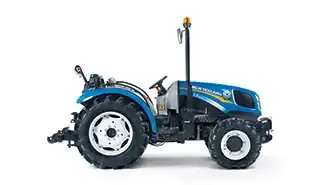

T3.50F

T3.50F

Rated engine power ISO TR14396 - ECE R120 [kW/hp(CV)]
36.8/50
12x12 30 kph – Mech Shuttle
Standard
T3.55F

T3.55F

Rated engine power ISO TR14396 - ECE R120 [kW/hp(CV)]
40.4/55
12x12 30 kph – Mech Shuttle
Standard
T3.65F

T3.65F

Rated engine power ISO TR14396 - ECE R120 [kW/hp(CV)]
47.8/65
12x12 30 kph – Mech Shuttle
Standard
T3.75F

T3.75F

Rated engine power ISO TR14396 - ECE R120 [kW/hp(CV)]
53/72
12x12 30 kph – Mech Shuttle
Standard

Technical specifications

New Holland Engine

New Holland Engine
N. of cylinders / Valves
Emissions level
Capacity (cm³)
Air Intake
Intercooler
Approved biodiesel blend
Rated engine power ISO TR14396 - ECE R120 [kW/hp(CV)]
Rated engine speed (rpm)
Max. torque - ISO TR14396 (Nm)
Torque rise (%)
Horizontal exhaust
EGR system for internal exhaust gas recirculation
Cooling
Optimal fuel consumption (g/kWh)
Standard diesel tank capacity (Litres)

Gearbox

Front axle

Hydraulics

PTO

Operator environment

Weights*

Dimensions*

* with 200/70R16 - 320/70R20 tyres
