COMPACT WHEEL LOADERS
LOADS BETTER

COMPACT WHEEL LOADERS

white dots

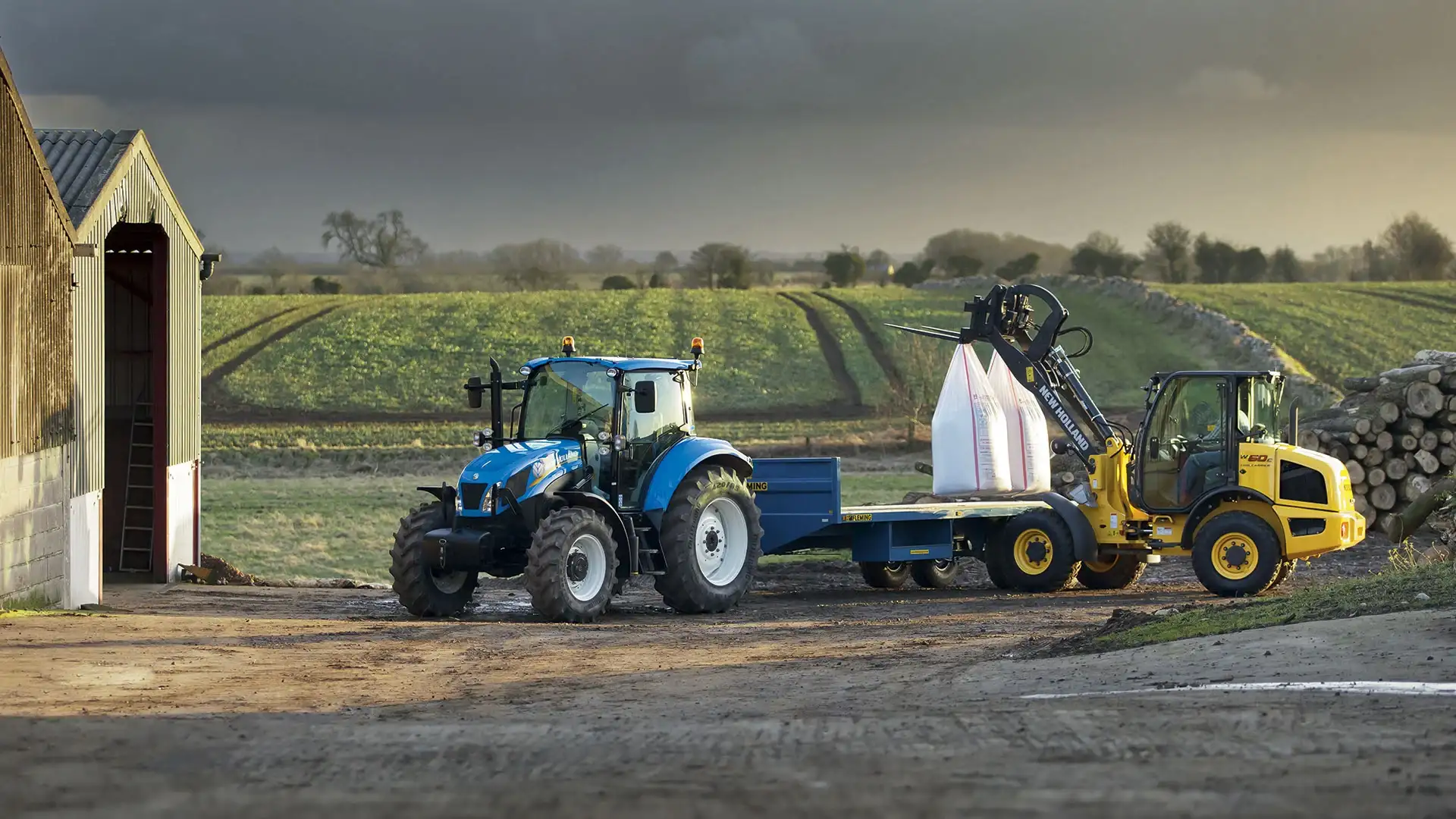

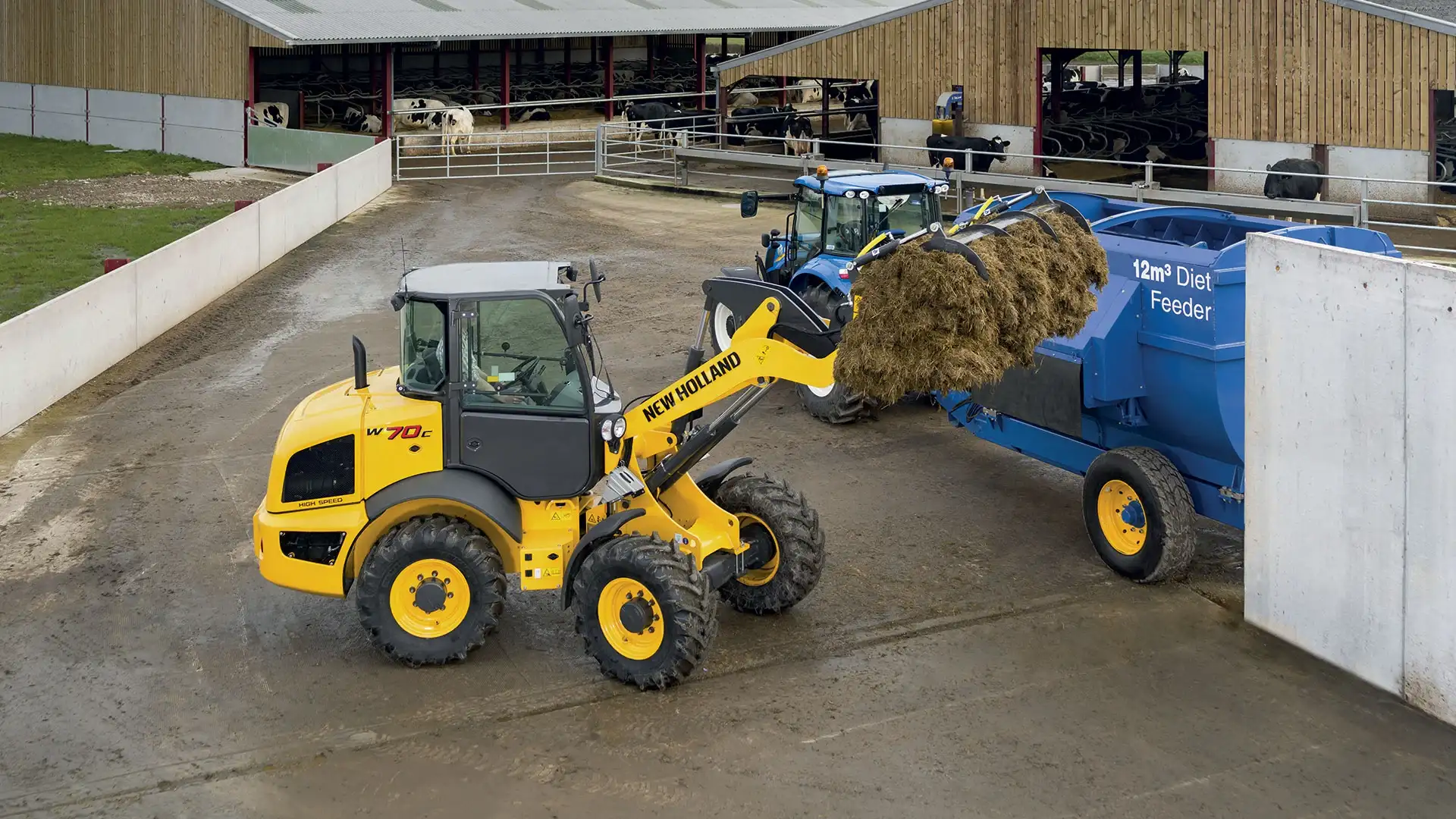

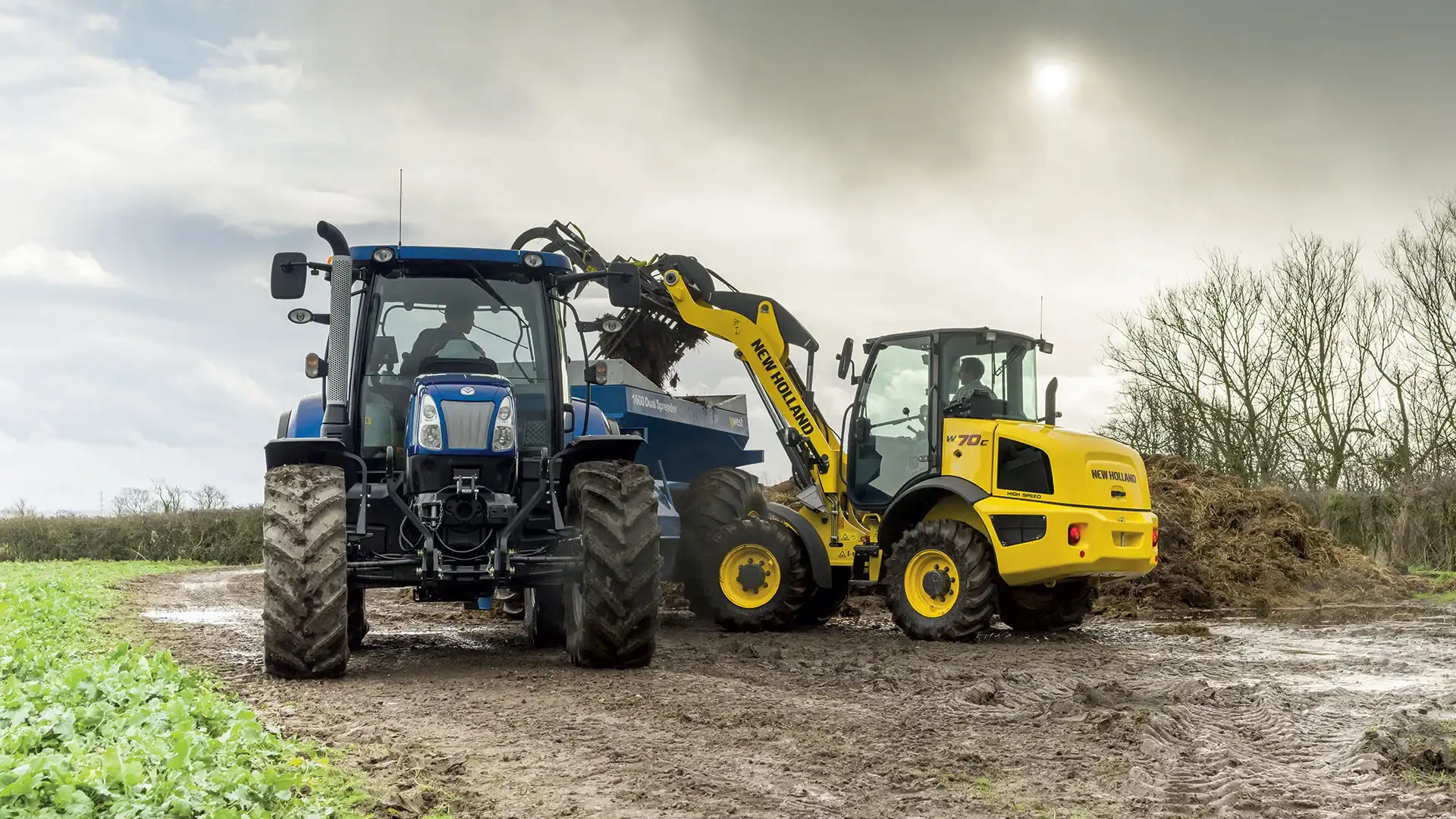

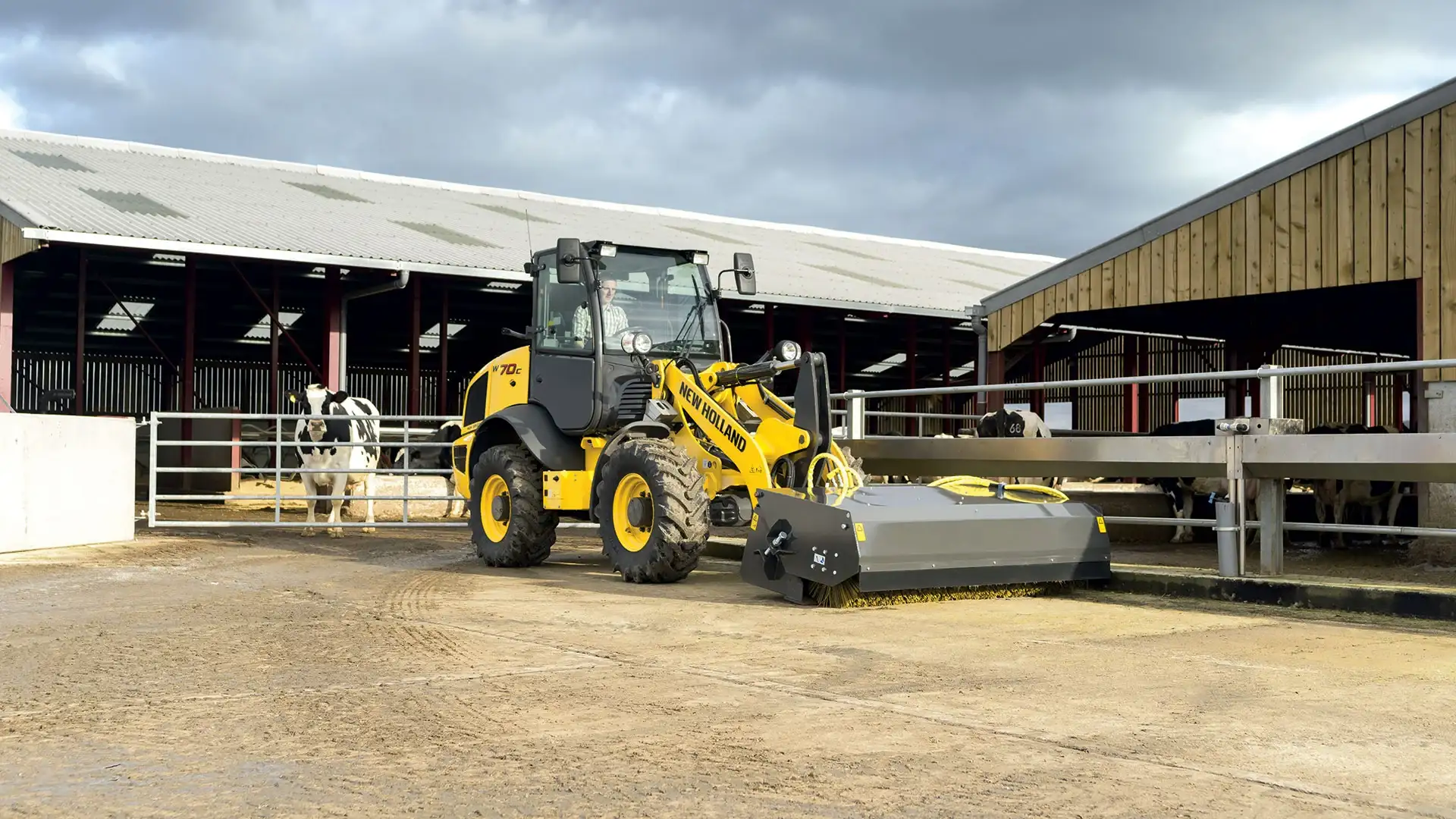

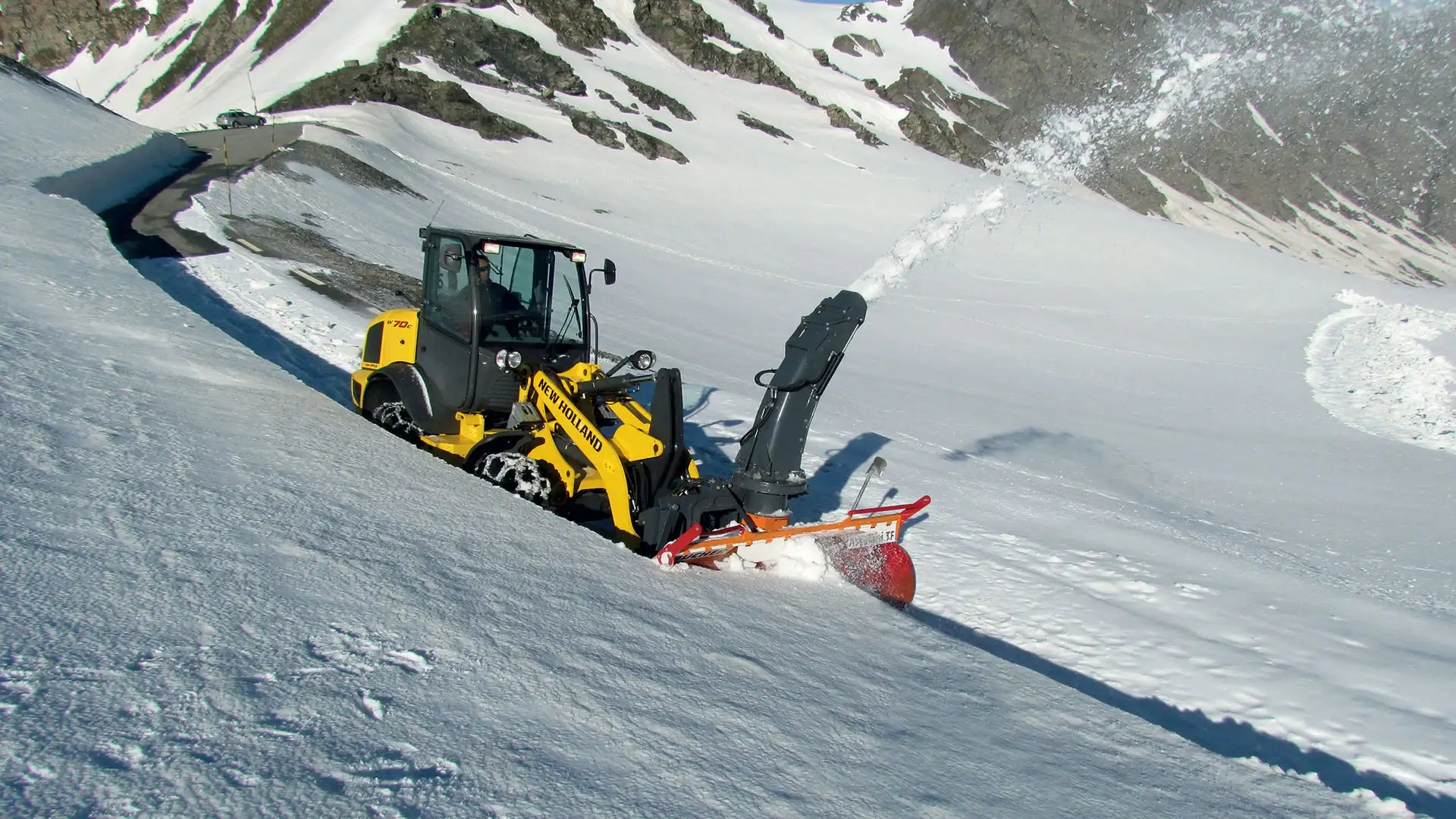

Versatile and compact, New Holland’s C Series range of compact wheeled loaders are totally new in design, and offer a fresh alternative to the traditional farm materials handling solutions. The four model articulated steer range, with power outputs of 58hp(CV) - 75hp(CV), and operating capacities of 1.9t - 2.5t to a height of 3.1m - 3.4m respectively, offer high performance in a very agile package.

COMPACT WHEEL LOADERS

MAXIMUM VERSATILITY

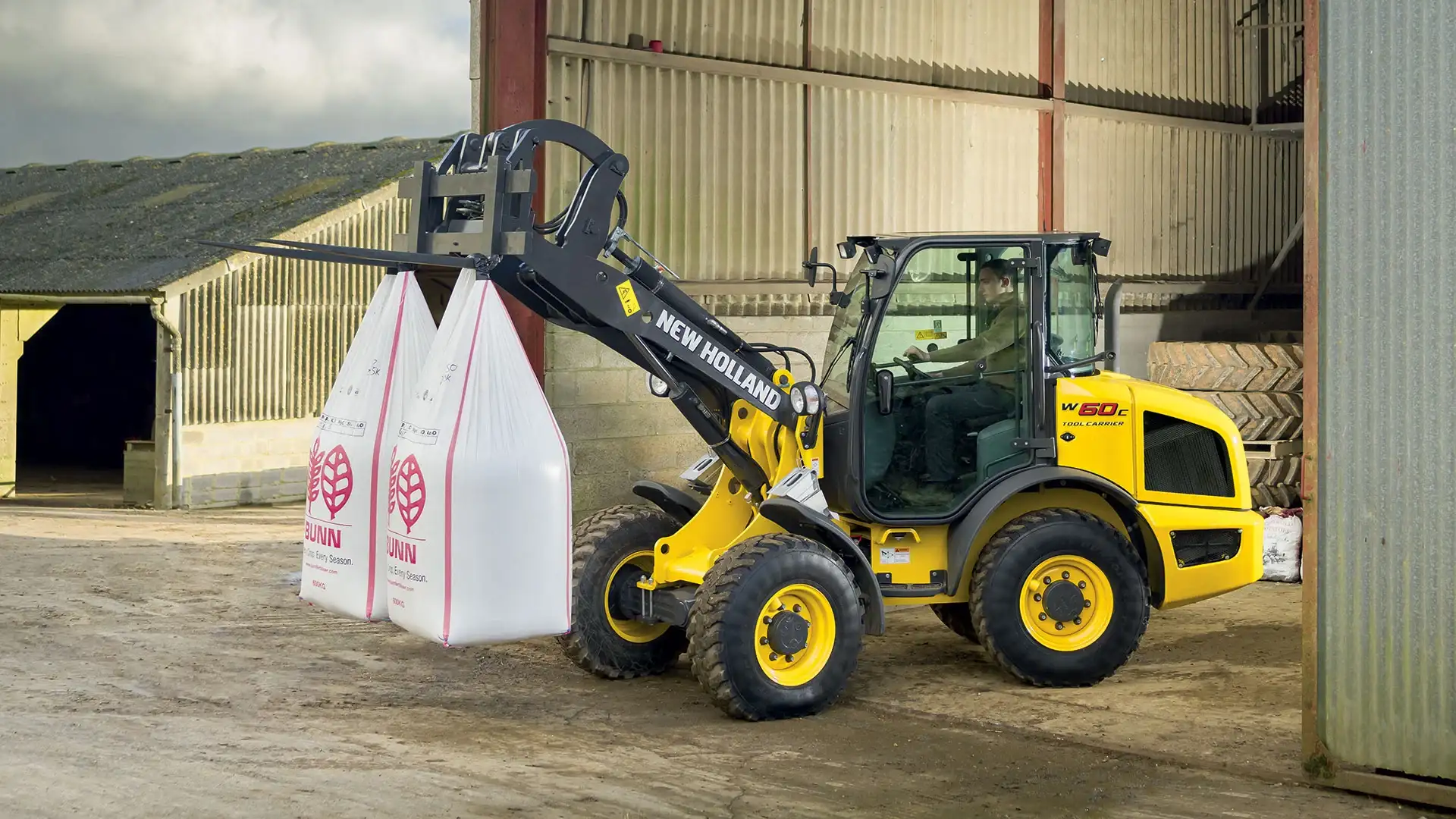

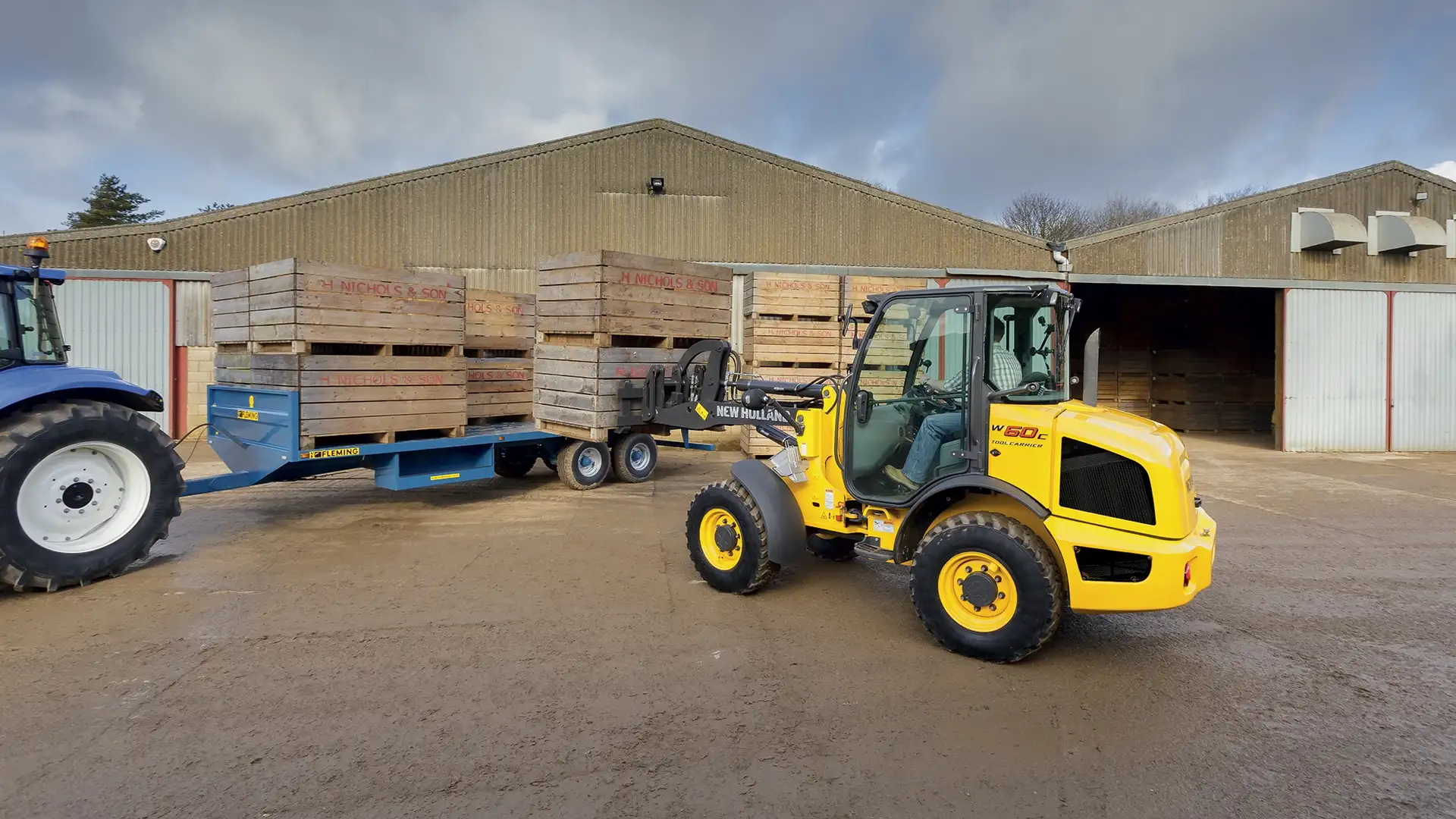

Only on the W50C and W60C models two choices of linkage are available, either the Z-bar linkage or the TC linkage. Z-bar offers more breakout force thanks to the two lifting cylinders and a higher dump height. TC (Tool Carrier) is the best linkage choice for regular pallet or box handling. Visibility on the pallet forks is superior and the payload is marginally higher.
DISCOVER MORE
MODELS

Explore available models

TECHNICAL SPECIFICATIONS
COMPACT WHEEL LOADERS

W50C Z-BAR

Max. horsepower - ISO TR14396 - ECE R120 [kW/hp(CV)]
43/58
Transmission
4WD Hydrostatic
COMPACT WHEEL LOADERS

W50C TC

Max. horsepower - ISO TR14396 - ECE R120 [kW/hp(CV)]
43/58
Transmission
4WD Hydrostatic
COMPACT WHEEL LOADERS

W60C Z-BAR

Max. horsepower - ISO TR14396 - ECE R120 [kW/hp(CV)]
48/64
Transmission
4WD Hydrostatic
COMPACT WHEEL LOADERS

W60C TC

Max. horsepower - ISO TR14396 - ECE R120 [kW/hp(CV)]
48/64
Transmission
4WD Hydrostatic
COMPACT WHEEL LOADERS

W70C Z-BAR

Max. horsepower - ISO TR14396 - ECE R120 [kW/hp(CV)]
55/75
Transmission
4WD Hydrostatic
COMPACT WHEEL LOADERS

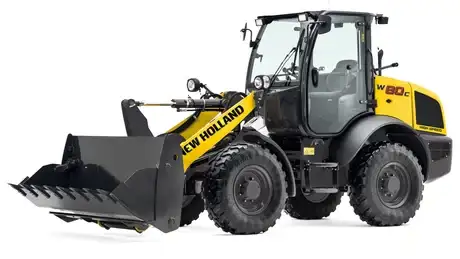

W80C Z-BAR

Max. horsepower - ISO TR14396 - ECE R120 [kW/hp(CV)]
55/75
Transmission
4WD Hydrostatic

Technical specifications

Engine

Engine
No. of cylinders/Aspiration/Valves/Emission level Tier-Stage
Capacity (cm³)
Bore and stroke (mm)
Max. horsepower - ISO TR14396 - ECE R120 [kW/hp(CV)]
Rated engine speed (rpm)
Max. torque (Nm @ rpm)
Diesel capacity (L)

Hydraulics

Transmission

Differential lock

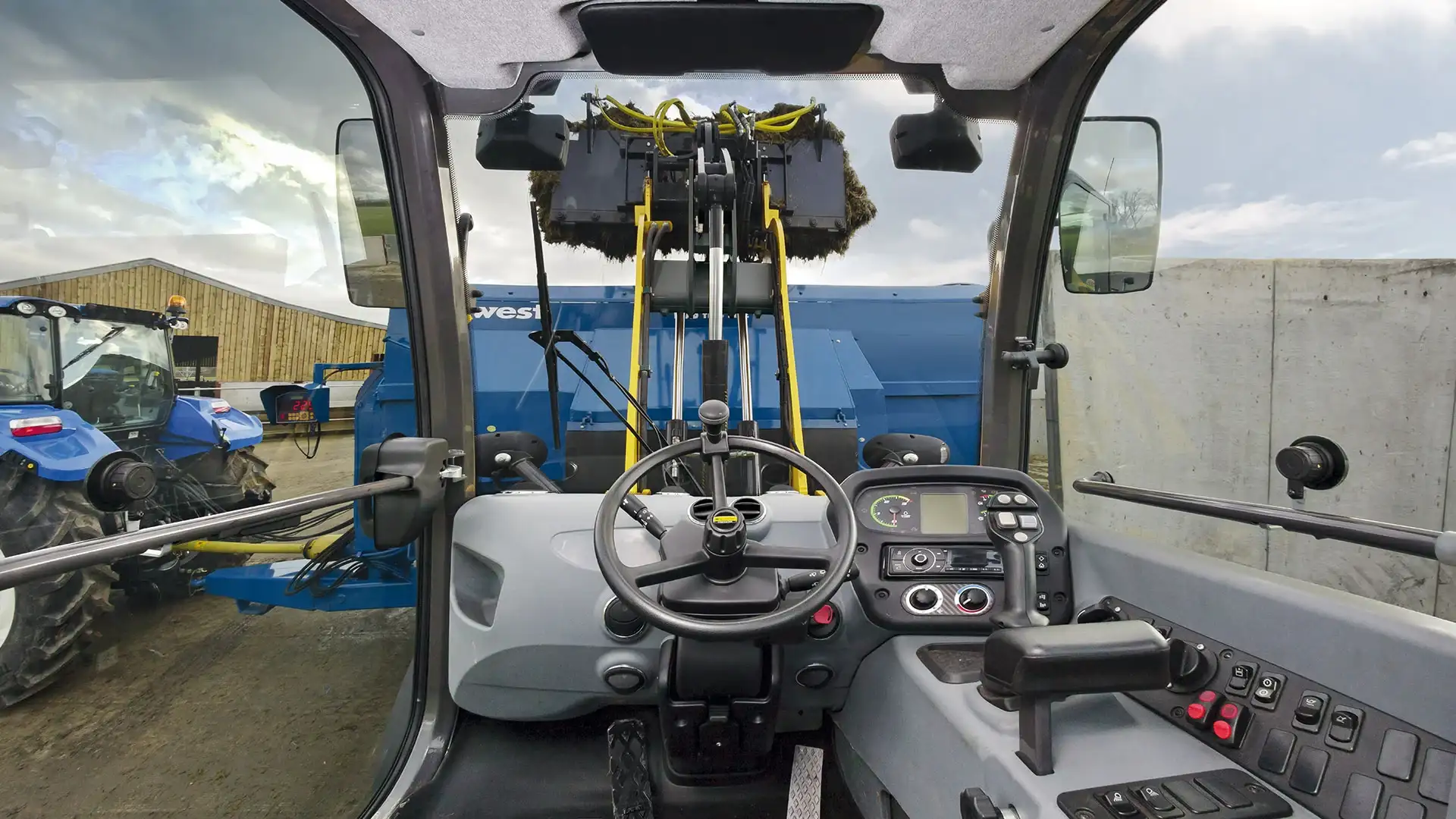

Cab

General dimensions

Specifications with forks

* With pallet forks
