DISCBINE® DISC MOWER-CONDITIONERS
THE DEFINITION OF DISC MOWER-CONDITIONERS

DISCBINE® DISC MOWER-CONDITIONERS

white dots
A CUT ABOVE THE REST: MOWMAX™ II CUTTERBARS Discbine 313 and 316 center-pivot models feature the MowMax II disc cutterbar, a modular cutterbar designed for the rigors of large harvesting operations.
FASTER DRYING WITH WIDE-DRY™ CONDITIONING You’ll harvest crops quickly and produce nutritious, highvalue feed with your choice of three conditioning systems.
FAST, SIMPLE ADJUSTMENT, EASY SERVICEABILITY From the hitch to the swath doors, the Discbine Series 313 and 316 are designed with you in mind.
DISCBINE® DISC MOWER-CONDITIONERS

DISCBINE®: THE DEFINITION OF DISC MOWER-CONDITIONERS

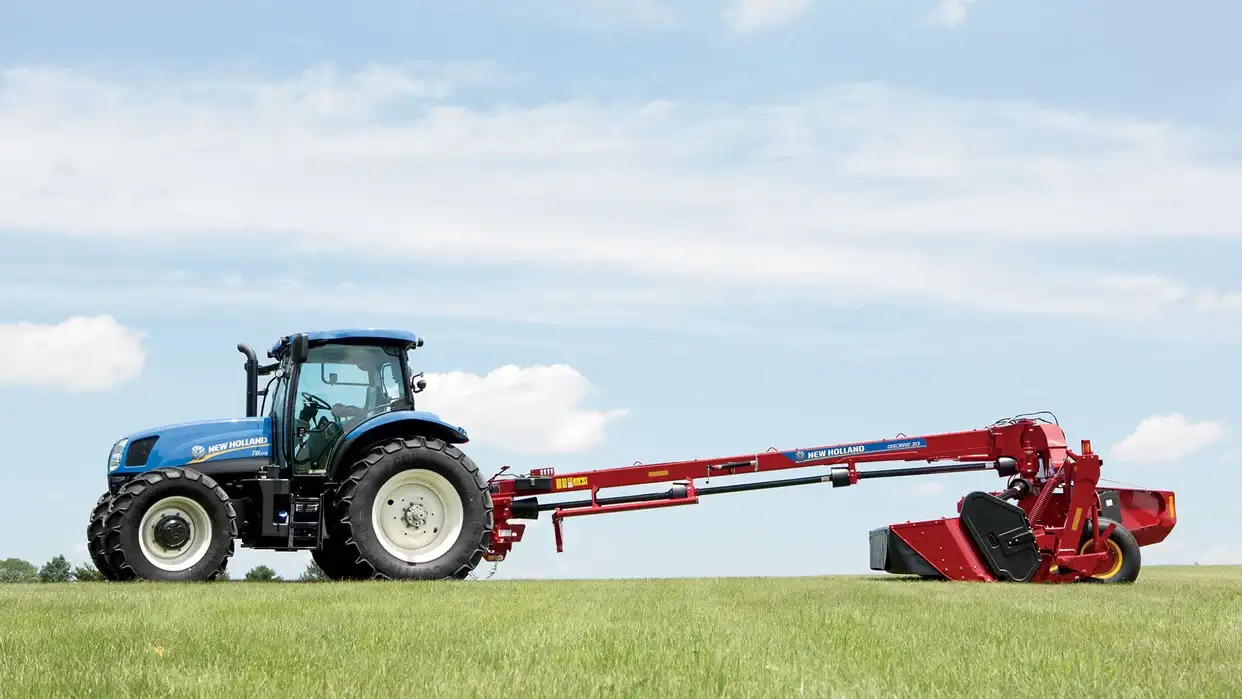

New Holland has always been well-known for its expertise in hay equipment, and the company’s experience and leadership with Discbine® disc mower-conditioners is no exception. In fact, New Holland coined the term “Discbine,” which has become the popular name that’s loosely used to refer to any disc mower-conditioner, regardless of brand. It’s no surprise, because even in tough conditions, a genuine Discbine disc mower-conditioner swiftly turns heavy crop into fast-drying windrows or swaths. The Discbine Series 313 and 316 center-pivot models are perfect examples of New Holland’s Discbine legacy. These are highly productive machines that knock down from 13’ to 16’ of crop per pass, dry crops fast, gently condition, and deliver the reliable performance of rugged modular cutters backed by an exceptional warranty.
DISCOVER MORE
DISCBINE® DISC MOWER-CONDITIONERS

Features

  • MAKE TALL HAYFIELDS LOOK LIKE CLOSE-CUT LAWNS

    Close cutting is standard with the MowMax™ II disc cutterbar. How close? Less than one inch, which can make your tallest hayfields look like close-cut lawns. Want to cut higher? Easily adjust cutting height hydraulically on-the-go from ¾ to 2-¾ inches with standard skid shoes, or set the tilt limiting pin at a preset height you prefer. The large disc design means less stubble damage and provides more consistent stubble height, leaving less valuable crop behind.
    DISCOVER MORE

  • CHEVRON INTERMESHING RUBBER ROLLS

    Gentle chevron rubber intermeshing rolls offer maximum versatility. They provide full-stem crimping and cracking with a scrubbing action, while handling leaves of high-value feeds delicately. They’re the ultimate solution for alfalfa and clover.
    DISCOVER MORE

  • QUICKMAX™ KNIFE-CHANGE SYSTEM SAVES TIME

    Time is precious when you’re making hay, and the patented QuickMax™ system allows you to quickly change damaged knives or flip an entire set so you’re back clean-cutting quickly. Because the QuickMax system allows you to change knives with discs at a 45-degree angle to the cutterbar, you can change knives in just one-half rotation of the cutterbar, saving you time compared to traditional bolted knives and other quickchange systems. New Holland knife-lock technology assures knife retention in the most difficult conditions. Best of all, the system does not require the use of special knives; it works with all approved New Holland knives. The QuickMax knife-change system is now standard equipment on all Discbine models.
    DISCOVER MORE

  • PERFECTLY SHAPED WIDE SWATHS OR WINDROWS TO SUIT YOUR NEEDS

    The full-width swath board and two swath doors allow you to create fast-drying wide swaths, well-shaped, three-foot-wide windrows, or any setting in between. If conditions are right, Wide-Dry conditioners let you choose a fast-drying wide swath or switch quickly to a windrow when conditions change.
    DISCOVER MORE
MODELS

Explore available models

TECHNICAL SPECIFICATIONS
Discbine® 313

Discbine® 313

Cutting width ft. in. (m)
13’ 0” (4.0)
Number of discs
8
Discbine® 316

Discbine® 316

Cutting width ft. in. (m)
16’ 3” (4.95)
Number of discs
10

Technical specifications

Cutterbar

Cutting width ft. in. (m)
Cutterbar model
Type
Number of discs
Knives per disc
Disc speed @ 1000 rpm PTO speed rpm
Tilt angle degrees
Flotation
Drive method
Cutting height in. (mm)
Cutting height w/ opt. high-stubble shoes in. (mm)
Cutting height w/ opt. Biomass shoes in. (mm)
Cutting height w/ opt. adjustable shoes in. (mm)

LeaningEdge Flail Conditioners

Roll Conditioners

Crop Discharge

Driveline

Tongue Options

Tractor Requirements

Tires

Transport Speed

Dimensions

Weights**

*Rear curtain down for all height and length measurements on machines with flail conditioners. Subtract 2” (50.8 mm) for flail curtain up. Windrow shields fully open for length in both positions.
**Weights with rubber conditioning rolls. Add 100 lbs. (45 kg) for steel rolls.
