A NEW BREED OF TRACTORS FOR FUTURE FOCUSED FARMERS

T5 ELECTRO COMMAND - STAGE V

white dots
EXCELLENT EFFICIENCY The T5 Electro Command’s compact dimensions are home to the highly efficient FPT Industrial F5 3.6 Litre engine with ECOBlue™ Compact HI-eSCR 2 technology for Stage V compliance.
OUTSTANDING VERSATILITY The wide frame front loader offers higher stability, even when working with the heaviest loads at maximum extension.

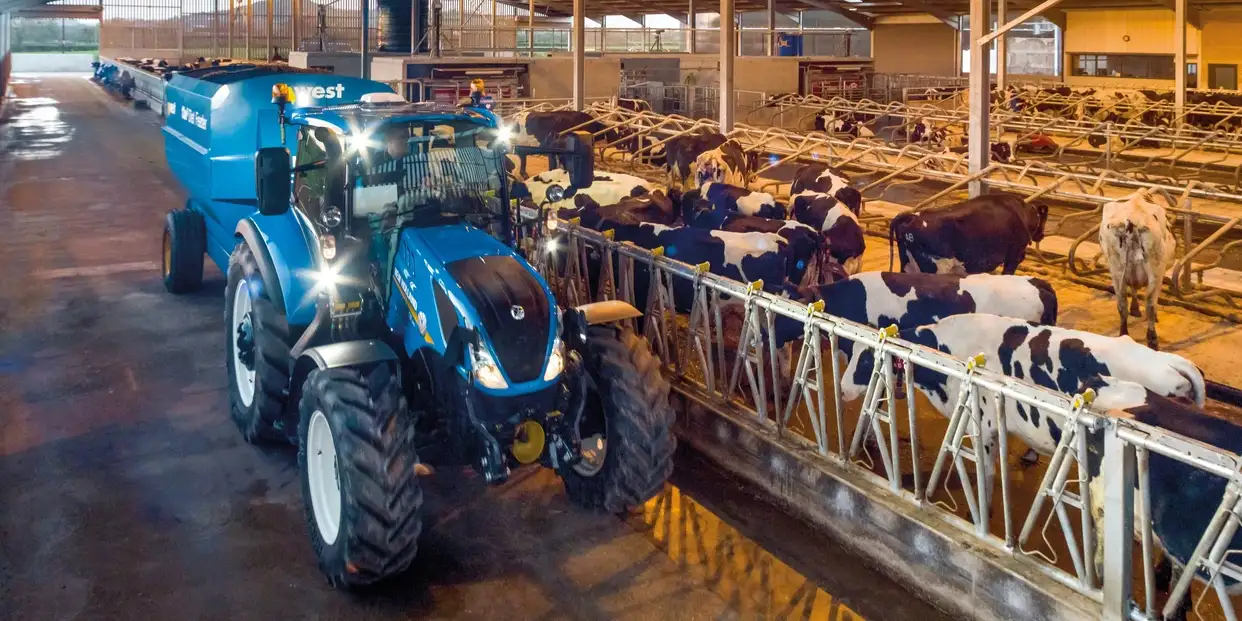

INCREASED PRODUCTIVITY The new LED lighting package turns day into night for true around the clock working.
ULTIMATE COMFORT With the T5 Electro Command range, you can benefit from New Holland’s renowned Terraglide™ front axle suspension, which helps ensure a silky smooth ride on even the roughest terrain.
T5 ELECTRO COMMAND - STAGE V

MULTITASKING BECOMES EASIER

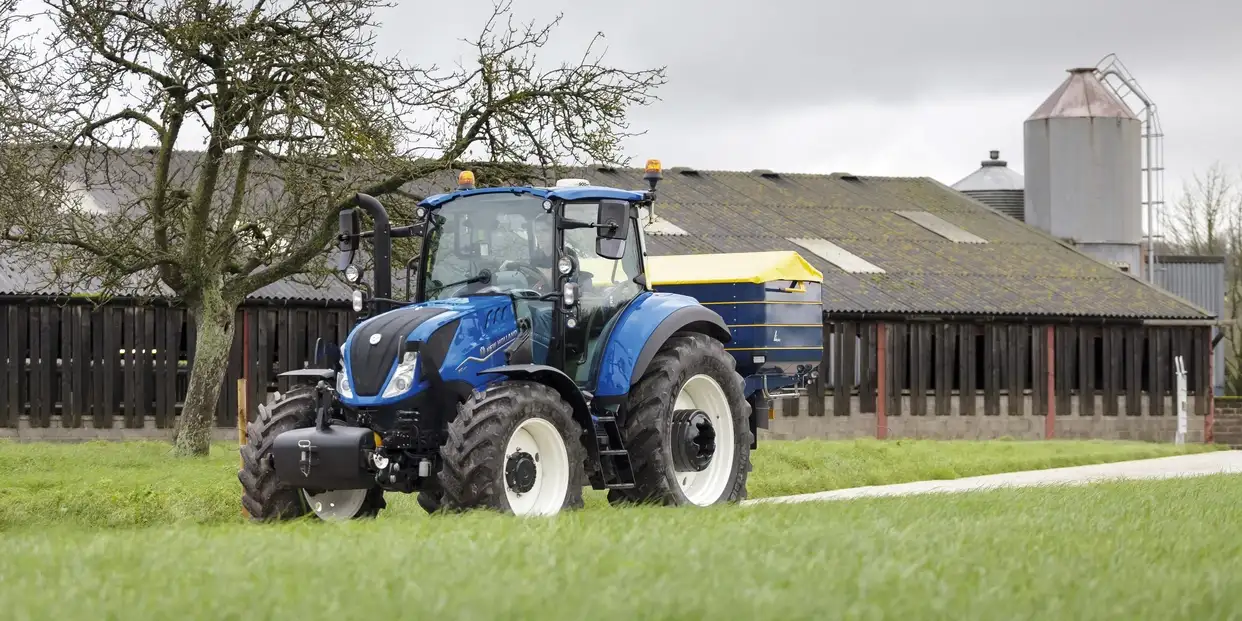

The new T5 Electro Command is helping to define modern livestock, dairy and mixed farming. Its eye catching New Holland styling includes the same design cues you expect in a T6 or T7 tractor. From distinctive cat eye lights, New Holland’s signature LED lights and aggressive fish gill vents in the bonnet, the T5 will get heads turning. The tractor’s overall compact dimensions and high power-to-weight ratio mean the T5 ticks all the right farming boxes.

Features

  • A new breed of tractors for future focused farmers

    The new T5 Electro Command has redefined farming excellence for livestock, dairy and mixed farmers. The new T5 Electro Command is fruit of extensive customer consultation which means you can choose it, safe in the knowledge that it is right for your farm. Why? Because farmers just like you have been involved in its development.
  • A new vision of cab comfort

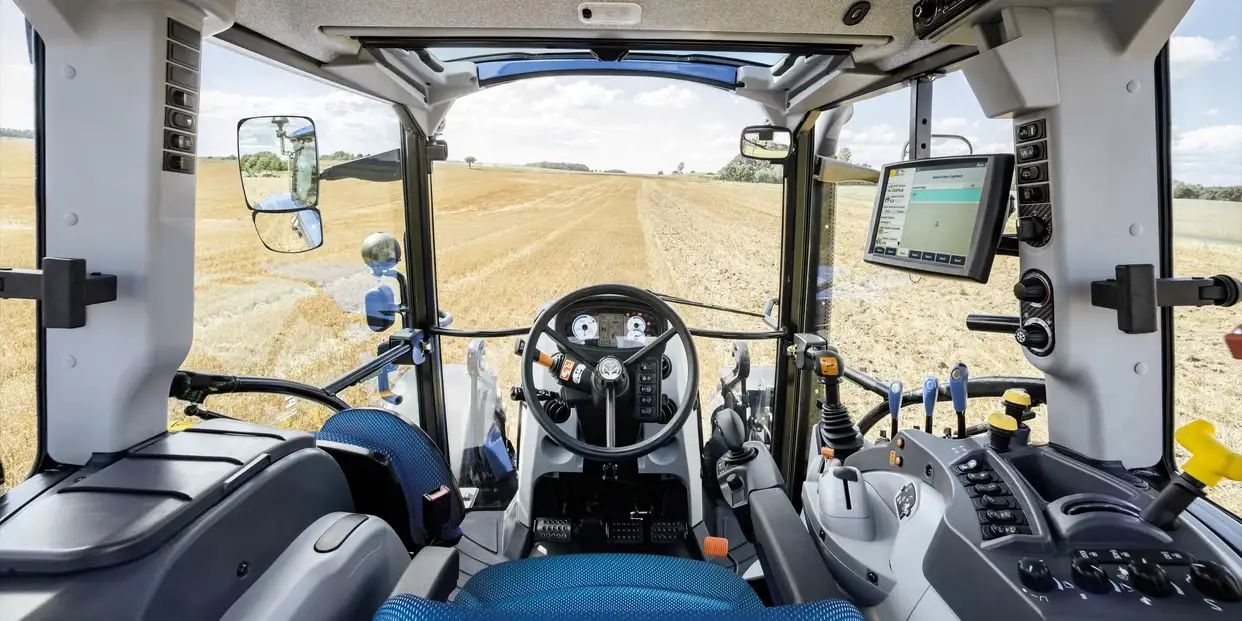

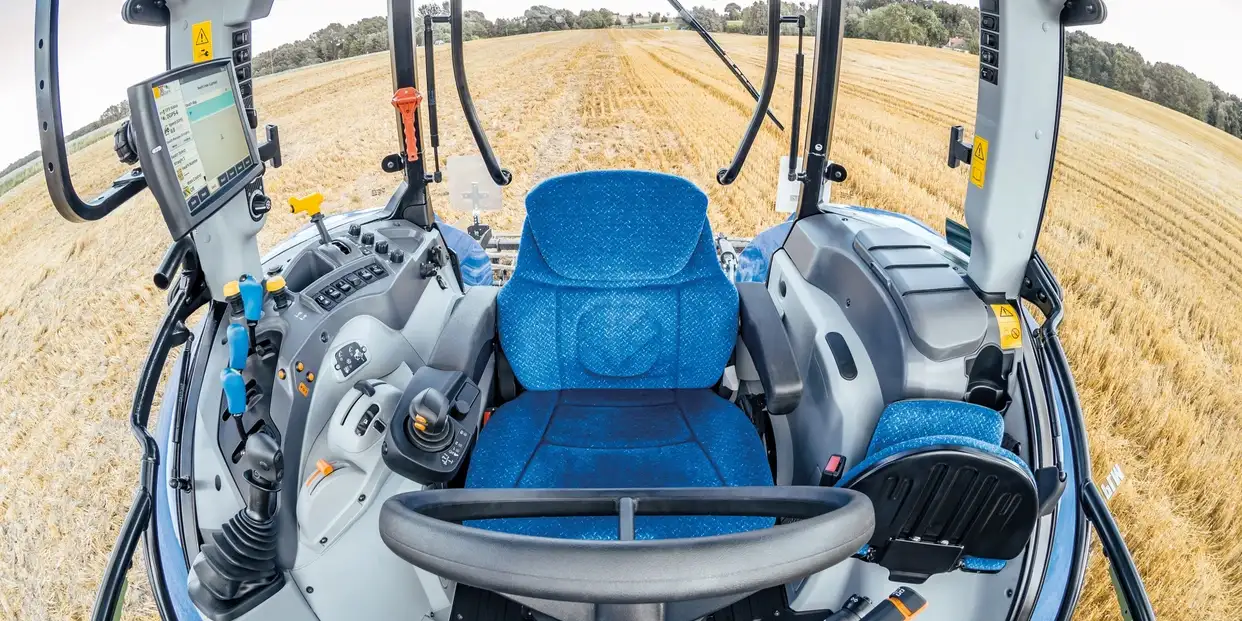

    The deluxe VisionView™ cab has been designed around you for the ultimate operator experience. Panoramic visibility is guaranteed, always. Keep an eagle eye on off-set mowers courtesy of the curved and openable side windows. Banish hitching nightmares: the extended rear windscreen guarantees a crystal clear view of the rear hitch. The repositioned after treatment system from the lower cab corner to under the hood means you’ve got acres of spaces to survey the road, or the field ahead. Precision position the tiltable steering column and dash to suit you. You’ll be even more comfortable thanks to the Terraglide™ front axle suspension and Comfort Ride™ cab suspension which will cushion you even when travelling across the harshest terrain for a silky smooth ride.
  • Command Arc: the ultimate ergonomic farming experience

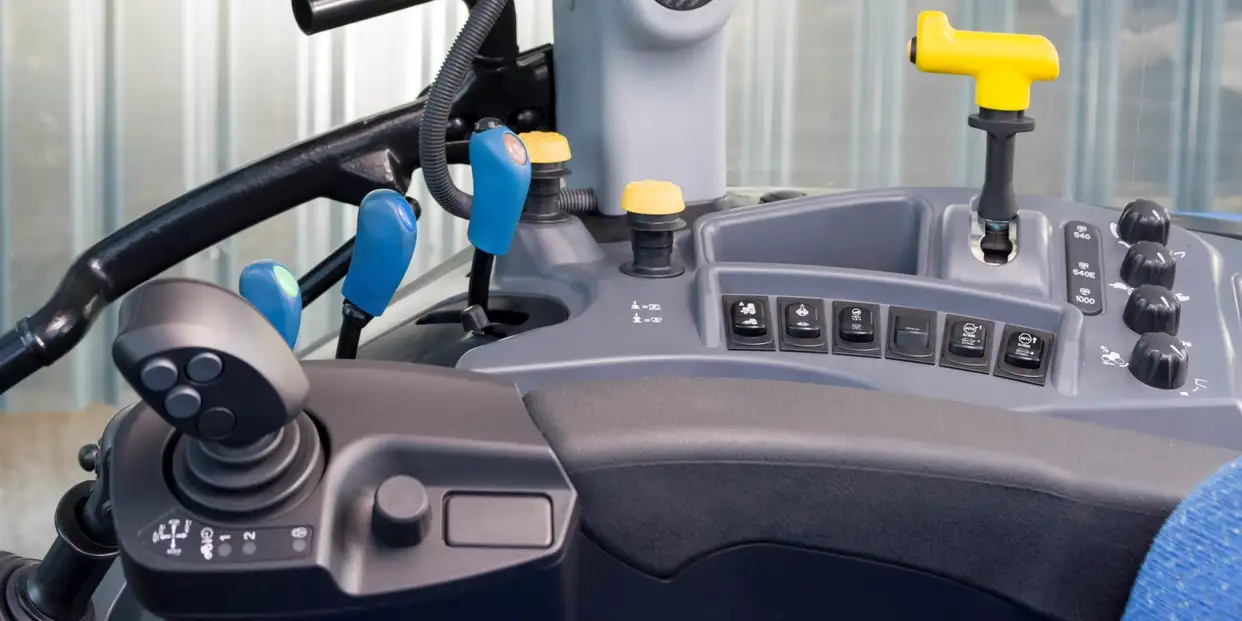

    The cab controls have been designed around you, the farmer. How? Well, you were at the heart of the design phase. Developed and tested using state of the art virtual reality techniques, and refined with our virtual farmer Jack, all principal controls are grouped on the Command Arc. This ergonomic cluster means you can perform the most frequently used operations without excessive twisting for superior productivity and reduced fatigue.
  • The best seat on the farm

    New Holland brings to you the best-in class seat offering, with two different seat options providing you with a wide and comprehensive choice. All seats benefit from improved cushioning. These firmer, more durable seat cushions provide outstanding comfort whatever the terrain.
  • Tailor made PLM packages

    New Holland knows that each farmer has their own autoguidance requirements, and that is why you have the choice between three different solutions across the T5 Electro Command range. The entry-level manual guidance option uses an easy to follow lightbar to keep you on the straight and narrow, perfect for fertilizer spreading. The EZ-Pilot™ option can be retrofitted. Featuring a steering motor and compatible with the either XCN-750™ or XCN-1050™ display, this is the ideal solution when cultivating. The range-topping EZ-Pilot™ PRO solution is managed through the existing IntelliView™ IV colour touchscreen monitor, keeping the cab uncluttered and delivers outstanding accuracy, as high as 1.5cm pass to pass, when used with an RTK+ correction signal. The default choice when planting high value vegetable crops.
  • Clean performance. Responsive productivity.

    The entire T5 Electro Command range boasts 3.6 litre Common Rail F5 engines developed and produced by FPT Industrial that fully comply with the stringent Stage V emissions regulations. The optimised, powerful, super-quiet engines develop between 101 - 117hp(CV), have up to 506Nm of max torque and have 5% more torque backup than previous Tier 4B engines for guaranteed productivity. Throw in a power-to-weight ratio of just 38.9kg/hp(CV) and the T5 is your perfect farming partner. The entire T5 Electro Command range uses a ECOBlue™ Compact HI-eSCR 2 and Low Rate Exhaust Gas Recirculation (EGR) for Stage V compliance. This is in alignment with the New Holland Stage V strategy, which foresees the use of Compact SCR and Low Rate EGR for lower powered products with reduced cooling requirements and for which overall product dimensions are of vital importance. It all adds up to outstanding efficiency. What you’ve come to expect of the Clean Energy Leader.
  • Semi-Powershift technology

    New Holland knows that every farm has different requirements, and that intelligent innovation also means offering tried and tested solutions to improve efficiency. The semi powershift Electro Command™ transmission offers clutchless gear changes to reduce fatigue, and gear shifting is taken care of for you with the addition of the optional Auto Modes.
  • Outstanding traction. Unsurpassed comfort.

    Combining the powerful action of Terraglide™ front axle suspension, Comfort Ride™ cab suspension and air suspended seat, you can experience a smooth ride, whatever the road or soil conditions, with great benefits in terms of comfort, driving pleasure and reduced fatigue. When selected Terraglide™ front axle suspension can be locked, raised or lowered depending on individual application requirements.
  • Productivity and flexibility guaranteed

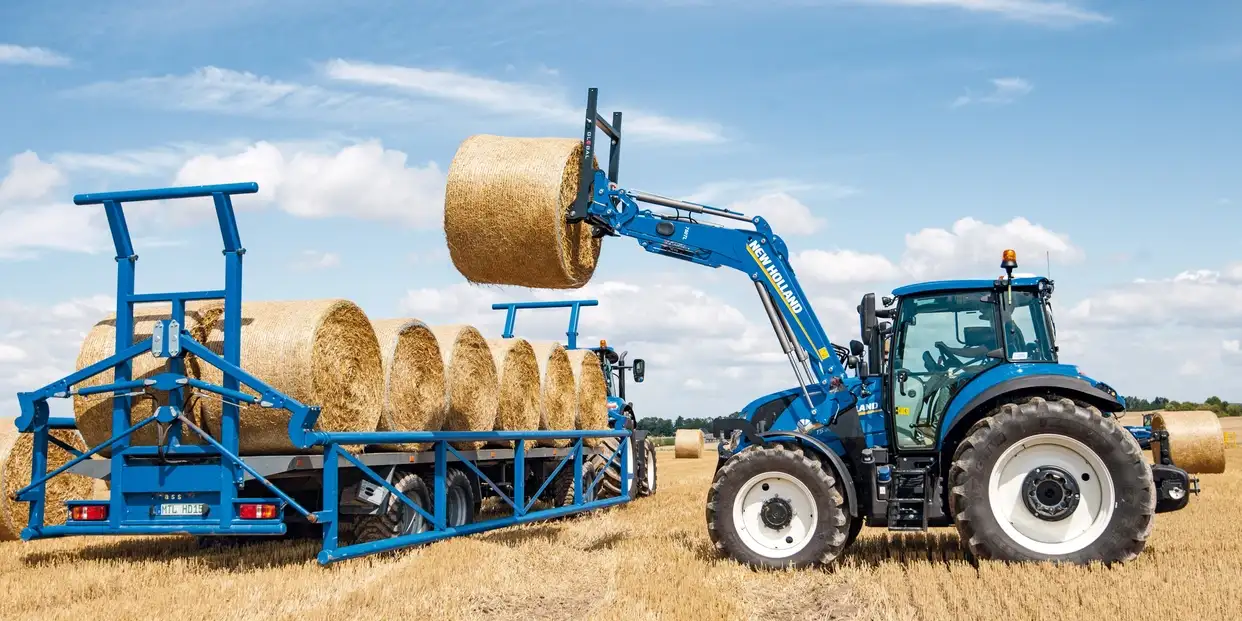

    New Holland knows that full integration is by far the best design option. That is why the T5 Electro Command was designed with front loaders and front linkage in mind. The T5 Electro Command is fully compatible with the new Wide Frame New Holland 700TL range of front loaders: the perfect productivity combination. Moreover, you no longer have to choose between front loader or front linkage, with the new T5 you can have both.
  • Hydraulic power and PTO flexibility

    The MegaFlow™ pump delivers an impressive 84 litres/minute of hydraulic flow from a single pump, so you’ve got the flow on tap to breeze through intensive hydraulic applications such as bale wrapping and hedge cutting. The new load-sensing mid-mount valves, controlled by the ergonomic joystick, make for super-fast loader cycle times which are uncompromised when steering, which remains light and precise, thanks to the dedicated 43 litre/minute services pump.
  • 360°: T5 Electro Command

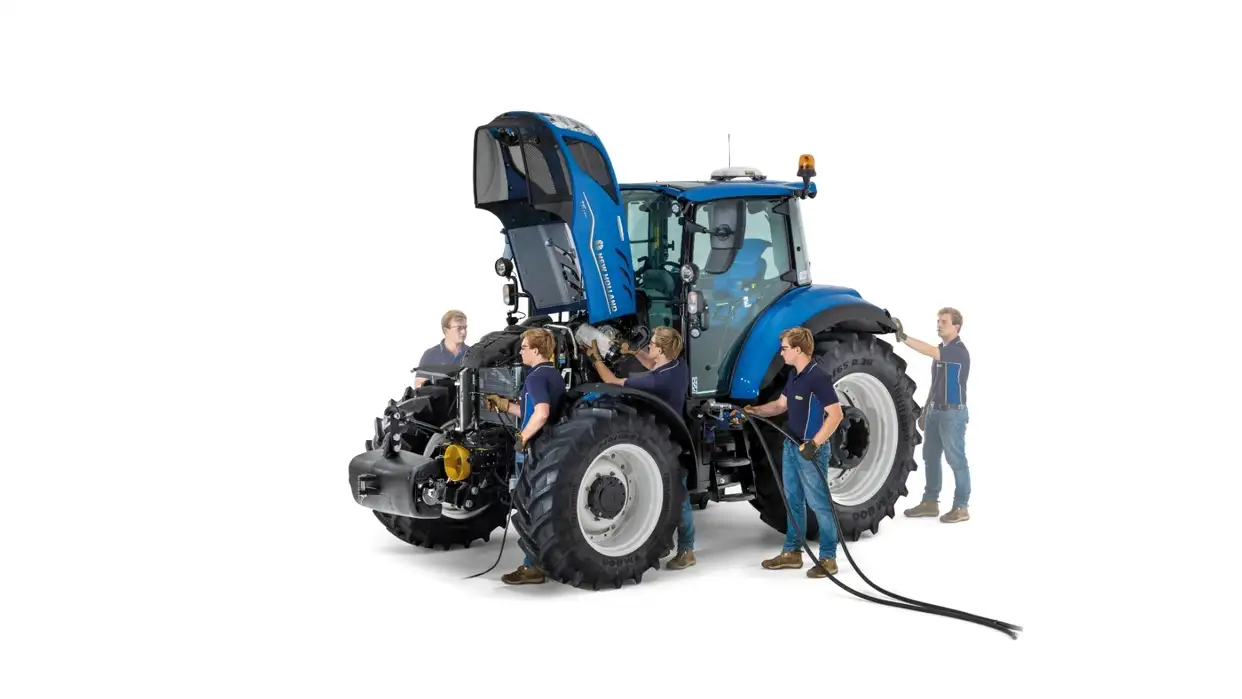

    The new T5 range has been designed to spend more time working and less time in the yard. All service points are easy to access, and super long service intervals mean they will spend more time in their natural environment: the field!
MODELS

Explore available models

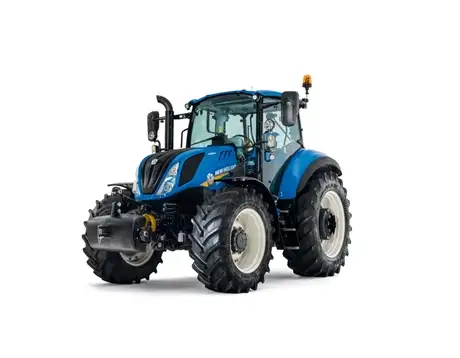

T5 ELECTRO COMMAND - STAGE V Model Thumbnail.jpg

T5.100

Max. horsepower - ISO TR14396 - ECE R120 [kW/hp(CV)]
74/101
Max. torque - ISO TR14396 (Nm)
450@1300rpm
T5 ELECTRO COMMAND - STAGE V Model Thumbnail.jpg

T5.110

Max. horsepower - ISO TR14396 - ECE R120 [kW/hp(CV)]
81/110
Max. torque - ISO TR14396 (Nm)
490@1300rpm
T5 ELECTRO COMMAND - STAGE V Model Thumbnail.jpg

T5.120

Max. horsepower - ISO TR14396 - ECE R120 [kW/hp(CV)]
86/117
Max. torque - ISO TR14396 (Nm)
506@1300rpm

Technical specifications

Engine*

Engine*
No. of cylinders / Aspiration / Valves
Compliant with engine emissions regulations
ECOBlue™ Compact HI-eSCR 2 system* (Selective Catalytic Reduction)
Fuel System - High Pressure Common Rail
Capacity (cm³)
Bore and Stroke (mm)
Approved Biodiesel blend**
Max. horsepower - ISO TR14396 - ECE R120 [kW/hp(CV)]
Rated horsepower - ISO TR14396 - ECE R120 [kW/hp(CV)]
Rated engine speed (rpm)
Max. torque - ISO TR14396 (Nm)
Torque rise (%)
Engine Speed Management
Diesel tank capacity (Litres)
AdBlue tank capacity (Litres)
Service interval (hours)

Electro Command™ transmission (40kph ECO)

Electro Command™ transmission [Optional Super Creeper (40kph ECO)]

Electrical

Axles

Hydraulics

Remote valves

Linkage

Front Loader Ready

PTO

Brakes

Cab

Weights

* Developed by FPT Industrial
** Biodiesel blend must fully comply with the latest fuel specification EN14214:2009 and operation is in accordance with operator manual guidelines
*** Rear tyres other than those mentioned are available: 600/65R34, 540/65R38, 540/65R34, 520/70R34, 480/70R38, 480/70R34, 460/85R34, 420/85R38, 420/85R34, 380/80R38, 340/85R38, 18.4R34, 14.9R38, 13.6R38
