THE IMPOSSIBLE IS THEIR SPECIALTY

TK4

TK4

BETWEEN YOUR ROWS, SINCE DECADES THERE IS SPACE ONLY FOR NEW HOLLAND

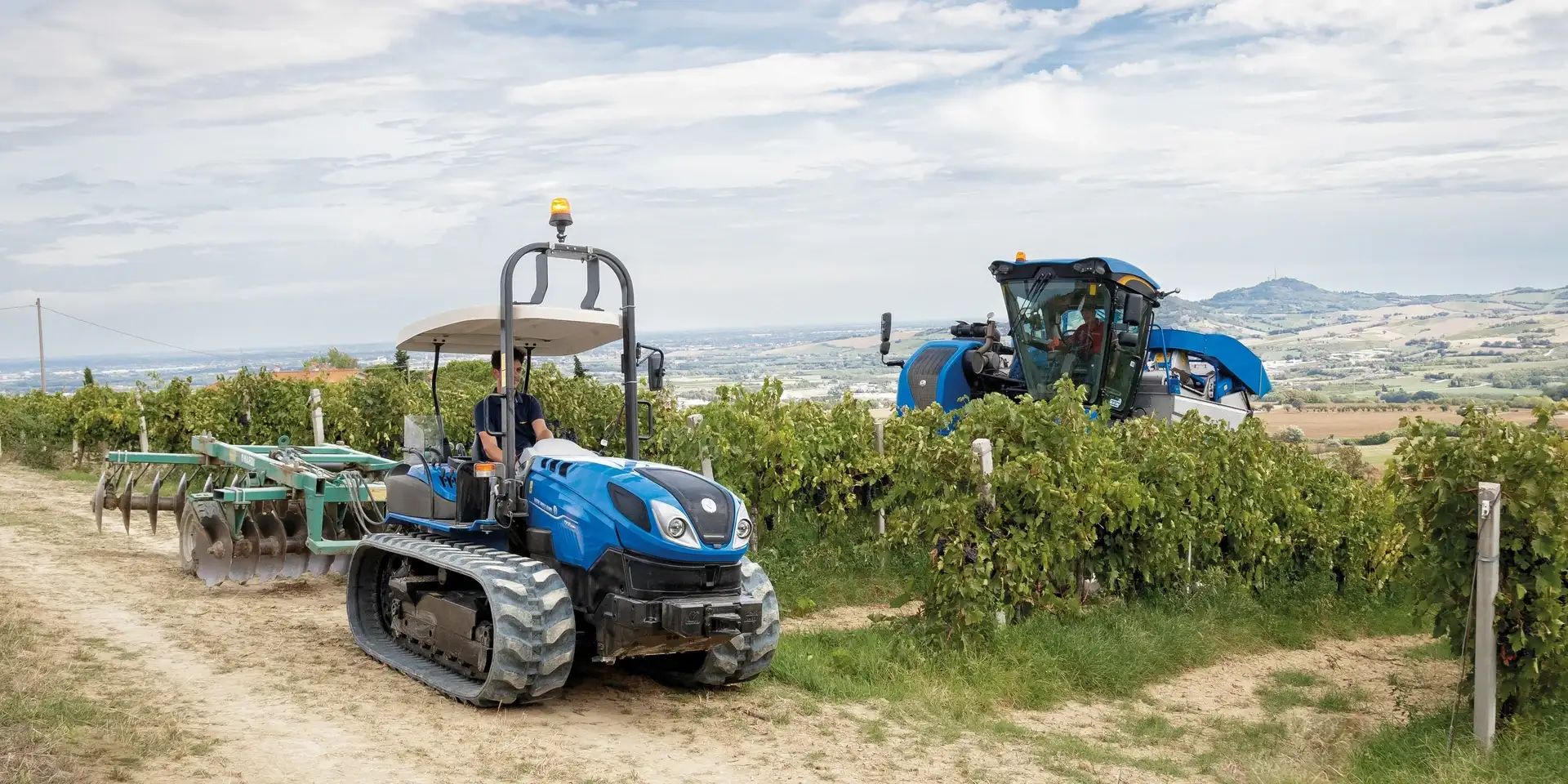

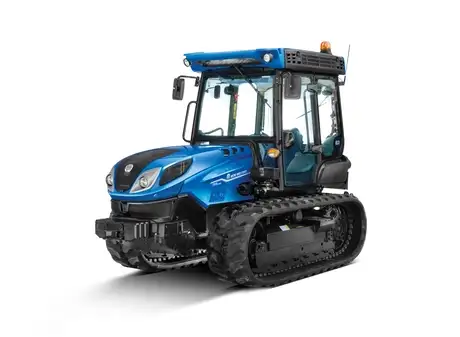

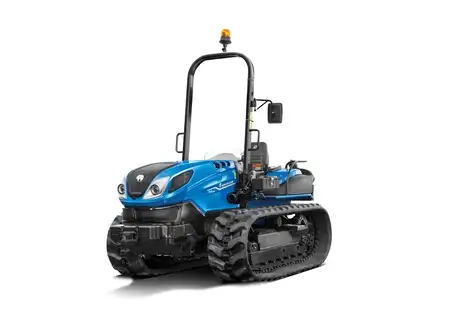

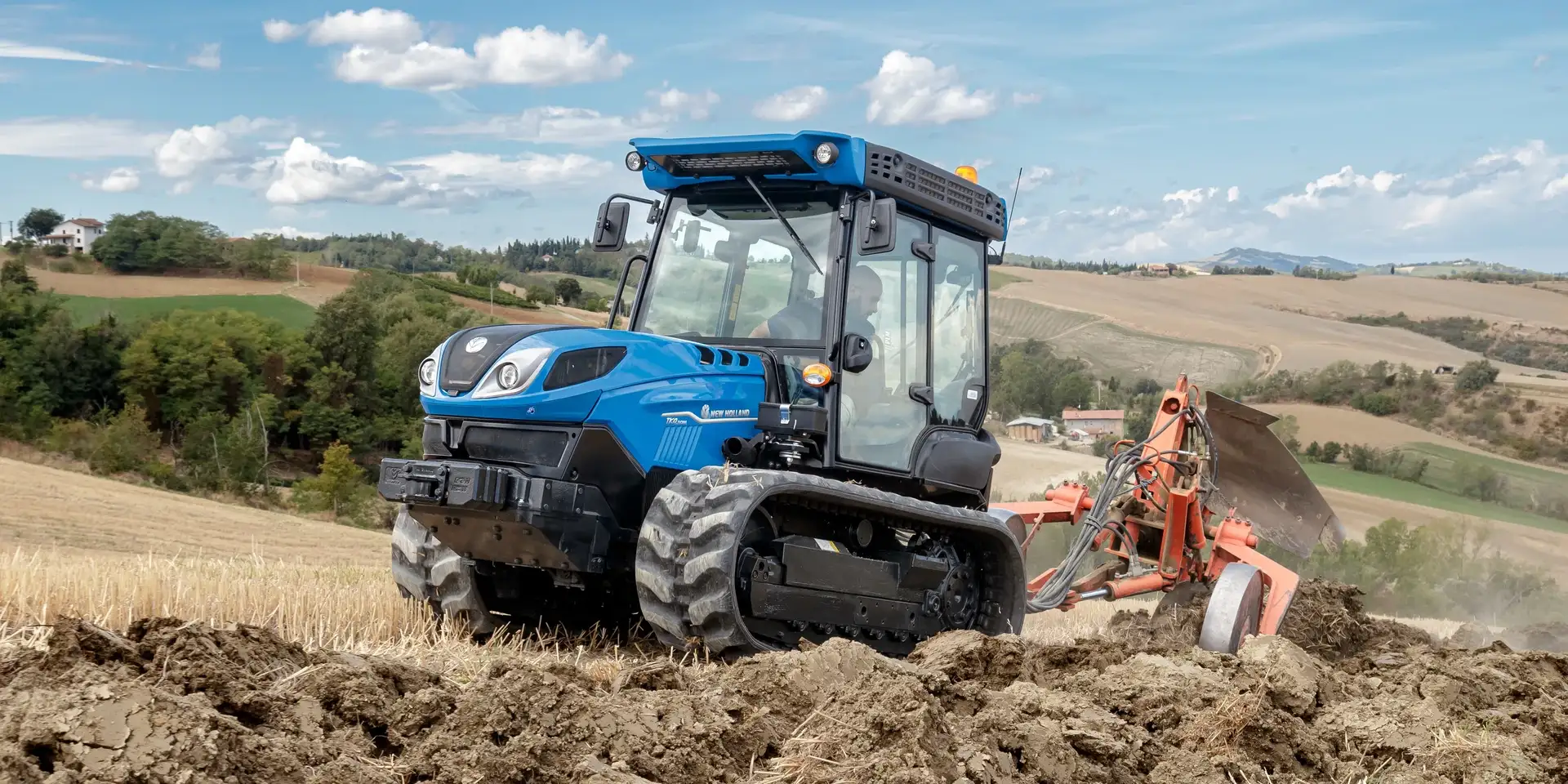

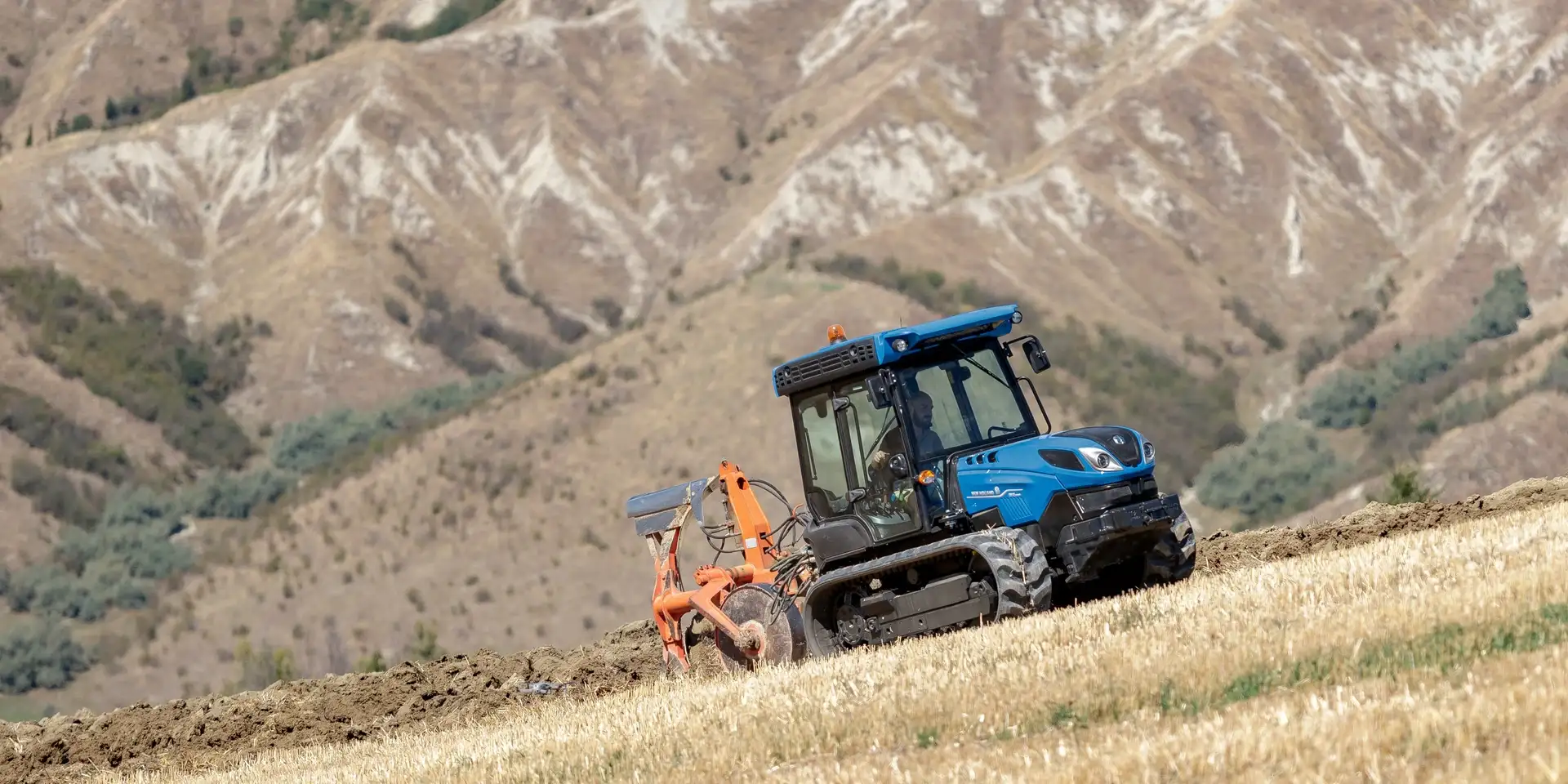

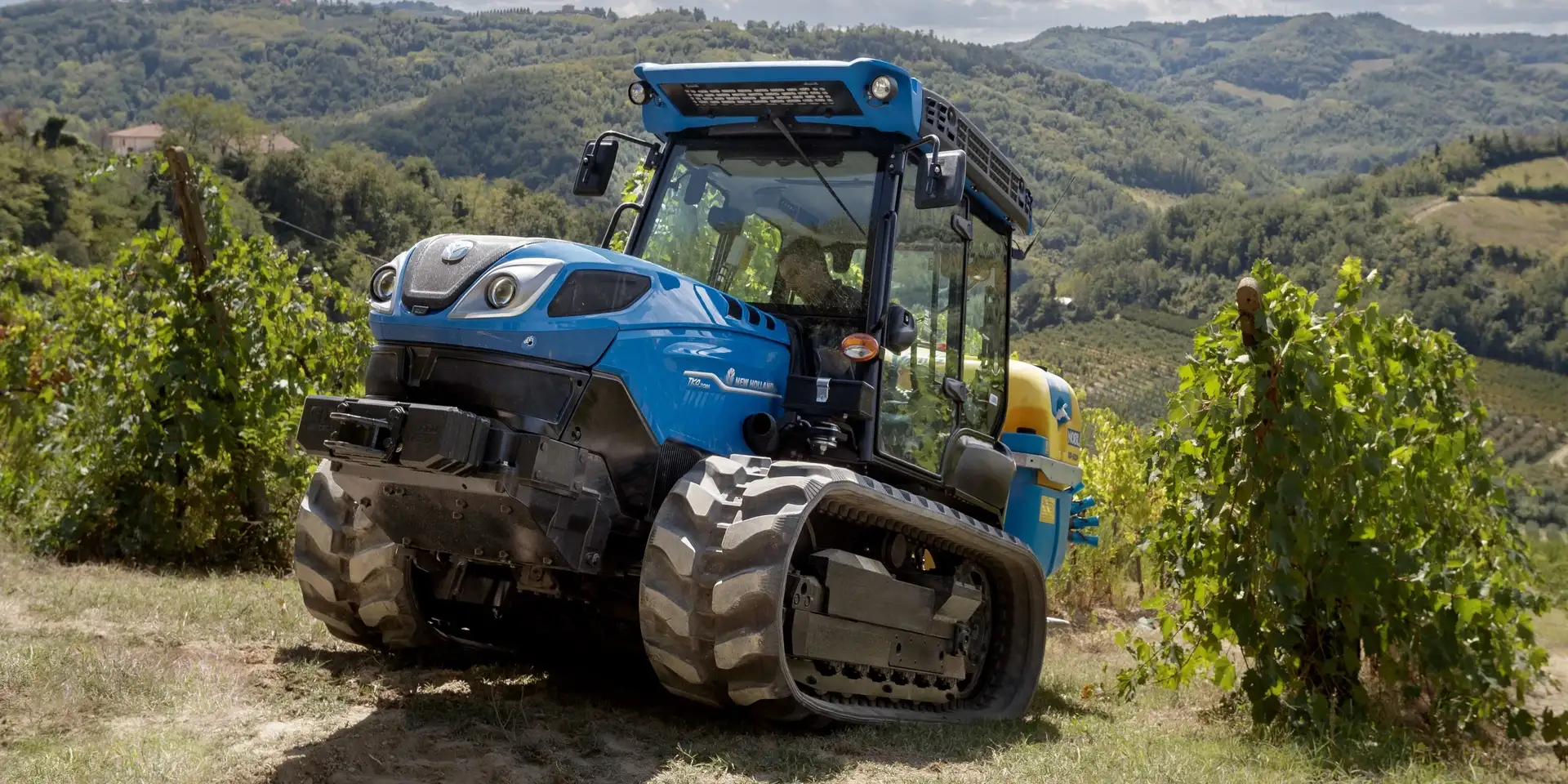

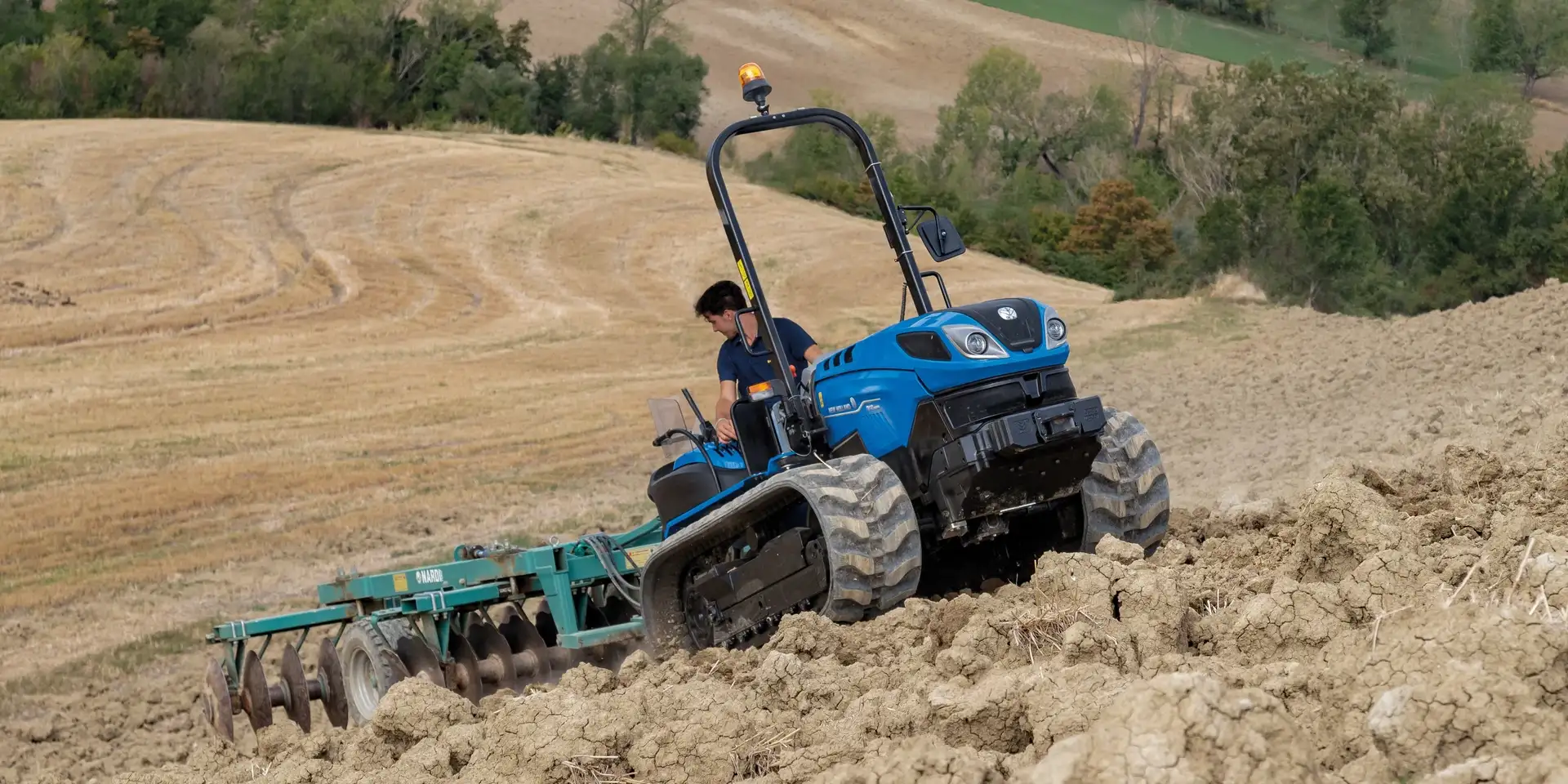

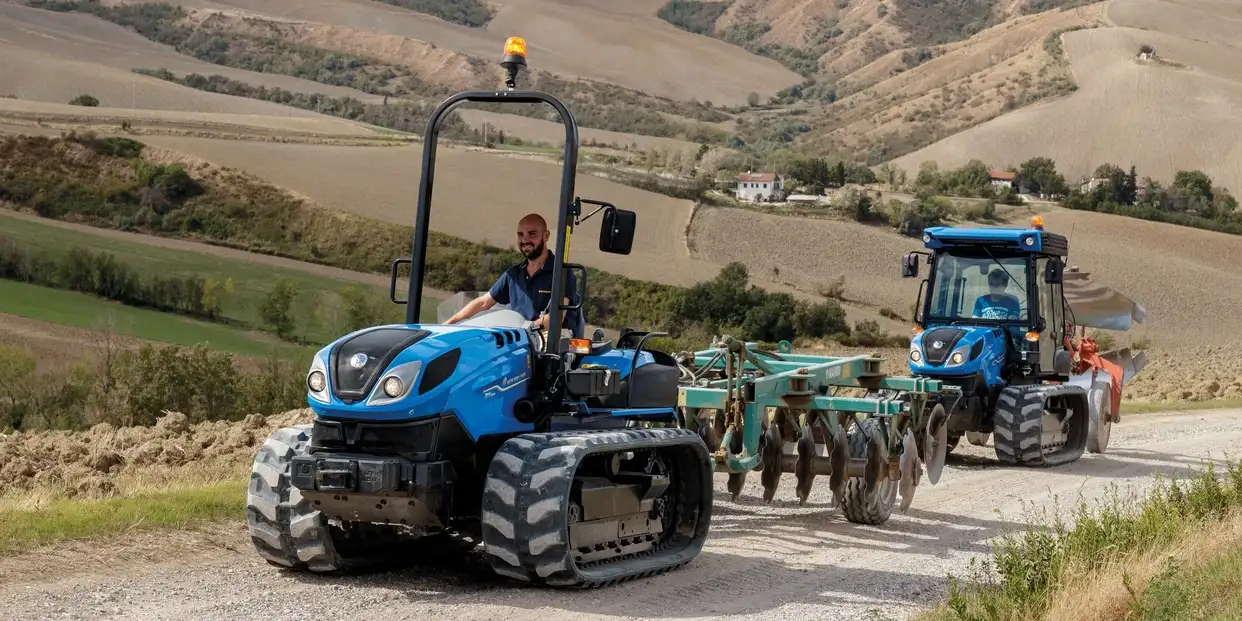

The first 700C crawler was produce in 1932 and the first specialized tractor, the 25RS in 1951. Strong of its decades of experience, New Holland always imagines the future and adapts its products to its customers’ expectations. Only New Holland can offer such a variety of tractors, to cover all your requirements. The widest crawler range, make New Holland TK4 the leader in the field. You can choose Open Field or Mountain wide track models for different uses, in cab or ROPS versions. New Holland is ready to meet the demands of winegrowers and market gardeners and offers three ROPS models for specialty application : available in F, N and V to meet the width limits. New Holland products have the right features to adapt to every task: power, efficiency, comfort and safety. With New Holland, working becomes a real pleasure.

Features

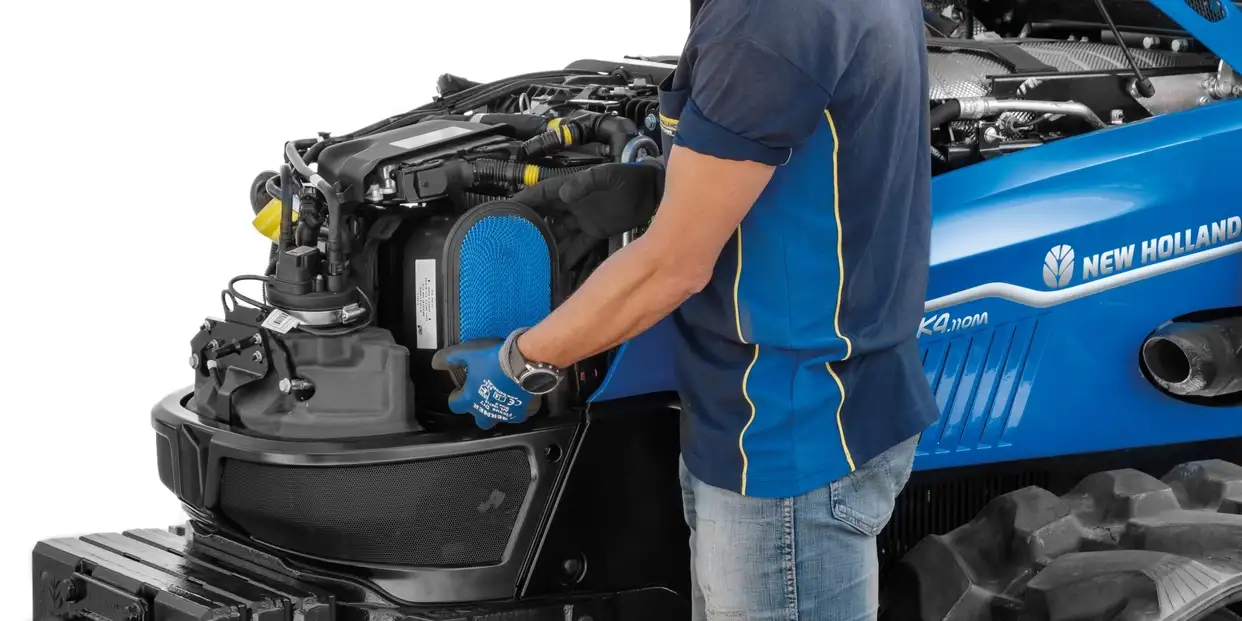

  • ECOBLUE™ COMPACT HI-ESCR 2 EXPLAINED

    The entire TK4 range complies with Stage V emissions standards, and above this is achieved thanks to the new Compact HI-eSCR 2 technology developed by FPT Industrial. This innovative after treatment system is a maintenance free and all after treatment components are under the hood to maintain the best visibility to the front and sides. For more safety, the hot engine components are isolated to avoid contact to the environment. The 80 models don’t need the AdBlue fluid.

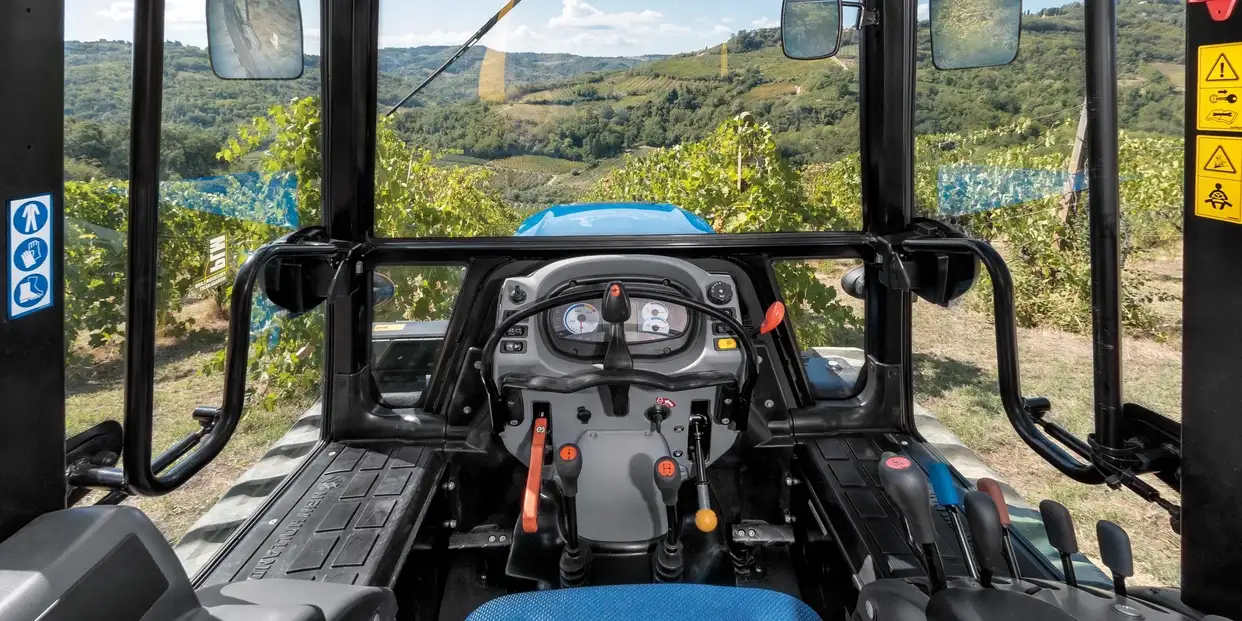

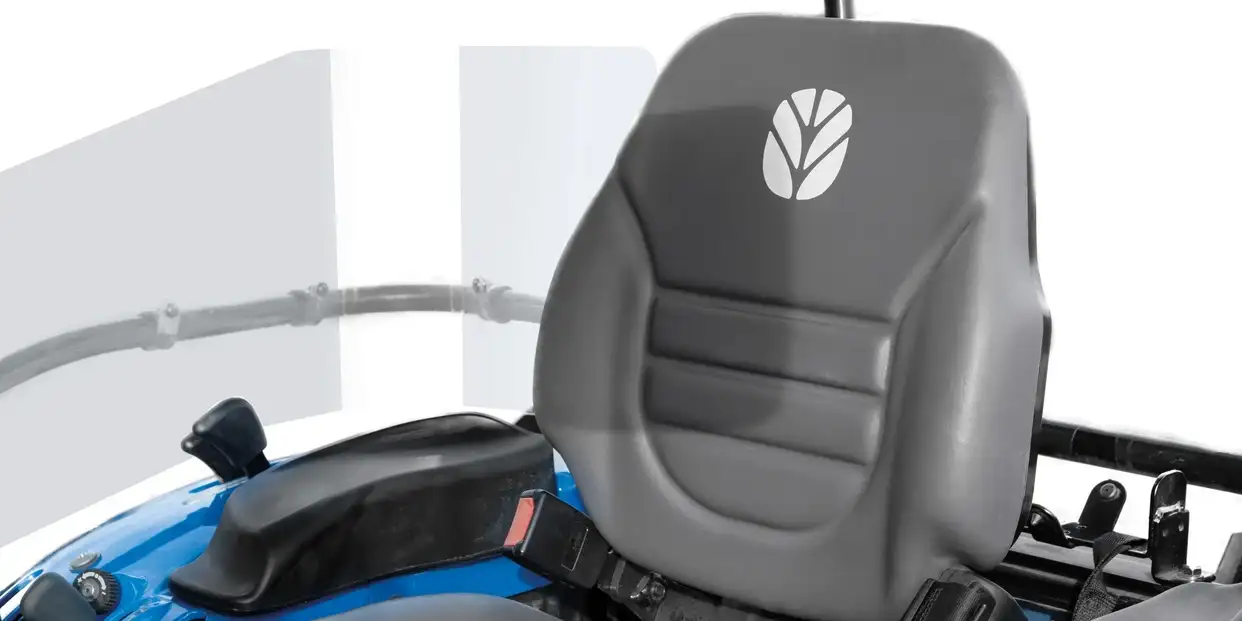

  • SUPERCOMFORT

    TK4 tractors Cab and driving platform for ROPS unit are developed to provide the best driving environment for the driver. It means that they are designed to reduce the heating impact for the driver, reduce the noise level and reduce the vibration for both model, cab and ROPS. The driver is protected from engine noise and heating thanks to a specific protection. Silent block system isolates the driving platform from the driveline. ROPS and cab models have the pneumatic suspended seat available as an option. The cab model is equipped with air conditioning system.

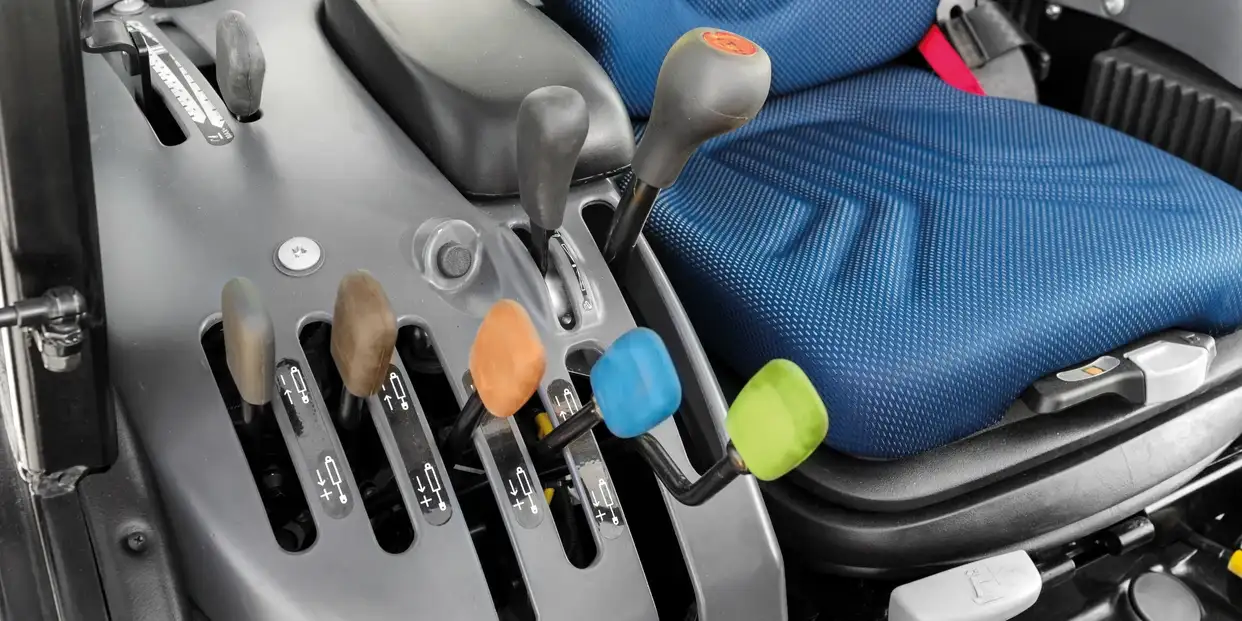

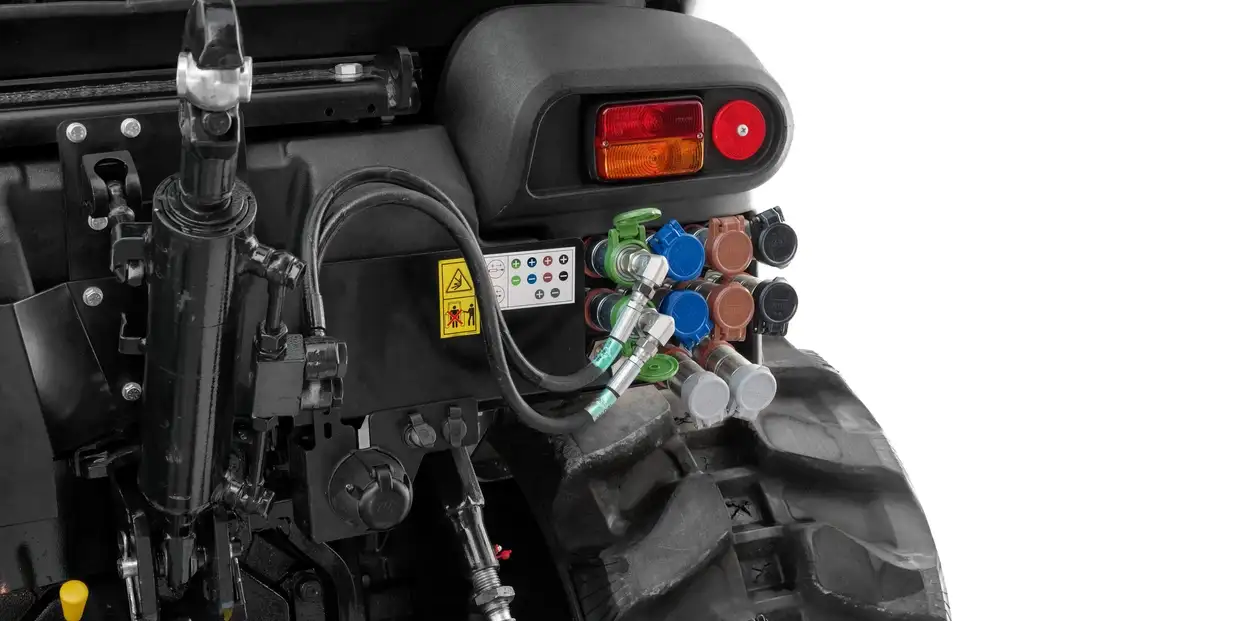

  • A POWERFUL HYDRAULIC SYSTEM

    All the TK4 tractors are fitted with a 19L/min pump for the steering system. This pump ensure 100% oil supply to drive on every slope in safety conditions. The 80 models are fitted with an additional 36L/min pump dedicated to the hydraulic rear remotes and rear lift. For other models, the standard pump deliver 45L/min. As optional, the offer include a double pump with 54L/min for remotes and 27L/min exclusive for rear lift, providing a total flow of 81L/min, for any kind of demanding implements. A dedicated hydro cooling system ensure a good and safe working condition.

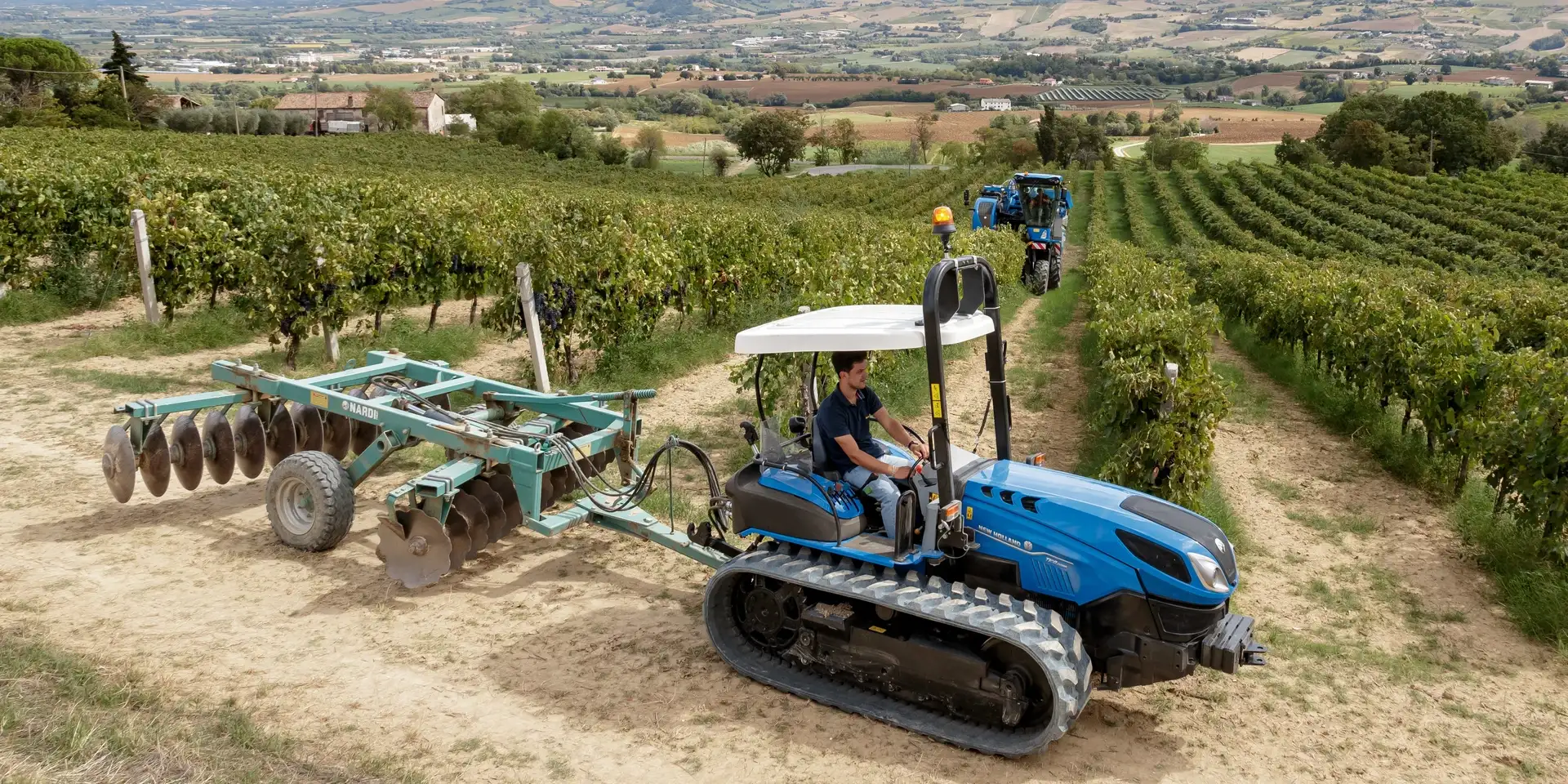

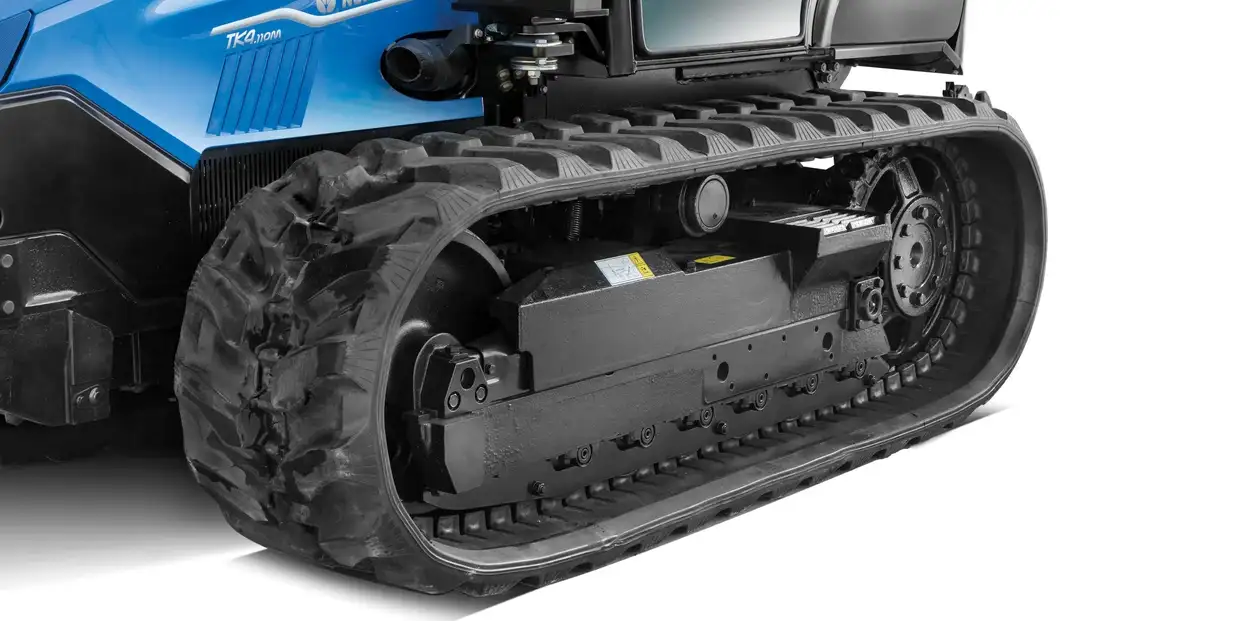

  • SMARTTRAX™

    The SmartTrax™ tracks provide an incredible level of comfort, reducing the vibration and noise. SmartTrax™ tracks respect agricultural roads, yards and orchards. SmartTrax™ respects the soil and provides the shortest turning angle.

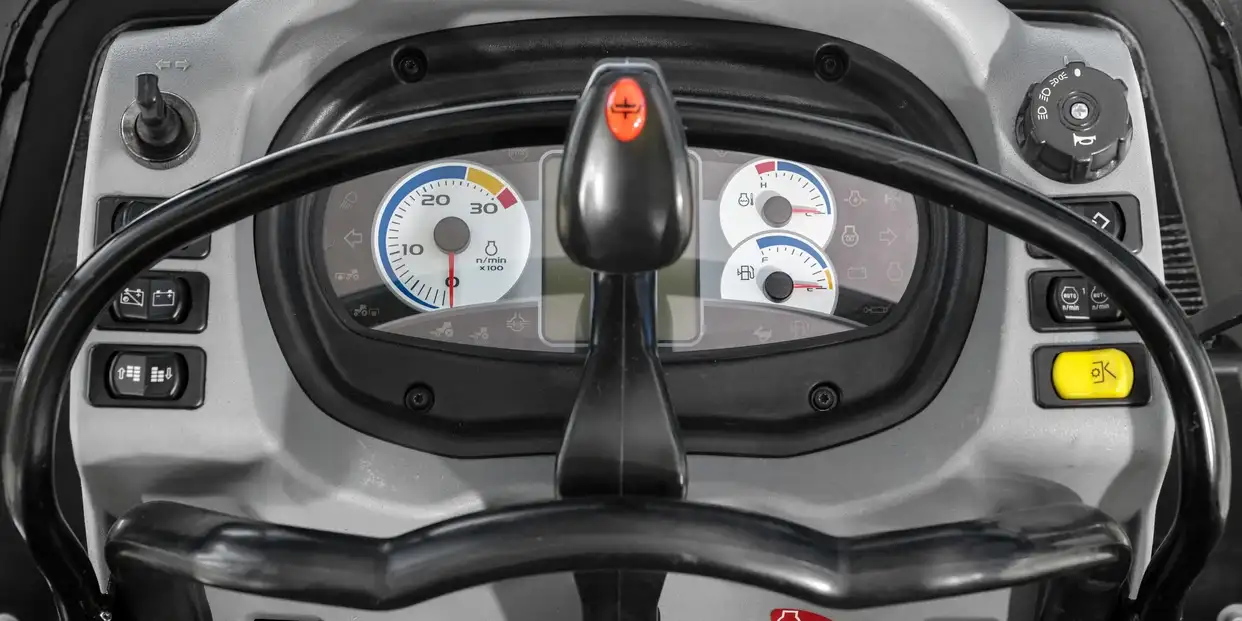

  • STEERING-O-MATIC PLUS SYSTEM

    TK4 tractors are equipped with New Holland’s patented Steering-O-Matic™ Plus system. Steering-OMatic™ Plus represents technology in this segment. It offers significant improvements in safety, increased productivity and ease of use, since it allows the operator to set the direction and the steering in the left hand and the right hand is dedicated to the hydraulic and PTO controls. Transmissions used on TK4 tractors offer a choice between 8 x 8 carefully selected forward gears, to easily operation and maintaining the constant grip in any conditions. In addition, a creeper 16 x 8 is available for working at reduced speeds. TK4 tractors provide an operator’s unmatched comfort, especially appreciate during long working days.

MODELS

Explore available models

TK4.80V

Rated Engine Power ISO TR14396 - ECE R120 [kW/hp(CV)]
55/75
Max lift capacity at ball ends (kg)
3,535

TK4.80N

Rated Engine Power ISO TR14396 - ECE R120 [kW/hp(CV)]
55/75
Max lift capacity at ball ends (kg)
3,535

TK4.80F

Rated Engine Power ISO TR14396 - ECE R120 [kW/hp(CV)]
55/75
Max lift capacity at ball ends (kg)
3,535

TK4.90

Rated Engine Power ISO TR14396 - ECE R120 [kW/hp(CV)]
63/85
Max lift capacity at ball ends (kg)
3,720

TK4.90M

Rated Engine Power ISO TR14396 - ECE R120 [kW/hp(CV)]
63/85
Max lift capacity at ball ends (kg)
3,720

TK4.100

Rated Engine Power ISO TR14396 - ECE R120 [kW/hp(CV)]
73/99
Max lift capacity at ball ends (kg)
3,720

TK4.100M

Rated Engine Power ISO TR14396 - ECE R120 [kW/hp(CV)]
73/99
Max lift capacity at ball ends (kg)
3,720

TK4.110

Rated Engine Power ISO TR14396 - ECE R120 [kW/hp(CV)]
79/107
Max lift capacity at ball ends (kg)
3,720

Technical specifications

New Holland Engine*

New Holland Engine*
No. of cylinders / Capacity (n° / cm³)
Emissions level Tier/Stage
Fuel system - High pressure Common Rail
Turbocharged Intercooler
Approved biodiesel Blend
Rated Engine Power ISO TR14396 - ECE R120 [kW/hp(CV)]
Max. Torque ISO TR14396 (Nm)
Torque reserve (%)
Horizontal exhaust
EGR system
Cooling
Standard diesel tank capacity (Litres)

Transmission

Steering

PTO

Hydraulics

Operator comfort

Operator environment

Weights

Tracks and dimensions

* Developed by FPT Industrial
** Conditions apply
