RELIABLE, HARD-WORKING BALERS

Operators who custom bale, especially for horse farms, are big fans of New Holland square balers. New Holland bales are the only choice for hand-feeding because they quickly separate into flakes. Professionals put their trust in BC5000 model balers because they make consistently dense, well-shaped bales that are easy to handle.

Features

  • IMPROVEMENTS TO MAKE YOU MORE PRODUCTIVE

    New Holland has made many improvements to the BC5000 Series square balers from our last generation of balers. Most refine existing features, to make them more convenient or even more durable.

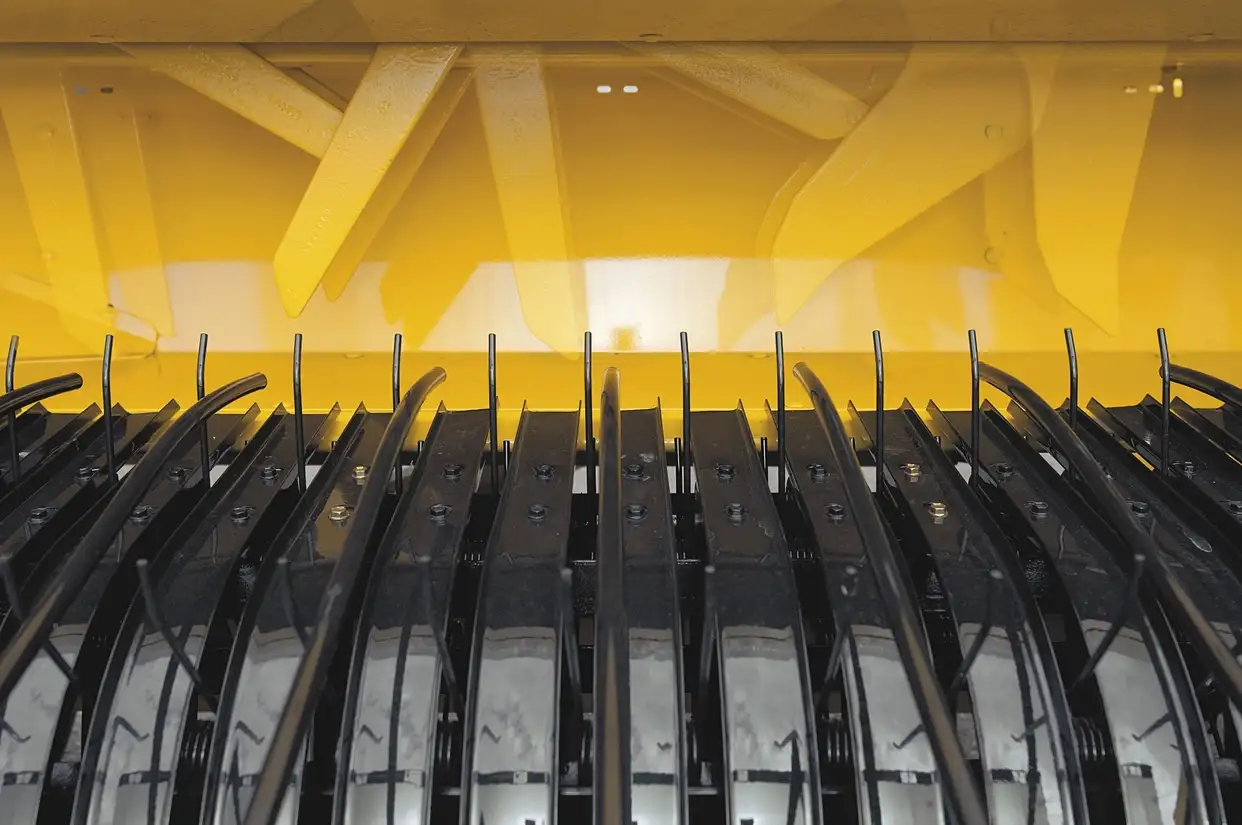

  • MAXIMUM EFFICIENTY AT THE PICKUP

    The most efficient baler leaves no crop behind in the field, and that’s what the SuperSweep™ pickup and a host of other features ensure on the BC5000 Series balers. Wider pickups and attention to every detail—down to the curve of the tines—makes the difference in productivity at the front-end of these machines.
  • UNIFORM FEEDING FOR QUALITY BALES

    High-capacity New Holland feeding systems are a big reason the BC5000 Series balers deliver consistently high-quality bales. The award-winning rotary feeder design is standard on the BC5060 and BC5070. Both systems can be adjusted to match the crop conditions—from delicate alfalfa to thick grass hay to slick straw.
  • PERFECT MATCH FOR MOST FARMS

    The two smaller models in the series-the BC5060-offer easy operation and sizeable capacity to meet the needs of most farms. Both feature 65-in.-wide SuperSweep™ pickups and a 283-sq.-in. feed opening, and produce 14- x 18-in.-size bales.
  • WIDER PICKUPS AND MORE BALING CAPACITY FOR LARGE FARM OPERATIONS

    With the widest pickups, more tines and heavy-duty features throughout, the BC5070 are sized for serious bale-making. Both have 75-inch SuperSweep™ pickups, Class 6 heavy-duty drivelines to push more power into bale formation and plungers that moves at 93 strokes per minute to densely pack the crop. The rotary feeding system is also standard.

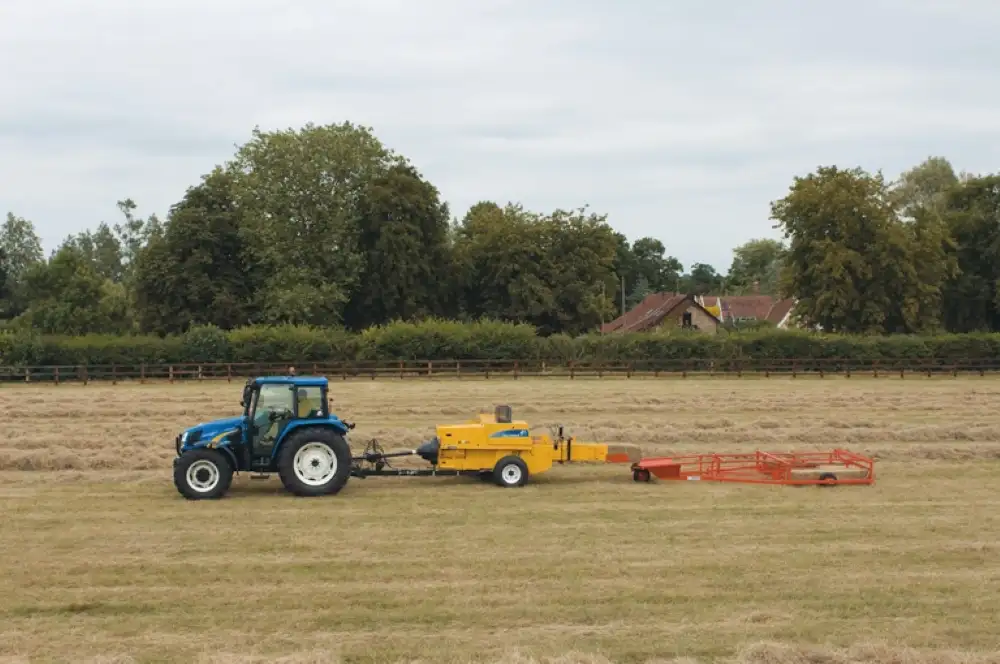

  • BALE THROWER SAVES TIME AND LABOR IN THE FIELD

    Completely fill even the largest wagons without picking up the bales by hand. Compatible with BC5050, BC5060, and BC5070 balers. A bale thrower increases productivity in the field and reduces the labor required to put up your hay. The bale thrower easily handles 38 in. long bales up to 65 pounds. Due to the extended bale case the model 72 Bale thrower is NOT compatible with model BC5070 Hayliner™ balers.
MODELS

Explore available models

BC5060

Tractor Horsepower (min.)
30 kW / 40 hp
Tying Mechanisms
Knotter or twister

BC5070

Tractor Horsepower (min.)
38 kW / 50 hp
Tying Mechanisms
Knotter or twister (heavy-duty)

Technical specifications

Bale Size

Cross section
Length

Super-Sweep Pickup

Rotary Feeding System

Flow-Action® Feeding System

Feed Opening

Plunger

Tying Mechanisms

Main Drive

Tires

Dimensions

Weight (approximate)

Recommended Transport Speed

Tractor Requirement*

Options

– Not available
* Tractor weight must be greater than baler weight; excludes bale thrower.
