ROLL BALER

2.3m five bar pick-up

• Fitted with a rugged, double cam track, the new and wider pick-up is developed from the well proven design used on New Holland BigBalers and Roll-Belt balers, featuring the best of both, it is purpose built to handle heavy windrows
• Now fitted with 160 high strength 5.5mm pick-up tines, reducing the amount of crop gathered per tine, the new five-bar design can be worked at higher forward speeds ensuring it always leaves a clean sweep

From the pick-up, how material is passed into the bale chamber is critical to both performance and producing a consistent and firm bale. With the proven New Holland feed rotor system, Roll Baler 125 and Roll Baler 125 Combi balers benefit from improved management of the 20 knife CropCutter™ system. Selecting the degree of slicing, with a choice of easy swapping between selected blade banks, reduces downtime to boost productivity.

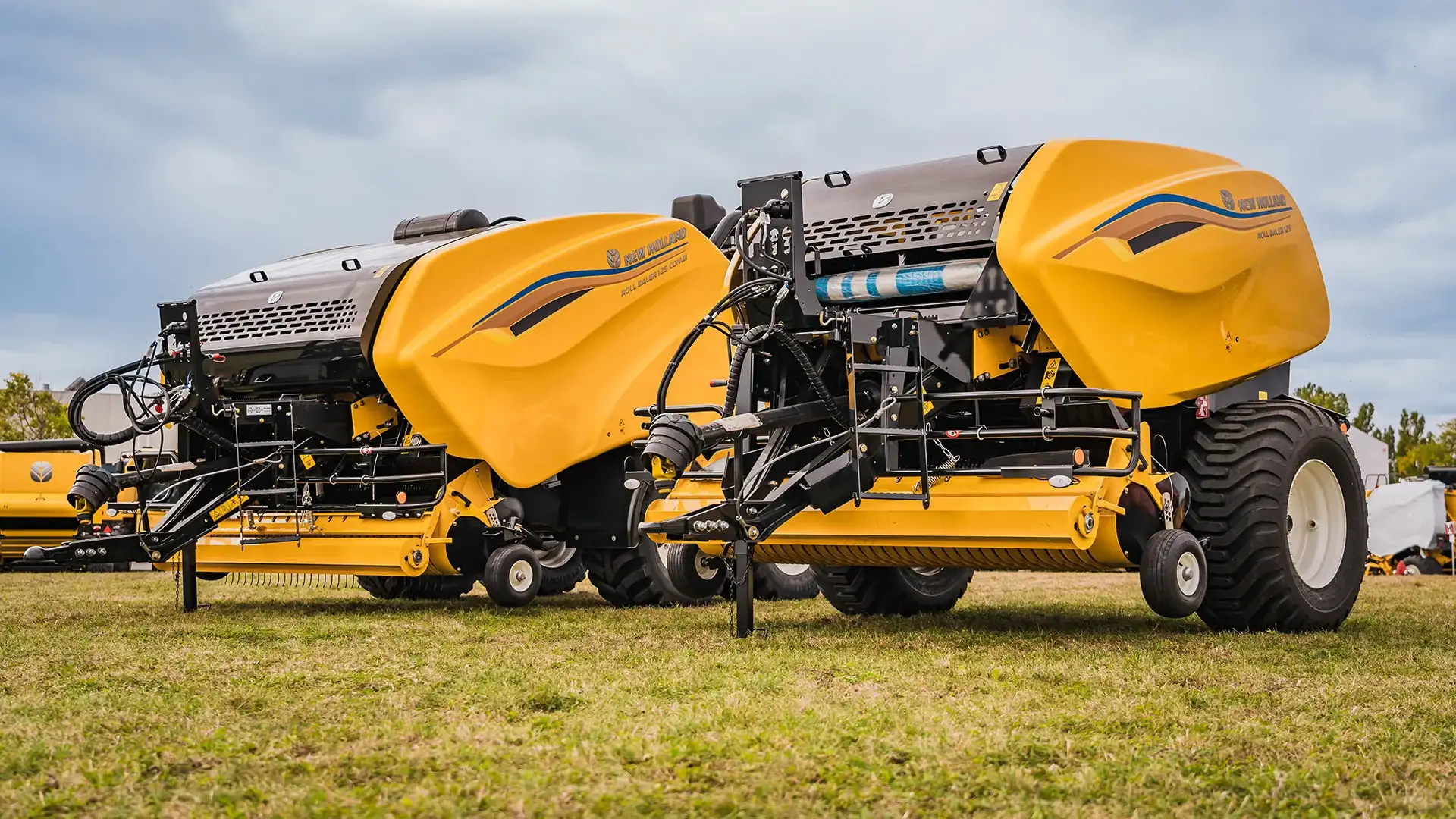

Fixed chamber Roll Baler 125 models are built tough to handle heavy bales. The rigid bale chamber is fitted with 18 cold formed rolls. These are 200mm in diameter and now have a surface profile. This further improves full crop contact for a positive start to the baling process but is matched to close roller to roller clearance to minimise crop losses. Performance in difficult conditions is improved ensuring dense, consistently shaped bales are produced. The productivity has been increased thanks to the new crop deflector added to avoid accumulations. The crop deflector is combined with the front filling plate on the Combi version. To improve the bale chamber rollers durability, the bushing alignment has been optimized at the maximum. The tailgate lock system and the drop floor pivot arms are now mounted on new greasable bushings.

New Holland has asked customers how they operate their balers and use the bales they produce. This has resulted in the Roll Baler 125 and Roll Baler 125 Combi featuring different net / film wrap systems.

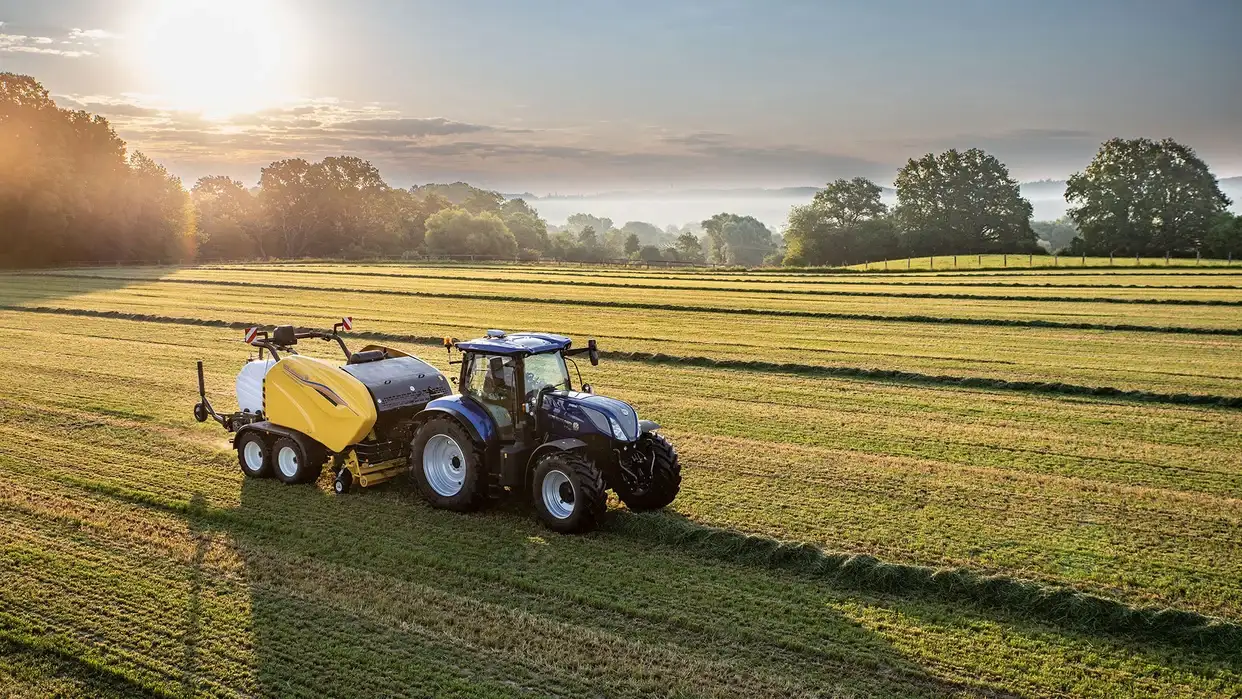

New Holland has continued to refine the in-line wrapping process it first used on the 548 Combi back in 2003. Designed to allow freshly produced bales to be wrapped securely over difficult terrain and reliably in both cool and hot working conditions, the integral wrapper of the Roll Baler 125 Combi is, thanks to their twin satellite arms, fast enough to allow any multiple of wraps required by the end user.

Roll Baler 125 models are built to work in difficult terrain. Even as the bale chamber fills and the wrapper of Combi models is in action, the centre of gravity remains low. The new Roll Baler 125 models are offered with greater tyre choice.

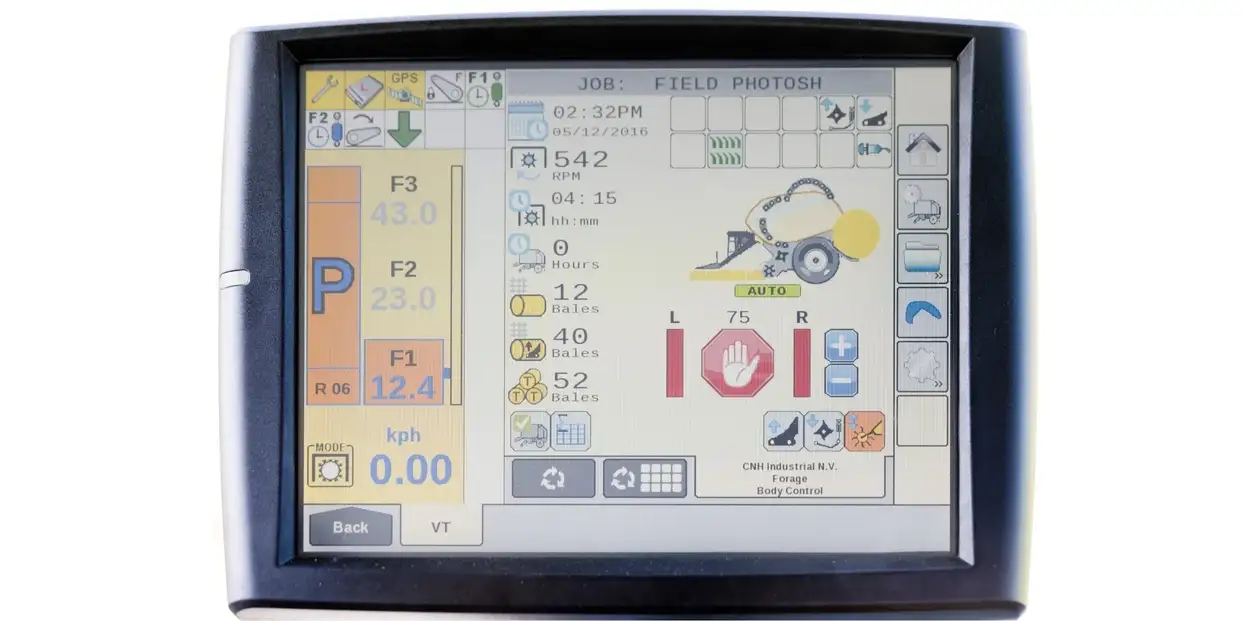

• Key information clearly and logically displayed
• Left and right indicators ensure even bale shape
• Entire baling and wrapping process is visualized on screen
• Select 7 different information icons to display on screen
• Select between knives, drop floor or pick-up activation at the touch of a button
• Plus & minus buttons for fingertip density adjustment
• Manual or auto functionality
• Program the type of crop you want to bale in advance
• Up to twenty five jobs can be memorized

Roll Baler models are specifically designed for demanding large livestock and heavy contract users. They are built to work with heavy grass, dense hay and forage crops. They bale dry straw, gather irregular swaths and cope with difficult terrain. Rugged and versatile.
Key features include:
1 - Purpose designed chassis to carry exceptionally heavy bales
2 - Heavy-duty sprockets
3 - Individual drive chains, each chosen to match the job
4 - Centralised Lincoln automatic lubrication system as standard (key bearings and chains)
Large capacity oil and grease reservoirs
5 - Heavy duty lubricated sleeve roller bearings
6 - Centre drive gearbox
7 - Robust and proven New Holland five-bar pick-up

The Roll Baler 125 Combi takes the well-proven in-line wrap system of predecessor models including the possibility for the operator to choose between 500mm or 750mm film. Added to the high speed of the twin satellite arms, this means:

• Fast wrapping
• Apply more layers with no impact on productivity
• Automatically match number of layers selected to turntable speed
• Extra bale rotation to secure the cut end of film
• Easier loading of new film rolls
• Spare wrap capacity of 10 rolls
• Fully covered wrap storage boxes
• Fold down pillars ease loading spare rolls
• Roll storage boxes open out for better service access

Down time is the enemy of productivity. New Holland has worked hard to ensure all Roll Baler models are easy to set up, straightforward to drive and have simple servicing requirements. The fine details have been carefully considered. Loading full rolls of net wrap and film is simple. Daily greasing and routine checks are easy to remember and simple to carry out. The new Roll Baler has received a number of improvements to boost durability, productivity and customer satisfaction.
