HIGH SPEED MEETS HIGH VALUE
ECONOMY DISC MOWERS

FAST MOWING SPEEDS AT A PRICE THAT GOES EASY ON THE WALLET

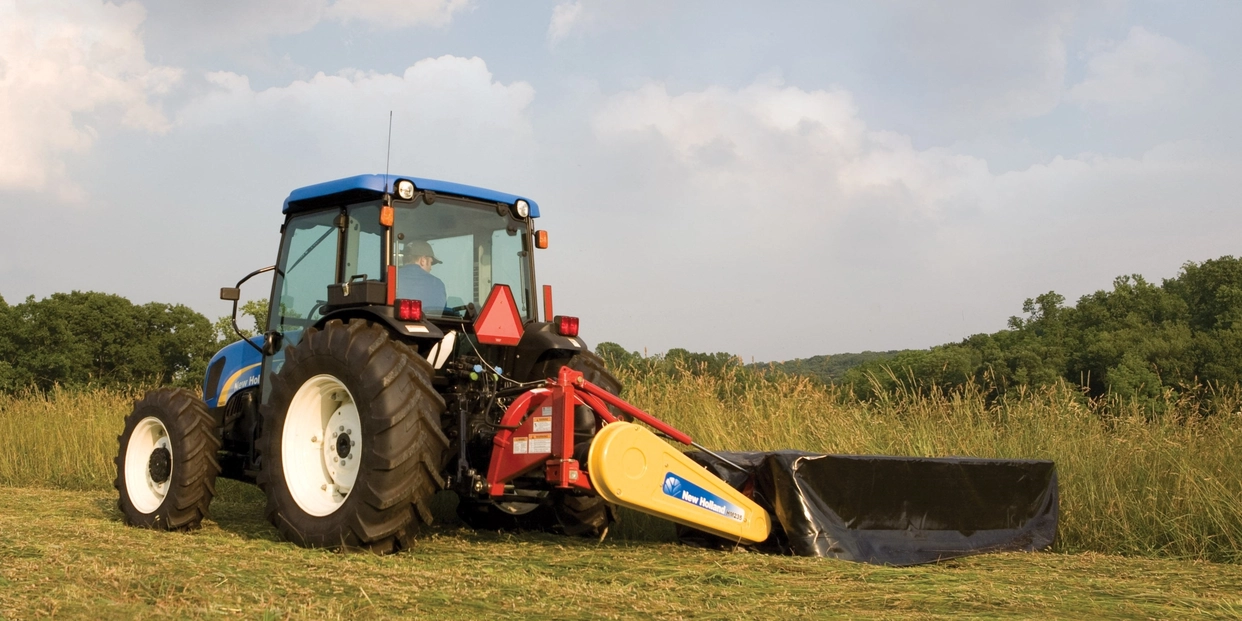

The HM Series disc mowers deliver smooth, fast cutting speeds at a price that fits any budget. Available in three sizes — with cutting widths from 5 feet, 6 inches to 7 feet, 11 inches — these durable machines can mow through tough crops and rough field conditions.
DISCOVER MORE

Features

  • CLEAN, HIGH SPEED CUTTING

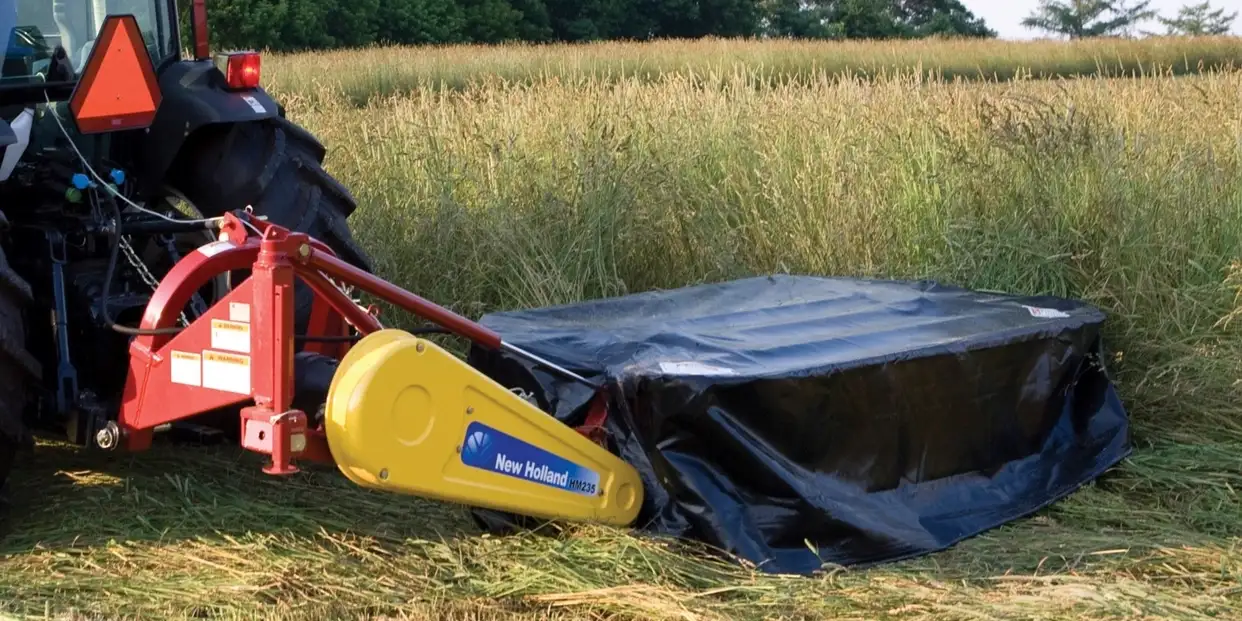

    Slice through thick crops, even gopher mounds, at high speed with the HM Series disc mowers. Depending on the model, four, five or six low-profile, oval cutting discs use two knives per disc to slice through the wet grasses. Knives, made of high-quality steel, are reversible for twice the cutting life.
    DISCOVER MORE

  • EASY OPERATION

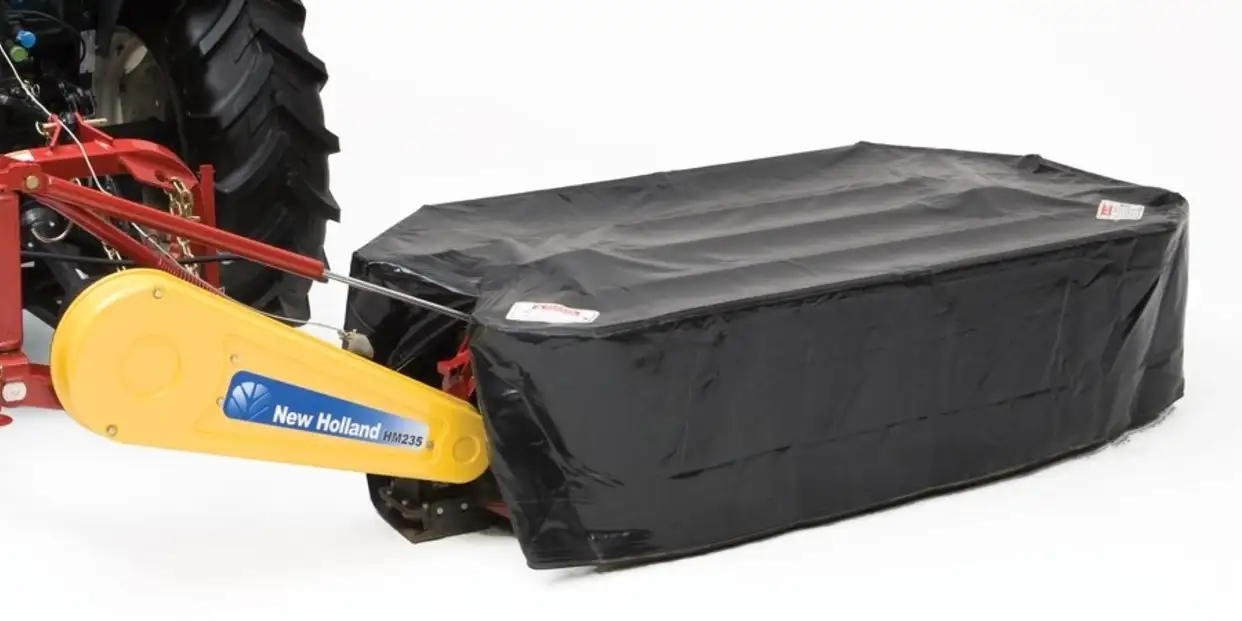

    The simple design of HM Series disc mowers make them easy to use. A single-acting hydraulic cylinder makes it easy to lift the cutterbar at the end of each pass.  Right-side swath divider wheel separates each cut path.
    DISCOVER MORE
MODELS

Explore available models

TECHNICAL SPECIFICATIONS
economy-disc-mower-overview

HM234 Economy

Cutting width ft. in. (mm)
5' 6" (1676)
Number of discs
4
economy-disc-mower-overview

HM235 Economy

Cutting width ft. in. (mm)
6' 9" (2057)
Number of discs
5
economy-disc-mower-overview

HM236 Economy

Cutting width ft. in. (mm)
7' 11" (2413)
Number of discs
6

Technical specifications

Cutter Bar

Cutting width ft. in. (mm)
Cutting height in. (mm)
Cutter bar tilt angle degrees
Cutter bar operating range degrees
Breakaway angle degrees
Type cutterbar
Number of discs
Knives per disc
Disc cutting diameter in. (mm)
Disc drive
Disc speed RPM
Cutter bar gear protection
Swath width, approx standard** in. (mm)
Swath width with optional swath wheel** in. (m)

Driveline

Hydraulics and Hitch

Dimensions and Weight

Note: Recommended for use with tractors having a fully enclosed cab.
* Transport height is based on 19.7-inch (500 mm) hitch-pin height above ground on HM Series models, 24-inch (609 mm) hitch-pin height above ground on H6730 models, and 18-inch (457 mm) hitch-pin height above ground on H6740 and H6750 models
** Heavy swaths may fluff out to a wider swath after exiting the swathboard(s)
