ProTed™ tedder range

The ProTed™ range of tedders is available in both mounted and trailed specifications. The six mounted models feature working widths of 4.5 to 8.8 metres, and for those looking to optimise the horsepower/width ratio, the trailed tedder is also available in the largest 8.8 metre width. The 6.6 to 7.6 metre variants are equipped with six rotors, and the 8.8 metre models are fitted with eight rotors.
DISCOVER MORE

Features

  • Double tines for outstanding performance

    All models in the range are fitted with double tines for enhanced tedding performance. In addition, all models above 6.9m are fitted as standard with a tine locking mechanism to prevent tines getting lost in the crop, this feature is optional on smaller models. The tine lock system protects the following forager, and helps to prevent metal fragments ending up in the livestock feed.

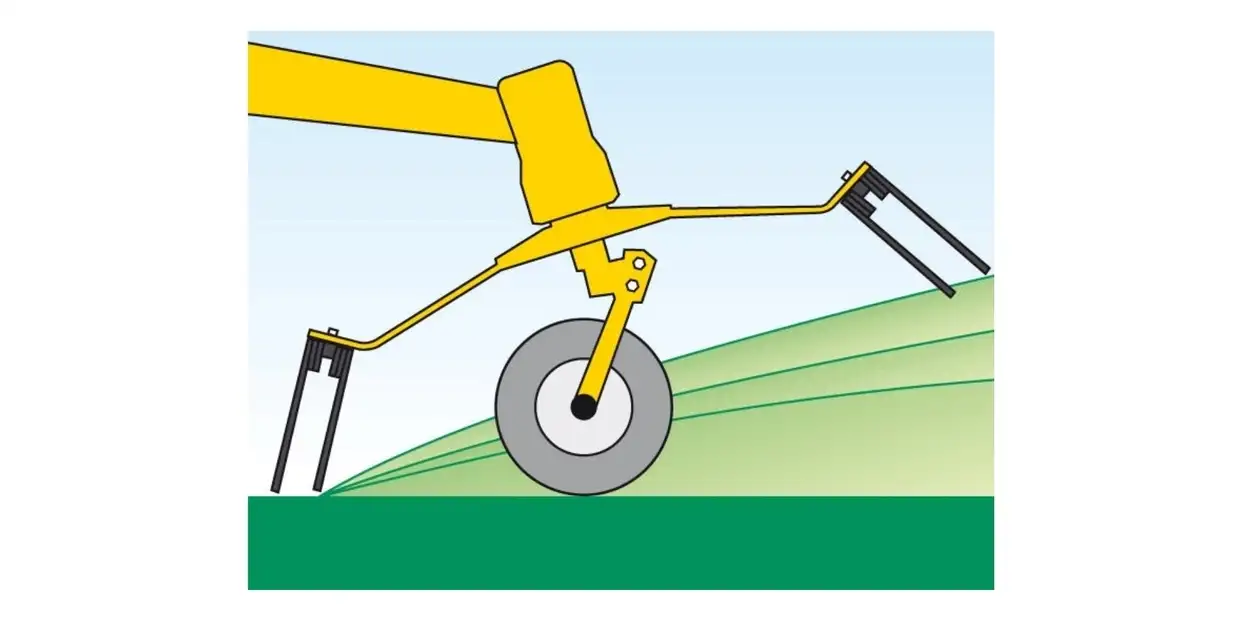

  • Pivoting closed rotor design

    All rotors are suspended using pivot technology to ensure they can quickly and efficiently adapt to changing ground conditioning. On the 880 and 880T models, the tedder’s drive gear is encased in a closed capsule which runs in an oil bath at all times to ensure that the gear remains constantly lubricated for extended operating life.

  • Efficient field boundary clearing

    In order to ted every last blade, field boundary clearing technology can be employed. On 690 and 760 models this is engaged by using a manual control handle or by an optional hydraulic switch which is standard on 880 and 880T models. Furthermore, the wheels under the rotors can be turned so that the machine does not drive at 90° to the field boundary.

  • Rotor adjustment

    The rotors angle to ground setting can be easily adjusted to suit the field conditions, ensuring good mixing and spreading of the crop to facilitate ideal drying.
MODELS

Explore available models

TECHNICAL SPECIFICATIONS
tedders-overview

New Holland ProTed™ 450

Mounting type
3-point headstock
Working width (m)
4.5
tedders-overview

New Holland ProTed™ 540

Mounting type
3-point headstock
Working width (m)
5.4
tedders-overview

New Holland ProTed™ 660

Mounting type
3-point headstock
Working width (m)
6.6
tedders-overview

New Holland ProTed™ 690

Mounting type
3-point headstock
Working width (m)
6.9
tedders-overview

New Holland ProTed™ 760

Mounting type
3-point headstock
Working width (m)
7.6
tedders-overview

New Holland ProTed™ 880

Mounting type
3-point headstock
Working width (m)
8.8
tedders-overview

New Holland ProTed™ 880T

Mounting type
Trailed
Working width (m)
8.8

Technical specifications

Specifications

Mounting type
Working width (m)
Numbers of rotors
Tine arms per rotor
Diameter of the rotor (m)
Transport width (m)
Transport height (rotors folded up) (m)
Minimum PTO Power [kW/hp(CV)]
Hydraulic remote required
PTO speed (rpm)
Hydraulic folding
Hydraulic lifting for headland turns
Manual field boundary cleaning
Hydraulic field boundary cleaning
Shock absorber
Lighting
Anti wrapping unit for tyres
Tine safety system
Rotor tyres standard
Main frame tyres
Weight (kg)

Standard Optional – Not available​​​
