NEVER LOOK BACK

Guardian™ Front Boom Sprayers

white dots

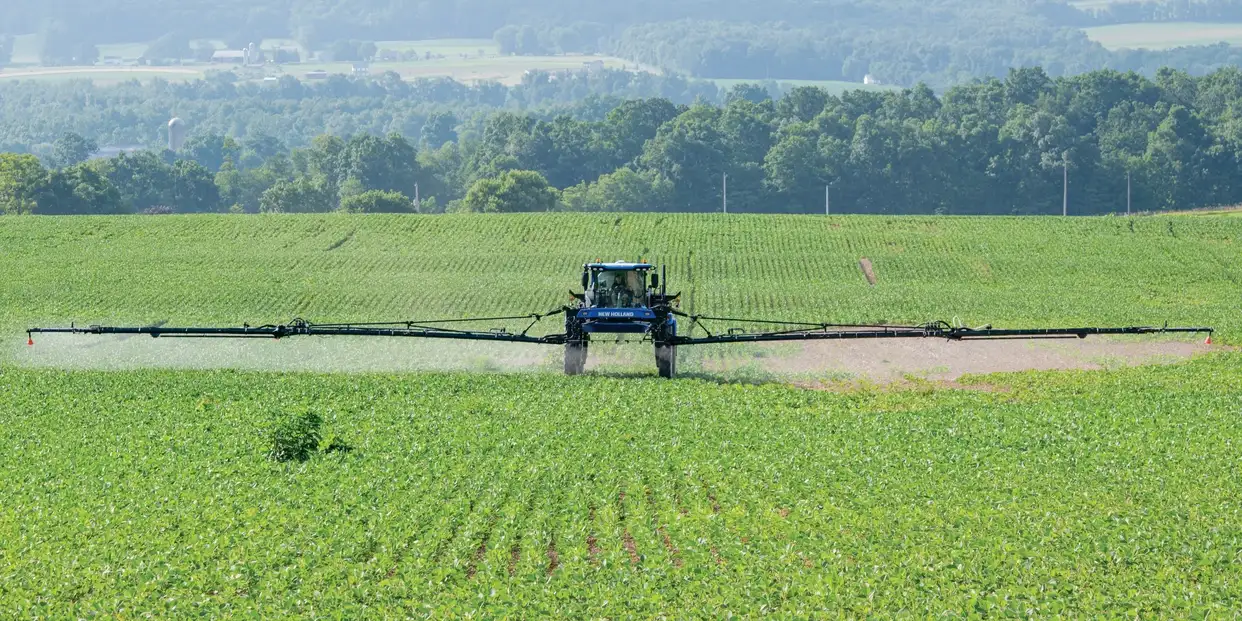

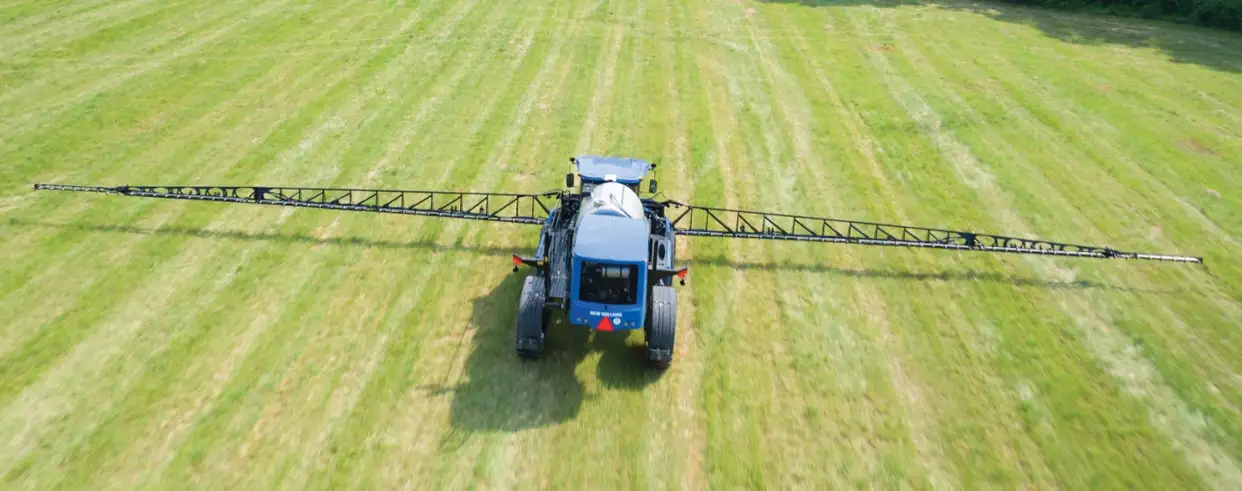

THE EASIER WAY TO SPRAY With the boom in front, you get unmatched visibility which means you can run the boom closer to the ground to reduce drift. There’s no need to turn in your seat to monitor spraying action.

BEST-IN-CLASS CROP CLEARANCE With crop clearance up to 198 cm, the Guardian™ sprayer is among the tallest in the industry. That means you can spray at all stages of crop growth.

HUGE PRODUCTIVITY With models up to 412 horsepower, tanks as large as 6057 L, and booms as wide as 41.1 m, Guardian front sprayers allow you to protect more acres per hour.

UNPARALLELED ACCURACY New Guardian sprayers come factory-equipped with the industry’s leading precision technology so you can confidently apply with sub-inch accuracy.

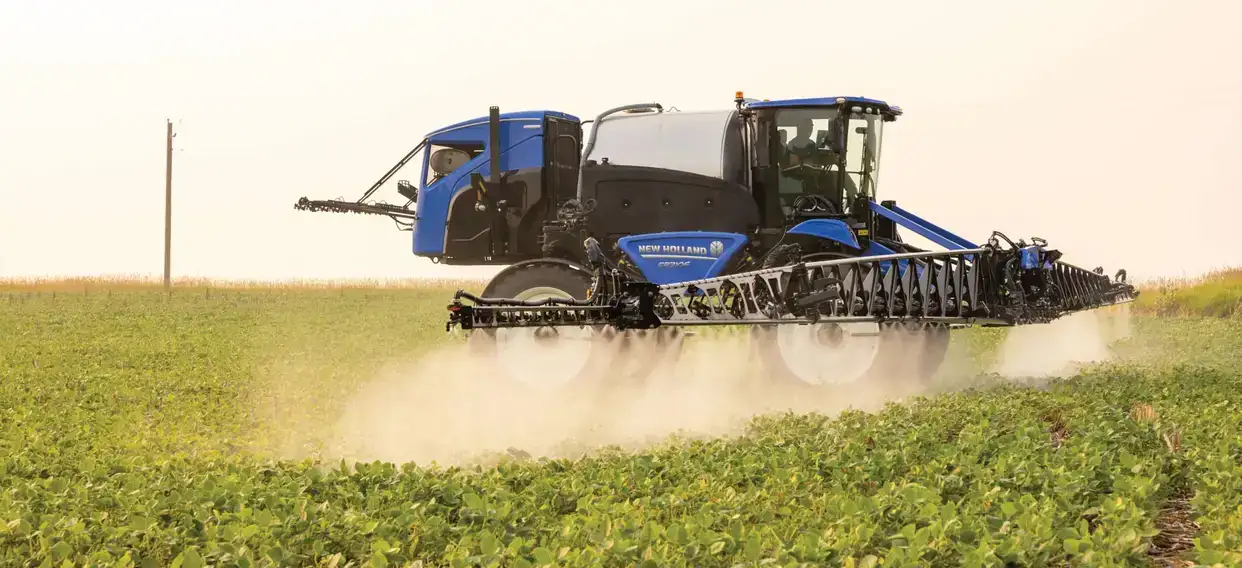

Guardian™ Front Boom Sprayers

EFFICIENT HIGH-CLEARANCE SPRAYING. ULTIMATE COMFORT.

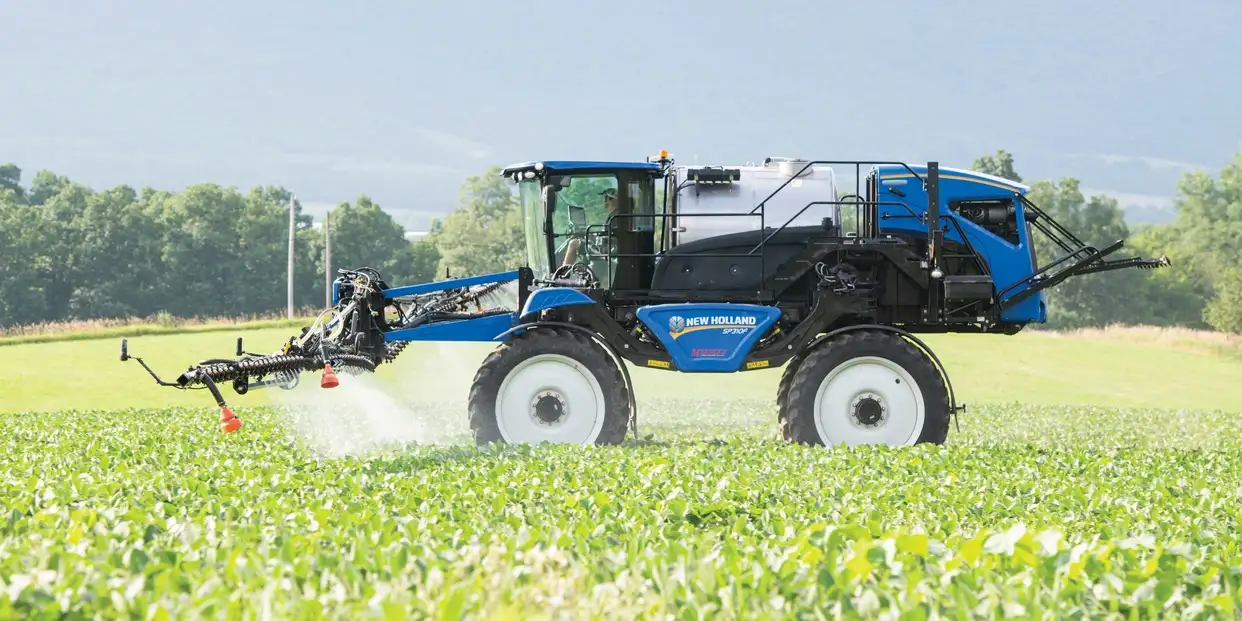

New Holland Guardian™ front boom sprayers allow you to spray later into the growing season, easily maneuver at the headlands, and make on-the-go adjustments quickly and easily — all from the comfort of a cab specifically designed for the Guardian sprayer. Select from models up to 412 horsepower.

Features

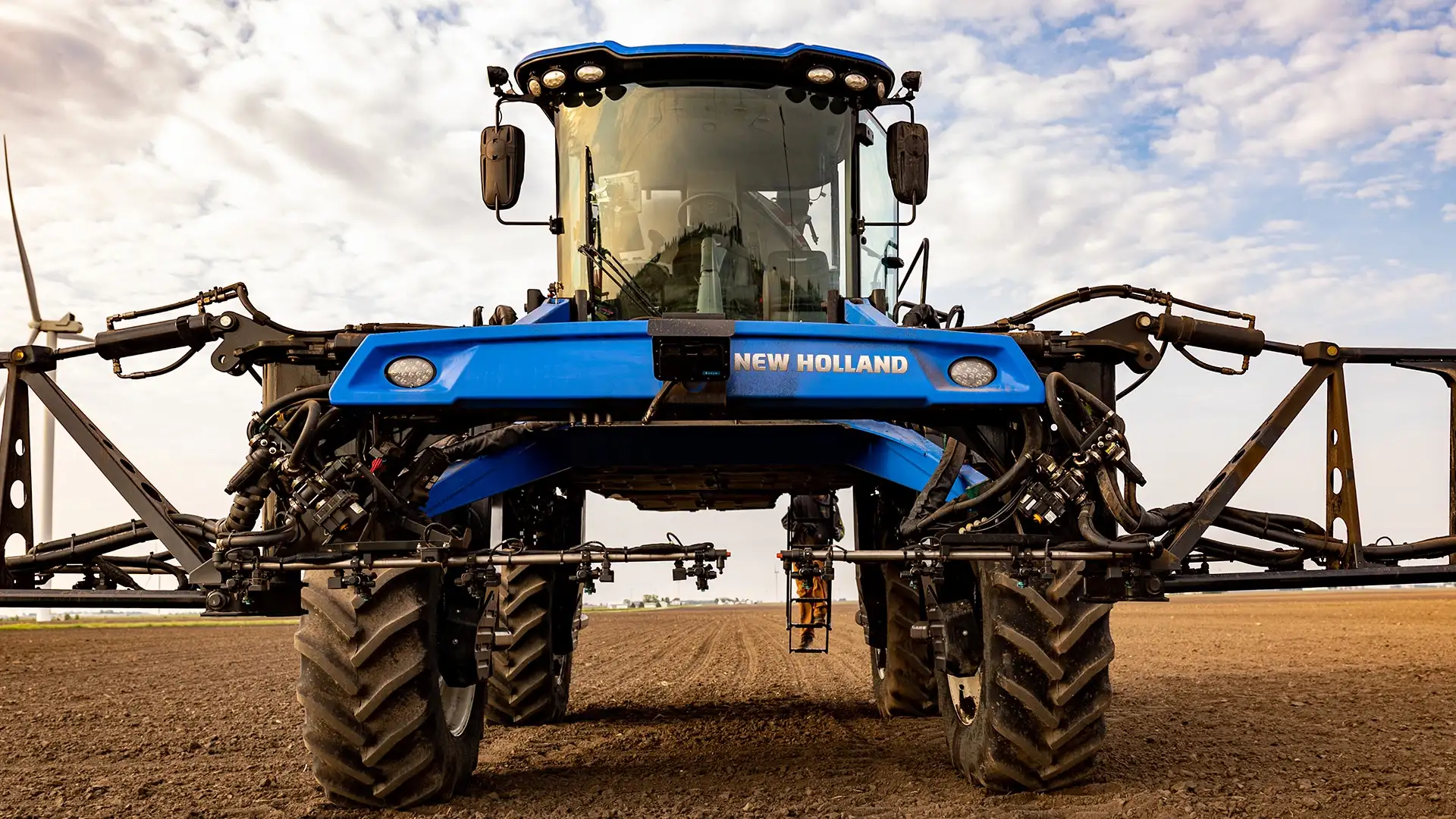

  • PANORAMIC VISIBILITY

    You’ll appreciate the expansive view of the field and the full width of the spray boom. Designed with over 69 sq. ft. (6.4 sq. m) of glass, the Guardian™ cab features a full-height windshield and large wrap-around side windows. Plus, the rear windows have been darkened to shade you from long days in the sun.

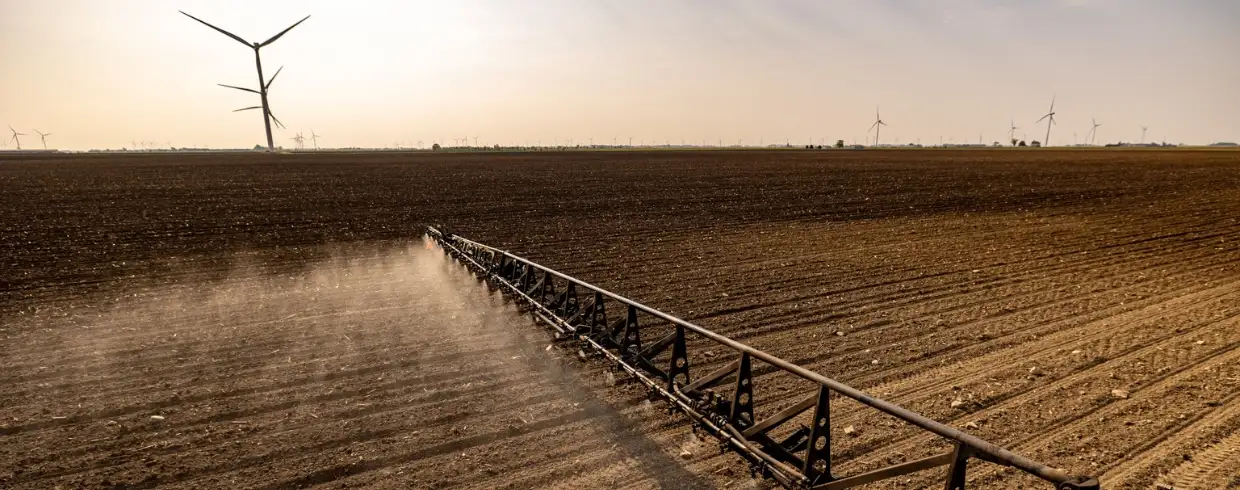

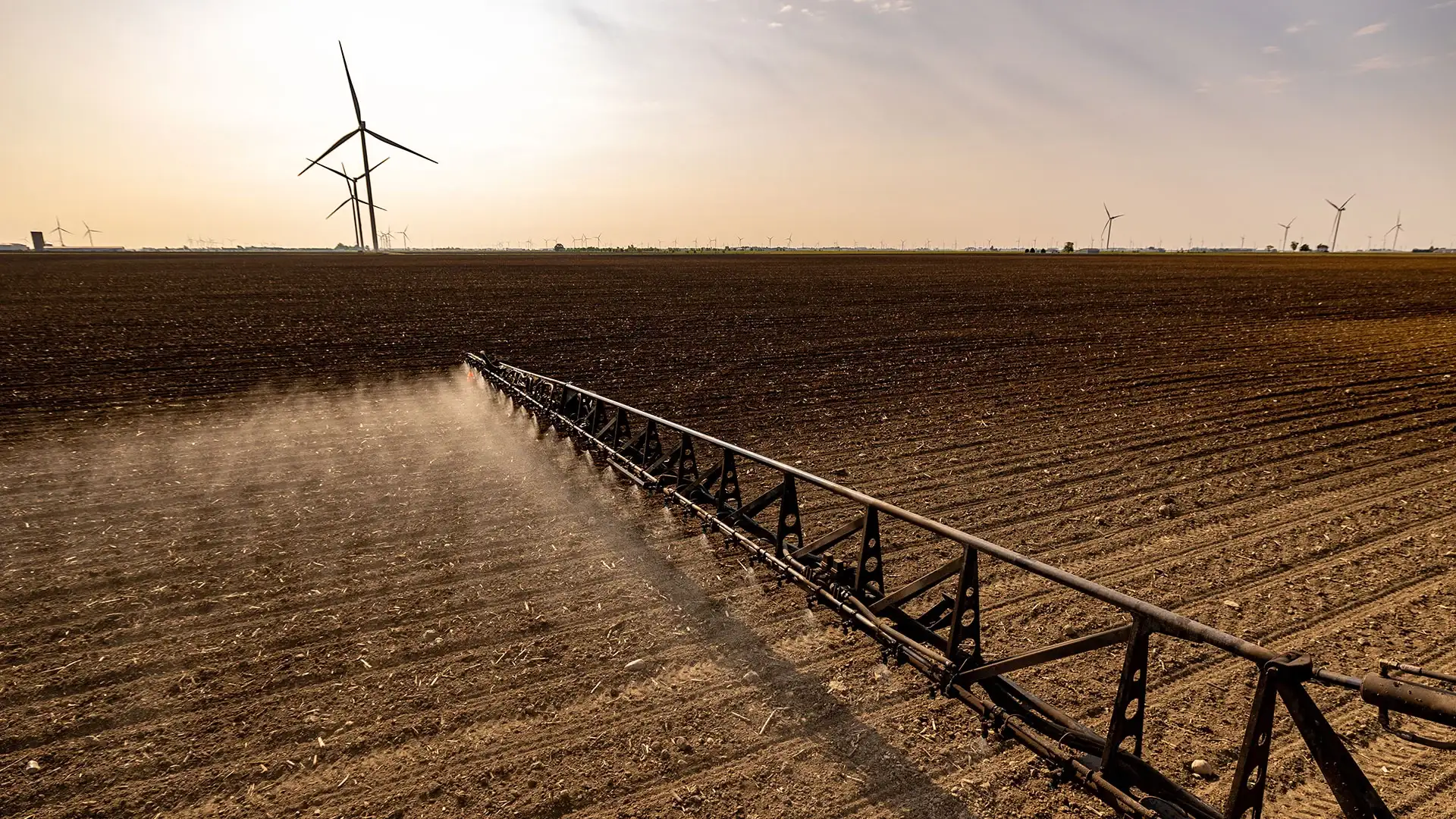

  • BOOM WIDTH OPTIONS UP TO 135 FEET (41 M)

    You have a variety of boom width choices available:

    • MonoBeam booms up to 120 ft. (36.6 m)
    • Truss booms up to 135 ft. (41.1 m)
    • IntelliSpray™-ready booms up to 135 ft. (41.1 m)
    • New Holland-exclusive Spray-Air™ booms up to 120 ft. (36.6 m)
  • INCREASED TORQUE AND IMPROVED FUEL ECONOMY

    FPT turbocharged and aftercooled engines deliver up to 412 peak horsepower. They are EGR-free, electronically controlled, meet Tier 4B standards and provide high torque rise for added power when you need it. Engines are mounted in the rear for better weight distribution, easy access, and a quieter cab.

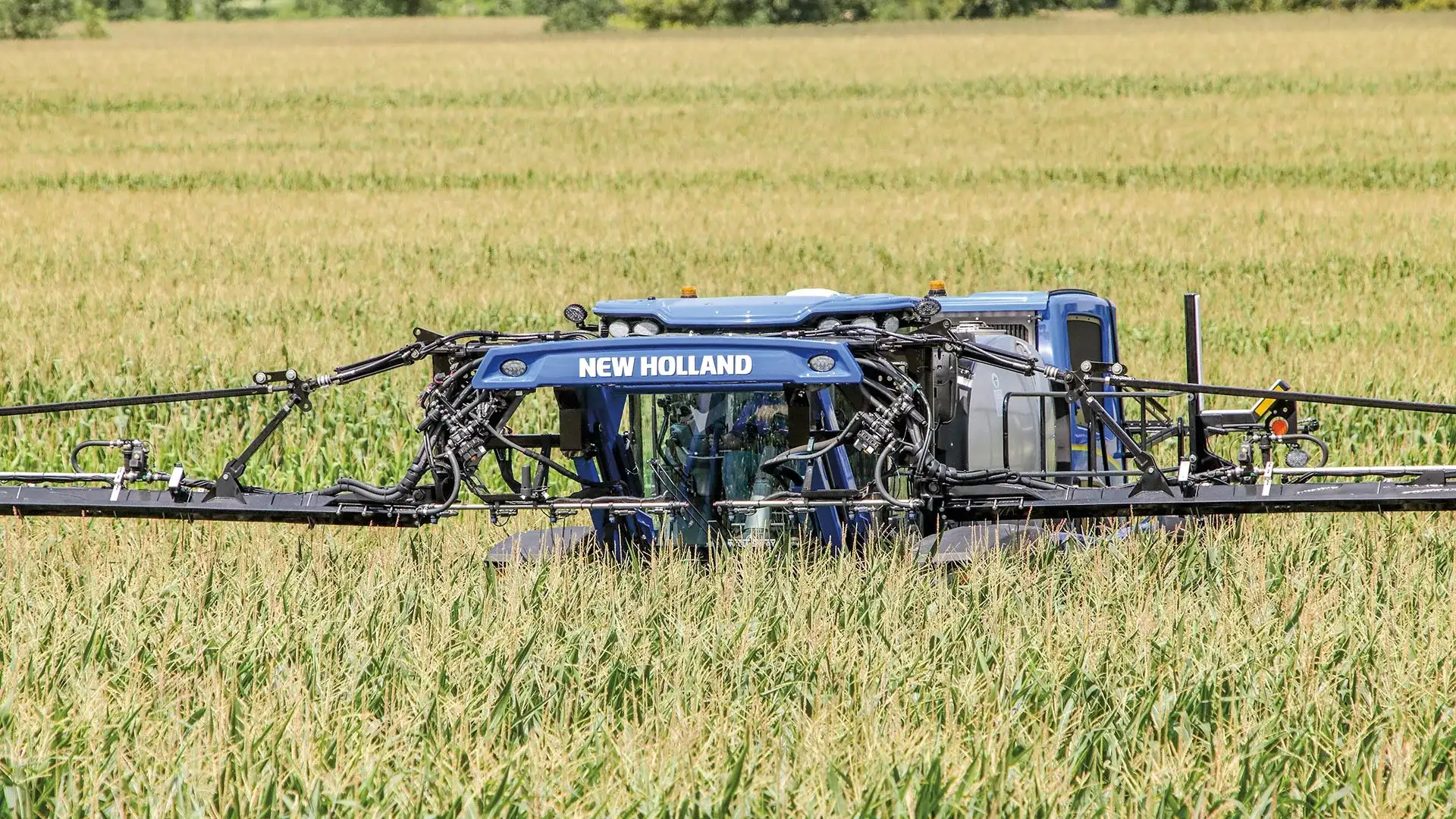

  • OUTSTANDING CLEARANCE, TURNING AND SUSPENSION

    The rugged and innovative design of Guardian™ front boom sprayers allows you to complete your work more quickly, efficiently, and with more comfort.

  • INDUSTRY-LEADING 1,600-GALLON (6057 L) CAPACITY

    Depending on the Guardian™ sprayer model you choose, you can select a tank capacity of 1,000, 1,200, 1,400, or the industry-leading 1,600 gallons (3785, 4542, 5300 or 6057 L). A variable-speed pump delivers product at the target rate for maximum efficiency, saving horsepower and pump wear.

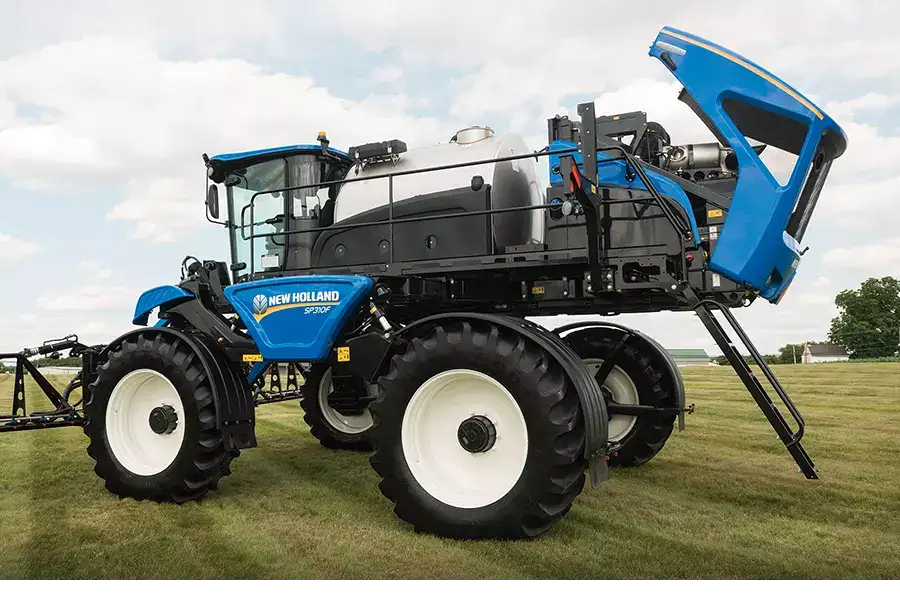

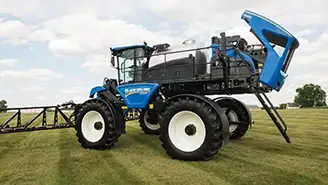

  • COMPLETE ACCESS AND EASY SERVICING

    New Holland Guardian™ front boom sprayers are designed to keep your maintenance time to a minimum, so you can get to the field quickly. They make every minute count with simple access to service areas. The walkway beside the engine compartment makes it easy to access engine and hydraulic service points. The automatic retracting rear ladder is wide and long for easier climbing and dismount.

  • INJECTION TOOLBAR FEEDS YOUR CORN IN THE SOIL ROOT ZONES

    The New Holland Injection Toolbar applies liquid fertilizer between the corn rows and into the soil root zones, precisely where and when your crop needs it most. Used with your Guardian™ front boom sprayer, the Injection Toolbar fuels corn growth, applying liquid N just before maximum uptake which occurs between the 6- to 8-leaf stage and tasseling. (Nitrogen should be applied in the 3-4 to 6-8 leaf stage to ensure ready availability during the critical growth period to follow.)

    No crop burning – The process incorporates liquid N into the soil, unlike broadcasting fertilizer.
    Minimize fertilizer loss – Not like ground-applied liquid fertilizer, which can be lost due to volatilization, especially without sufficient rainfall.
    The flexibility to match growing conditions – Adjust, increase or forego application as you see fit.
    Choice of three widths – 26, 36, or 38 ft. (7.9, 11 or 11.6 m)

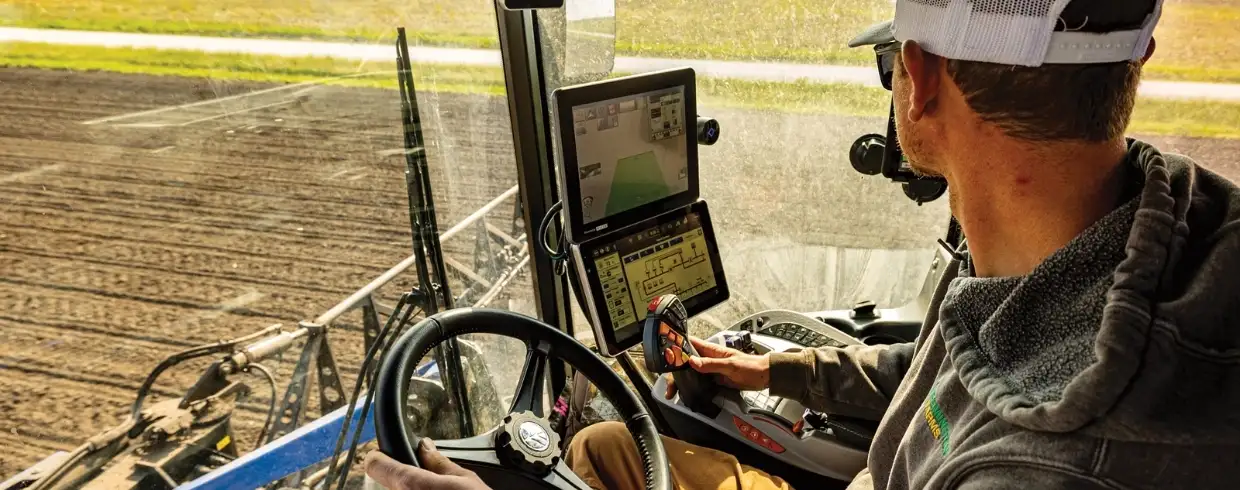

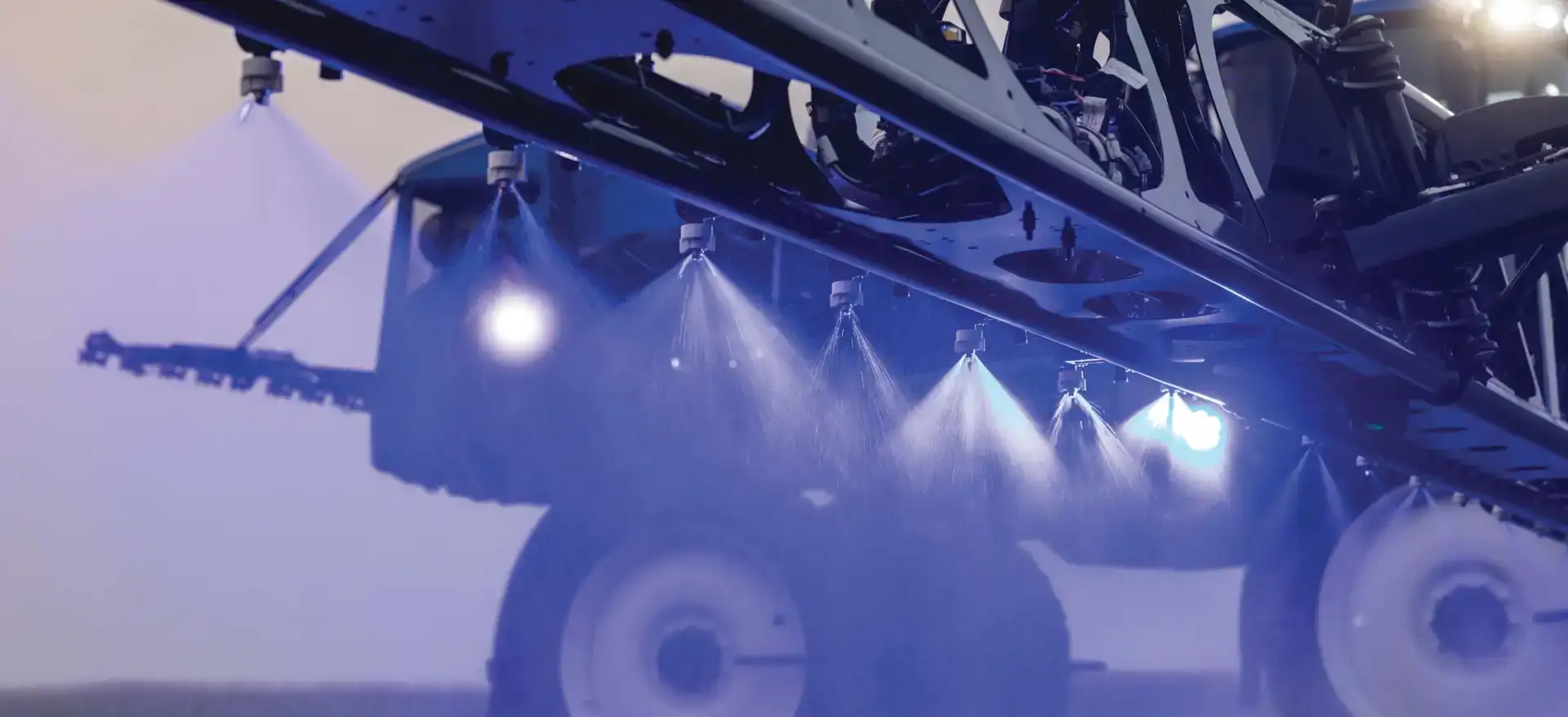

  • SPRAY WITH MAXIMUM PRECISION

    Guardian™ sprayers are designed to make full use of New Holland precision technology, allowing you to dramatically improve operator performance and comfort.

MODELS

Explore available models

spraying-equipment-sp310f

SP310F

Power Bulge
310 HP (231 kw)
Tank Capacity (L)
3800 / 4500
spraying-equipment-sp400f

SP380F

Power Bulge
380 (283)
Tank Capacity (L)
4500 / 5300 / 6050

Technical specifications

Engine

Engine

Rated Power

Power Bulge

Fuel Tank Capacity (L)

Transmission

Speed Range

Crop Clearance

Tank Material

Tank Capacity (L)

Rinse System

Mono Boom Width (m)

Truss Boom Width (m)

Spray-Air Boom Width (ft)

Nozzle Bodies

Shipping Height (cm)

Shipping Width (Mono) (cm)
