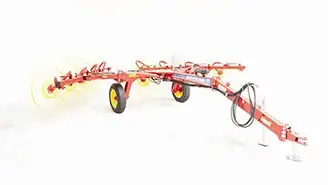

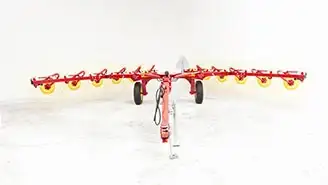

PROCART™ AND PROCART™ PLUS CARTED WHEEL RAKES
FAST, CLEAN, HIGH-CAPACITY RAKING

PROCART™ AND PROCART™ PLUS CARTED WHEEL RAKES

white dots

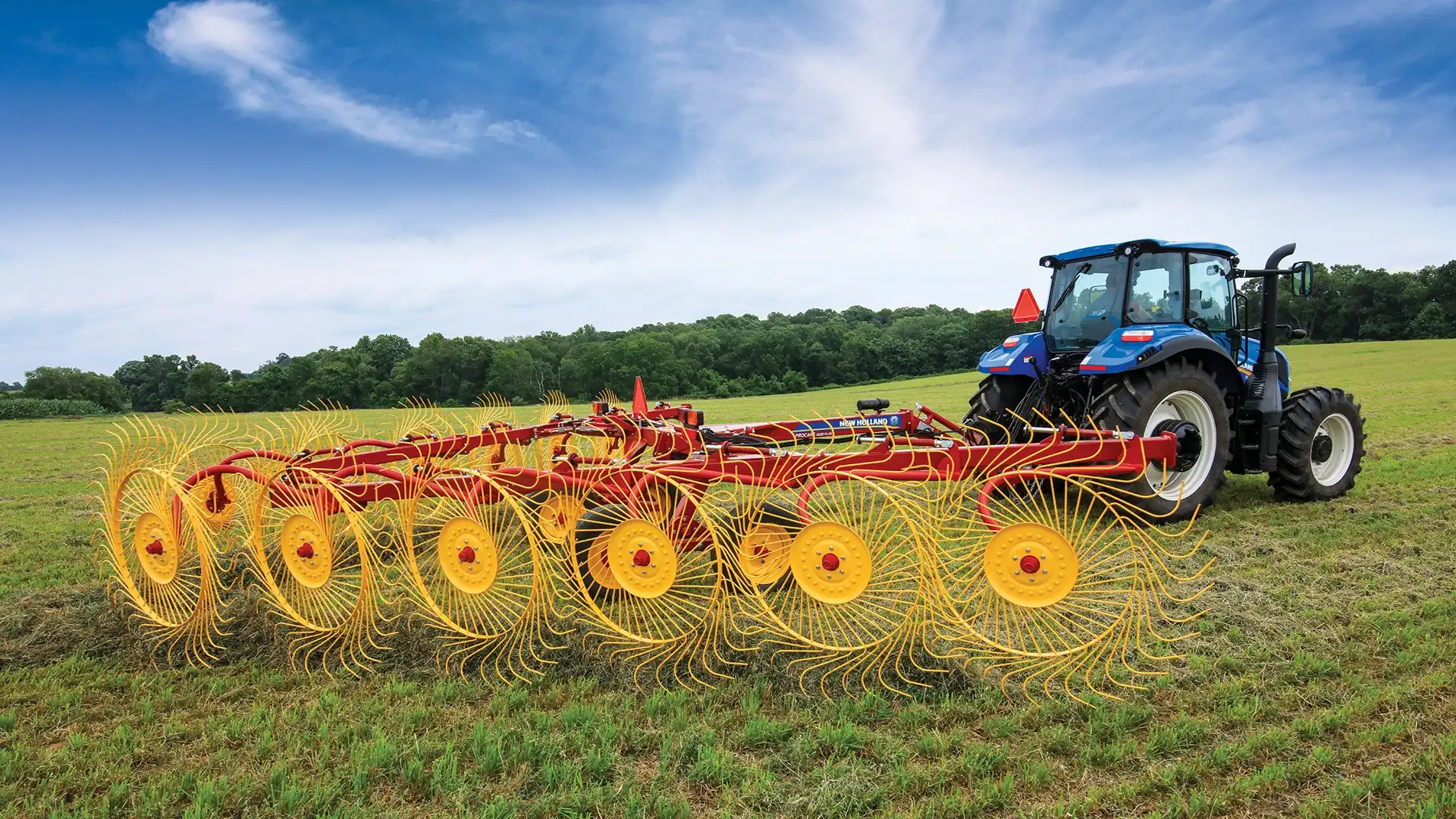

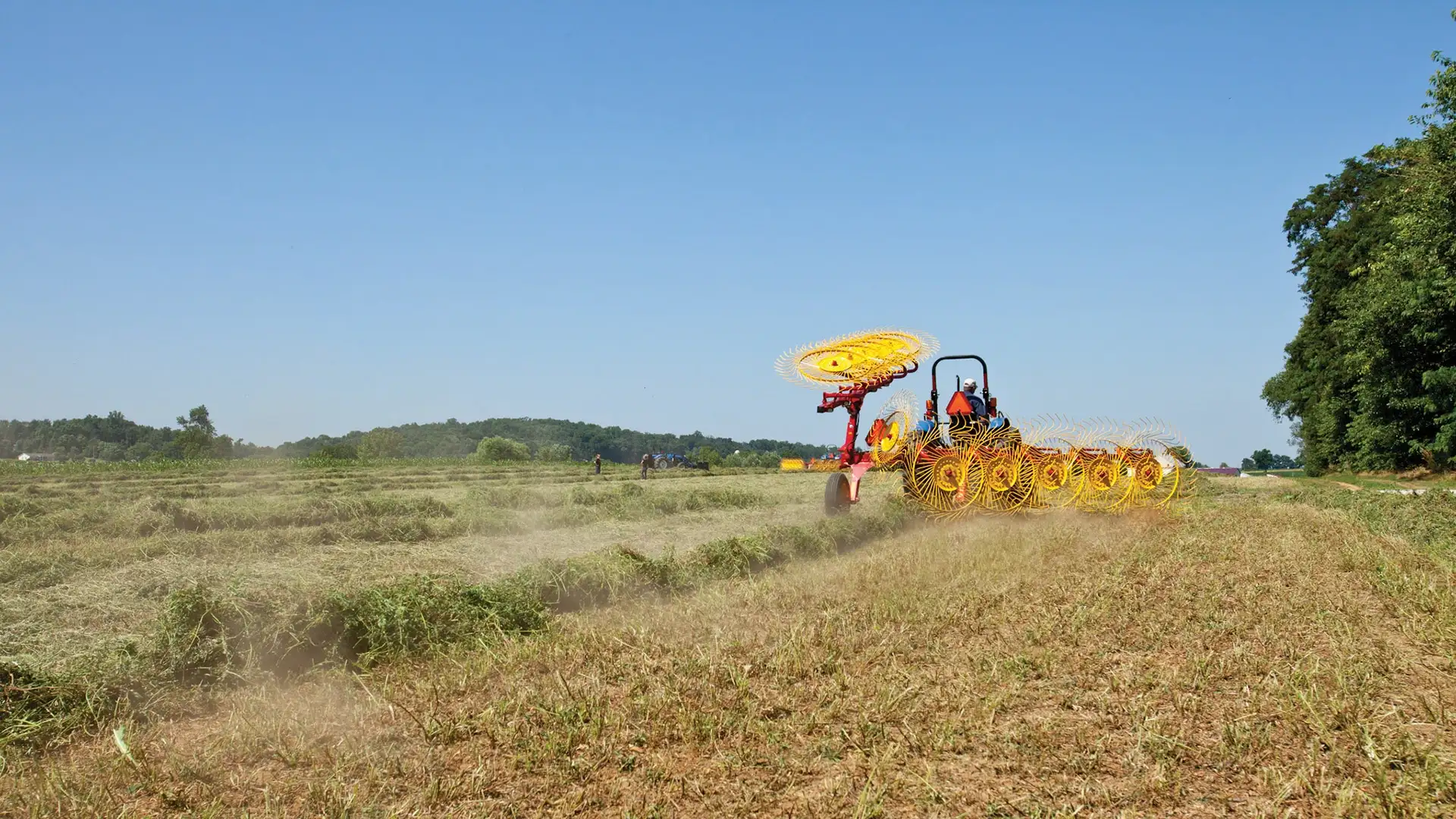

DEPENDABLE, HIGH-SPEED RAKING Individual floating rake wheels provide cleaner raking and help form more uniform windrows that are easier to bale.

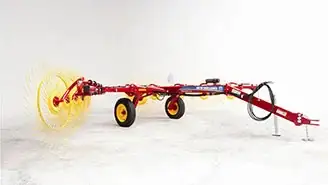

DURABLE, COMPACT DESIGN The well-built frame provides the strength and reliability you need, and it’s compact and stable so you can move fast between farm and field.

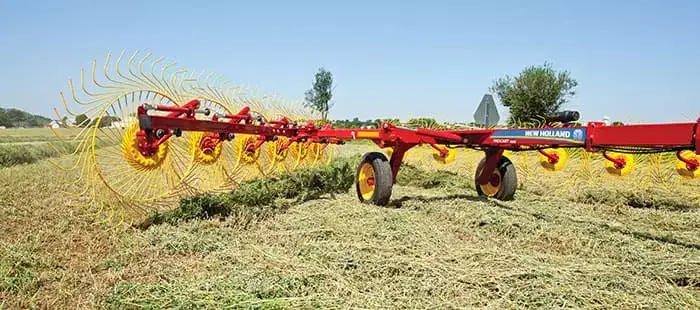

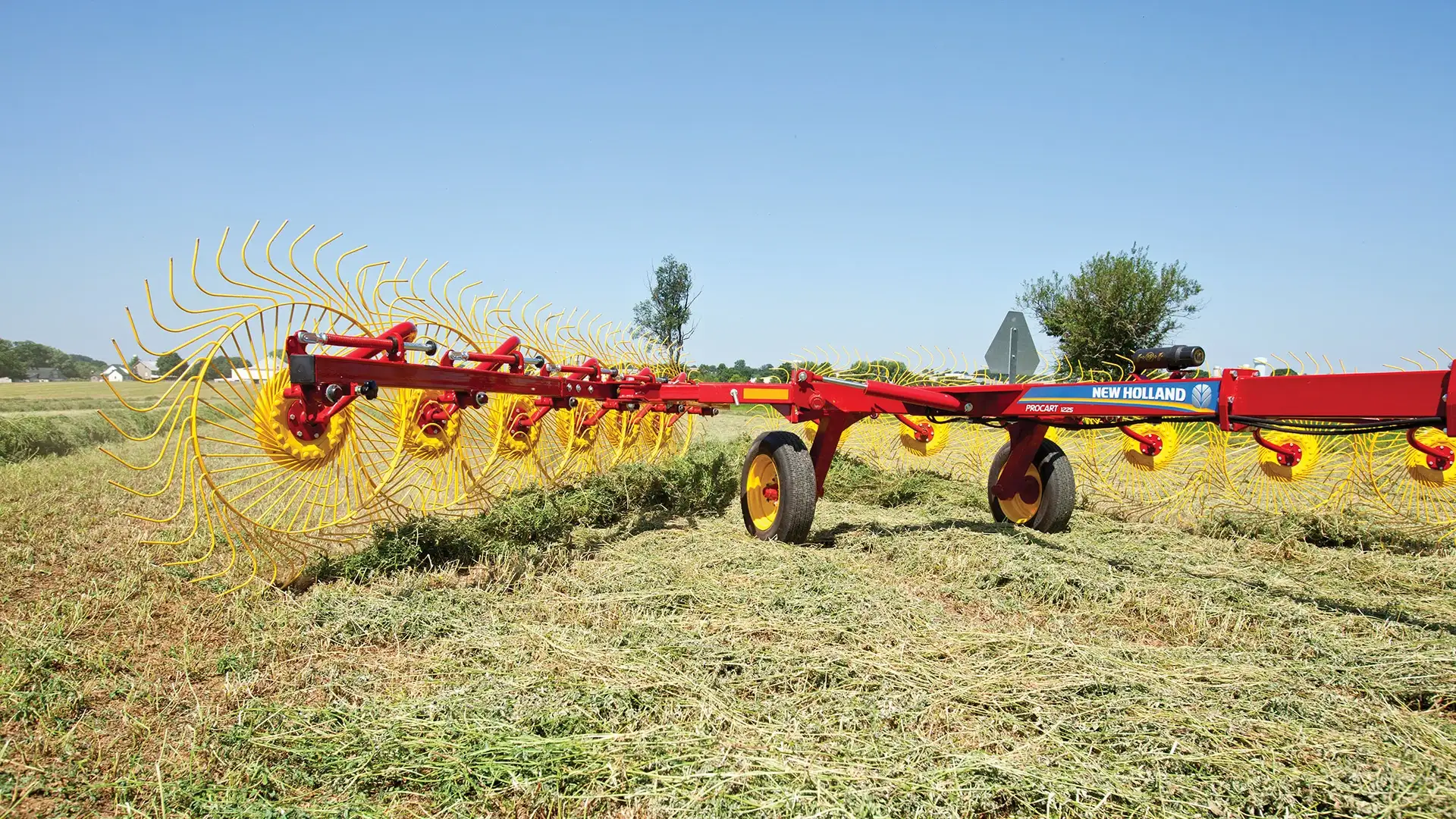

HIGH FRAME CLEARANCE Unlike other carted wheel rakes on the market, ProCart™ rakes offers a high frame clearance to accommodate high-volume crops.
A CHOICE OF MODELS With raking widths from 18 to 28 feet, and a choice of five different models, there’s one perfect for you.
PROCART™ AND PROCART™ PLUS CARTED WHEEL RAKES

MAKE MORE HAY IN EVERY PASS

Whether you choose a ProCart™ deluxe or ProCart™ Plus premium carted wheel rake, these features help you gather more crop to make even more bales.

Features

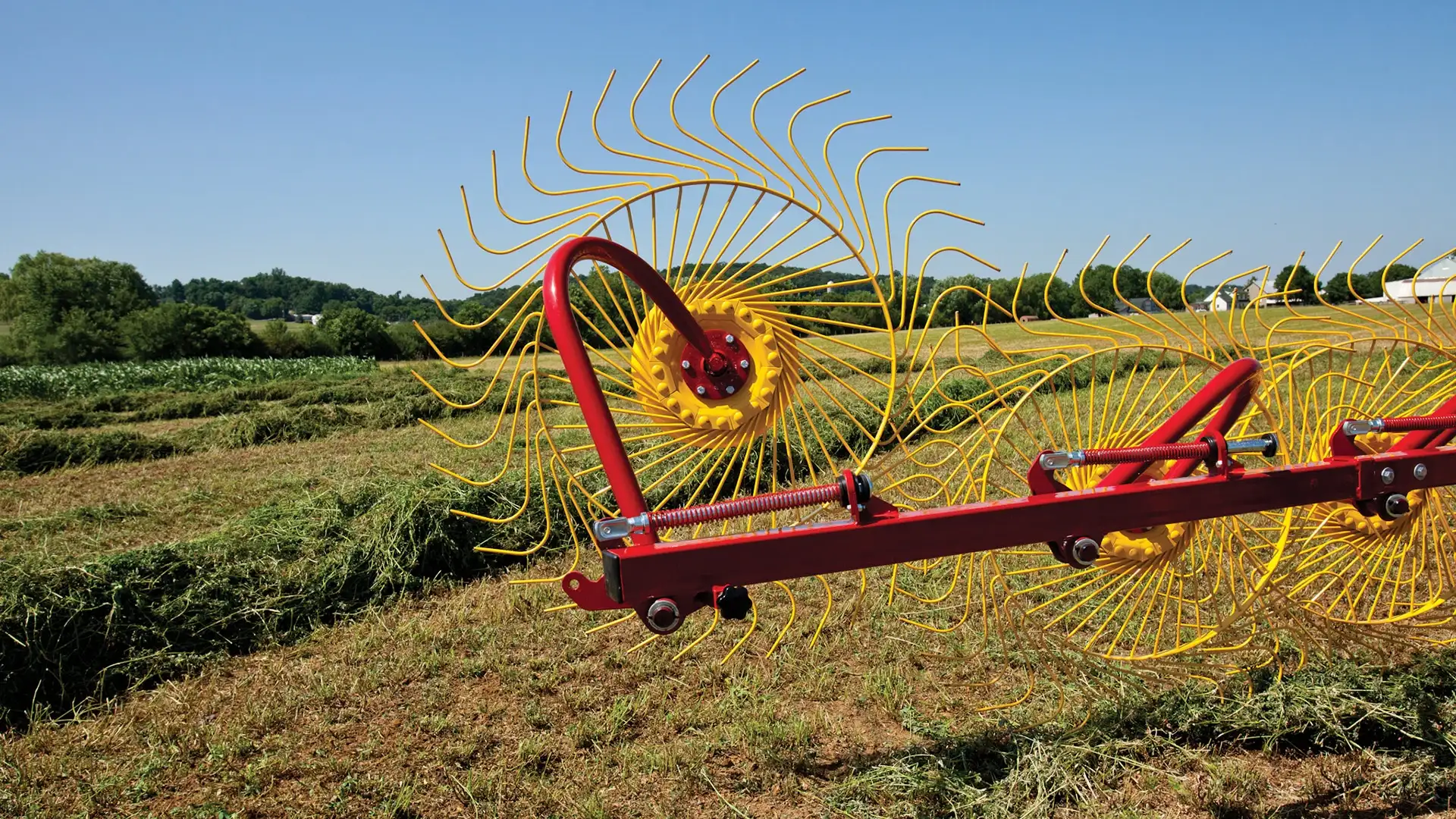

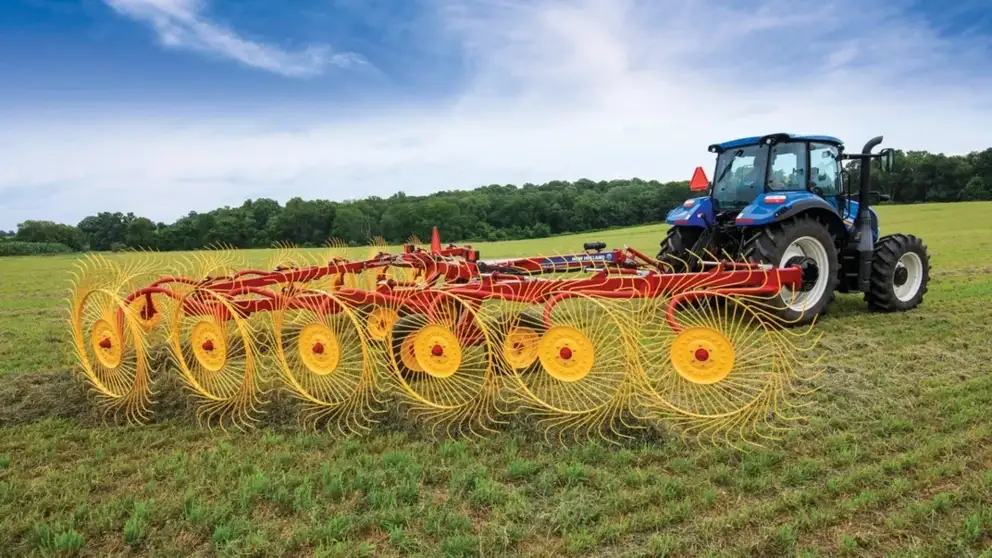

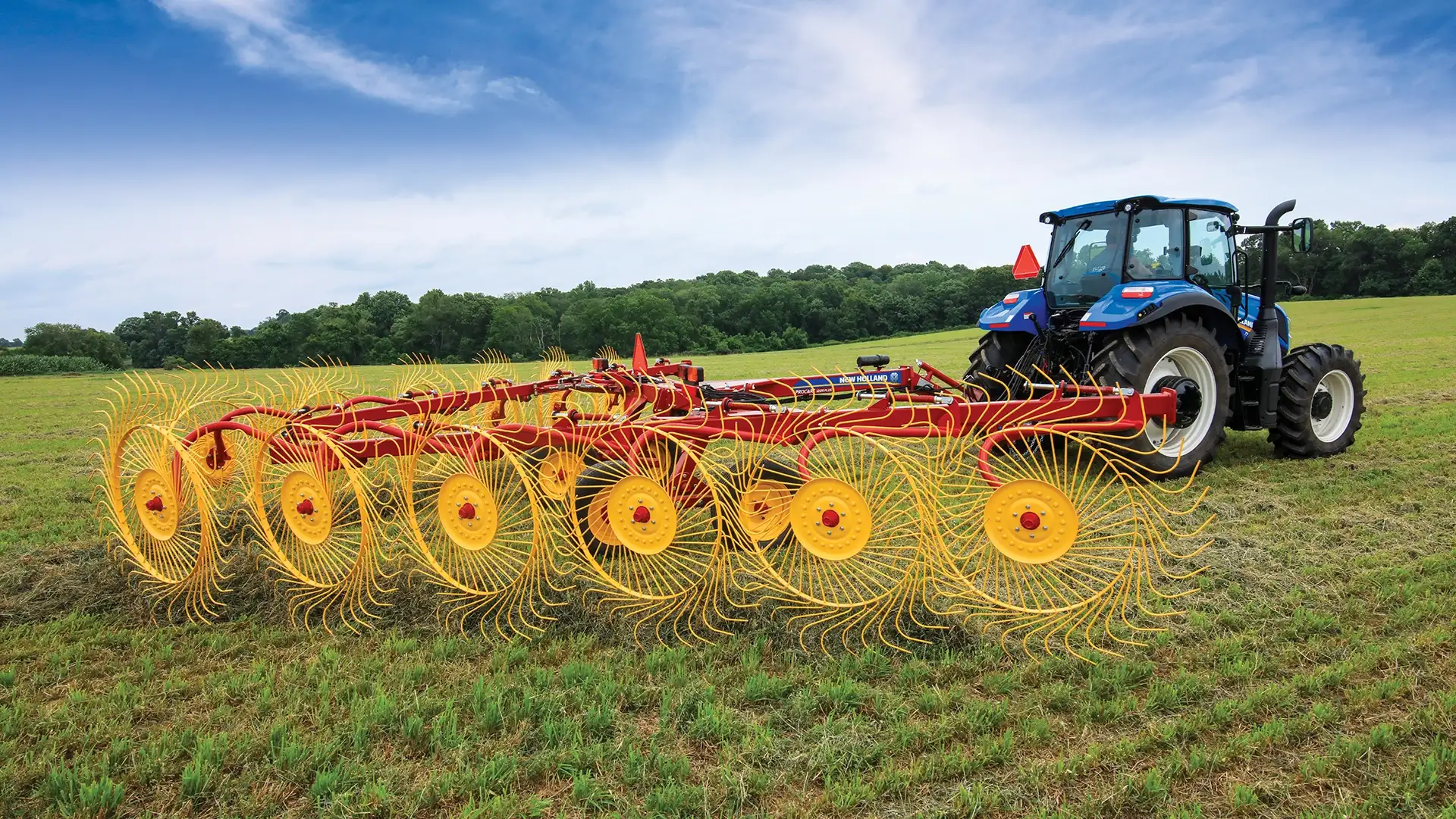

  • CLEANER RAKING WITH INDEPENDENT RAKE WHEEL FLOTATION

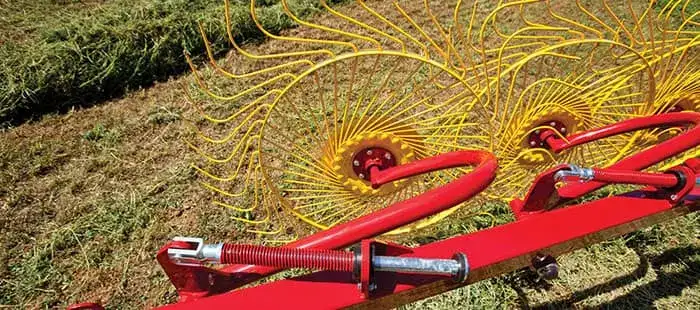

    Individual floating rake wheels follow ground contours independently to gather every bit of the swath to cause less stubble damage compared to rakes with tandem-mounted rake wheels. Suspended by an adjustable compression spring, each rake wheel can be adjusted to your crop and field conditions for the cleanest possible raking.

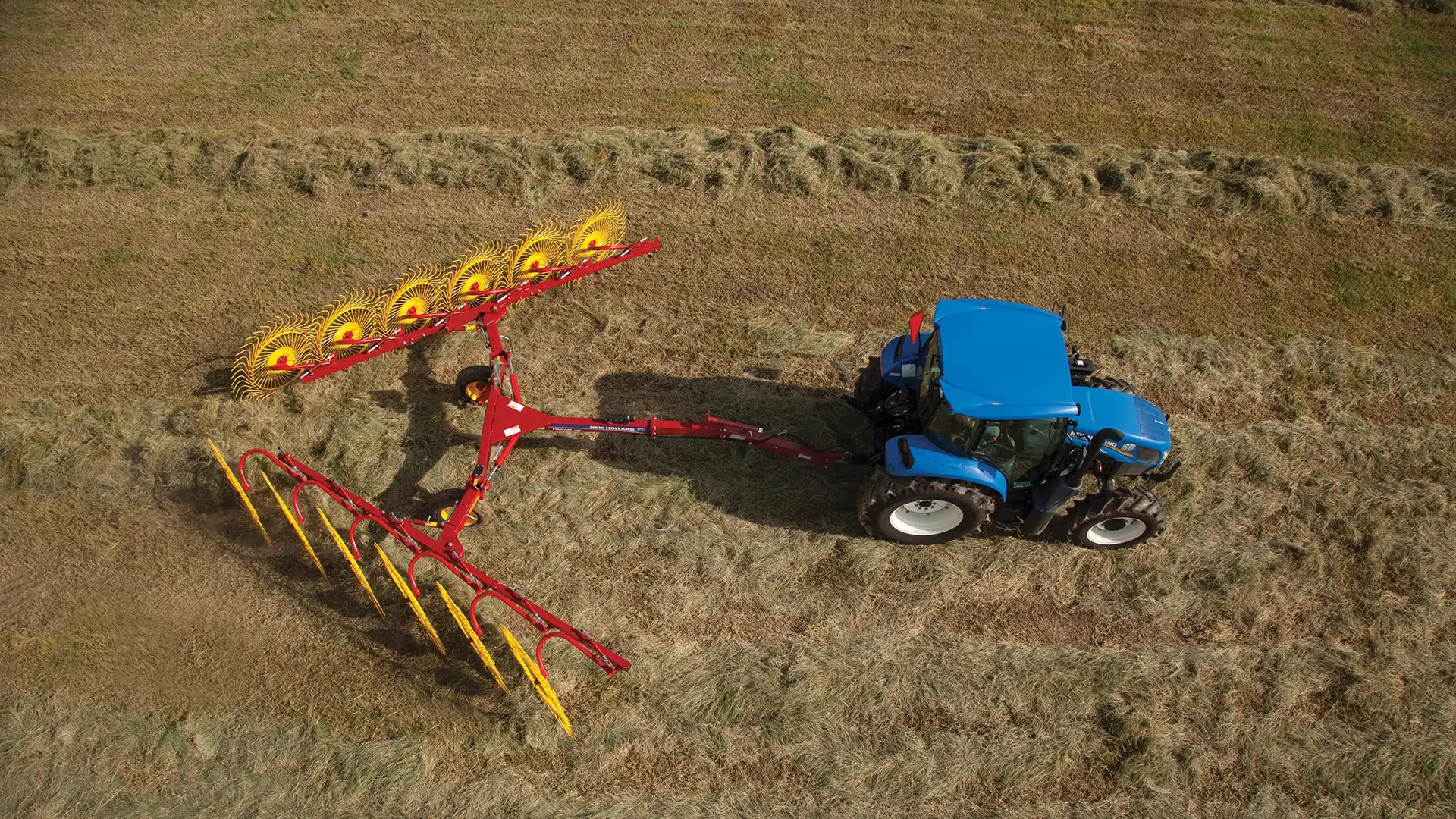

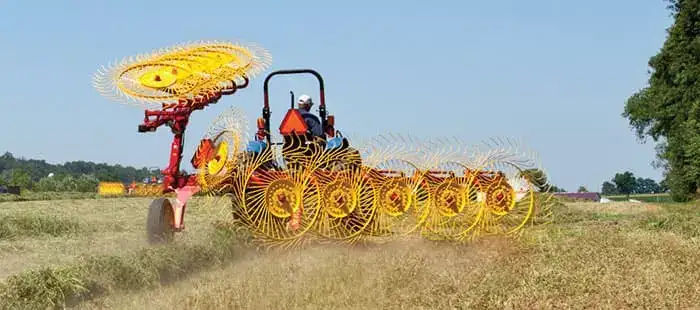

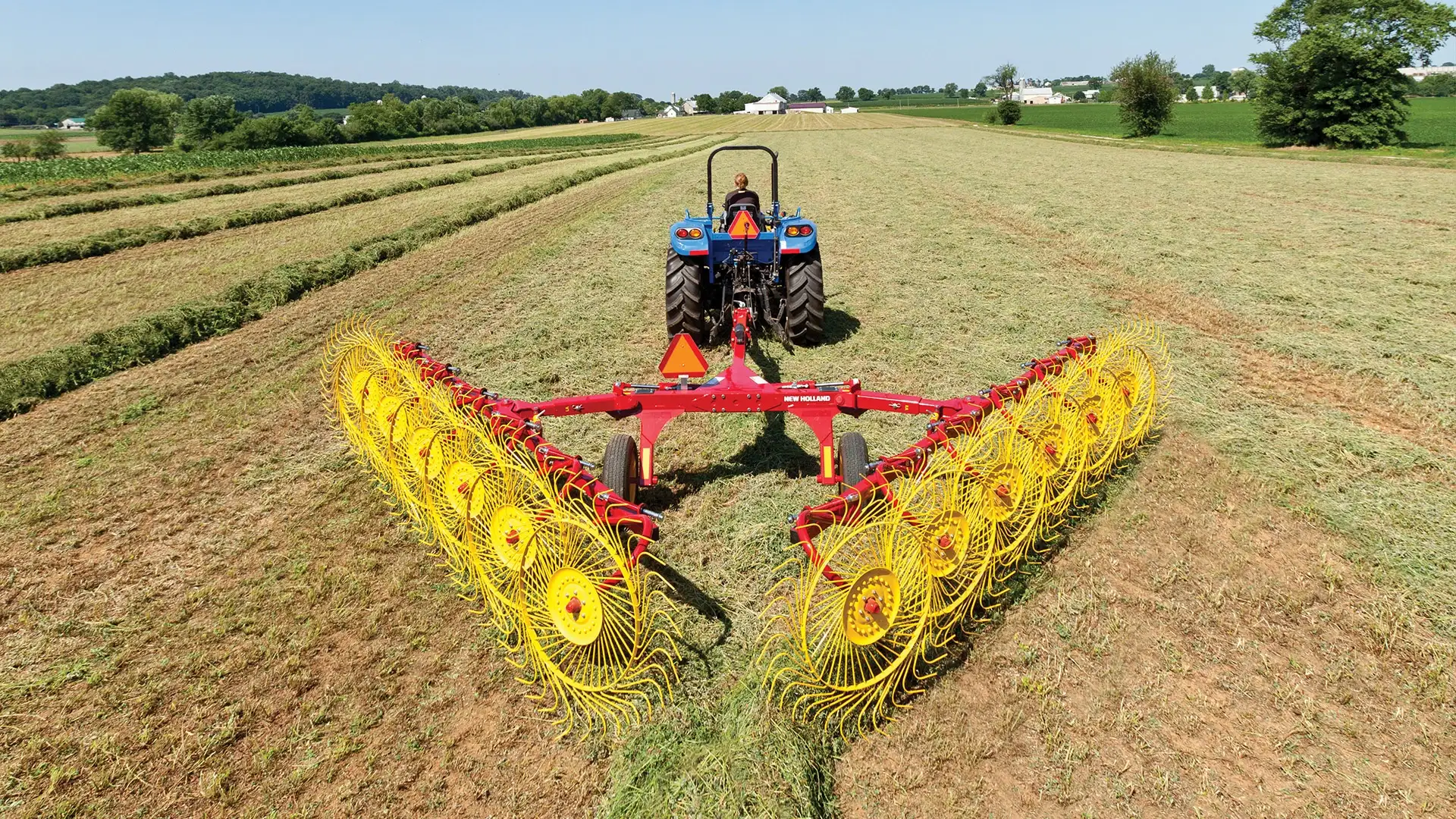

  • SINGLE-SIDE RAKING, “V” RAKING OR WINDROW TURNING

    ProCart rakes allow you to rake any way you choose. You can rake with either side, turn over damp windrows, or select “V” raking with a quick turn of the hydraulic lock valves.
MODELS

Explore available models

819

819

Weight, lbs.
1675
Maximum working width, ft. in.
18' 0"
1022

1022

Weight, lbs.
1875
Maximum working width, ft. in.
21' 0"
1225

1225

Weight, lbs.
2115
Maximum working width, ft. in.
24' 6"
1225 Plus

1225 Plus

Weight, lbs.
2736
Maximum working width, ft. in.
25' 1
1428 Plus

1428 Plus

Weight, lbs.
3038
Maximum working width, ft. in.
28' 0"

Technical specifications

Specifications

Number of finger wheels
Finger wheel diameter in (m)
Teeth per wheel
Rake wheel tine diameter in (mm)
Overall length* ft (m)
Minimum transport height ft (m)
Transport width ft (m)
Tread width outside of tires ft (m)
Minimum working width* ft (m)
Maximum working width* ft (m)
Minimum windrow width* ft (m)
Maximum windrow width* ft (m)
Operating Weight lb (kg)
Tires
Tractor requirement hp (kW)
Tractor requirement, hydraulic

*Depending on crop conditions
