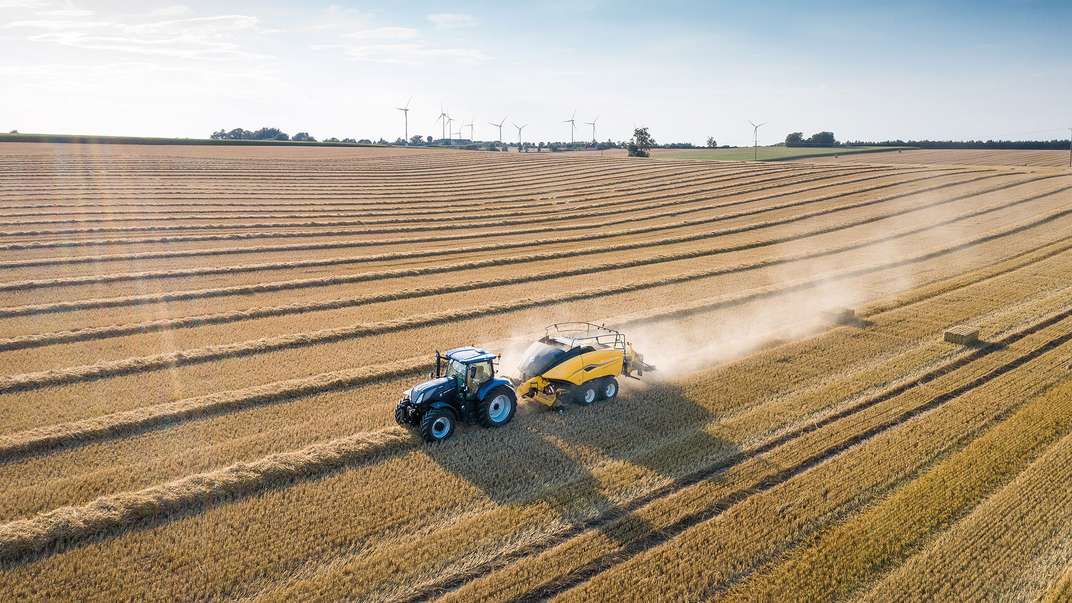

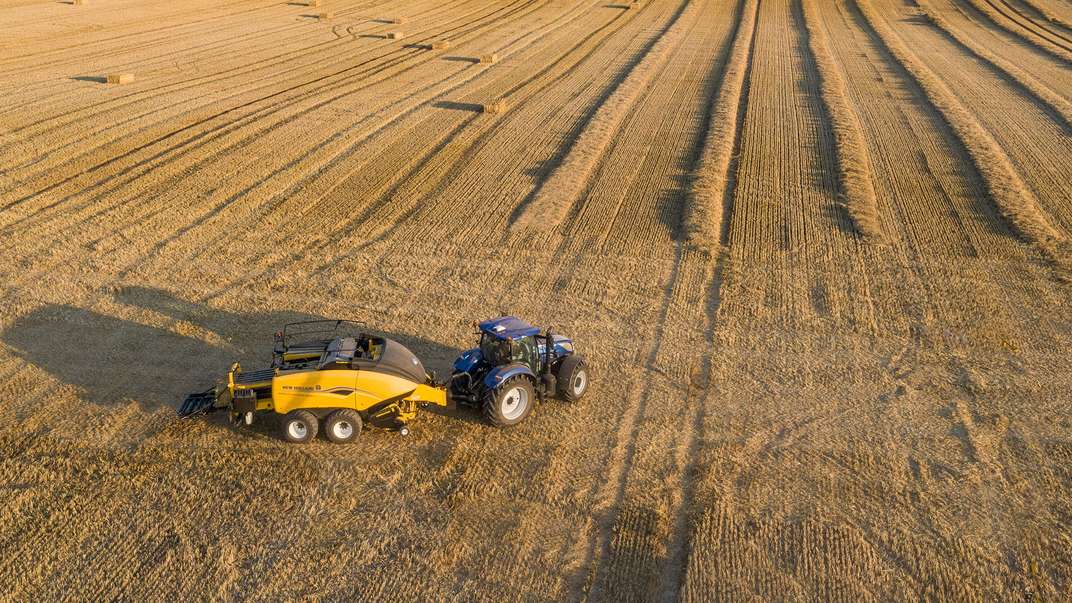

A new option for New Holland’s BigBaler range offers the potential for greater
productivity, bale quality, fuel efficiency and operator comfort by automating key baler
and tractor functions.
Operating a Big Baler manually demands long hours of continuous operator focus, with
regular steering adjustment to follow the swath, plus observation of swath density and
crop flow to prevent overloads and blockages, changing tractor speed to match. In
addition, to ensure production of consistent bales the driver must observe the bale fill
indicator and correct the tractor steering accordingly, while also monitoring bale slice
numbers and weights.
By proactively automating tractor steering according to the swath path, and speed
adjustment with regard to swath volume, IntelliSense™ bale automation relieves
the driver of these demands.
At its heart is a LiDAR (light detection and ranging) sensor located at the front of
the tractor cab roof. This emits a laser pulse several meters ahead of the tractor which
is reflected off the swath. The system will automatically adjust the steering, which is
then fine-tuned not only to follow the swath, but also according to the baler’s plunger
load sensors, ensuring even filling of the chamber.
This is the best available technology with single sensor setup. It can work in
daylight or at night and is prepared to deal with dusty conditions, low contrast targets
delivering great bale quality, saving fuel and granting great operator comfort for long
working days and even night. The swath cross-section measured by the LiDAR is also
used to govern tractor speed control, reducing it when necessary to avoid overloads,
and increasing it in thin swath areas. This will significantly increase the productivity, as
the system adjust the forward speed always to its optimum – even during long harvesting days.
Two baling modes
IntelliSense™ offers the operator two assisted baling modes which can be used combined
or independent from each other. Feedrate can be controlled via IntelliCruise II, in
which the maximum speed limit and number of slices per bale can be set, with
a low number equating to thicker slices and a higher throughput. The tractor will then
continuously adjust its forward speed to match the target slice number.
The second mode is Swath Guidance, using the tractor’s SmartSteer technology. This
allows hands-free driving whenever a swath is detected ahead of the tractor, and
ensures the swath enters the centre of the pick-up, making adjustments as necessary
according to the plunger load cells to ensure a perfect bale shape.
Both functions can be disengaged at the press of a button or by moving the steering
wheel.
IntelliSense™ is available on all PLUS models from end of 2023 onwards and all
HD models from year 2020. It can work with all New Holland T7 LWB, T7 HD and
T8 AutoCommand tractors equipped with Class 3 ISOBUS unlocked for steering and
speed control. A specific intuitive run screen has been developed to provide a simple
overview of the Intellisense™ functions and key main information. Differential GPS
provides a sufficient signal, with RTK not necessary.
