T4F S

The FPT Industrial S8000 3 cylinders 2.9 litres Stage V equips the T4.80F S only. This engine provides a maximum power of 75hp from 1700rpm to 2300rpm which gives a wide range of uses to deliver the maximum in all circumstances. The torque is not left out with 314Nm achieved at 1400rpm. The 3 cylinders engine benefits from a dedicated Stage V system which doesn’t require AdBlue and with a very compact exhaust system located on the left-hand side of the engine

to guarantee a high visibility all around the tractor. The engine components have been designed to provide the lowest possible engine bonnet. Thanks to its high performance and reliability, you will find the best engines available on the market for the whole T4F S range. To facilitate your daily tasks, it is also possible to set 2 engine speeds in memory.

The key to versatile performance is having the right transmission speed for the application. With T4F S tractors, there are two main gearbox choices; Synchro Shuttle™ three ranges 12x12, or 20x20 with creeper, and the proven Powershuttle 12x12 or 20x20 with creeper. All transmissions share the same proven four synchromesh speeds in each range, for easy on the move gear changes. The Powershuttle can be equipped with a Park Lock system as an option, for increased safety on hilly conditions. The spread of speeds on offer suits a wide range of applications, with a maximum speed of 40kph and a Creep Speed option for increased versatility. With the creeper option, the T4F S tractor can work down to speeds as low as 0.14kph, giving the operator a larger working range.

Depending on the model, the T4F S can be equipped with two different hydraulic systems, always double pump, the 3 cylinders version has a 49 + 31L/min hydraulic pump while the 4 cylinders is mounted with a 73 + 43L/min system. All models can feature many options such as:

• Up to 4 hydraulic remotes and flow controls.
• Free return hydraulic connection at the rear.
• A midmount hydraulic remote outlets.
• A midmount independent free return.

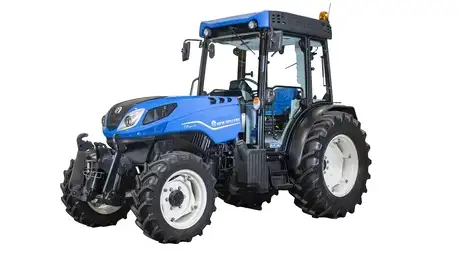

Comfort, ergonomic and simplicity in the daily operations are what the T4F S offers thanks to a completely new interior design. The visibility all around the tractor is optimised thanks to the 6 pillars architecture and a long windshield starting from the floor to the top of the cab. You can also find a fully adjustable steering column to always get the best driving position and a great access to the shuttle lever.

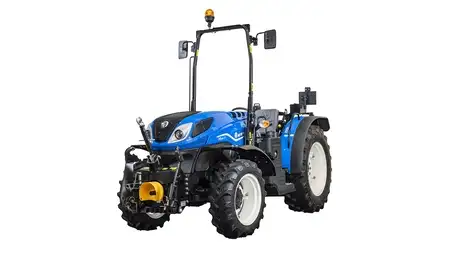

Versatile, ergonomic and comfortable, T4F S tractors are also available in ROPS version. Offering a 360° of visibility thanks to the short mud guards design, T4F S ROPS are ready for every daily tasks. Thanks to the foldable ROPS, you can work easily in greenhouse or under low orchards due to the best in class low profile dimension in front hood; especially on the 80 model. For more comfort, the tractor is equipped with suspended pedals, telescopic steering column, Lift-O-Matic™, USB socket and remote levers ergonomics.
