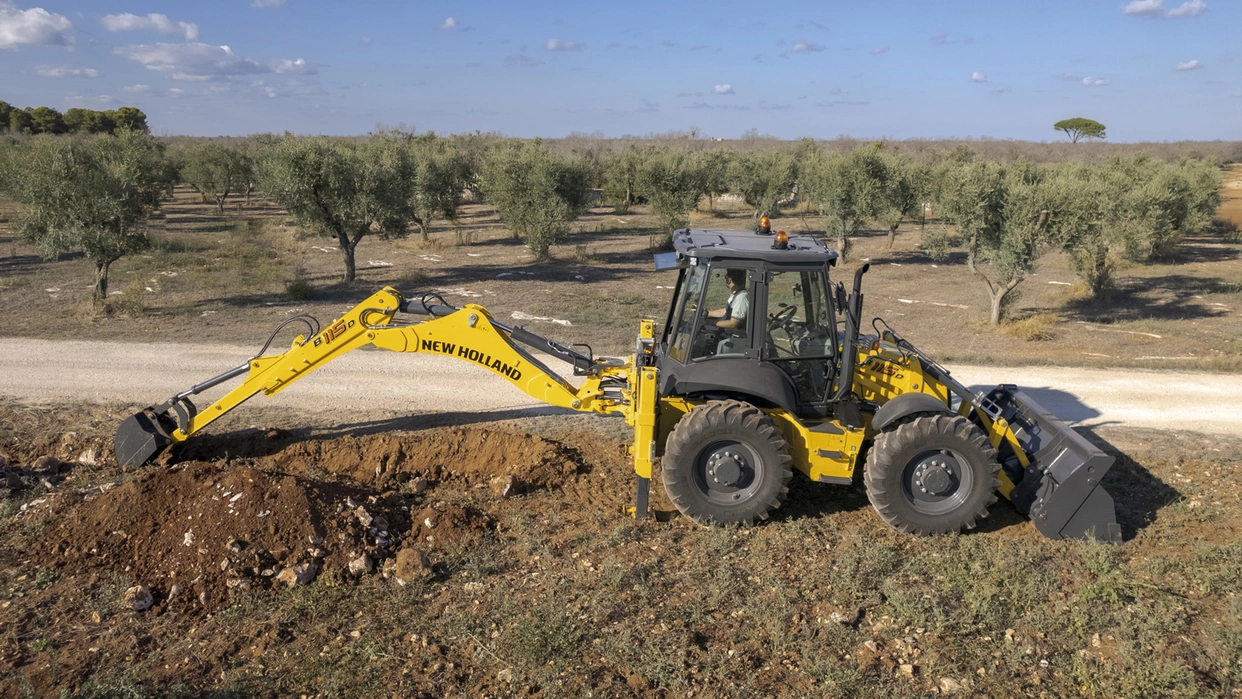

New Holland Backhoe at work, digging in rocky terrain, clear sky, operator in cabin, olive trees in background.

BACKHOE LOADERS

white dots
COMFORT AND VISIBILITY A new cab design with more space, new rear side windows, vastly improved clearance when turning the seat, and hugely improved in-cab storage capacity guarantees increased operator productivity.
HIGH VERSATILITY The D Series loader backhoes offer versatility with their wide range of attachments that help the operator take on tougher jobs.
POWERSHIFT™ OR POWERSHUTTLE, IT’S YOUR CHOICE. D Series loader backhoes come with switchable two- or four-wheel-drive, a powershuttle forward/reverse mechanical transmission, or the automatic PowerShift™ transmission.
HYDRAULIC POWER D Series loader backhoes are offered with either a twin gear pump (mechanical controls) or a variable placement pump (pilot controls). An auxiliary hydraulic circuit is available to power attachments such as hydraulic breakers and soil augers.
BACKHOE LOADERS

RIGHT FOR YOUR NEEDS

The new D series backhoe loaders from New Holland represent a huge step forward in operator comfort and productivity while delivering Stage V emission compliance without compromise. A new cab design featuring 10% more space, new rear side windows, vastly improved clearance when turning the seat for backhoe operation, and hugely improved in-cab storage capacity guarantees an enhanced operator experience and increased operator productivity.

Many business operations will have a need for a loader that offers the versatility to do a lot more than just move bulk material. Typical alternative applications will include grading and levelling, the ability to grab heavy items such as trunks and concreate pillars plus a tractor unit with the traction and power to push materials or items into place or out of the way.

Features

  • WELCOME ABOARD

    The all new class leading D series cab gives you more, more space, more storage, more glass area and more comfort, not to mention a host of new features. The cab is now wider so you can turn the seat easier when transitioning from front loader work to backhoe use. New rear side windows allow better visibility and less obstruction and a redesign of the right side console improves ergonomy and control layout, regardless of what direction you are working in. Storage capacity has been significantly increased with the addition of two lockable compartments, two bottle holders, four open trays and a ventilated cooling box. Operator convenience is increased thanks to the two USB ports to charge devices, Bluetooth radio and mobile phone holder and in-cab noise levels have been reduced by 3 dB(A). A high grip floor covering comes as standard to help prevent the operator slipping when entering with muddy footwear. A powerful lighting package featuring up to ten optional LED lights giving a true 360 degree light pattern thanks to the roof mounted side lights. Large retractable sunshades, cup holders, glove box and a deluxe pneumatic heated are included and to top it off, the engine exhaust pipe is located to the right side of the cab to provide a clear view of the loader arm.
  • POWERSHIFT™ OR POWERSHUTTLE, YOU DECIDE.

    New Holland offers its backhoe loaders with switchable two or four wheel drive, a Powershuttle forward / reverse mechanical transmission or automatic PowerShift™ transmission. All PowerShift™ models now feature a convenient F-N-R switch on the front loader multifunction lever. The all-wheel steer B115 D has equal size front and rear wheels with selectable front, all-wheel and crab steer modes.
  • THE FIGURES TELL YOU EVERYTHING

    With a New Holland backhoe loader, there is no compromise in performance. Dependent upon model, the front loader can be fitted with a front bucket of either 1.0m3 or 1.15m³ capacity and raise loads of 3380kg - 3553kg to heights of up to 3498mm. The backhoe has a digging depth down to 4665mm increasing up to 5880mm with the telescopic dipper. The bucket breakout force is as high as 5970daN, the dipper breakout coming in at 3225daN or 2390daN if extended. With a New Holland backhoe loader there is absolutely no compromise in performance.
  • HYDRAULICS TO MEET EVERY DEMAND

    To exactly match end user needs, New Holland backhoe loaders are offered with a choice of hydraulic pump designs. In addition, an auxiliary hydraulic circuit is available to power attachments to include hydraulic breakers and soil augers.
  • POWERFUL ECONOMY

    Developing 98, 111hp dependent upon model, the new FPT Industrial F5 3.6 litre four-cylinder engine in backhoe loaders is the same unit proven in New Holland T5 tractors. Complaint with stringent Stage V emission regulations, the engines have an advanced throttle control system. This allows the operator to adjust how the engine responds to throttle inputs from smooth to fast. New D series models also feature three new fuel saving modes to increase economy, save fuel and reduce wear and tear on the machine.
  • SPEND TIME SAVING MONEY

    A key to equipment performance and longevity is routine care. New Holland has designed the backhoe loader so it takes the minimum of time to carry out routine checks. Service intervals are also fixed at 500 and 1000 hours, with easy access to all key fuel, engine, transmission and hydraulic filters. All engine servicing can now be done from one side for added convenience. Extensive New Holland dealer network for full support gives you peace of mind.
MODELS

Explore available models

BACKHOE LOADERS

B100 D

Maximum engine power ISO TR14396 - ECE R120 [kW/hp(CV)]
84/114
Transmission
Powershuttle/PowerShift™
BACKHOE LOADERS

B110 D

Maximum engine power ISO TR14396 - ECE R120 [kW/hp(CV)]
89/121
Transmission
Powershuttle/PowerShift™
BACKHOE LOADERS

B115 D

Maximum engine power ISO TR14396 - ECE R120 [kW/hp(CV)]
89/121
Transmission
PowerShift™

Technical specifications

New Holland Engine*

New Holland Engine*
No. of cylinders / valves
Capacity (cm³)
Aspiration
Injection
ECOBlue™ Compact HI-eSCR system (selective catalytic reduction)
Compliant with engine emissions regulations
Rated engine power ISO TR14396 - ECE R120 [kW/hp(CV)]
Rated engine speed (rpm)
Maximum engine power ISO TR14396 - ECE R120 [kW/hp(CV)]
Maximum torque ISO TR14396 @ 1400rpm (Nm)
Fuel tank capacity (l)

Electrical

Powershuttle transmission (40kph)

PowerShift™ transmission (40kph)

Axles

Turning radius - 2 wheel steer mode, 4WD engaged, without brakes

Hydraulic system

Brakes

Cab

Tyres

Operating weight

* Developed by FPT Industrial
