MINI CRAWLER EXCAVATORS

white dots
BIG VERSATILITY Our C Series Mini Excavators are huge in versatility. With hydraulic-powered attachments such as soil augers, hammers and compactors, the boom and dipper offer power arm versatility with the strength of a large excavator. Additionally, operators can raise heavy, suspended loads using a lifting hook on the bucket linkage due to the available Object Handling Kit.
COMFORTABLE OPERATION Our Mini Excavators provide comfort and safety which in turn leads to productive and safe operation. All models have excellent ergonomics with easy access to all primary controls. The shape of the joysticks enables the operator to choose their preferred method of working the key functions, allowing both gripped and palm-down operating positions.
PERFORMANCE AND CONTROL Our Mini Excavators deliver powerful performance and smooth control. All models have three separate pumps to deliver optimized performance when traveling between sites and driving hydraulic attachments. The advanced hydraulic system in our excavators also includes a swing parking brake and an arm flow summation system ensuring smooth and precise control.
GREAT STABILITY AND TRACTION New Holland Mini Excavators have powerful traction matched to a low center of gravity for stability across difficult terrain. The dozer blade features excellent geometry for leveling and grading when lowered for stability. Dependent upon the model, there are four options of track design, with the E17C featuring hydraulic variable track width.
MINI CRAWLER EXCAVATORS

THE RIGHT TOOL FOR THE JOB

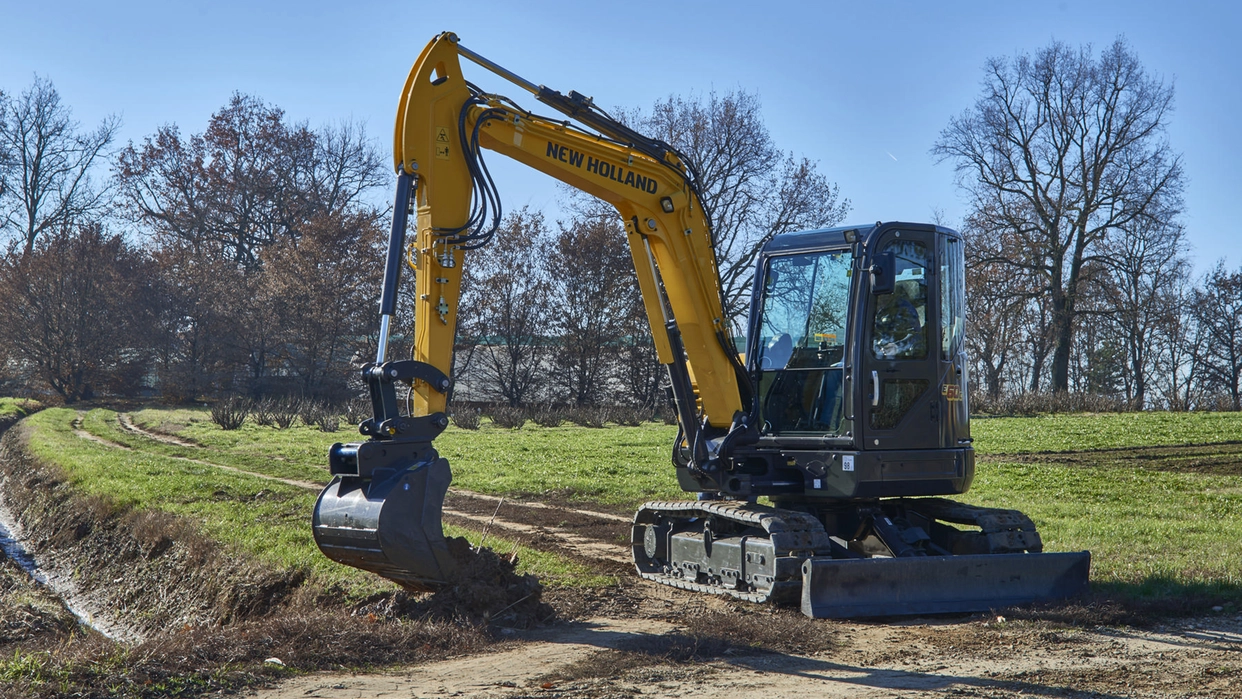

New Holland mini crawler excavators have a capacity range from 1.7 to 6.0 tonnes. With a choice of canopy, cab and SR short radius zero tail swing versions to choose from, there is the right model ideally suited to landscaping, amenity work, agriculture, horticulture, nurseries, vineyards, estate management and general contracting. Varied applications include track, irrigation and drainage scheme construction and maintenance through to fence, temporary building and crop support erection.

With hydraulically powered attachments to include soil augers, flail hedge and verge mowers, cutterbars and saws, the boom and dipper offer power arm versatility but with the build strength of an excavator. The same boom and dipper can work hydraulic shears, breakers and heavy duty items to include stump grinders.

Need more? With the Object Handling Kit installed, all models can be used to raise heavy suspended loads using a lifting hook on the bucket linkage. All this versatility from New Holland agricultural dealers.

Small in size. Big on performance. Huge in versatility.
Compact dimensions enable New Holland mini-excavators to access difficult work areas. Compact dimensions are matched to high performance. Designed for day-long working, each model has class leading excavation performance with the versatility to power a wide range of attachments.

Features

  • DESIGNED AROUND YOU

    Slim frame pillars ensure excellent all-round visibility, with a good view of the boom and dipper. When working in a confined area or between valuable crops such as in a vineyard, nursery or an orchard, a New Holland mini-excavator can be operated with absolute precision for minimal disruption. New Holland E17C mini-excavators are fitted with a canopy only, while the E19C, E26C, E30C and E37C are offered with a choice of canopy or full cab. The E57C and E60C are cab only. All variants are ROPS roll-over (with the exception of E17C), TOPS tip-over and FOPS falling-object compliant to ISO standards. Low noise and vibration levels ensure extended work periods can be undertaken in comfort with no compromise in operator safety.
  • MORE POWER, MORE PRODUCTIVITY, MORE VALUE

    A comfortable operator is a safe and productive operator. All models have excellent ergonomics, with all key controls positioned for easy access. The shape of the joysticks enables the operator to choose their preferred method of working the key excavator functions, allowing both gripped and palm down operating positions. The armrests adjust to deliver the required level of support and the foot pedals on the more compact models fold to increase floor space. Getting in and out the machine is eased by the left side-console tilting back out of the way, locking the hydraulics at the same time to prevent accidental operation.
    • All controls are within easy reach
    • Joysticks positioned for ease of use
    • Safety lock prevents exit while hydraulic controls are live
  • SMOOTH CONTROL, POWERFUL PERFORMANCE

    The efficient conversion of engine power into hydraulic muscle lies behind the efficiency of New Holland mini-excavators. All models have three separate pumps to deliver optimised performance when travelling between sites or using the dozer blade, when working with the excavator and when driving hydraulic attachments. For demanding auxiliary attachments, a fourth pump option is available for the E57C and E60C.

    To ensure smooth operation, valves control the flow of oil as the rams are fully extended and retracted, automatically providing a cushion effect to smooth the operation of all key functions. In work this reduces shock loads transferred to the machine and operator, reducing fatigue. This feature is further enhanced by the inclusion of an accumulator within the hydraulic circuit.

    To further boost performance, the top two models have hydraulic flow summation. This advanced system delivers the enhanced proportional control typically restricted to high capacity excavators exceeding 20t capacity.

    Cushioned rams for:
    • Smoother operation
    • Greater operator comfort
    • Reduced machine wear

    Hydraulic accumulator delivers:
    • Cushioned shock loads
    • Oil leak compensation
    • Vibration damping
    • Emergency hydraulic function

    Separate oil pumps deliver:
    • Cooler running
    • Greater efficiency
    • Faster hydraulic response
    • Dedicated flow to meet demand
    • Fourth pump option E57C and E60C
  • EXCELLENT STABILITY, MAXIMUM TRACTION

    Built for versatility, New Holland mini-excavators have powerful traction matched to a low centre of gravity for stability across difficult terrain. The dozer blade, which is lowered for stability when excavating, features excellent geometry for levelling and grading. Dependent upon model, there are four choices of track design, with the E17C and E19C also featuring hydraulic variable track width.

    All models now feature Auto Shift Down on the move gear changing. On steep inclines, the two-speed drive can be set to automatically default into low range to maintain forward speed with no input from the operator.
  • EFFICIENT, POWERFUL, DEPENDABLE

    New Holland mini-excavators are compliant with Stage V emission regulations and employ different after treatment technologies to achieve this. Each model has a power unit selected to match the excavators size and capacity. This ensures optimised performance and fuel economy. To further enhance economy, the E37C, E57C and E60C are fitted with Auto-idle.
  • ATTACHMENTS FOR DEDICATED EFFICIENCY

    A mini-excavator is far more versatile than you think. With the right attachment, these machines can be used for a wide and diverse range of duties to include fence and temporary crop support erection through to hedge and verge cutting. With New Holland models you have the added advantage of high constant hydraulic flow. Powering demanding attachments is a key New Holland advantage. The range of attachments purpose developed for mini-excavators continues to increase, further increasing future versatility.
  • EASE OF CARE PROTECTS YOUR INVESTMENT

    Preparing a New Holland C series mini-excavator for work takes less time. Routine maintenance tasks are simplified, with all key check and service points grouped together. For secure transport on a trailer, easy access lashing points are fitted.
MODELS

Explore available models

construction-mini-cralwler-excavators-e17c

New Holland E17C

Rated gross horse power [kW/hp(CV)]
11.9/16
Track width (mm)
230
construction-mini-cralwler-excavators-e18c

New Holland E19C

Rated gross horse power [kW/hp(CV)]
11.9/16
Track width (mm)
230
construction-mini-cralwler-excavators-e26c

New Holland E26C

Rated gross horse power [kW/hp(CV)]
18.2/24.4
Track width (mm)
250
construction-mini-cralwler-excavators-e30c

New Holland E30C

Rated gross horse power [kW/hp(CV)]
18.2/24.4
Track width (mm)
300
construction-mini-cralwler-excavators-e37c

New Holland E37C

Rated gross horse power [kW/hp(CV)]
18.2/24.4
Track width (mm)
300
construction-mini-cralwler-excavators-e57c

New Holland E57C

Rated gross horse power [kW/hp(CV)]
49.9/66.9
Track width (mm)
400
construction-mini-cralwler-excavators-e60c

New Holland E60C

Rated gross horse power [kW/hp(CV)]
49.9/66.9
Track width (mm)
400

Technical specifications

Engines

Engines
Type
N° of cylinders
Displacement (cm³)
Compliant with engine emissions regulations Tier / Stage
Rated gross horse power [kW/hp(CV)]
@ rated speed (rpm)
Max torque (Nm)
@ rated speed (rpm)
Diesel tank capacity (Litres)

Hydraulic system

Transmission

Slewing

Transport feature*

Operating weight**

Dimensions

Digging performances

* Weight is with full fuel tank, without operator, without bucket
** Includes operator, full fuel tank and one bucket
