9200 Series Corn Heads

The 9200 series corn head features an updated dual-action deck plate control system which incorporates urethane bushings that provide approximately ¼-inch self-adjust gap functionality – allowing the deck plates to automatically compensate for variation on stalk diameter while harvesting. This new row unit is also redesigned to be lighter weight (compared to previous 30-inch corn head models) to minimize field compaction and fuel consumption, while also providing excellent durability to help drive down total harvesting cost. The gathering chain tension system has been improved through the addition of a travel limit link to ensure both chains remain in-time for optimal feeding, while also providing a simple de-tension functionality for gathering chain maintenance.

The 9200 series corn head frames feature an integrated toolbar, allowing for simple and direct installation of the optional stalk stomper assemblies. A tire/track option, as well as service parts, are available from the factory.

New tall corn dividers have been designed to be compatible with active end augers to allow quick and simple changeover between crop conditions. When the tall corn dividers are not required, they can be securely stored on the back side of the header, revealing the optional active end dividers which assist with saving corn when stalks are leaning or down.

New to the 30-inch header models, a dual driveline design improves load management of drive components and gearboxes for chopping units. For non-chopping units, feeder and header connections are completed on the left side, simplifying the connecting and disconnecting process. 9200 series row unit and chopper clutches are commonized to a single clutch, increasing load capability. Repositioned grease zerks mitigate crop abrasion and debris concerns.

To assist the operator – particularly when using a large header – the 9200 series header features sensors that will detect when a chopper slip clutch is being activated and provide in-cab indication of which portion of the corn head is slipping for quick identification, resolution and return to harvest.

9200 series 12- and 16-row chopping heads feature enhancements to better accommodate the power supplied from CR series combines. The PTO shaft connecting the feeder output shaft and right hand backsheet gearbox are available in multiple configurations depending on header size and combine base unit configuration.

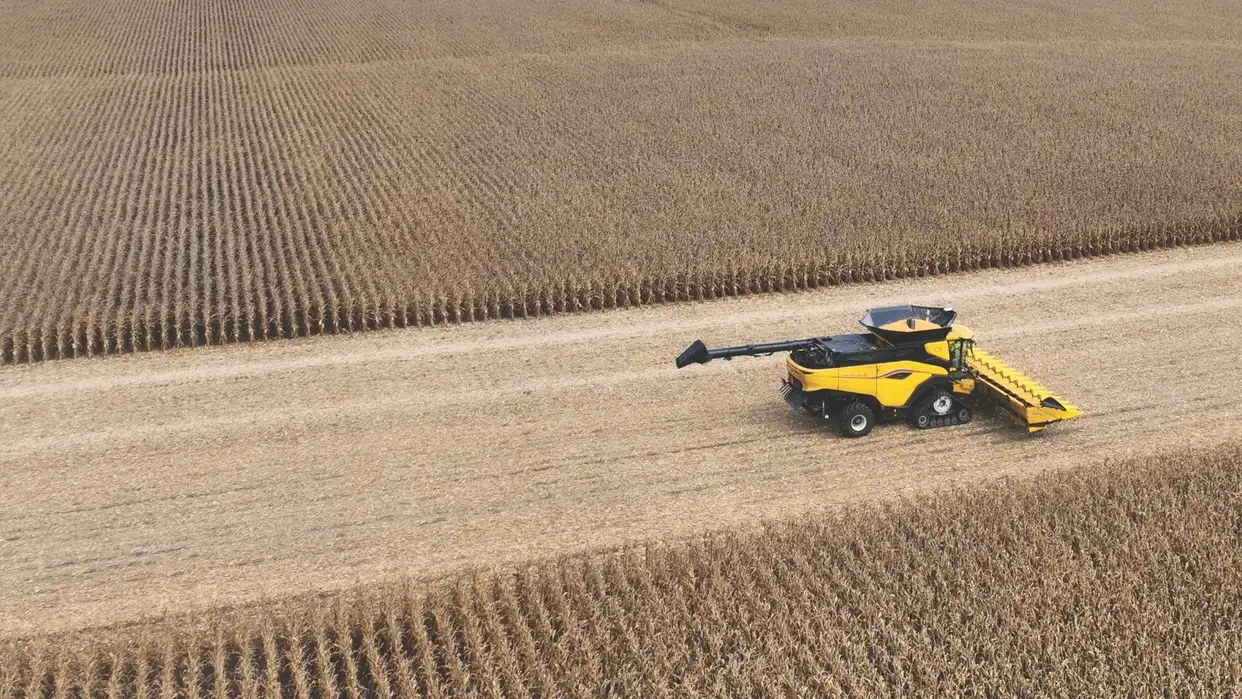

The 9200 series frame is designed for compatibility with the all-new CR11 and CR10 combines, as well as legacy CR and CX series machines. With compatibility provisions built in, no additional mounting kits are required.
