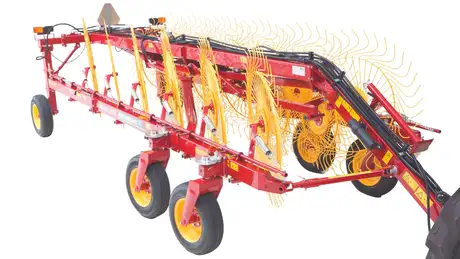

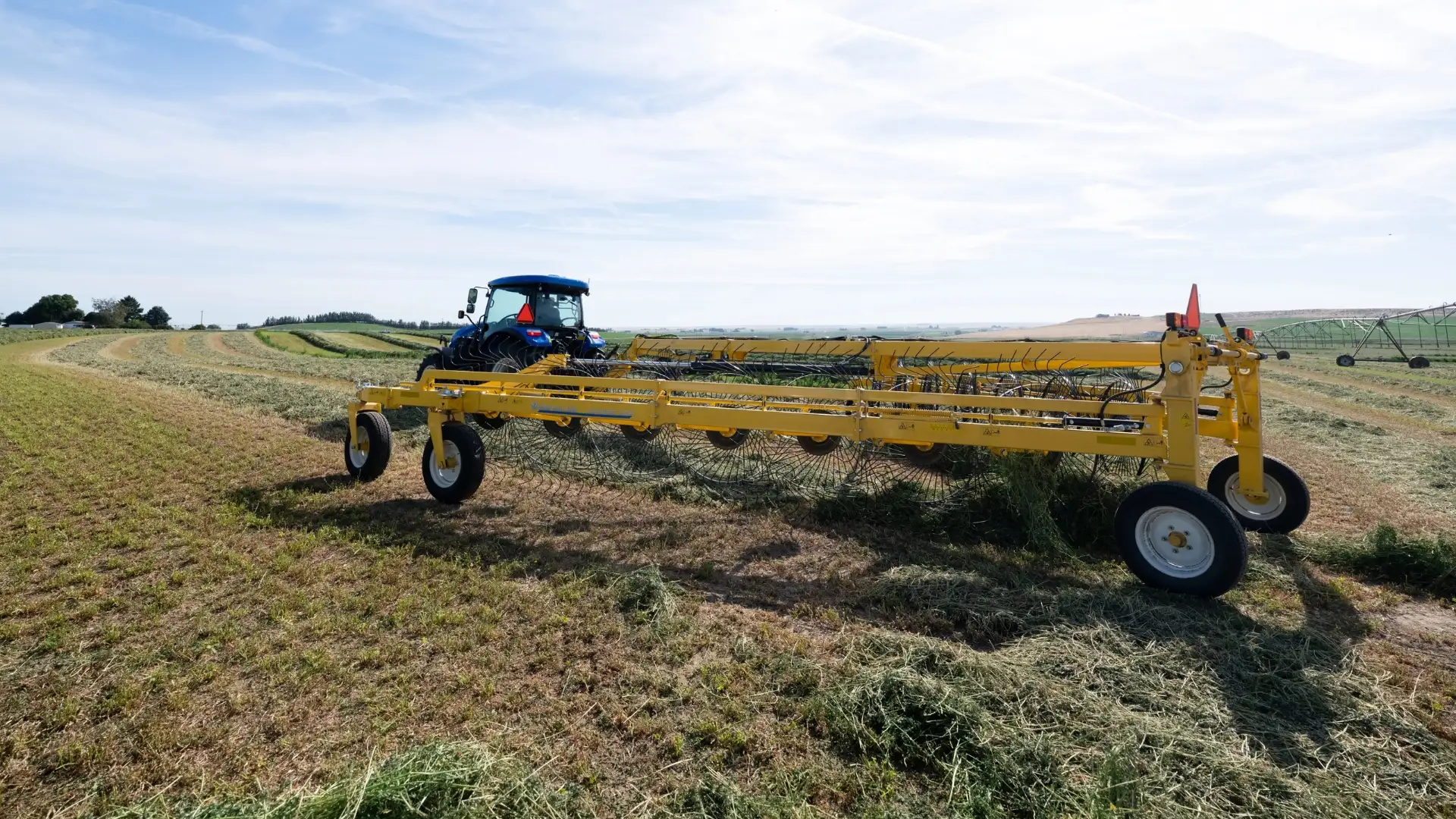

DuraVee™ Trailing Wheel Rakes
THE FASTER WAY TO MOVE MORE HAY

DuraVee™ Trailing Wheel Rakes

white dots

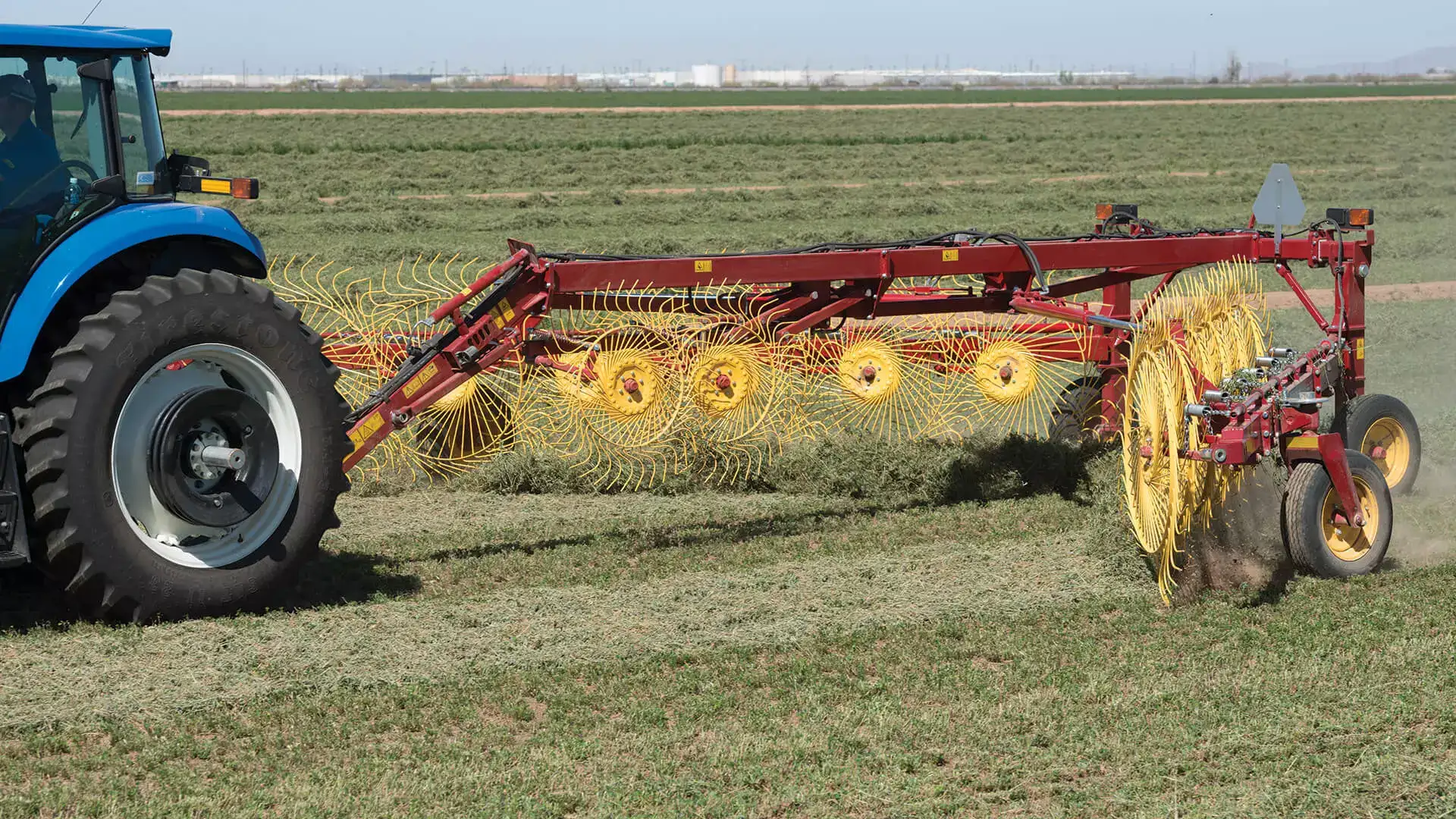

THE FASTER WAY TO RAKE MORE HAY DuraVee™ trailing wheel rakes are the right choice for high-capacity haymakers looking for a faster way to rake more hay. Offered in seven models with a variety of raking widths, these rakes are perfect for many sizes of haymaking operations.

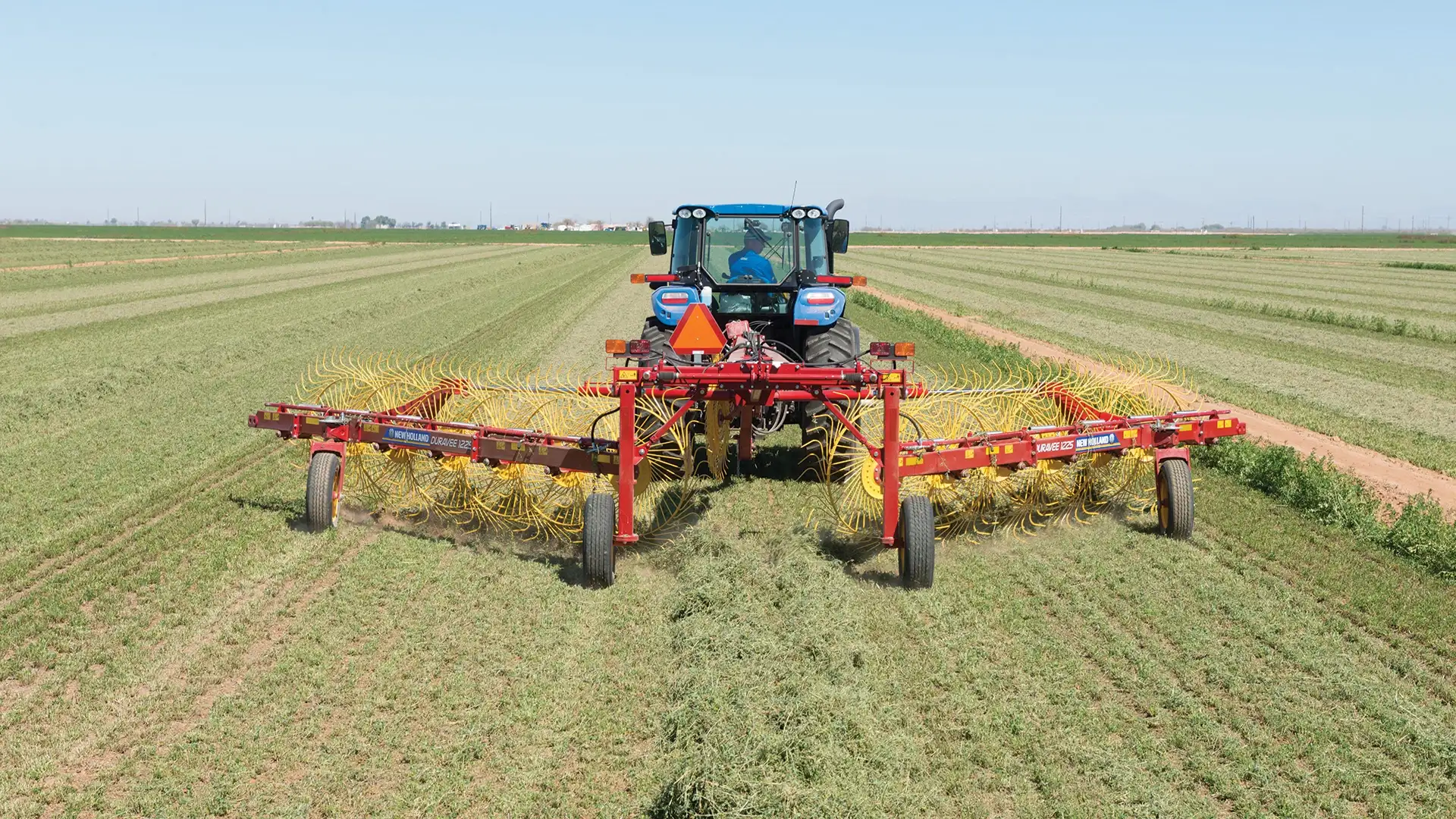

EASILY ADJUST WINDROW WIDTH Windrow widths can be easily adjusted to produce uniform rows ranging from 3 to 6 ft. (91 to 183 cm) wide with the ratchet-style adjustment lever or the optional hydraulic windrow width adjustment kit.
FLOAT LIKE A "VEE" Individual rake wheels float across ground contours for cleaner raking compared to rake wheels mounted in tandem. Suspended by springs, each wheel individually adjusts for optimum ground contact pressure. A single pin adjusts the working height of all of the raking wheels on that side of the rake.
THE STRAIGHT AND NARROW PATH TO ROADING All DuraVee rakes have 15 (381 mm) tires and can fold down to 8’ 3” (2.5 m) for easy road transportation. To enhance safety and eliminate shimmying, transport safety locks and adjustable friction disc brake brakes on the caster wheels are featured on all models.
DuraVee™ Trailing Wheel Rakes

THE FAST WAY TO MOVE MORE HAY

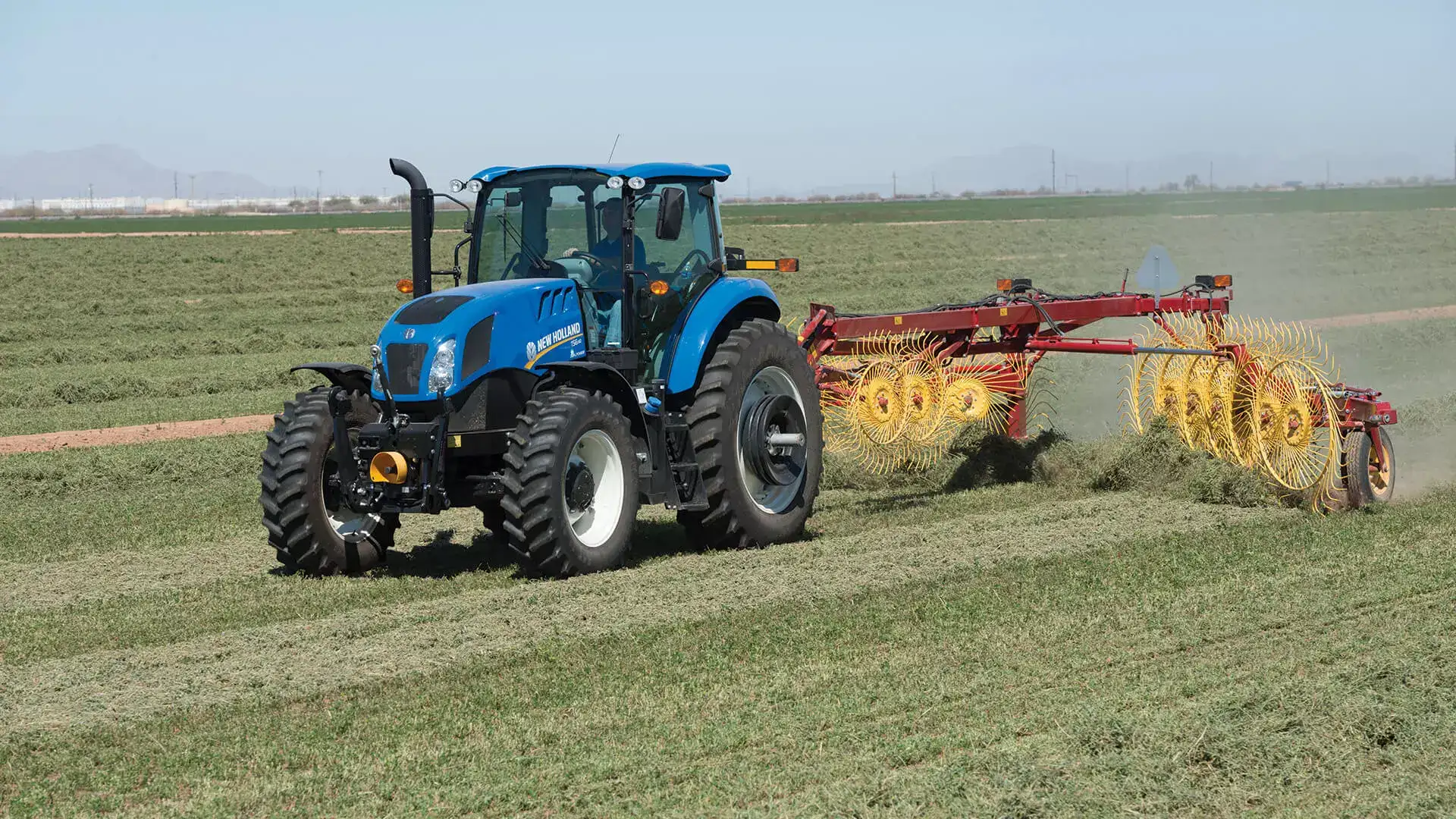

New Holland DuraVee™ trailing wheel rakes are the right choice for high-capacity haymakers looking for a fast way to move more hay. Offered in seven models with raking widths from 17’ 5” to 31’, these rakes are perfect for many different sizes of haymaking operations. Simple adjustments mean you rake all of your crop and head down the road quickly when you’re finished. Strengthened components, like thick frames and heavy-gauge steel tubing for wheel supports, enhance durability so DuraVee rakes withstand high-speed operation in varying field conditions.

VIEW BROCHURES
DuraVee™ Trailing Wheel Rakes Media Gallery

Features

  • duravee-trailing-wheel-rakes-choices-and-options-01

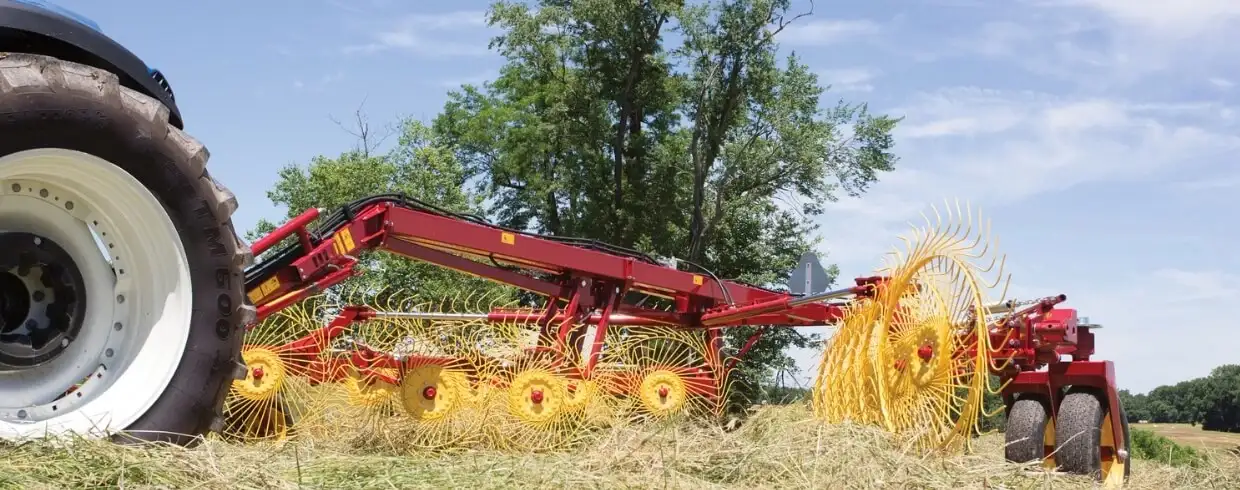

    TAILOR A DURAVEE™ RAKE TO YOUR NEEDS

    You have your choice of features and options to match a DuraVee rake to your operational needs.
    DISCOVER MORE
  • duravee-trailing-wheel-rakes-simple-adjustments-01

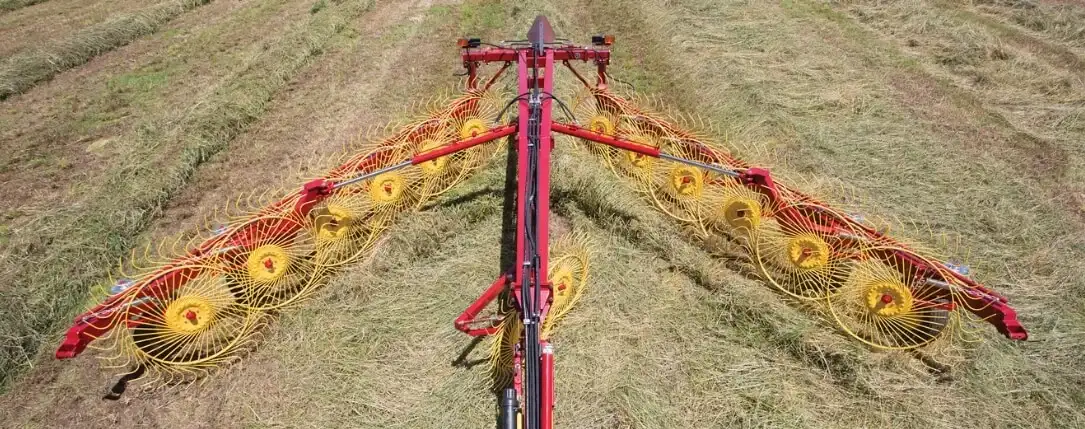

    FLOAT LIKE A “VEE”

    Individual DuraVee™ rake wheels float across ground contours for cleaner raking compared to rake wheels mounted in tandem.

    DISCOVER MORE
MODELS

Explore Available Models

TECHNICAL SPECIFICATIONS
hay-tools-duravee-1428

DuraVee™ 817

Number of wheels
8
Maximum working width (ft. in. (m))
17’ 5” (5.3)
hay-tools-duravee-1428

DuraVee™ 1020

Number of wheels
10
Maximum working width (ft. in. (m))
20’ 4” (6.2)
hay-tools-duravee-1225

DuraVee™ 1225

Number of wheels
12
Maximum working width (ft. in. (m))
25’ (7.6)
hay-tools-duravee-1428

DuraVee™ 1428

Number of wheels
14
Maximum working width (ft. in. (m))
28’ 6” (8.7)
hay-tools-duravee-1428

DuraVee™ 1631

Number of wheels
16
Maximum working width (ft. in. (m))
31’ (9.4)

Technical Specifications

Specifications

Type
Number of rake wheels
Rake wheel diameter (in. (m))
Number of tines per wheel
Frame articulation
Transport height* (ft. in. (m))
Transport width (ft. in. (m))
Maximum working width (ft. in. (m))
Minimum windrow width (ft. (m))
Maximum windrow width (ft. (m))
Operating weight* (lbs. (kg))
Tires
Maximum operating speed (mph (kph))
Tractor power requirement (hp)

*With 60 in. (1524 mm) rake wheels
