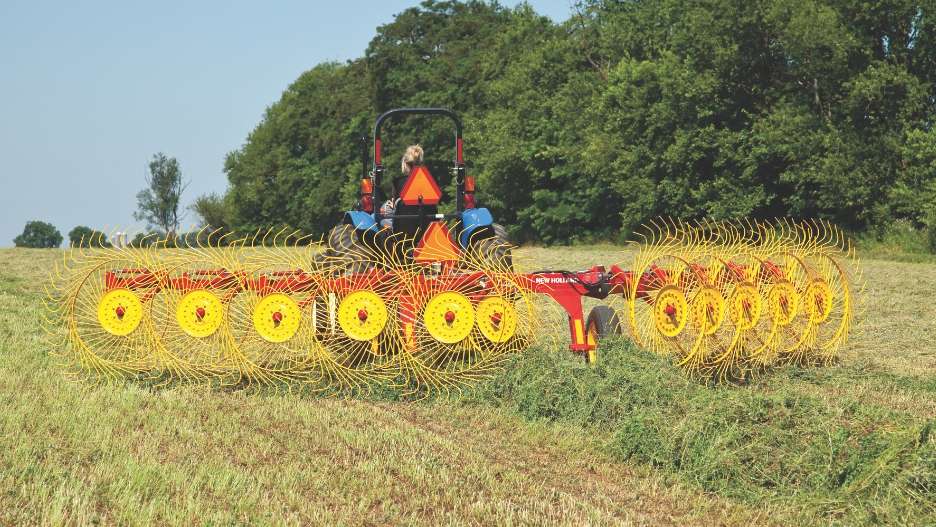

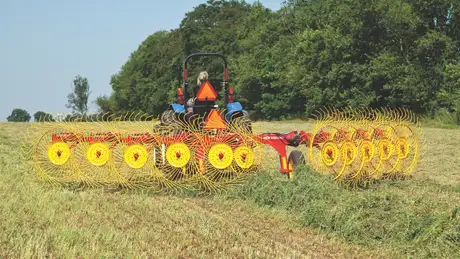

ProCart™ and ProCart™ PLUS Deluxe Carted Wheel Rakes
FAST, CLEAN, HIGH-CAPACITY RAKING

ProCart™ and ProCart™ PLUS Deluxe Carted Wheel Rakes

white dots
DEPENDABLE, HIGH-SPEED RAKING Individual floating rake wheels provide cleaner raking and help form more uniform windrows that are easier to bale.
DURABLE, COMPACT DESIGN The well-built frame provides the strength and reliability you need, and it’s compact and stable so you can move fast between farm and field.
HIGH FRAME CLEARANCE Unlike other carted wheel rakes on the market, ProCart™ rakes offer a high frame clearance to accommodate high-volume crops.
A CHOICE OF MODELS With raking widths from 18 to 28 feet, and a choice of five different models, there’s one perfect for you.
ProCart™ and ProCart™ PLUS Deluxe Carted Wheel Rakes

MAKE MORE HAY IN EVERY PASS

New Holland ProCart™ and ProCart™ Plus deluxe carted wheel rakes swiftly handle every raking condition you face — from heavy windrows to tedded or thick, wide swaths. They offer dependable, high-speed raking, and are the professional’s choice for big raking capacity.

Features

  • CLEANER RAKING WITH INDEPENDENT RAKE WHEEL FLOTATION

    Individual floating rake wheels follow ground contours independently to gather every bit of the swath to cause less stubble damage compared to rakes with tandem-mounted rake wheels. Suspended by an adjustable compression spring, each rake wheel can be adjusted to your crop and field conditions for the cleanest possible raking.

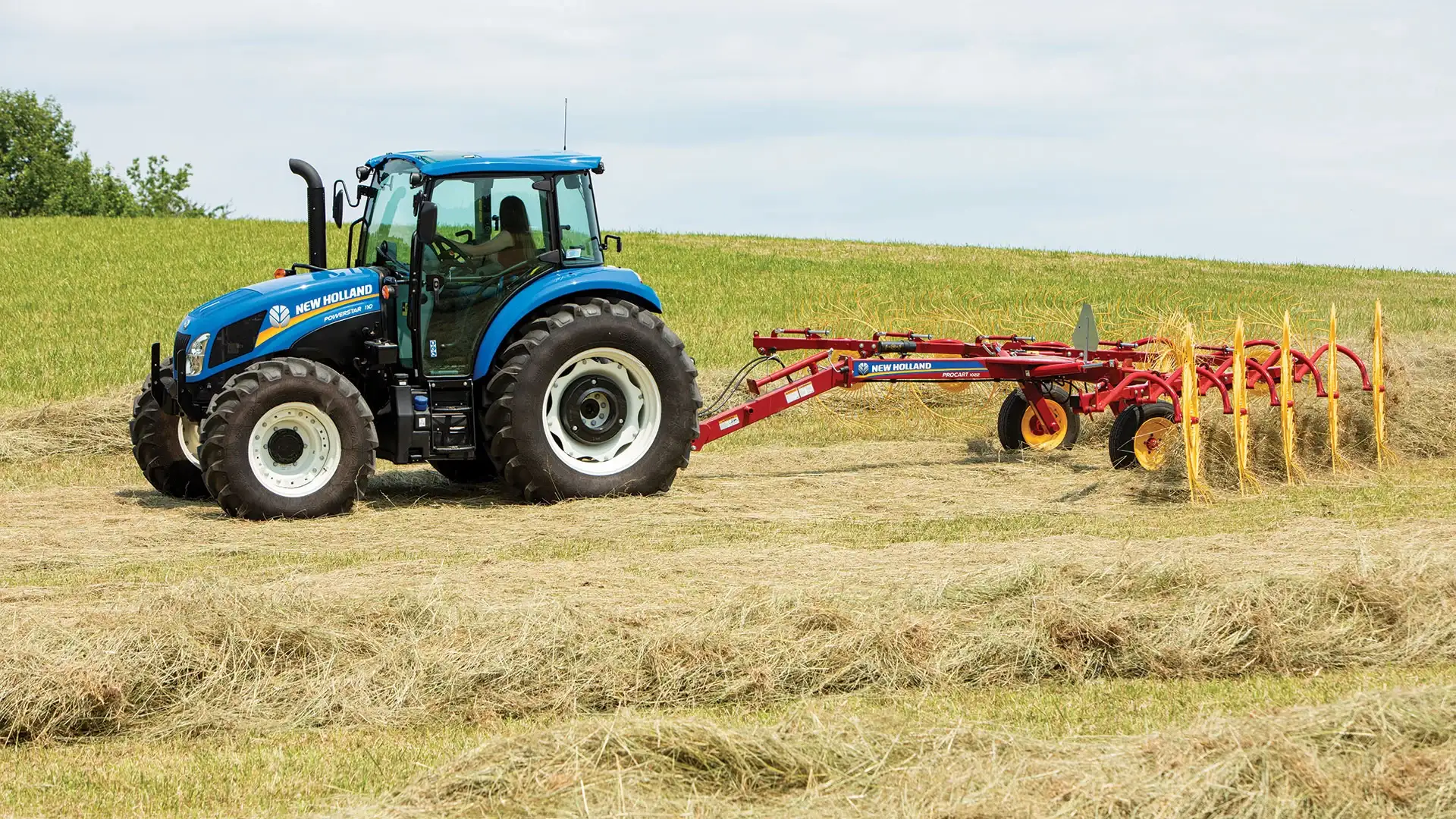

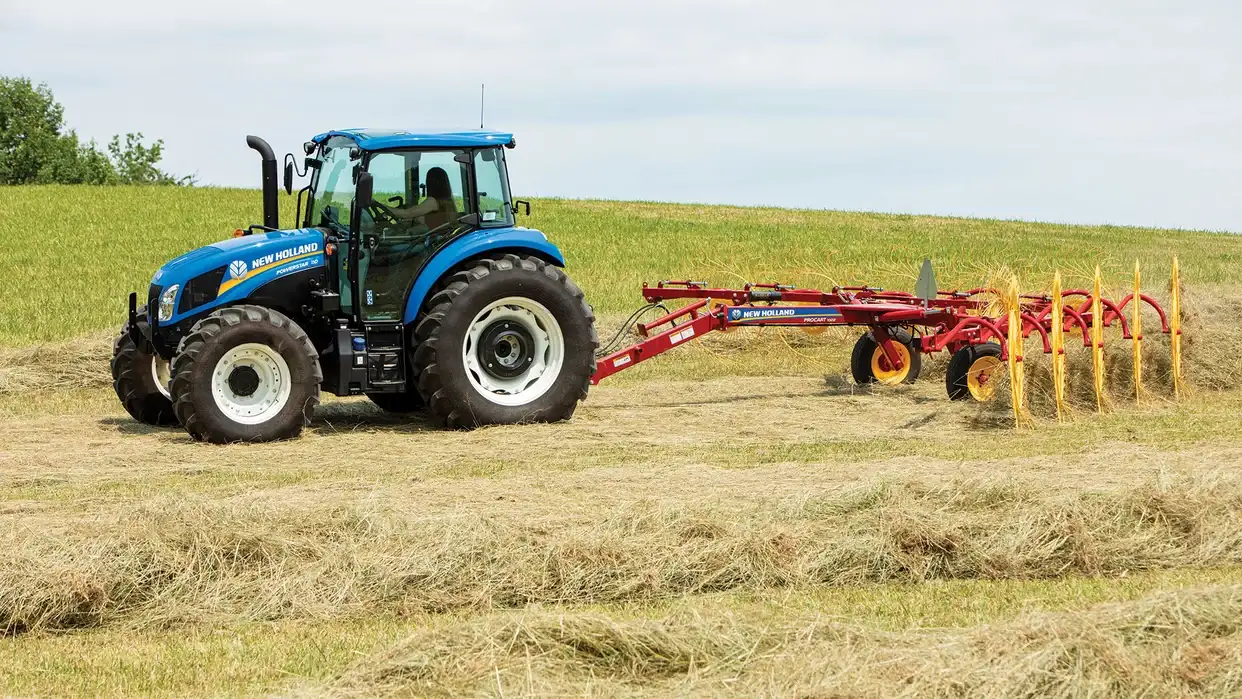

  • SINGLE-SIDE RAKING, “V” RAKING OR WINDROW TURNING

    ProCart rakes allow you to rake any way you choose. You can rake with either side, turn over damp windrows, or select “V” raking with a quick turn of the hydraulic lock valves.
MODELS

Explore available models

TECHNICAL SPECIFICATIONS
hay-and-forage-equipment-819-8-wheel

819 8-Wheel

Weight, lbs.
1675
Maximum working width, ft. in.
18' 0"
hay-and-forage-equipment-1022-10-wheel

1022 10-Wheel

Weight, lbs.
1875
Maximum working width, ft. in.
21' 0"
hay-and-forage-equipment-1225-12-wheel

1225 12-Wheel

Weight, lbs.
2115
Maximum working width, ft. in.
24' 6"
hay-and-forage-equipment-1225-plus-12-wheel

1225 Plus 12-Wheel

Weight, lbs.
2736
Maximum working width, ft. in.
25' 1
hay-and-forage-equipment-1428-plus-14-wheel

1428 Plus 14-Wheel

Weight, lbs.
3038
Maximum working width, ft. in.
28' 0"

Technical specifications

Specifications

Number of finger wheels
Finger wheel diameter in (m)
Teeth per wheel
Rake wheel tine diameter in (mm)
Overall length* ft (m)
Minimum transport height ft (m)
Transport width ft (m)
Tread width outside of tires ft (m)
Minimum working width* ft (m)
Maximum working width* ft (m)
Minimum windrow width* ft (m)
Maximum windrow width* ft (m)
Operating Weight lb (kg)
Tires
Tractor requirement hp (kW)
Tractor requirement, hydraulic

* Depending on crop conditions
