Rolabar® 230 Twin Basket Rake
PICK UP MORE OF YOUR VALUABLE HAY

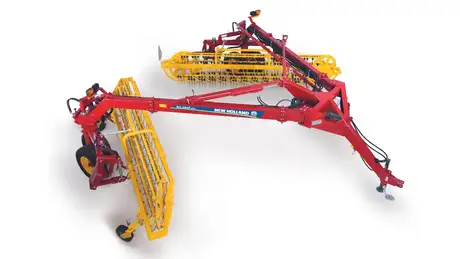

Rolabar® 230 Twin Basket Rake

white dots
LEAVE NO HAY BEHIND The Rolabar® 230 twin-basket rake is built for commercial haymakers who demand a high-capacity rake that provides greater efficiency, gentle handling, and rugged durability. More clean hay is placed in every windrow with its rubber-mounted tines, walking tandem axles, responsive basket flotation, and simple control box that perfectly match your field's conditions.
A CLEAN SWEEPTwo 12-foot baskets rake up to 30 feet of crop into one clean and tidy windrow. It’s ideal for raking swaths produced by large center-pivot disc mower-conditioners and self-propelled windrowers with heads up to 19 feet wide.
RAKE AND TAKE CONTROL Tailor the rake to match your conditions with the intuitive control box. Color-coded buttons are by function, and the low 9-gpm hydraulic requirement means you can operate the rake with just about any tractor. Match basket speed with your ground speed and crop conditions by simply rotating the knob on top of the box.
SUPERIOR BASKET FLOTATION By engaging flotation on the control box, the basket raise/lower cylinders can extend and retract as the rake goes over uneven terrain. Unlike some competitors with baskets that are locked in place, the Rolabar 230's baskets float up and over obstacles and uneven ground for clean raking and maximum tine life.

Rolabar® 230 Twin Basket Rake

ROLABAR® RAKES LEAVE NO HAY BEHIND

You won’t leave any hay behind with a New Holland Rolabar® rake. Rolabar rake tines more closely follow the ground contours, while leaving the dirt in the field. The result is cleaner hay and more of it.

Features

  • MAKE A CLEAN, 30-FOOT SWEEP

    Large commercial operations will appreciate the clean, high-capacity raking performance of the Rolabar® 230 twin basket rake. Using two 12-foot baskets, the Rolabar 230 rakes up to 30 feet of crop into one tidy windrow. It’s ideal for raking the swaths produced by self-propelled windrowers with heads up to 19 feet wide and wide, center-pivot mower-conditioners.
MODELS

Explore available models

TECHNICAL SPECIFICATIONS
hay-and-forage-rolabar-rakes-230-twin-basket-rake

230 TWIN BASKET

Drive
Hydraulic
Drive
Hydraulic

Technical specifications

Specifications

Raking width ft. in. (mm)
Width overall ft. in. (mm)
Height overall ft. in. (mm)
Length overall ft. in. (mm)
Wheel Tread ft. in. (mm)
Transport Speed mph (km/h)
Operating Speed mph (km/h)
Weight, approx. lbs. (kg)
Main frame in. (mm)
Basket
Basket drive
Gearbox (ground drive)
Drive Housing
Tine bars
Tines
Tine Bar Bearings
Drive
Drive
Tractor requirement hp
Hitch type
Standard safety equipment
