Windrower Headers
A CUT ABOVE THE REST

Windrower Headers

white dots
REDESIGNED FOR FASTER SPEED Durabine™ PLUS Series disc headers take advantage of faster speeds on Speedrower® PLUS windrowers without compromising cutting and conditioning quality.
CLEAN & CLOSE CUTTING The MowMax™ II PLUS true modular cutterbar found on Durabine PLUS heads provides an even cleaner cut with faster tip speed and a lower-profile compared to previous models.

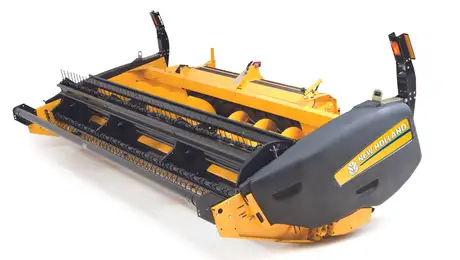

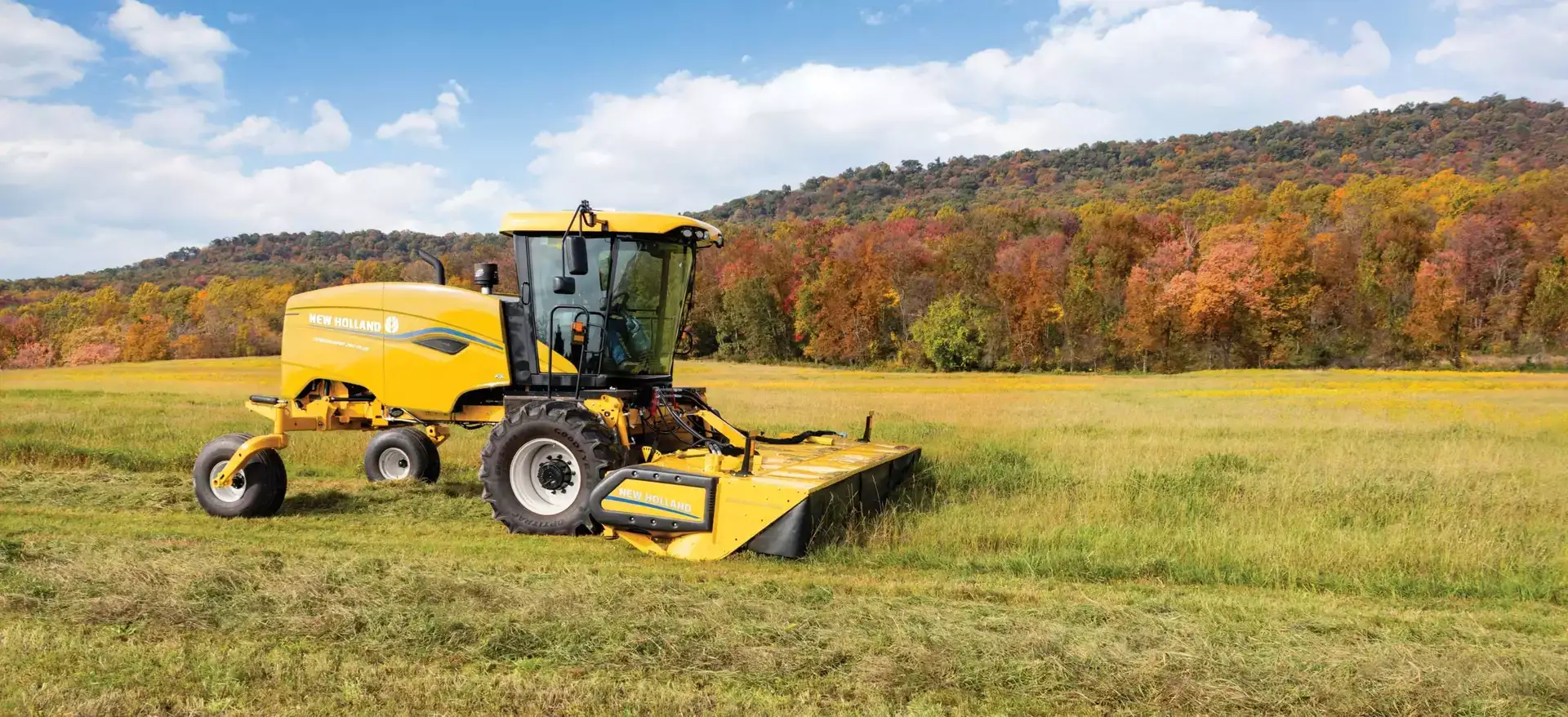

LEGENDARY PERFORMANCE HS Series Haybine sickle headers continue the legacy of impeccable cutting performance, fast drying, and time-tested reliability.
UNIFORM, FAST-DRYING SWATHS Choose the best conditioning system for your crops – rubber chevron rolls, steel chevron rolls, or high-contact chevron rolls.
Windrower Headers

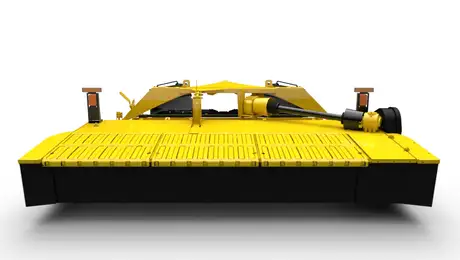

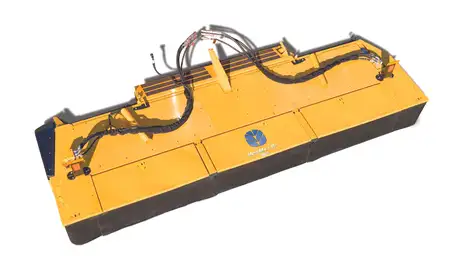

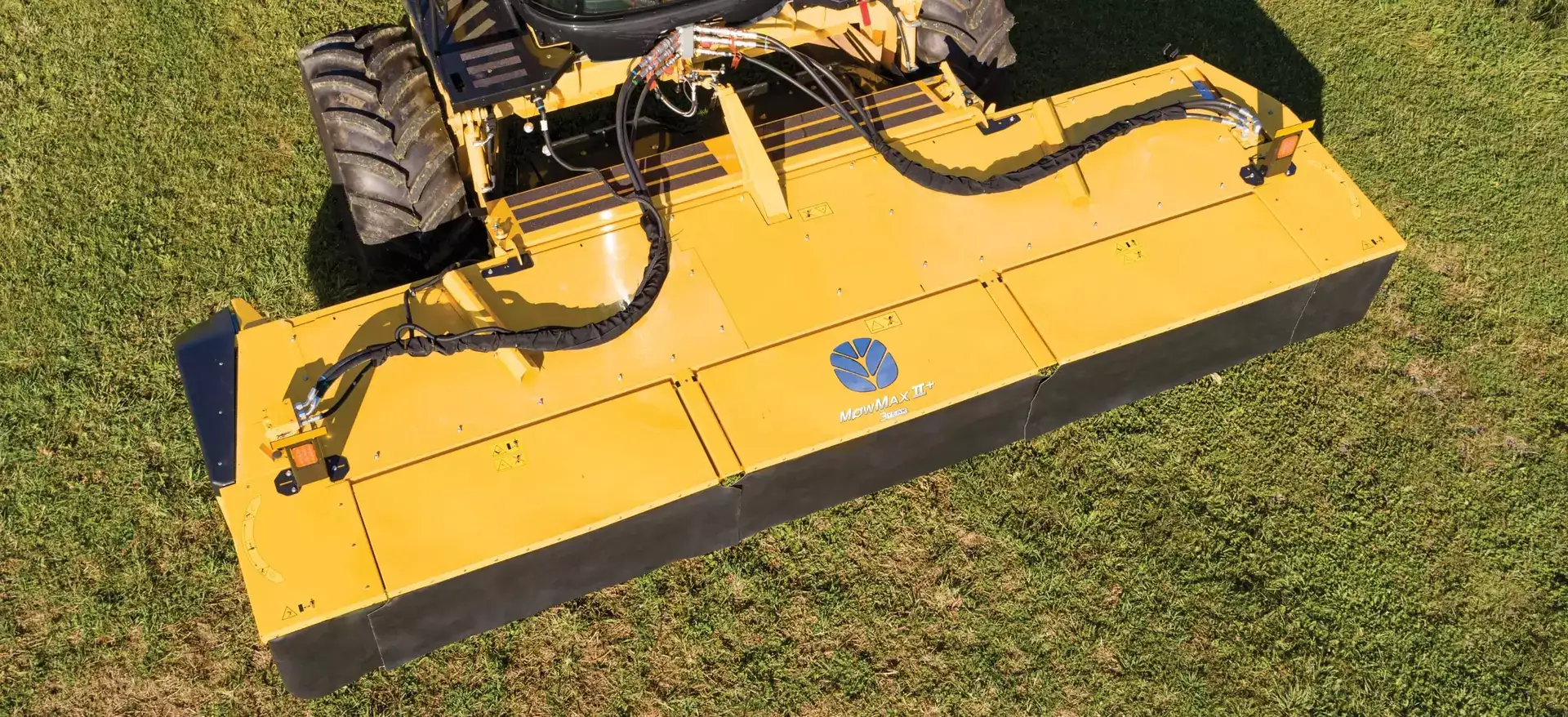

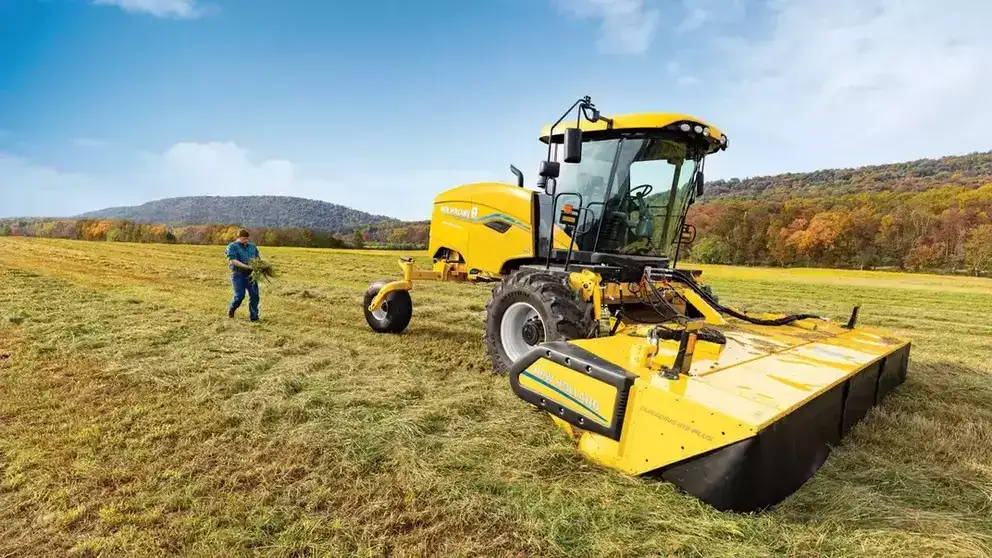

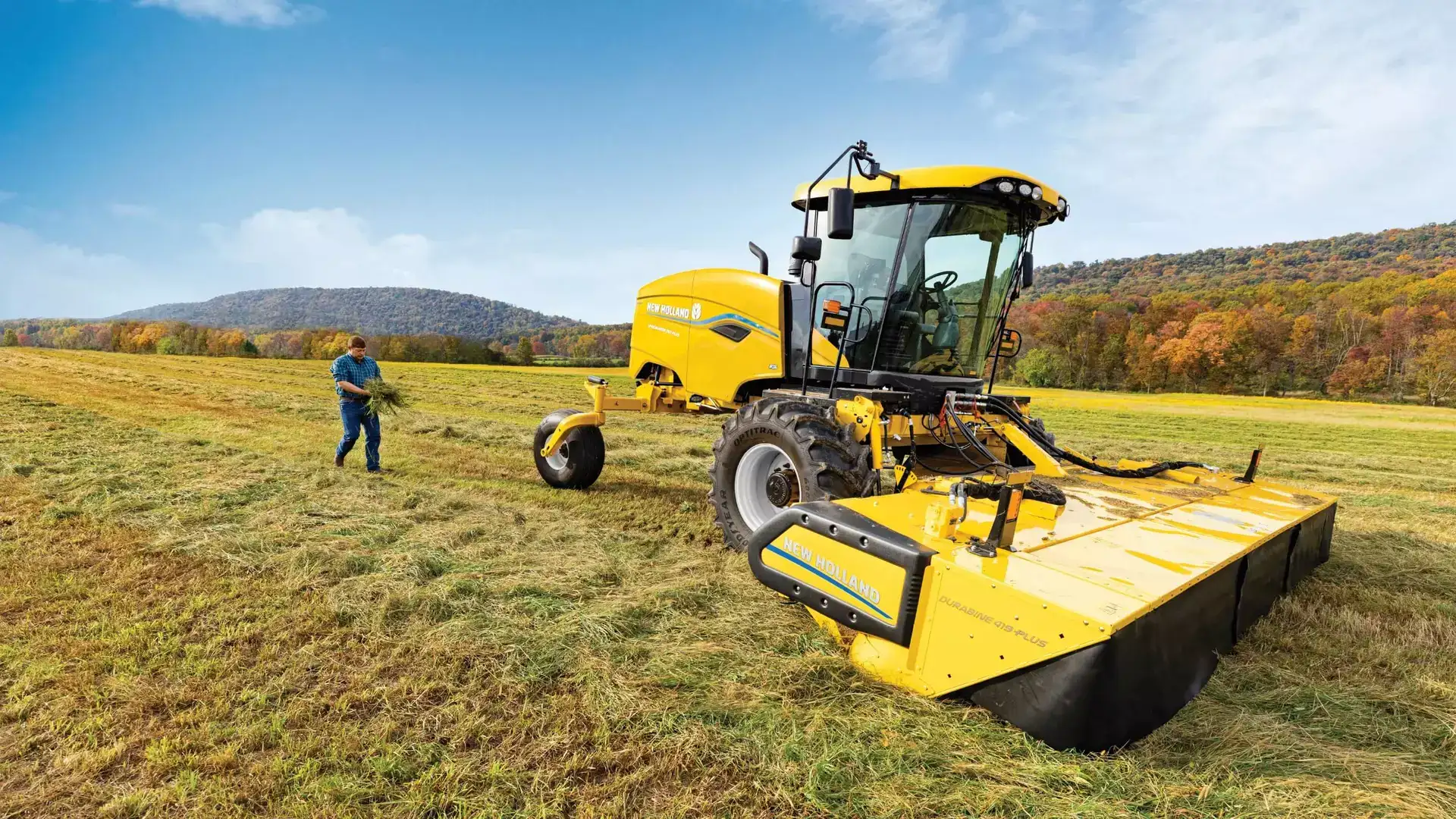

DURABINE PLUS SERIES DISC HEADERS

The Durabine PLUS Series is designed to take advantage of faster speeds on Speedrower 220 PLUS and 260 PLUS windrowers without compromising cutting and conditioning quality. After all, productivity is more than how many acres you can cut – it’s also dry down time. Choose from two powerful models – the Durabine 416 PLUS with a 16’ 3” cut, or the Durabine 419 PLUS with the industry’s widest cut at 19’ 4”.

Features

  • CLEAN AND CLOSE CUTTING

    To maximize productivity, the all-new MowMax™ II PLUS true modular cutterbar delivers a cleaner cut. Longer knives extend each module’s cutting diameter by nearly an inch and turn with 14 mph faster tip speed (195 mph vs 181 mph) than the previous series at 2,600 disc rpm. For better crop-to-knife engagement, the cast rock guards were reshaped. To improve cutting in light or late-season crops, the profile of the cutterbar was lowered by bringing the discs closer to the cutterbar with new low profile ShockPRO™ hubs. Along with the longer knives, this design is more productive in down and tangled crops as the cutting height was lowered nearly 30%, leaving less uncut crop behind.

    To optimize crop flow and conditioning, all-new Durabine 416 PLUS disc rotation delivers crop in four streams into the new Constant Flow Auger. The result? More even windrows with improved center fill. Crop wrapping is prevented and conditioning roll end wear in abrasive conditions is reduced.
  • HIGH-CAPACITY CUTTING PERFORMANCE

    Dual counter-stroking sickles feature a timed modular wobble drive that assures smooth cutting with minimal vibration and maintenance. Over-serrated knives slice quickly at over 1,800 rpm and the three-inch stroke delivers unrivaled high-capacity cutting for best-in-class performance. Bolt-on knife sections provide long cutting life and easy replacement, and adjustable knife hold-down clips help speed up maintenance.
  • GRASS SEED HARVESTING CONFIGURATION

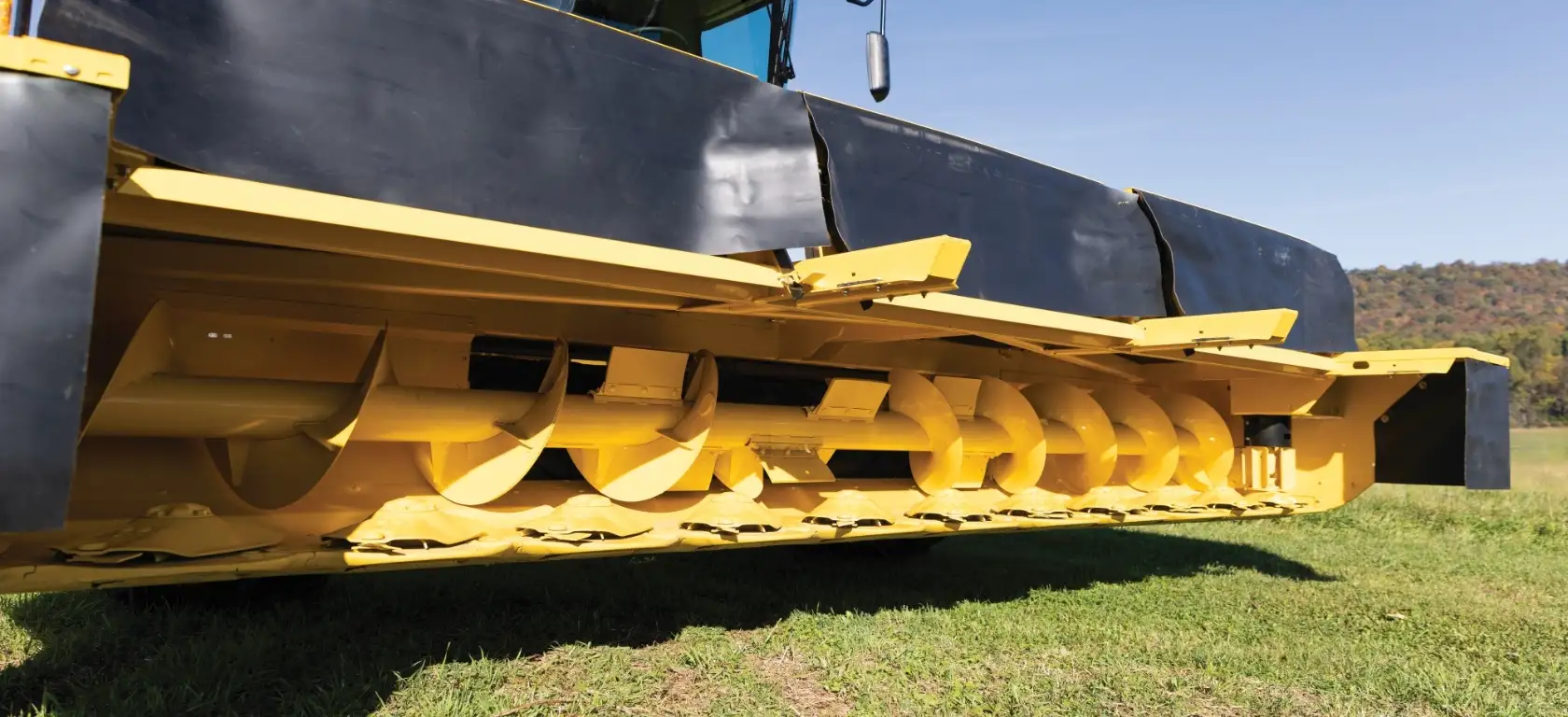

    The Durabine 416 PLUS Specialty Grass Seed Harvesting head delivers high-capacity performance in delicate crops that do not require conditioning, like grasses, flower seeds, and mint. A unique auger features flighting that tapers as it approaches the center of the head, with no paddles, supports, or conditioning rolls. A flexible lean bar in the front assists tall crop flow into the head, without sudden impacts that could shatter delicate seedpods. A second curtain hanging above the cutterbar improves crop flow. In the back, windrow-forming rods gently direct crop into a windrow ready for harvesting.
MODELS

Explore available models

TECHNICAL SPECIFICATIONS
hay-tools-equipment-durabine-416

Durabine™ 416 PLUS

Cutting width ft. in. (m)
16' 3" (4.95)
Number of discs
10
hay-tools-equipment-durabine-419

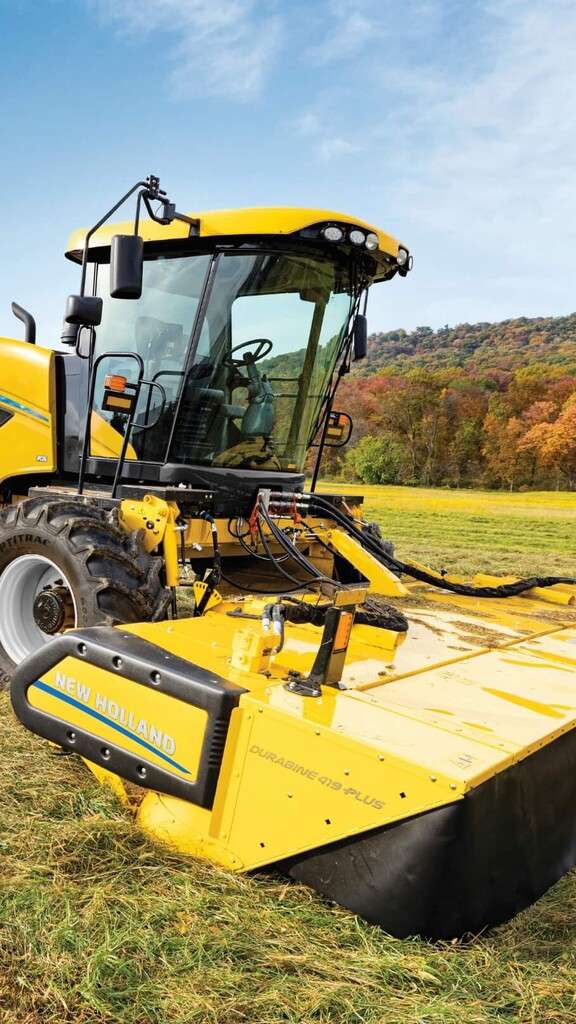

Durabine™ 419 PLUS

Cutting width ft. in. (m)
19' 4" (5.9)
Number of discs
12
hay-tools-equipment-durabine-416-speciality

Durabine™ 416 PLUS Specialty

Cutting width ft. in. (m)
16' 3" (4.95)
Number of discs
10
hay-tools-equipment-haybine-14hs

Haybine® 14HS

Cutting width ft. in. (m)
14' 3" (4.34)
Number of discs
hay-tools-equipment-haybine-16hs

Haybine® 16HS

Cutting width ft. in. (m)
16' 3" (4.95)
Number of discs
hay-tools-equipment-haybine-18hs

Haybine® 18HS

Cutting width ft. in. (m)
18' 3" (5.56)
Number of discs

Technical specifications

Dimensions & Weights

Cutting width ft. in. (m)
Overall width ft. in. (m)
Weighting with conditioning system lbs. (kg)
Weight less conditioning system lbs. (kg)

Durabine PLUS MowMax™ II PLUS Cutterbar

Haybine Cutterbar

Haybine Reel

Auger

Conditioning Systems

Header drive

Modular Disc Cutter Bar

Cutter Bar

Sickle Drive

Reel

Speed

Conditioner (Rolls)

Conditioner

* Bearing with collar at cam end. Bushings at all other locations.
