T4V Vineyard Series - Tier 4A
GO WHERE OTHERS CAN’T

T4V Vineyard Series - Tier 4A

white dots

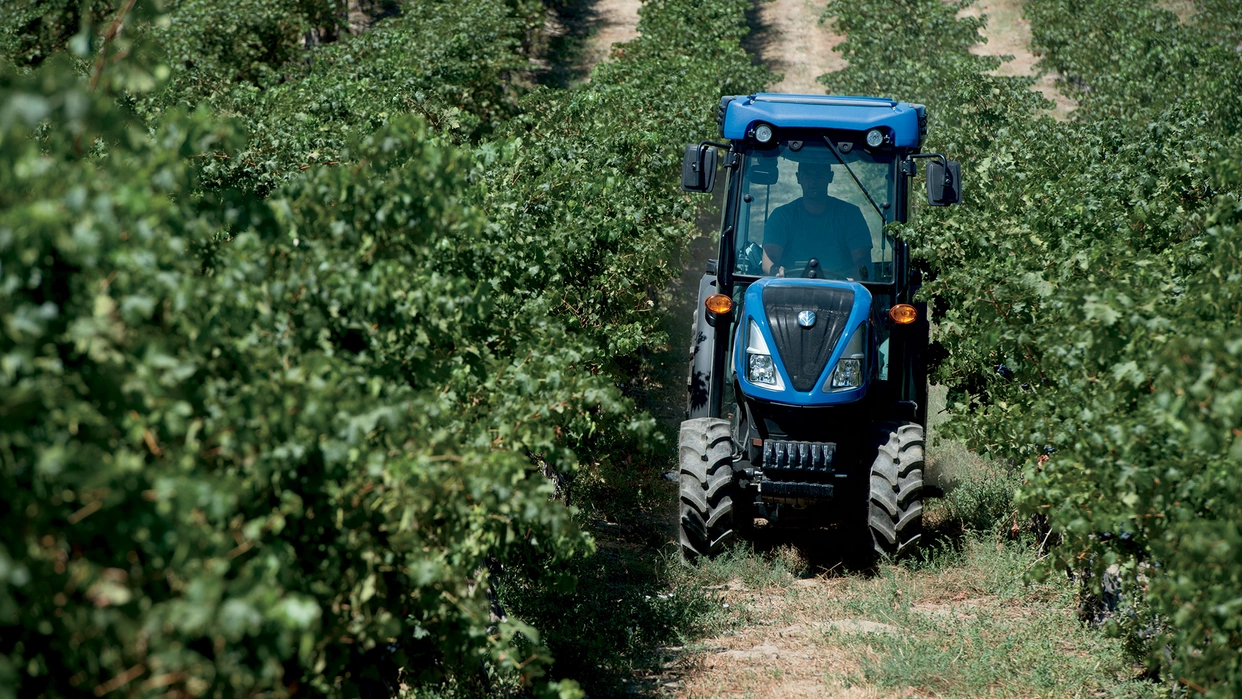

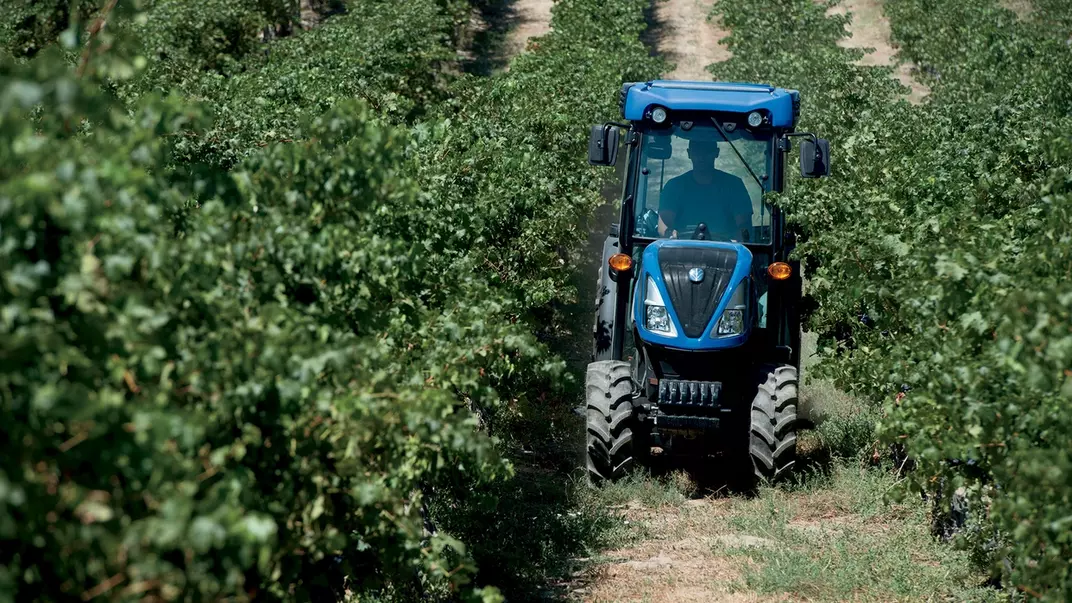

AS NARROW AS 43.1 INCHES With a width as narrow as 43.1 inches (depending on tire size), the T4V tractor fits in the tightest rows.
TIER 4A CERTIFIED You get clean power from engines that are Tier 4A emissions-certified, and range from 65 to 93 PTO horsepower.
NEW BLUE CAB™ 4 T4V tractors are now available with Level 4 protection from dust, aerosols and vapors.
FROM THE WORLD LEADER New Holland is the world’s leading supplier of narrow tractors so you know you are getting the advantages of the very best.
T4V Vineyard Series - Tier 4A

NARROW TO THE EXTREME

The T4V Series is the pinnacle of narrow tractors. They provide you with a sleek look, enhanced ergonomics, advanced driver safety and powerful new hydraulic options, all in a streamlined package specifically designed for extremely narrow operations.

Features

  • POWERFULLY EFFICIENT

    T4V tractors are packed with a powerful, 207-cubic-inch, four-cylinder engine built by Fiat Powertrain Technologies (FPT). These engines are Tier 4A emissions compliant, using a Cooled Exhaust Gas Recirculation (CEGR) system and Diesel Oxidation Catalyst (DOC). This common-rail fuel-injected engine provides higher engine power density and enhanced fuel efficiency and delivers constant max power from 1,900 rpm up to 2,300 rpm to ensure you have the best combination of power and fuel economy. Additionally, the constant engine rpm feature ensures your engine rpms remain constant even under changing loads for applications where a constant PTO speed is required.
  • MORE TRANSMISSION CHOICES

    Choose the transmission that best suits your needs.
  • ALL THE HYDRAULIC POWER YOU NEED

    T4V Series tractors provide and ample supply of hydraulic power so you can take advantage of large implements.
  • 2WD OR FWD TO MEET YOUR NEEDS

    The T4V Series tractors come standard with electrohydraulic FWD axles to provide additional traction. FWD can be turned off, set to automatic to engage FWD only when needed, or turned on full-time for applications that require additional traction. A 2WD front axle is also available for those who work in conditions where the extra traction of FWD is not required.

  • OPERATOR FRIENDLY

    Take your choice of an open platform or one of the two Blue Cab™ options that offer different levels of operator protection to meet the needs of different applications. Both cab and open platform models feature isolation mounting for a smooth ride and less vibration. Upgraded instruments and controls provide maximum comfort and ergonomics.
  • QUICK SERVICE ACCESS

    The New Holland flip-up hood makes it effortless to access the engine for maintenance.
MODELS

Explore available models

TECHNICAL SPECIFICATIONS
tractors-and-telehandlers-t4-80v

T4.80V

Engine
74 gross engine hp / 65 PTO hp
Minimum overall width
43.1 in (1094 mm) (varies by tire size)
tractors-and-telehandlers-t4-90v

T4.90V

Engine
84 gross engine hp / 75 PTO hp
Minimum overall width
43.1 in (1094 mm) (varies by tire size)
tractors-and-telehandlers-t4-100v

T4.100V

Engine
98 gross engine hp / 86 PTO hp
Minimum overall width
43.1 in (1094 mm) (varies by tire size)
tractors-and-telehandlers-t4-110v

T4.110V

Engine
106 gross engine hp / 93 PTO hp
Minimum overall width
43.1 in (1094 mm) (varies by tire size)

Technical specifications

Power

Engine HP
PTO HP
Operator’s platform
Front Axle

Transmission Offering

Three-point Hitch

Hydraulics

Weights & Dimensions (4WD ROPS)

Weights & Dimensions (4WD Cab)

PTO
