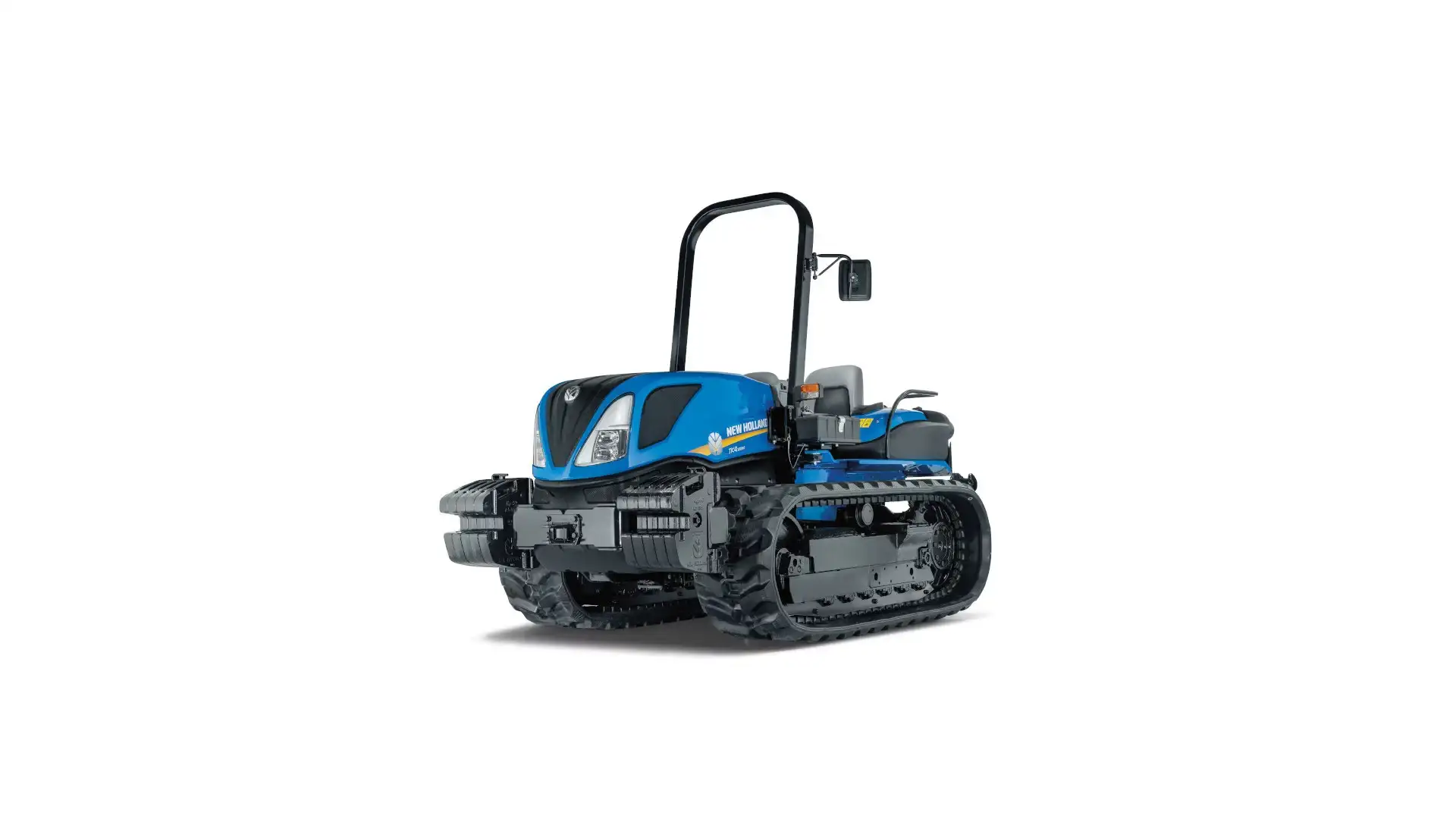

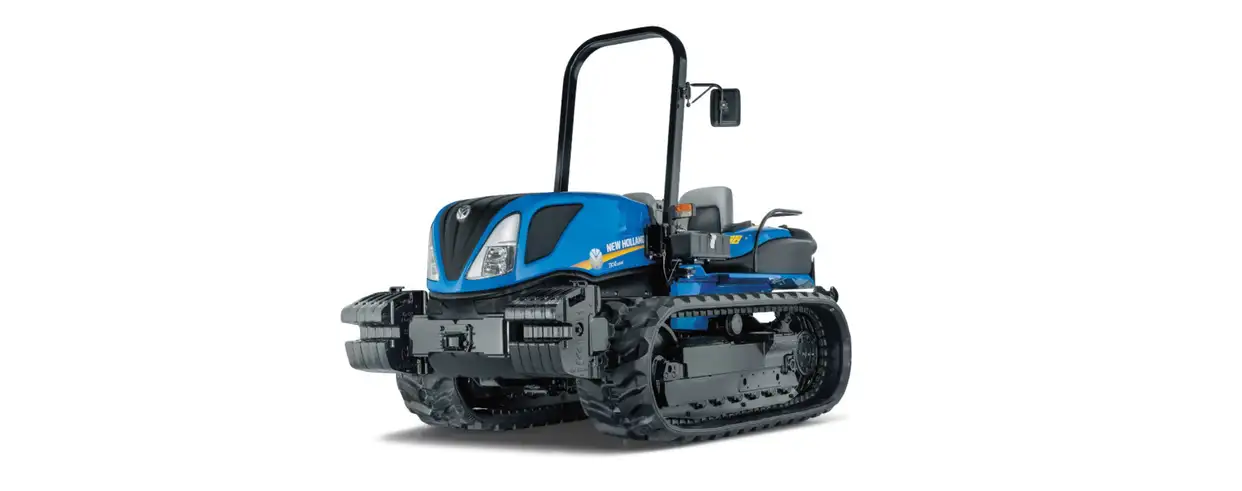

TK4 Crawler
POWERFUL, COMFORTABLE AND EFFICIENT

TK4 Crawler

white dots
MORE THAN 85 YEARS OF EXPERIENCE TK4 Series tractors are the result of over 85 years of manufacturing experience in the crawler sector.

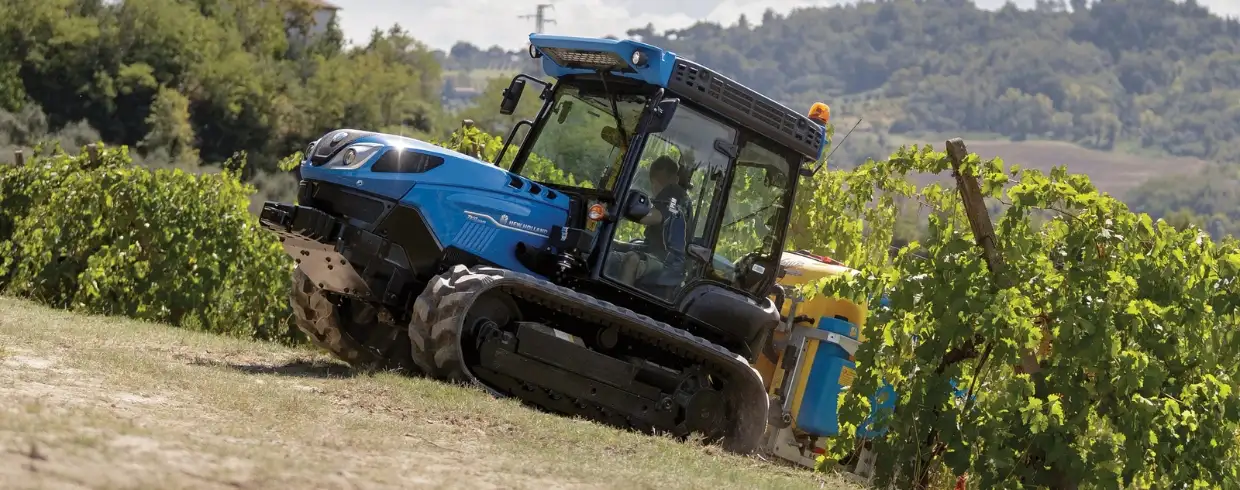

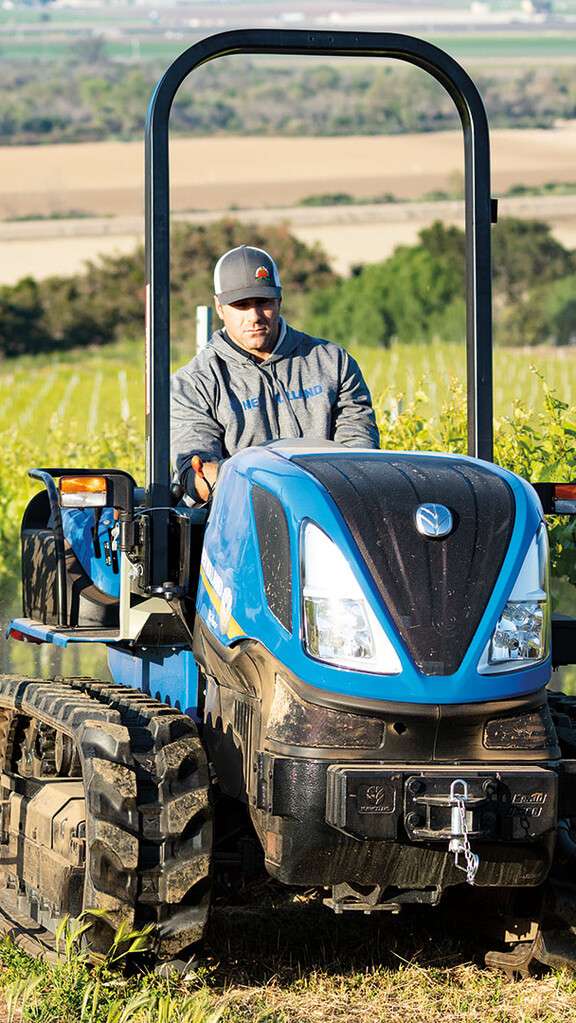

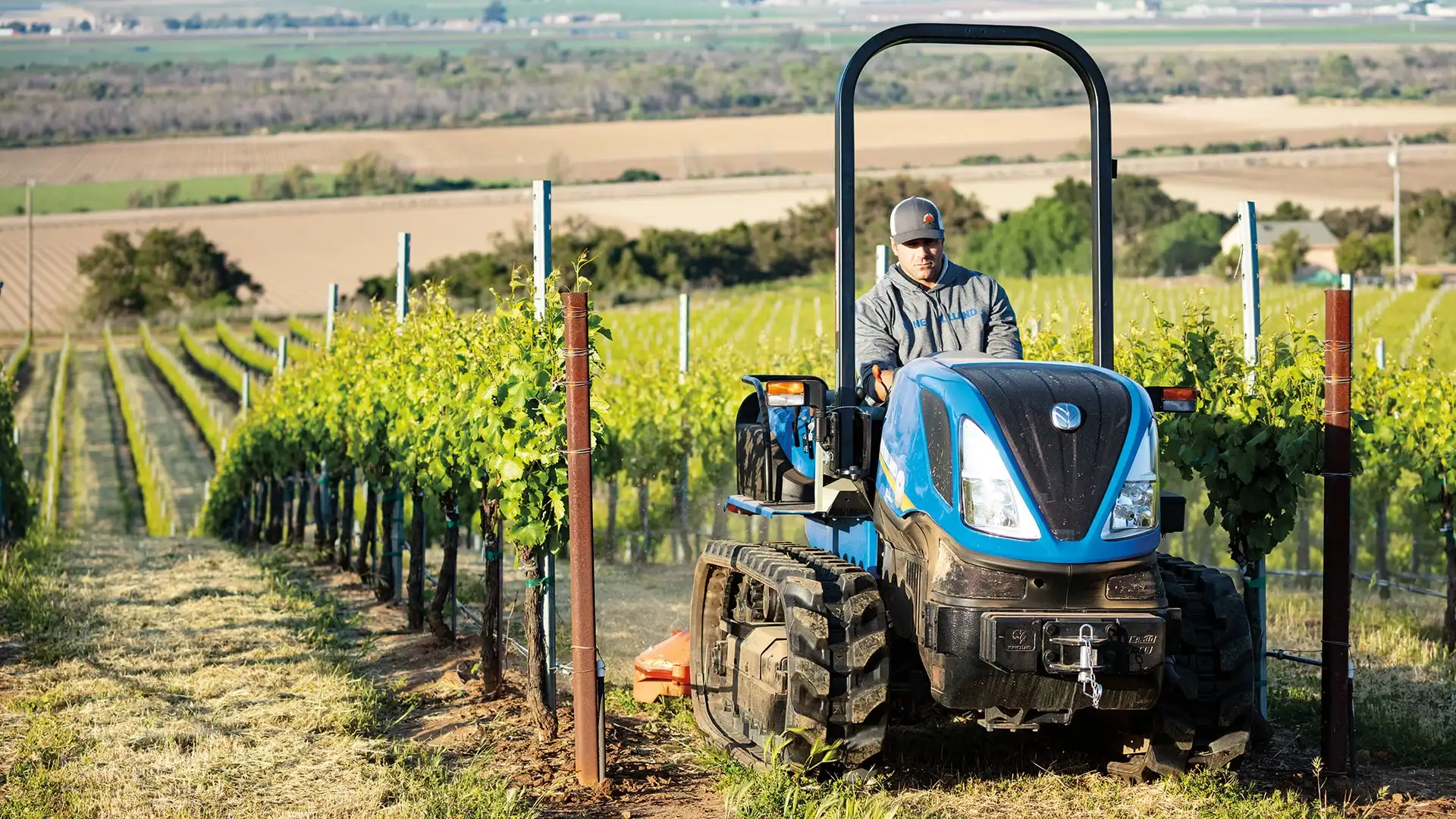

AT HOME WITH APPLES, CHERRIES, GRAPES AND NUTS All-terrain TK4 tractors are perfectly designed to climb the hills and mountains of fruit orchards, vineyards and nut groves.
A MODEL FOR YOU With four models from 65 to 86 PTO horsepower – two Specialty ROPS models and two Open Field machines with ROPS or heated and air-conditioned cab – you are sure to find the ideal machine for your needs.
INCREASED FRONT AXLE CAPACITY TK4 tractors can easily work with big and heavy front implements thanks to the heavier, stronger front axle casting that permits the application of up to 1,100 lbs (500kg) of front ballast (TK4.100M only).
TK4 Crawler

LEADING POWER, EFFICIENCY AND COMFORT

It’s what comes with 85 years of experience in the crawler sector. The new TK4 Series crawler tractors confirm New Holland’s undisputed leadership in the segment. Four new models featuring Tier 4A compliant engines offer farmers and contractors exceptional stability, comfort and performance, new and enhanced power levels, efficient fuel usage and absolute environmental respect.

Features

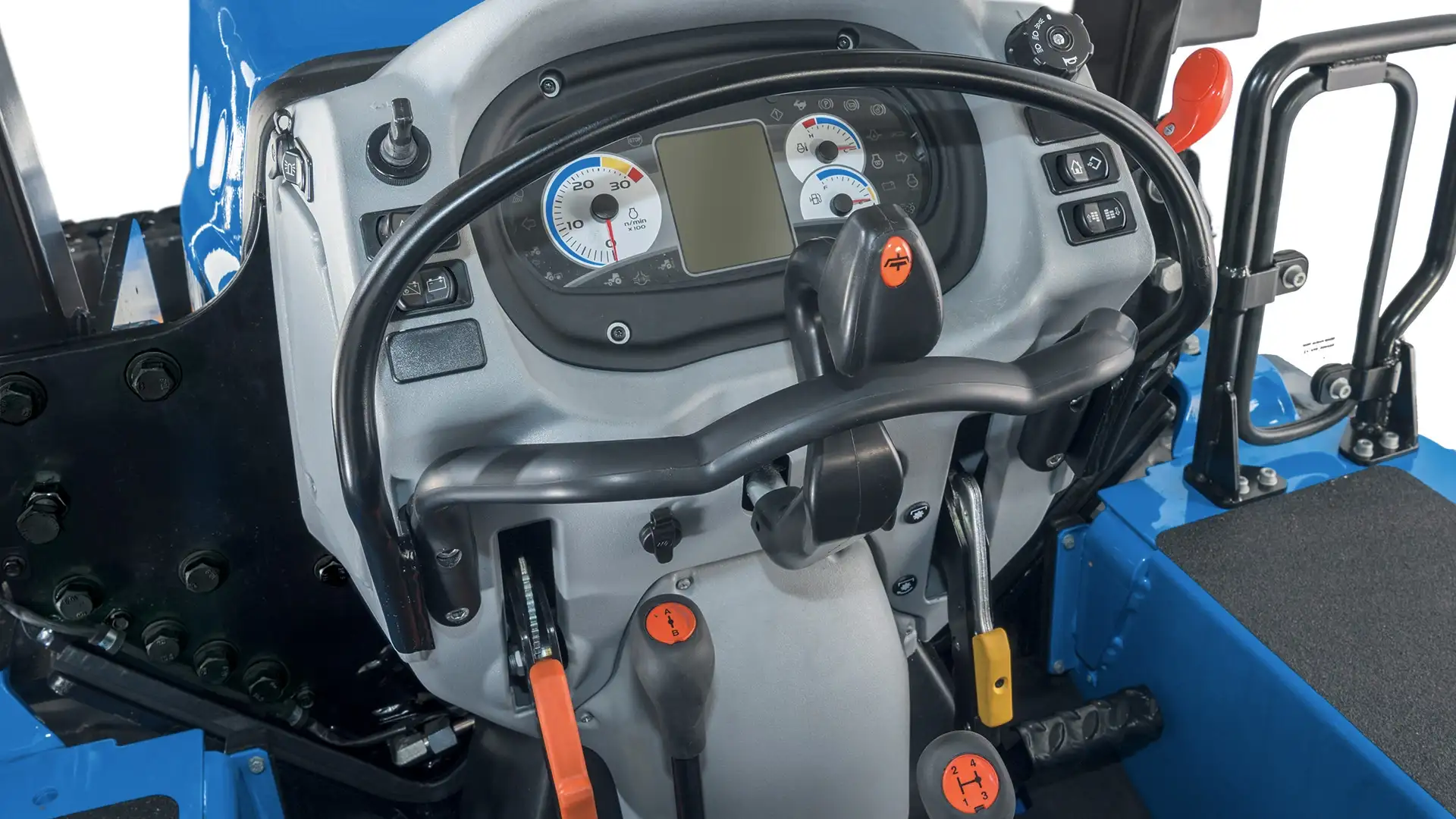

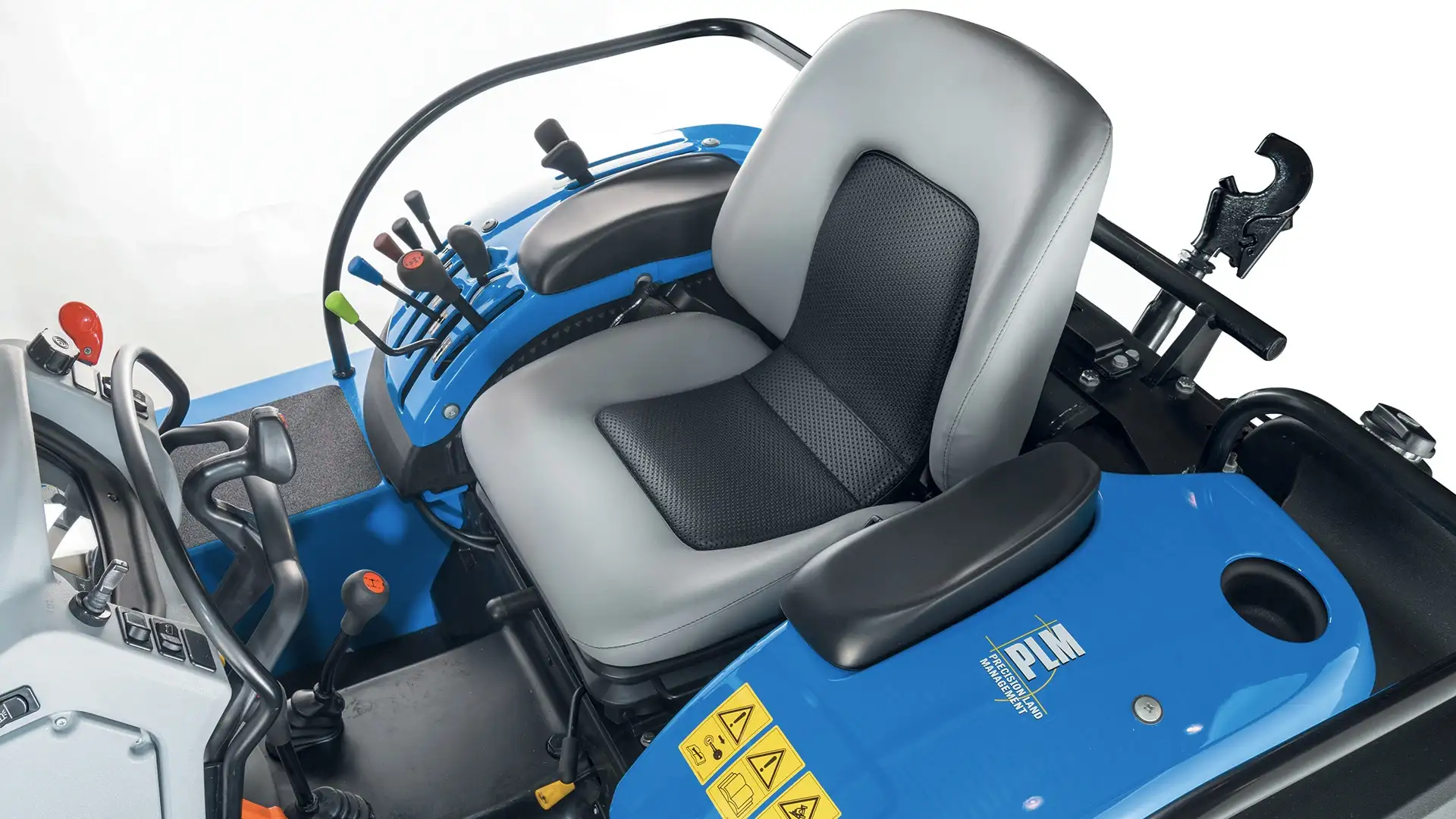

  • MORE COMFORTABLE OPERATOR ENVIRONMENT

    New Holland’s constant efforts to maximize operator comfort have led to significant improvements for the operator environment of TK4 crawler tractors.
  • BETTER TRACTION AND FLOTATION

    Tracks allow you to farm in conditions where wheeled tractors struggle.
  • TOP LEVEL PERFORMANCE AND EFFICIENCY

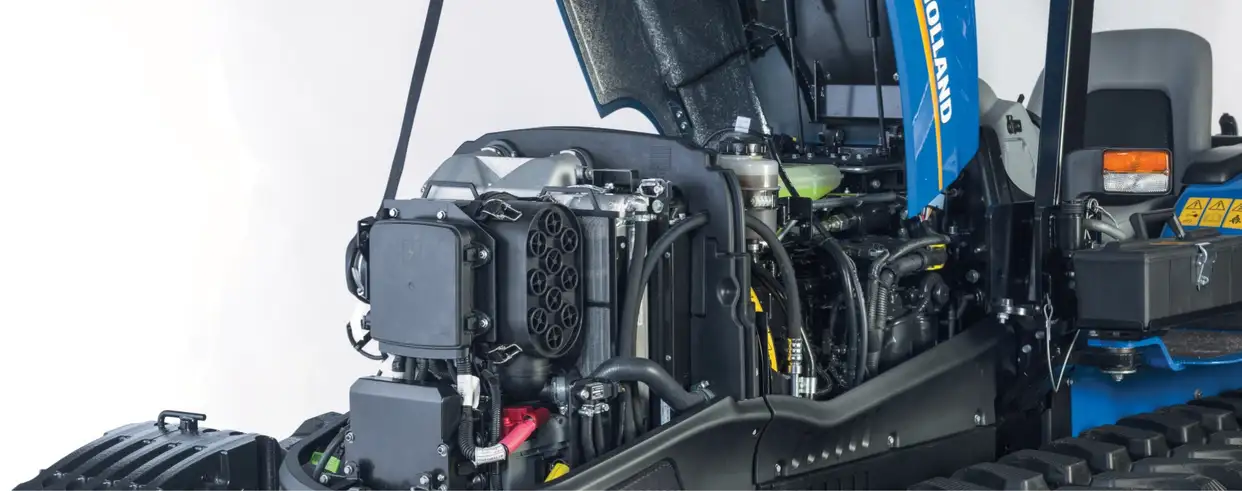

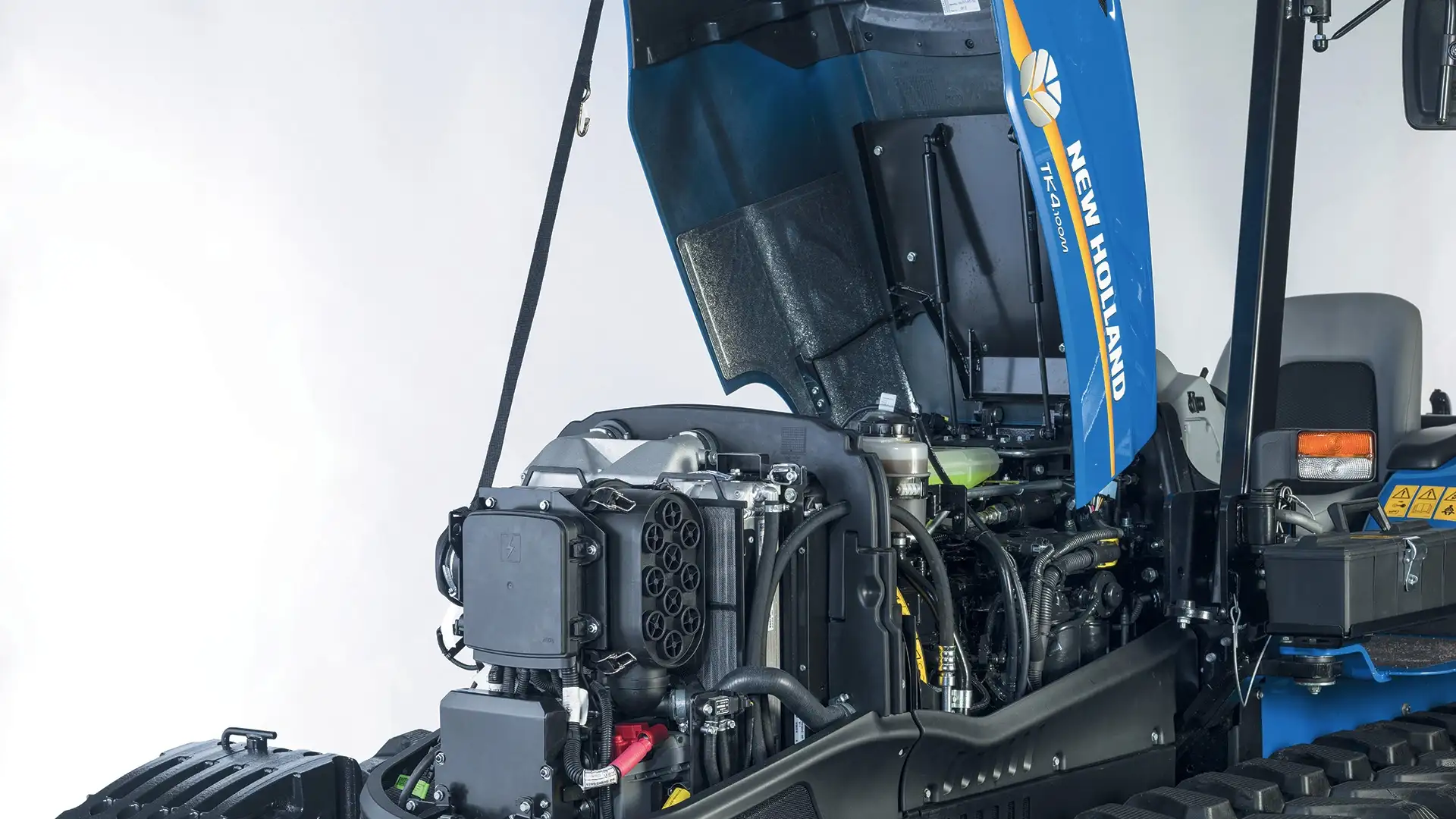

    New 74- and 98-horsepower FPT Industrial engines provide exceptional performance. They deliver maximum power continuously from 1,900 to 2,200 rpm to maintain the power and torque New Holland crawler tractors are known for. You get even greater fuel efficiency and more economical operation thanks to the new electronic engine management system.
  • GET YOUR WORK DONE WITH EASE

    TK4 crawler tractors let you take control of your workday with the practical speed selection and low-effort shuttling of the 8x8 constant mesh transmission.
  • DO MORE WITH DUAL PUMPS

    You get more flow to handle more demanding implements with two hydraulic gear pumps in two separate open-center hydraulic circuits. A high-volume 11.9 gpm (45 Lpm)* implement pump delivers dedicated flow to the three-point lift and remote valve circuits, while a separate 5.8 gpm (22 Lpm)* steering and services pump allows you to maneuver with precision and ease without robbing flow from other hydraulic functions.

    *The TK4.80V and TK4.80F offers a 9.4 gpm (35.5 Lpm) implement pump and a 5.4 gpm (20.4 Lpm) steering pump.

MODELS

Available Models

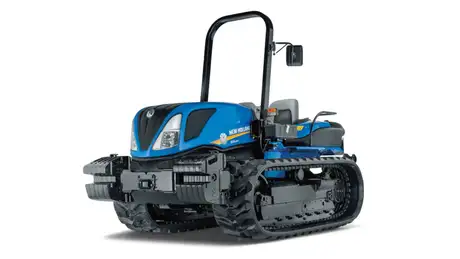

TK4 80V ROPS

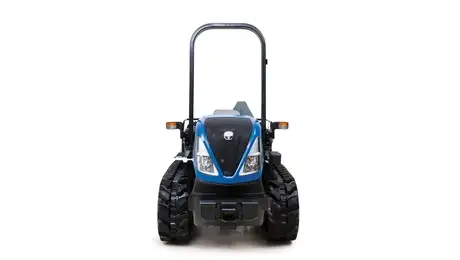

TK4.80V

Engine Horsepower
74 gross engine / 65 PTO
Tracks
Steel

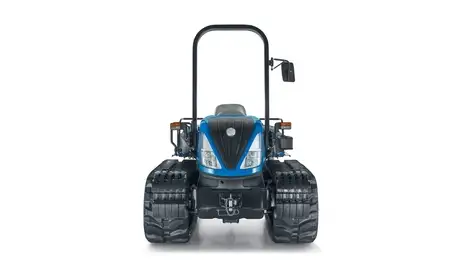

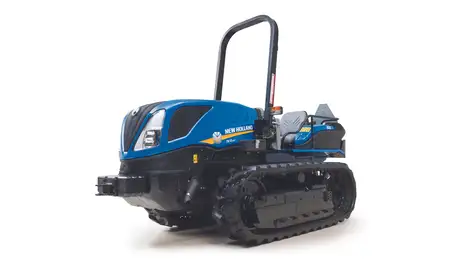

TK4.80F

Engine Horsepower
74 gross engine / 65 PTO
Tracks
SmartTrax™ rubber
tractors-and-telehandlers-tk4-100m

TK4.100

Engine Horsepower
98 gross engine / 86 PTO
Tracks
Steel

TK4.100M

Engine Horsepower
98 gross engine / 86 PTO
Tracks
Steel / SmartTrax™ rubber

Technical Specifications

Specifications

Operator's Platform
Engine Horsepower
Tracks
Track width (in. (mm))
Overall width (in. (mm))

– Not available
