NEVER LOOK BACK

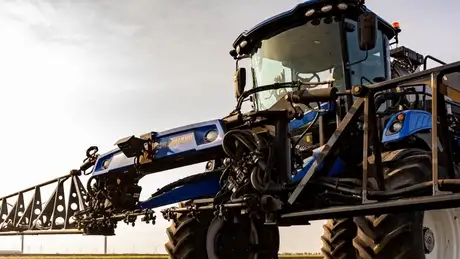

Guardian™ Front Boom Sprayers

white dots

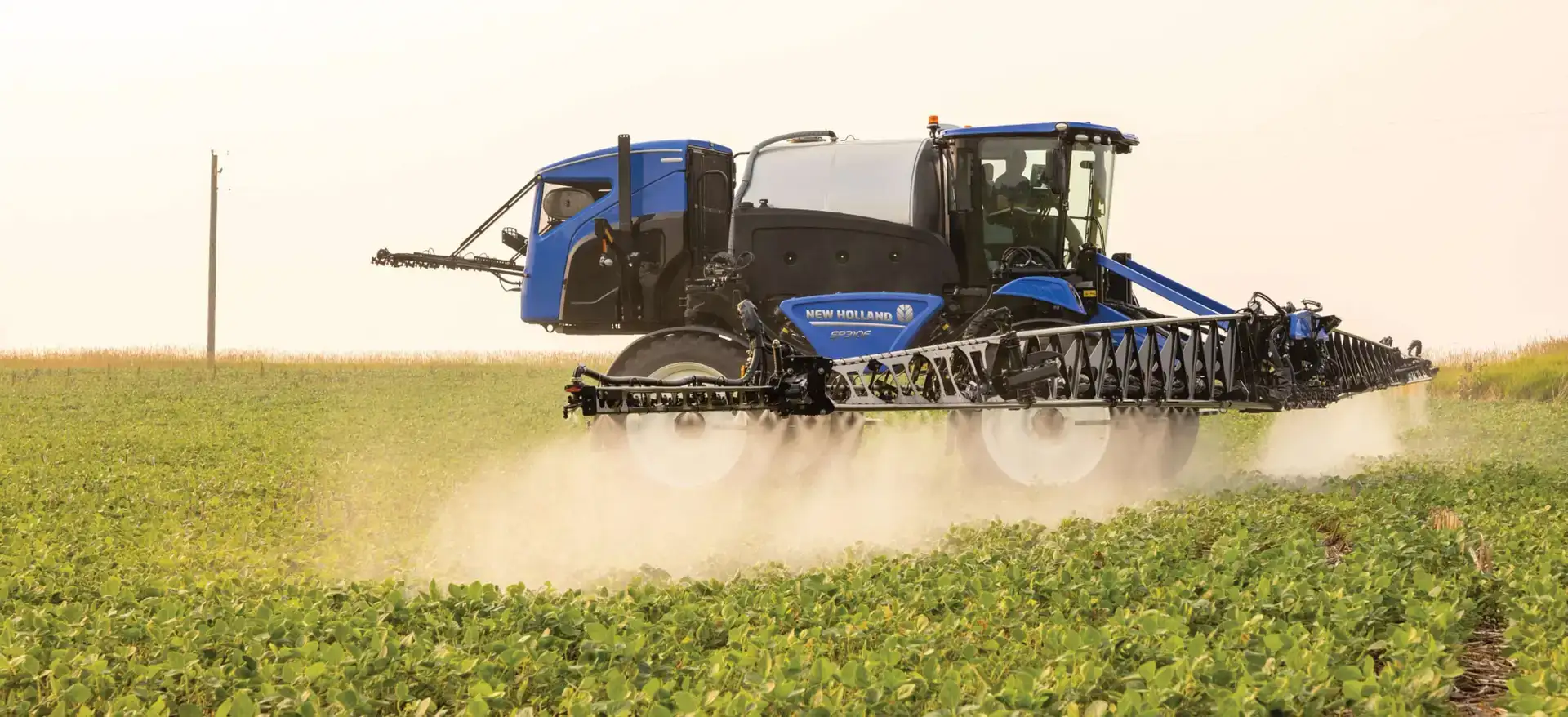

THE EASIER WAY TO SPRAY With the boom in front, you get unmatched visibility which means you can run the boom closer to the ground to reduce drift.
BEST-IN-CLASS CROP CLEARANCE With crop clearance up to 78 inches, the Guardian™ sprayer is among the tallest in the industry. That means you can spray at all stages of crop growth.
HUGE PRODUCTIVITY With models up to 412 horsepower, tanks as large as 1,600 gallons, and booms as wide as 135 feet, Guardian™ front sprayers allow you to protect more acres per hour.
UNPARALLELED ACCURACY New Guardian sprayers come factory-equipped with the industry’s leading precision technology, so you can confidently apply with sub-inch accuracy.

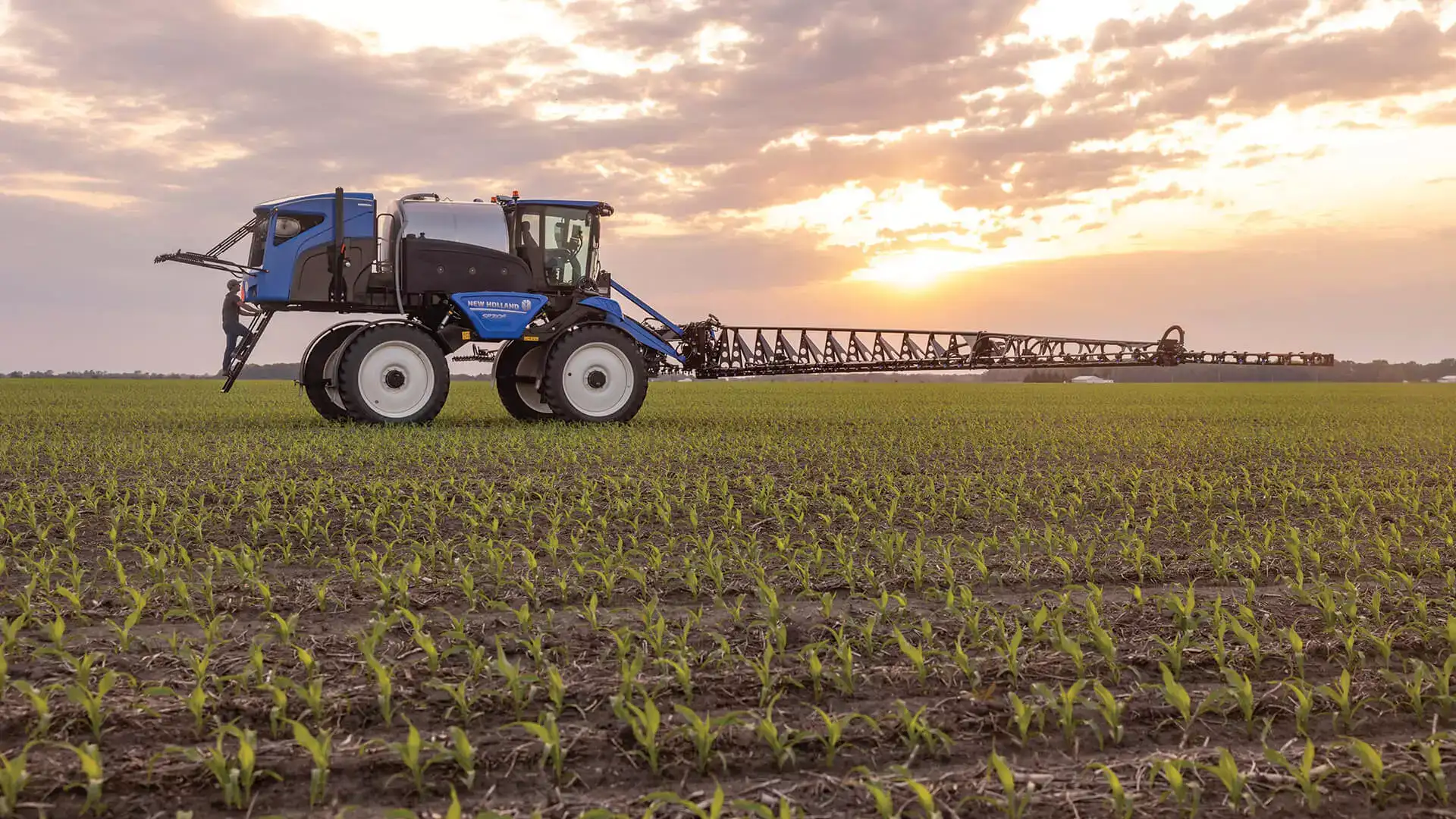

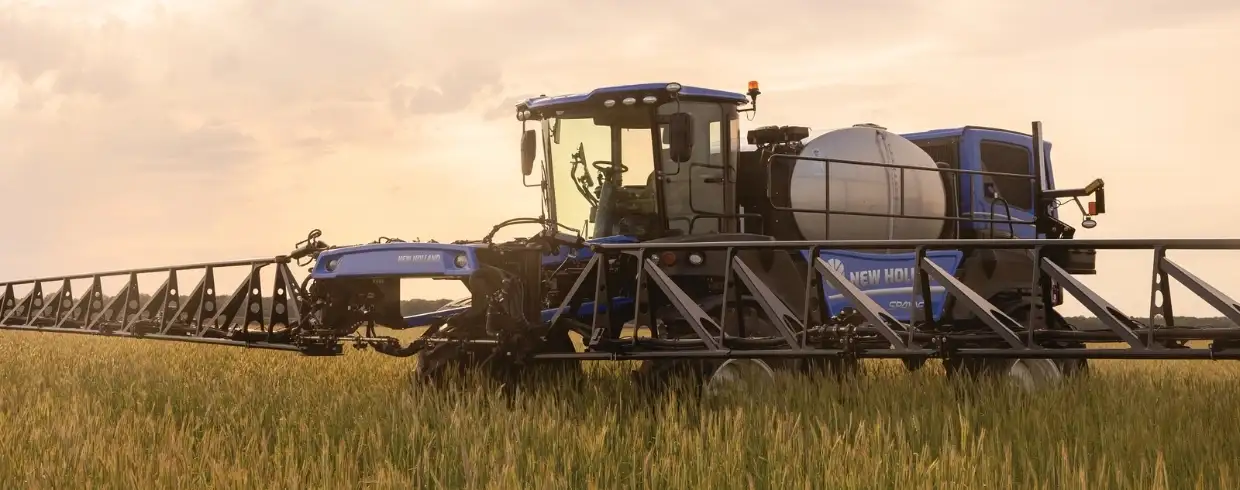

Guardian™ Front Boom Sprayers

EFFICIENT HIGH-CLEARANCE SPRAYING. ULTIMATE COMFORT.

New Holland Guardian™ front boom sprayers allow you to spray later into the growing season, easily maneuver at the headlands, and make on-the-go adjustments quickly and easily — all from the comfort of a cab specifically designed for the Guardian sprayer. Select from models up to 412 horsepower.

Features

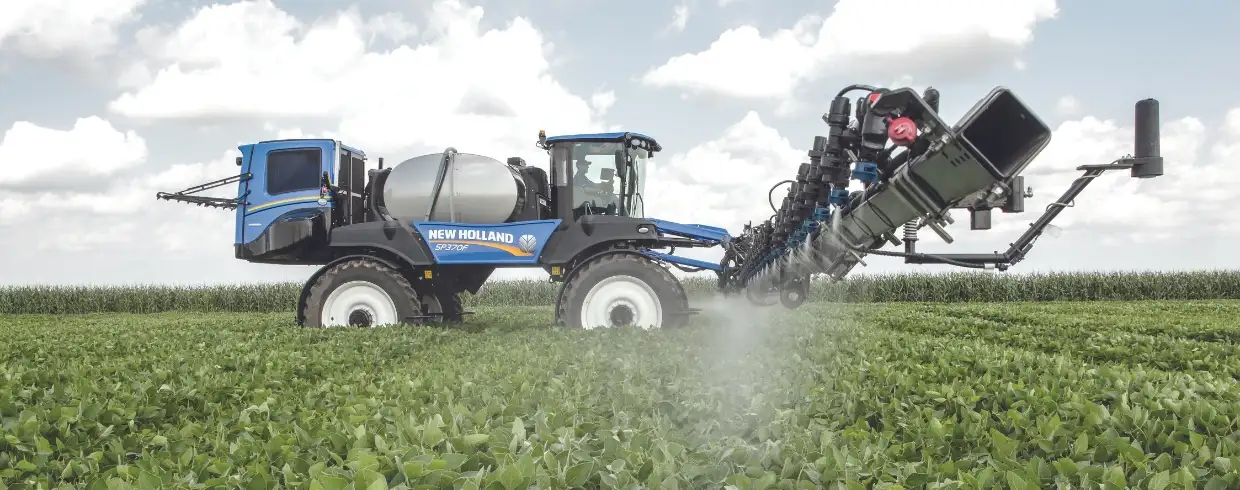

  • PANORAMIC VISIBILITY

    You’ll appreciate the expansive view of the field and the full width of the spray boom. Designed with over 69 square feet of glass, the Guardian™ cab features a full-height windshield and large wrap-around side windows. Plus, the rear windows have been darkened to shade you from long days in the sun.

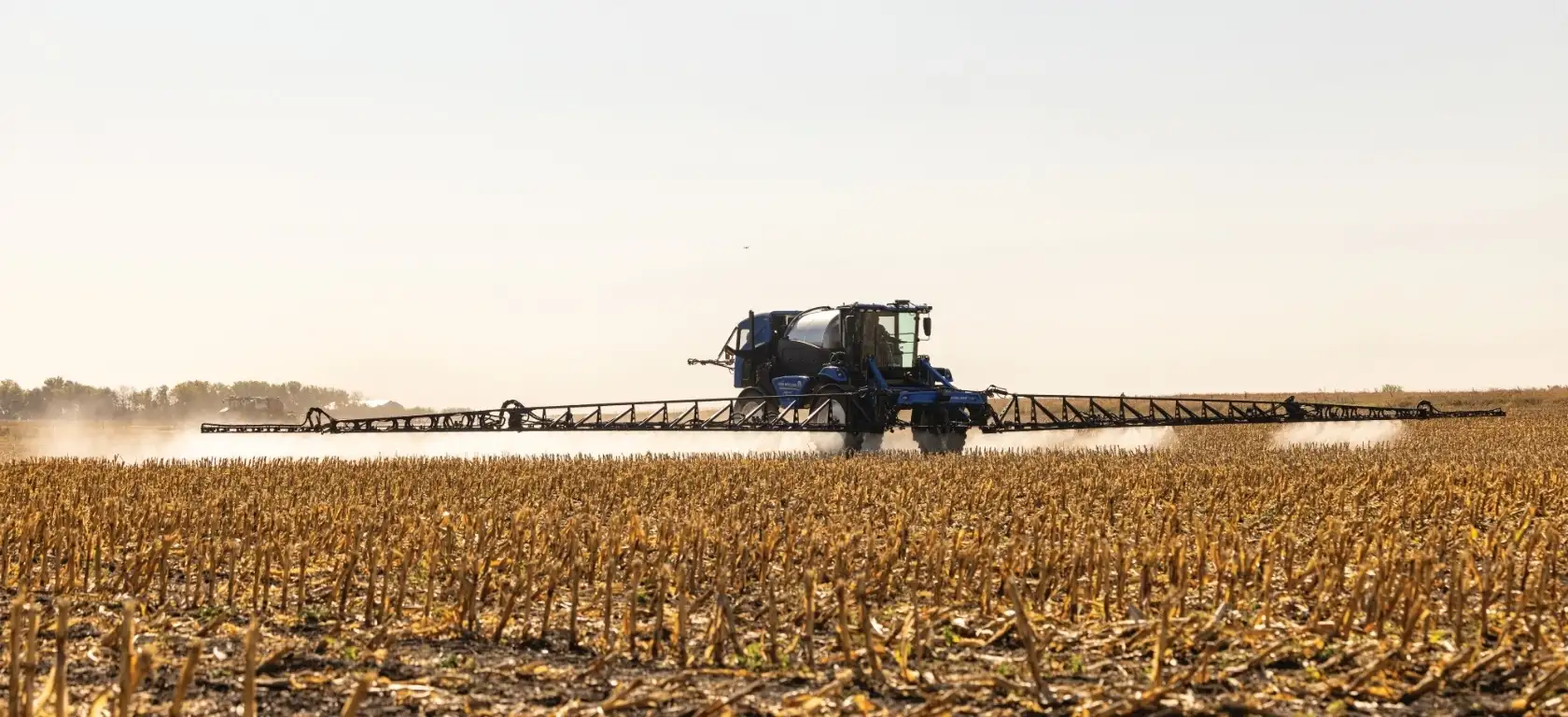

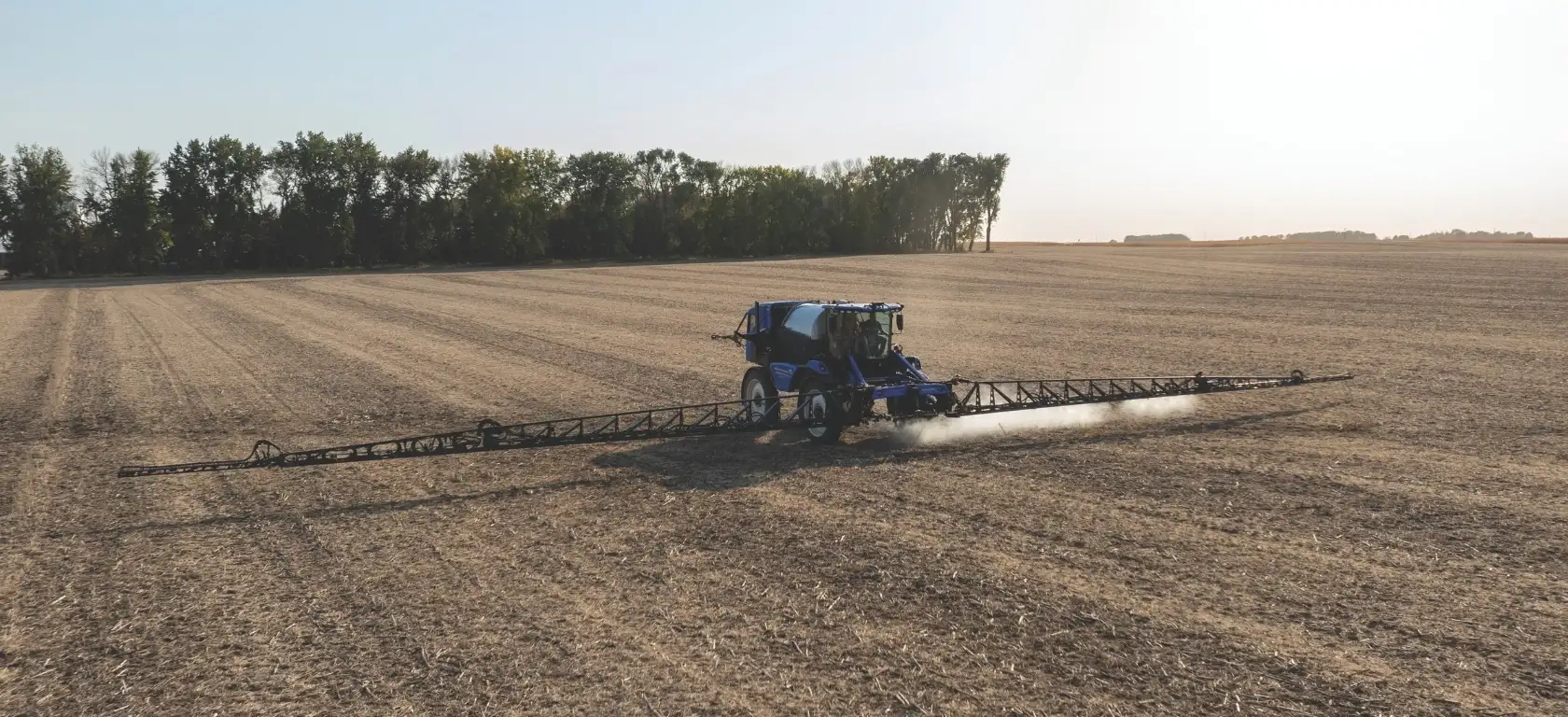

  • BOOM WIDTH OPTIONS UP TO 135 FEET

    Choose from MonoBeam booms up to 120 feet, truss booms up to 135 feet, IntelliSpray-ready booms up to 135 feet, and our exclusive SPRAY-AIR® boom up to 120 feet wide.
  • INCREASED TORQUE AND IMPROVED FUEL ECONOMY

    FPT turbocharged and aftercooled engines deliver up to 412 peak horsepower. They are EGR-free, electronically controlled, meet Tier 4B standards and provide high torque rise for added power when you need it. Engines are mounted in the rear for better weight distribution, easy access, and a quieter cab.

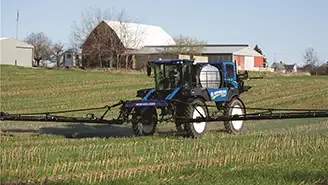

  • OUTSTANDING CLEARANCE, TURNING AND SUSPENSION

    The rugged and innovative design of the Guardian™ front boom sprayers allows you to complete your work more quickly, efficiently, and with more comfort.
  • INDUSTRY-LEADING 1,600-GALLON CAPACITY

    Depending on the Guardian™ sprayer model you choose, you can select a tank capacity of 1,000, 1,200, 1,400 or the industry-leading 1,600 gallons. A variable-speed pump delivers product at the target rate for maximum efficiency, saving horsepower and pump wear.

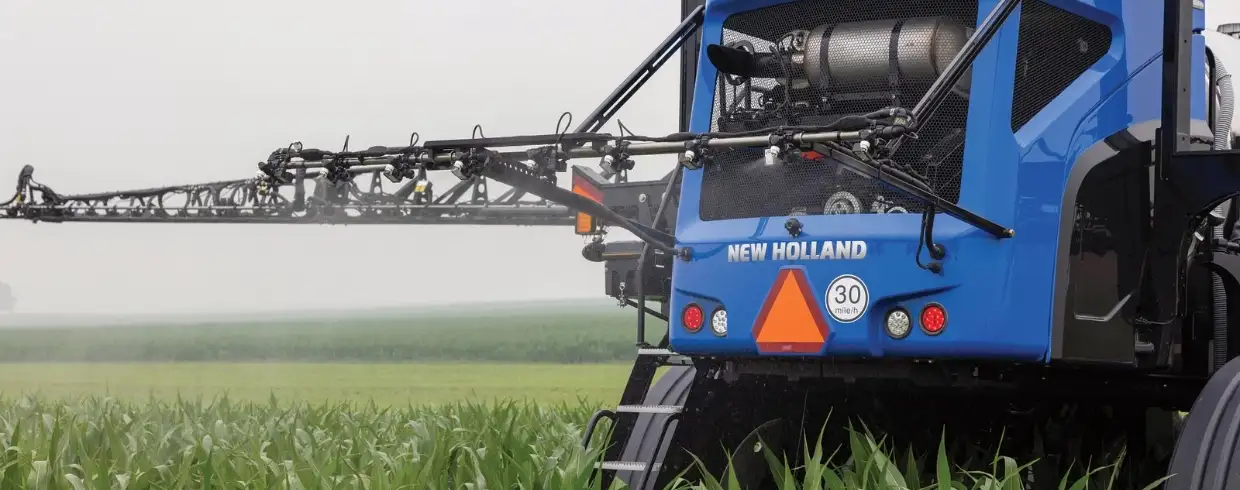

  • COMPLETE ACCESS AND EASY SERVICING

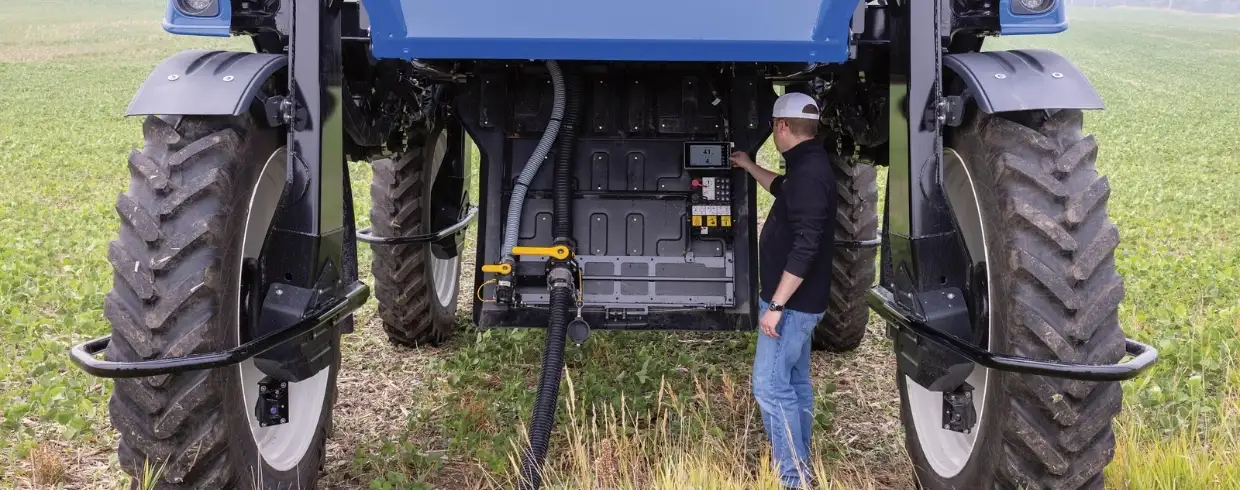

    New Holland Guardian™ Sprayers are designed to keep your maintenance time to a minimum, so you can get to the field quickly. They make every minute count with simple access to service areas. The walkway beside the engine compartment makes it easy to access engine and hydraulic service points. The automatic retracting rear ladder is wide and long for easier climbing and dismount.
  • INJECTION TOOLBAR FEEDS YOUR CORN IN THE SOIL ROOT ZONES

    The New Holland Injection Toolbar applies liquid fertilizer between the corn rows and into the soil root zones, precisely where and when your crop needs it most. Used with your Guardian™ front boom sprayer, the Injection Toolbar fuels corn growth, applying liquid N just before maximum uptake which occurs between the 6- to 8-leaf stage and tasseling. (Nitrogen should be applied in the 3-4 to 6-8 leaf stage to ensure ready availability during the critical growth period to follow.)
    No crop burning – incorporates liquid N into the soil, unlike broadcasting fertilizer
    Minimize fertilizer loss – not like ground-applied liquid fertilizer, which can be lost due to volatilization, especially without sufficient rainfall
    The flexibility to match growing conditions – adjust, increase or forego application as you see fit
    Choice of three widths – 26, 36 or 38 feet
  • SPRAY WITH MAXIMUM PRECISION

    Guardian™ sprayers are designed to make full use of New Holland Precision Land Management (PLM™) technology, allowing you to dramatically improve operator performance and comfort.
MODELS

Explore available models

TECHNICAL SPECIFICATIONS
spraying-equipment-sp310f

SP310F

Horsepower
310
Tank Size
1000 or 1200 gallon
spraying-equipment-sp370f

SP370F

Horsepower
369
Tank Size
1400 or 1600 gallon
spraying-equipment-sp410f

SP410F

Horsepower
412
Tank Size
1400 or 1600 gallon

Technical specifications

Specifications

Engine
Rated Power
Power Bulge
Fuel Tank Capacity
DEF Tank Capacity
Transmission
Speed Range
Crop Clearance
Tank Material
Tank Capacity
Rinse System
Mono Boom Width (ft)
Truss Boom Width (ft)
Spray-Air Boom Width (ft)
Nozzle Bodies
Shipping Height (cm)
Shipping Width Mono Boom (cm)
Shipping Width Truss Boom (cm)

Download brochures
