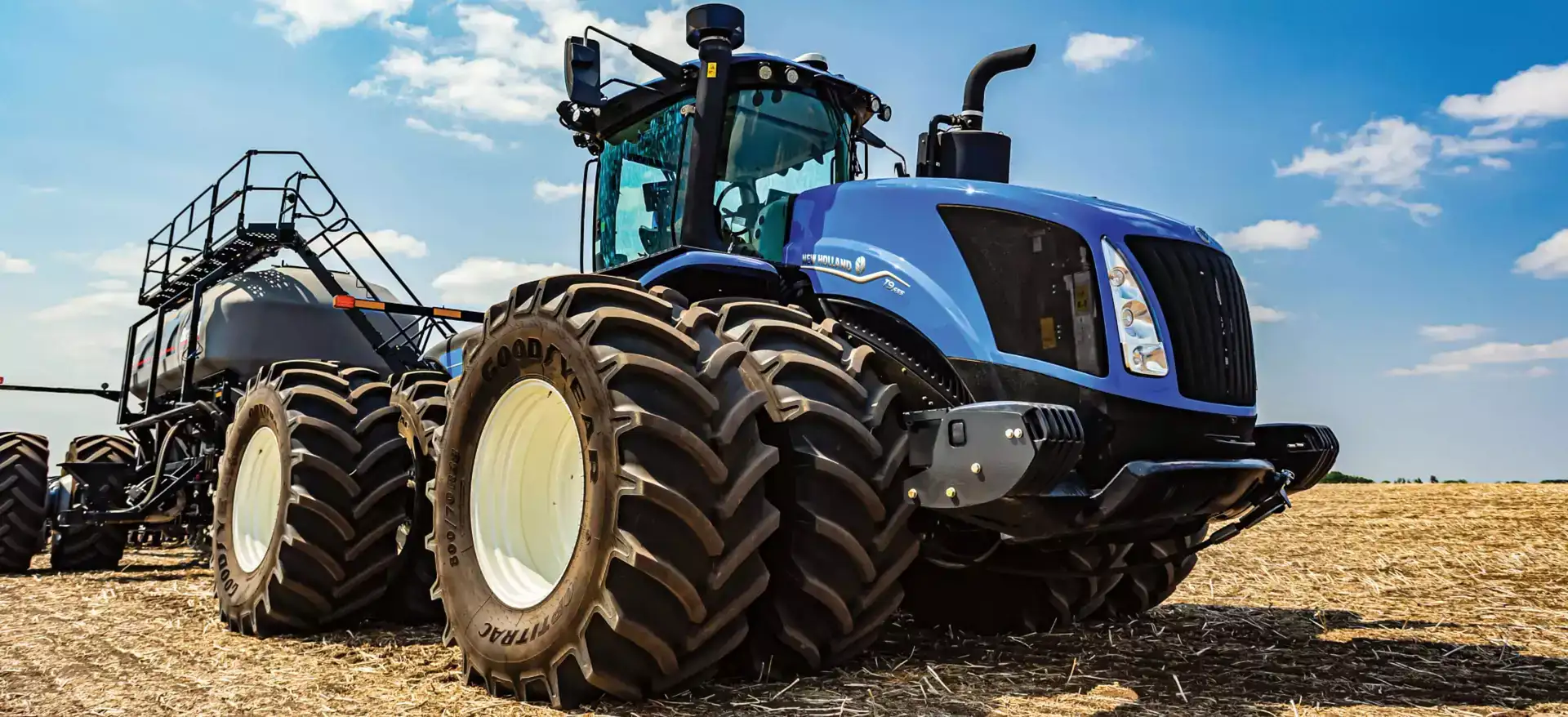

T9 with PLM Intelligence™
OUR MOST PRECISE AND POWERFUL 4WD TRACTOR EVER

T9 with PLM Intelligence™

white dots
ULTIMATE POWER T9 models range from 425 to 682 max hp, with traditional Ultra Command™ full powershift transmission or the Auto Command™ CVT, in wheeled models or SmartTrax™ designs.
CAB ENHANCEMENTS Redesigned cab and controls, including the most functional and customizable armrest and display you’ll find, add new levels of comfort and convenience to your long and hectic days.
MAXIMUM VERSATILITY The IntelliView™ 12 display and Sidewinder™ Ultra armrest is second to none!  We built your control package around the revolutionary idea that customer adjustments should come standard to increase your operator efficiency.
CONNECTED MACHINE Reduce downtime and keep operators in the field with added connectivity and support features. With remote viewing capabilities, you can access the in-cab IntelliView™ 12 display to help identify problems and gain deeper insight.
T9 with PLM Intelligence™

THE NEXT EVOLUTION

Growing production demands, resource challenges, labor shortages, weather uncertainties... these are just a few of the obstacles you face every day. You need a dependable partner in the field to help you simplify things. One that knows your operation inside and out. That connects you effortlessly to real-time resources and insights. That adapts to the way you work... not the other way around. Introducing the T9 with PLM Intelligence™.

Features

  • THE TESTED AND RELIABLE POWER AND EFFICIENCY YOU’VE COME TO EXPECT FROM NEW HOLLAND

    Your T9 tractor is powered by an ECOBlue™ HI-eSCR (High Efficiency Selective Catalytic Reduction) Cursor engine developed by New Holland’s sister company FPT Industrial. These engines, which comply with the even-more-stringent Tier 4B emissions standards, offer you four key benefits:
    Performance: T9 engines offer more power, torque, torque back-up and engine power management while maintaining outstanding transient response.
    Efficient operation: Fluid consumption (diesel plus DEF) will be the same or better than Tier 4A T9 tractors. You also benefit from reduced life-long operating costs.
    Simplicity: The simpler engine solution ensures a higher power potential and the reduced cooling requirements mean more efficient operation.
    Consistency: There’s no change in vehicle operation compared to previous Tier 4A models.
  • YOUR CHOICE OF COMPLETE CONTROL

    Select from two intuitive New Holland transmission choices – the traditional Ultra Command™ full powershift transmission or the Auto Command™ Continuously Variable Transmission (CVT) for ultimate precision and smooth control.

  • THE ULTIMATE IN FARMING COMFORT

    You’ll appreciate the fit and finish and automotive quality of the T9 Series cab. The ergonomic, spacious and practical environment is a must for day-long productivity.

    New Holland offers you superior comfort and seating with two different cab options:

    The Deluxe Performance cab features a cloth seat with leather trim, a semi-active suspension and comfort-heating capabilities.

    • Deluxe Performance Cab Features: Cab suspension, rubber floor mat, standard steering wheel, cloth seat and semi-active suspension, cloth instructional seat, performance radio, electric mirrors with manual extension, luxury power ports, camera-ready

    For a premier seating experience consider the Luxury Performance cab. Enjoy semi-active suspension and heating capabilities in this seat too, but it’s also all-leather and is equipped with a ventilation system that cools and removes moisture to keep operators comfortable and productive when spending extended hours in the tractor.

    • Luxury Performance Cab Features: Cab suspension, rubber floor mat and carpet, leather-wrapped steering wheel, heated and ventilated leather seat and semi-active suspension, leather instructional seat, performance radio, electric mirrors with electric extension, luxury power ports, front and rear cameras
  • SIDEWINDER™ ULTRA: THE ULTIMATE ERGONOMIC FARMING EXPERIENCE.

    T9 Series tractors offer sophisticated features that are easy and intuitive to access. The SideWinder™ Ultra armrest hosts all key controls, including throttle, transmission and hydraulics. Everything you need to control is intuitively selected. More advanced features can be quickly accessed.

    • Customizable Buttons: Up to 11 buttons can be personalized and configured on the SideWinder™ Ultra armrest. Located in strategic positions around the armrest: one on the multifunction handle, two on both the joystick and main keypad, four on the rear keypad, and one or two on the throttle/transmission keypad (depending on the transmission option selected). These buttons can be configured to suit both the task at hand and the specific preferences of the operator.
    • Adjustable SideWinder™ Ultra armrest: The SideWinder™ Ultra armrest can be adjusted to suit your specific requirements. Two manual levers adjust both the height and front/back position of the armrest for enhanced ergonomic operation.
  • INTELLIGENT MONITORS FOR INTELLIGENT AGRICULTURE.

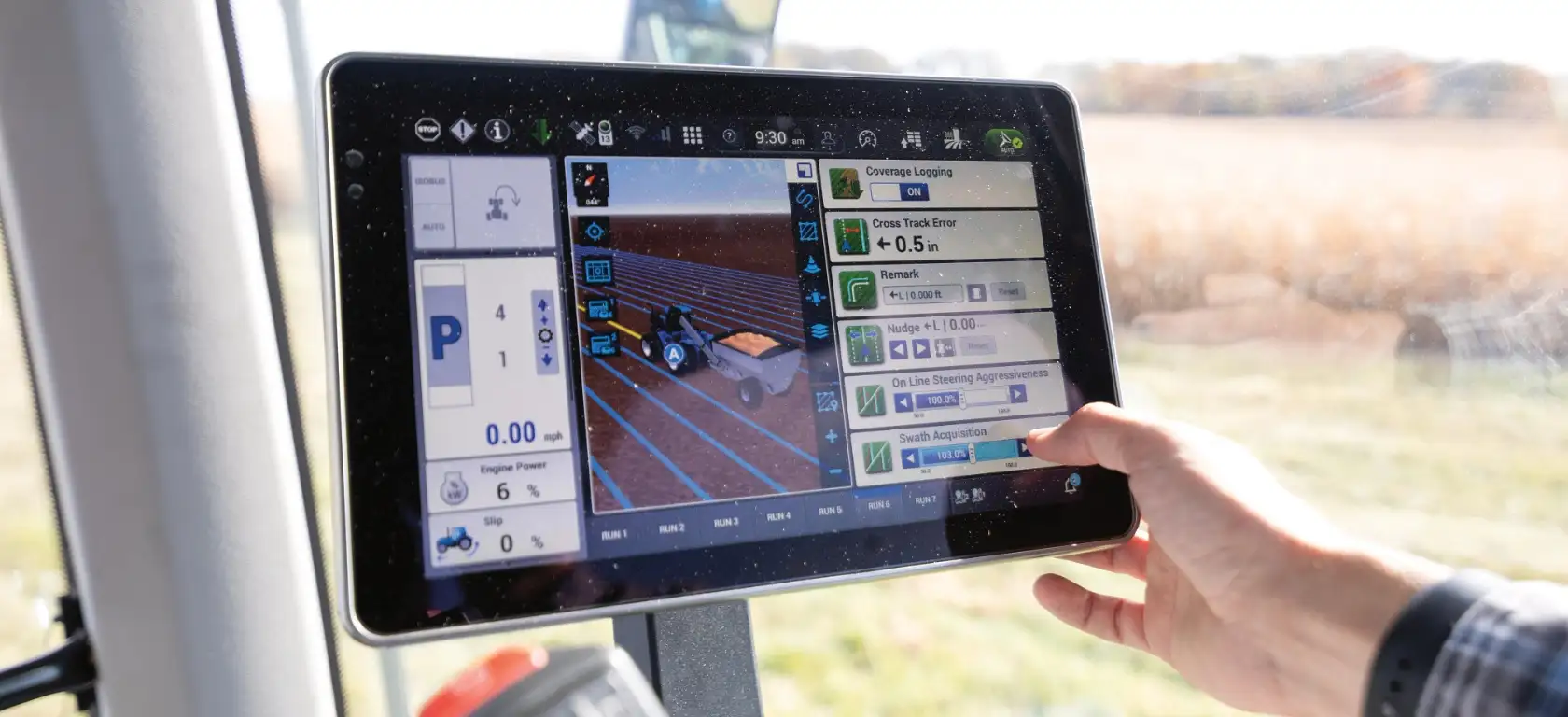

    The IntelliView™ 12 monitor delivers a wide range of machine benefits at your fingertips. A clear evolution from the former IntelliView™ IV, the new “12” model — with its sleek, automotive style “dash” styling, intuitive display and modern design — will become the benchmark of the future.

  • A NEW LEVEL OF CONNECTIVITY AND PRODUCTIVITY.

    Unlock a new level of connectivity never before seen in a 4-wheel drive tractor. That’s the inherent advantage of the T9 Series. In the T9 tractor, unmatched connectivity provides the ability to share information with your preferred providers, perform diagnostics remotely and make data-driven decisions related to your operations—all designed to help you successfully manage your farm, fleet and data from any location. Accomplish more in a single day, work smarter and more efficiently, and enjoy a superior level of control and management with the T9 Series.

  • UP TO 113 GALLONS PER MINUTE

    T9 Series tractors are available with standard or high-flow pumps, with up to 42 and 57 gallon-per minute (gpm) capacities respectively. For demanding hydraulic applications, the optional MegaFlow™ pump delivers up to an extra 56 gpm of hydraulic flow to one bank of remotes, boosting total tractor flow up to a maximum of 113 gpm. For total 113-gpm flow to all remotes for extremely high hydraulic demands like seeding and planting, choose the MegaFlow™ II option. A large coupler is available for applications that demand unrestricted oil flow.

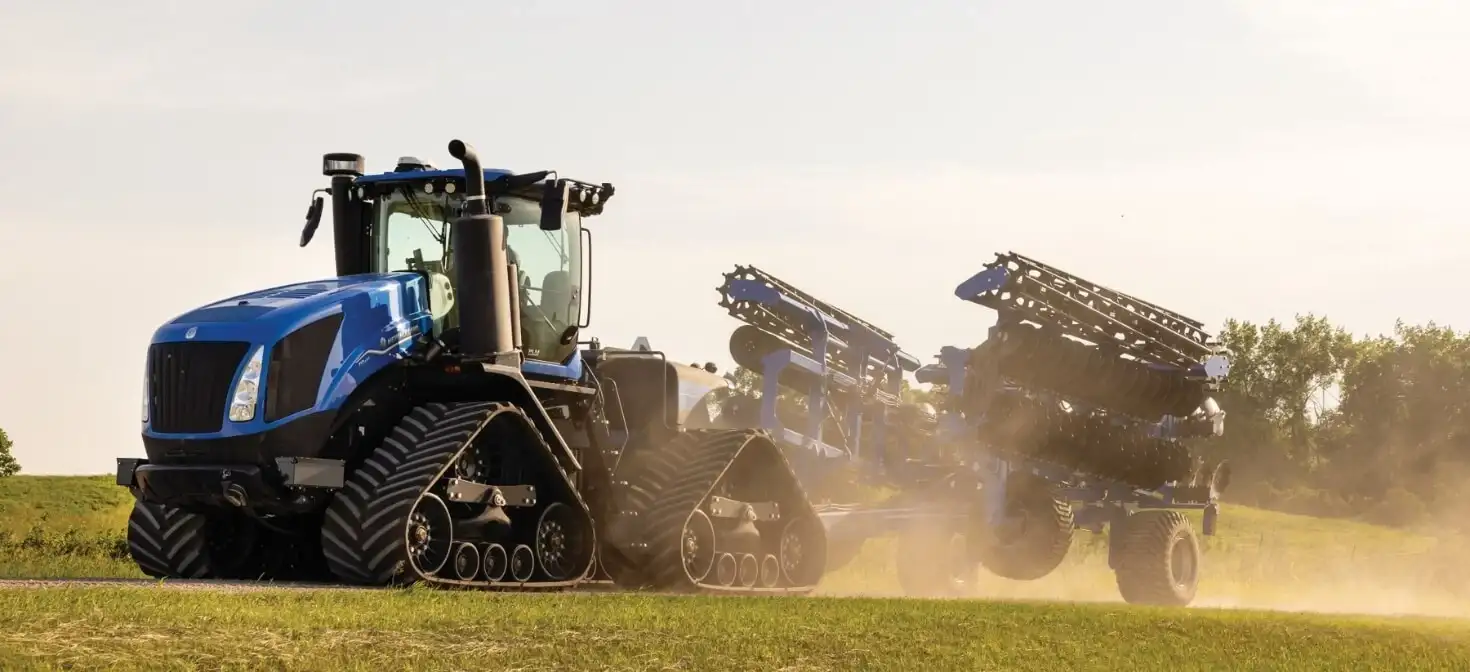

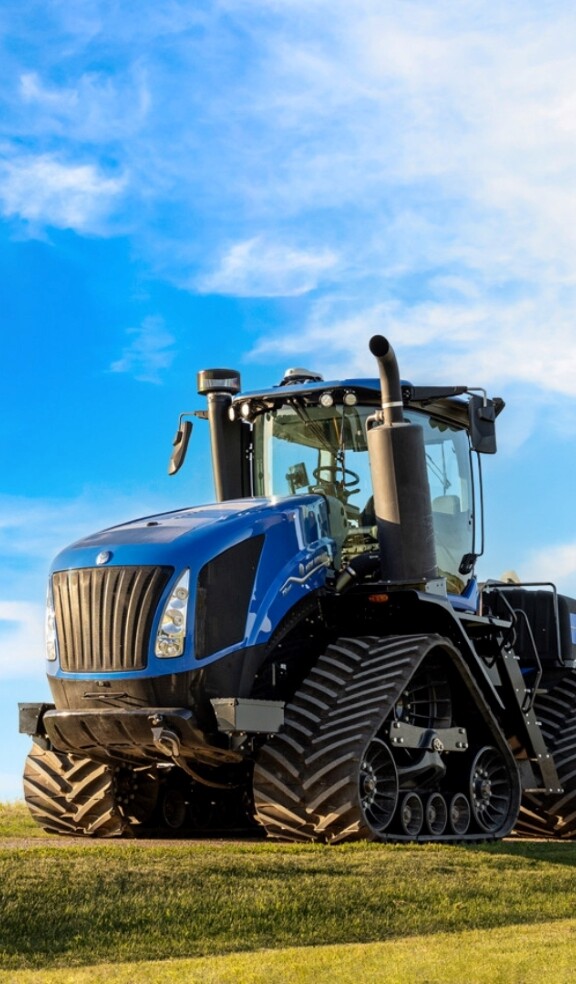

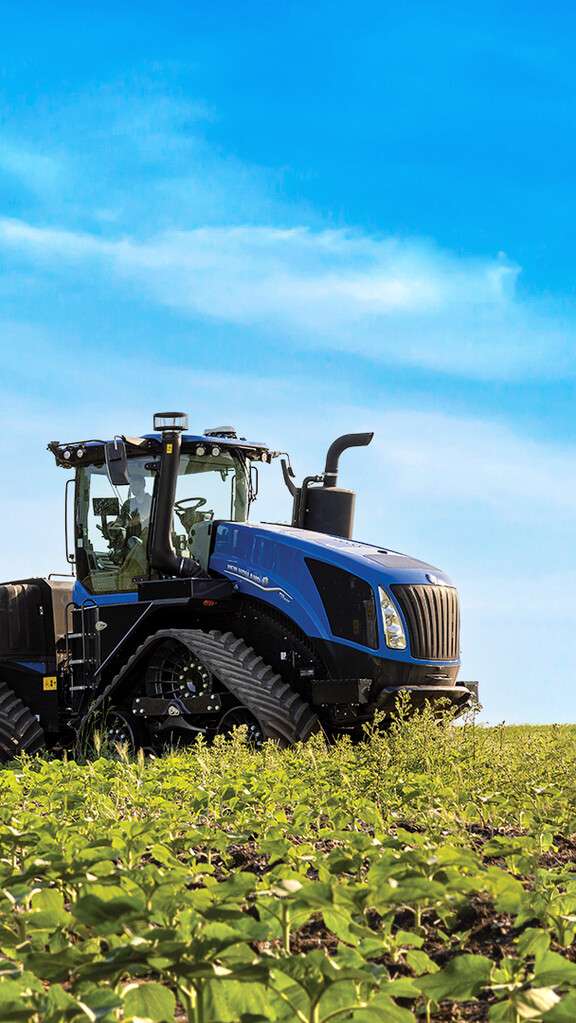

  • SMARTTRAX™ II: HIGH TRACTION, LOW COMPACTION

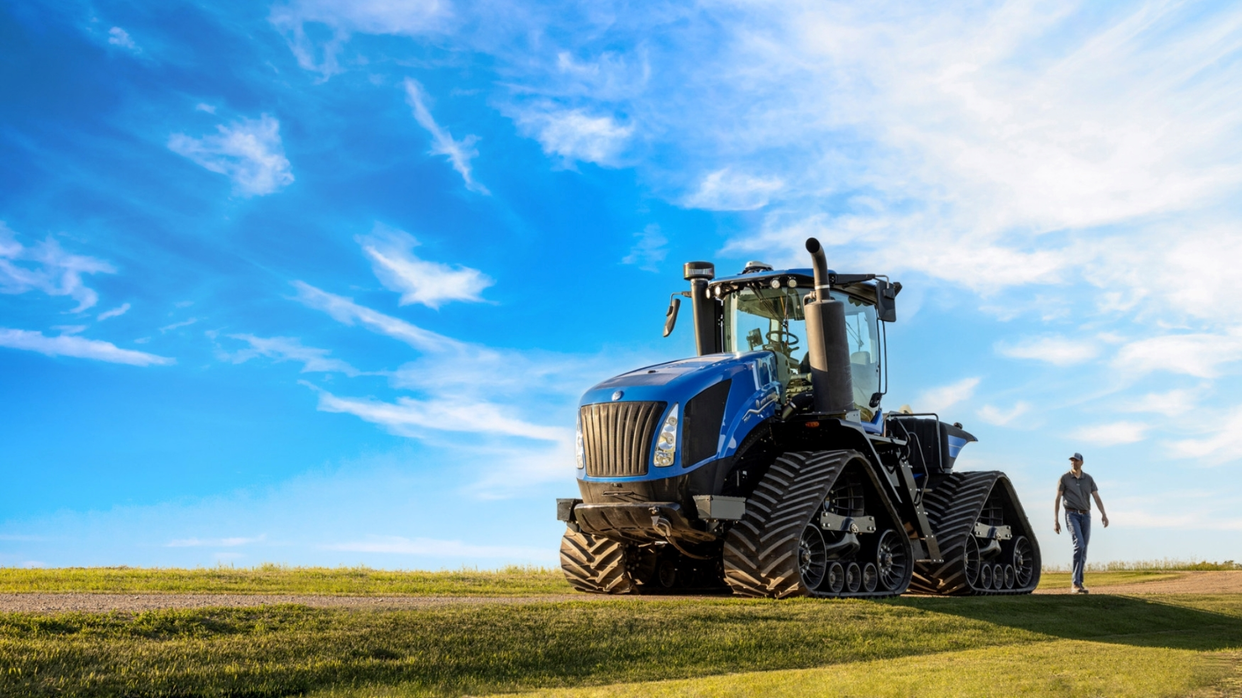

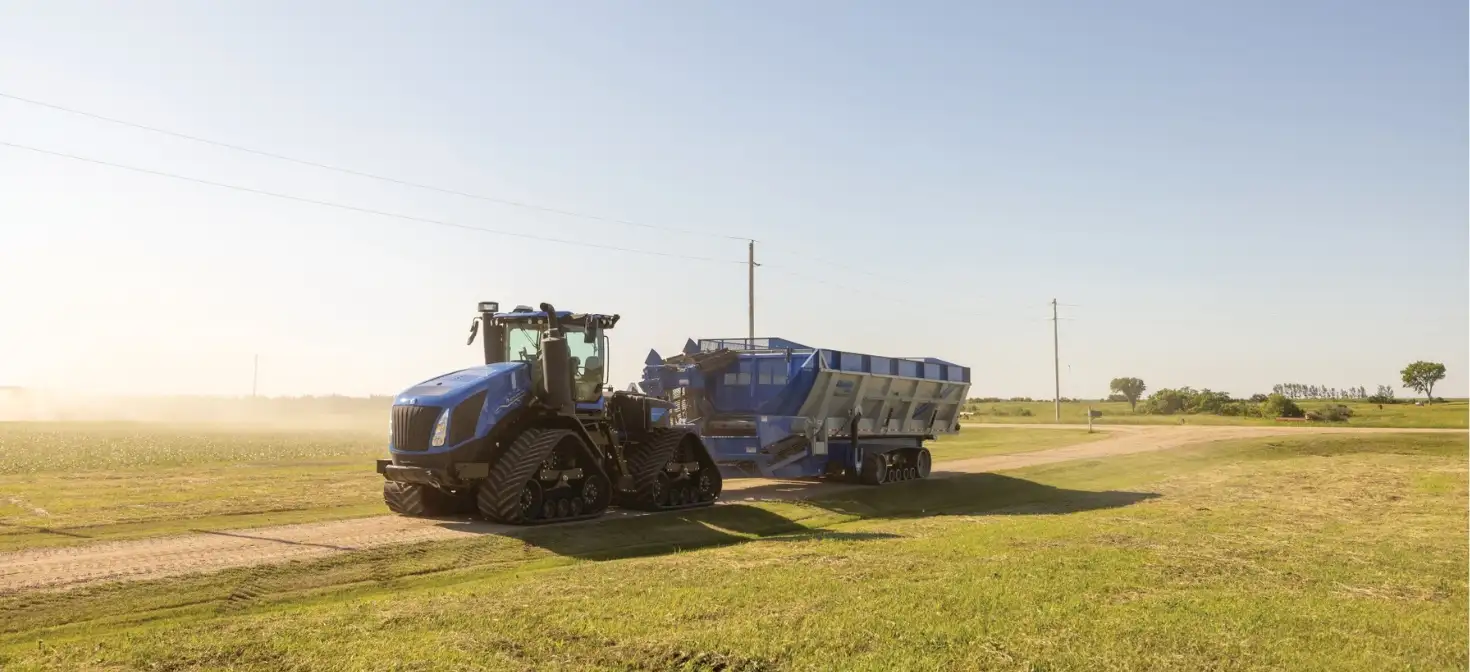

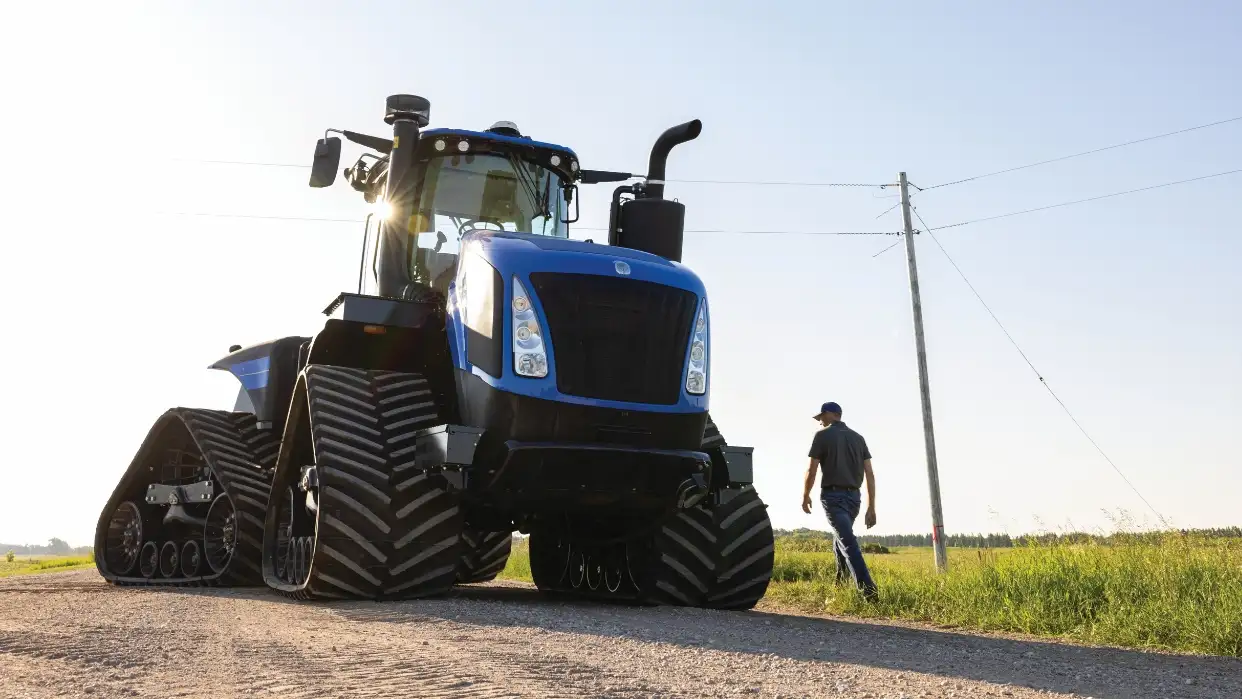

    Put one of New Holland’s five T9 Series SmartTrax™ tractors to work for you and you get the benefit of 2,800 square inches of ground contact per track module for a total footprint of 11,200 square inches. That maximizes traction, flotation and ride smoothness, while reducing ground pressure and compaction for minimal surface damage, and that improves soil fertility and water drainage, maximizing your yields.

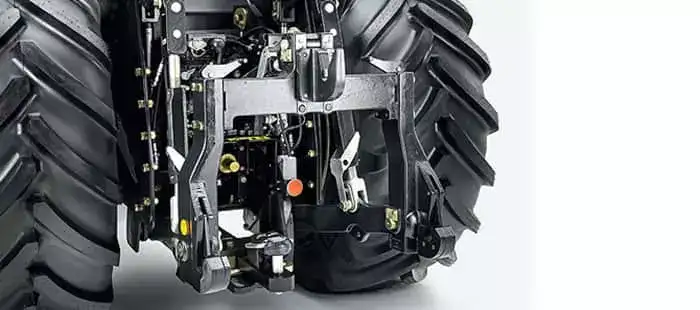

  • UP TO 22,750-POUND HITCH LIFT CAPACITY

    Productivity is key and that is why we offer 20,000 lbs lift capacity on our T9.480 – T9.560 row crop frame models and 22,750 lbs lift capacity on our T9.600 – T9.700 high horsepower wide frame models. All models can be equipped with a CAT IV–N quick-hatch rear linkage, convertible to CAT III on standard frame models. A 20-spline 1000-rpm speed PTO option is also available.

MODELS

Explore available models

TECHNICAL SPECIFICATIONS
agriculture-tractors-t9-435

T9.435 Wheeled

Max. EPM horsepower @ 1,900 rpm CV hp (kW)
425 (317)
Rated horsepower @ rated RPM per SAE CV hp (kW)
370 (276) @ 2,000 rpm
agriculture-tractors-t9-480

T9.480 Wheeled

Max. EPM horsepower @ 1,900 rpm CV hp (kW)
462 (345)
Rated horsepower @ rated RPM per SAE CV hp (kW)
420 (313) @ 2,100 rpm
agriculture-tractors-t9-530

T9.530 Wheeled and SmartTrax™

Max. EPM horsepower @ 1,900 rpm CV hp (kW)
517 (386)
Rated horsepower @ rated RPM per SAE CV hp (kW)
470 (350) @ 2,100 rpm
agriculture-tractors-t9-565

T9.565 Wheeled and SmartTrax™

Max. EPM horsepower @ 1,900 rpm CV hp (kW)
550 (410)
Rated horsepower @ rated RPM per SAE CV hp (kW)
500 (373) @ 2,100 rpm
agriculture-tractors-t9-600

T9.600 Wheeled and SmartTrax™

Max. EPM horsepower @ 1,900 rpm CV hp (kW)
605 (451)
Rated horsepower @ rated RPM per SAE CV hp (kW)
535 (399) @ 2,100 rpm
agriculture-tractors-t9-645

T9.645 Wheeled and SmartTrax™

Max. EPM horsepower @ 1,900 rpm CV hp (kW)
638 (476)
Rated horsepower @ rated RPM per SAE CV hp (kW)
580 (433) @ 2,100 rpm
agriculture-tractors-t9-700

T9.700 Wheeled and SmartTrax™

Max. EPM horsepower @ 1,900 rpm CV hp (kW)
682 (509)
Rated horsepower @ rated RPM per SAE CV hp (kW)
620 (462) @ 2,100 rpm

Technical specifications

Engine*

Engine*
No. of cyl. / Aspiration / Valves
Cylinders / Valves / Displacement cu. in. (L)
Tier 4B / ECOBlue™ HI-eSCR system (Selective Catalytic Reduction)
Approved biodiesel blend**
Max. EPM horsepower @ 1,900 rpm CV hp (kW)
Rated horsepower @ rated RPM per SAE CV hp (kW)
PTO power @ rated 1,811 engine rpm CV hp (kW)
Max. torque - ISO TR14396 lbs. ft. (Nm)
Torque rise %
Viscous coupled cooling fan
Hydraulically driven cooling fan
Automatic exhaust brake
Diesel capacity (Wheeled) gal. (L)
Diesel capacity (Track) gal. (L)
AdBlue tank capacity gal. (L)
Service interval hours

Ultra Command™ transmission

Auto Command™ Continuously Variable Transmission

Configurations

Electrical

Axles

Hydraulics

Remote valves

Rear PTO

Brakes

Cab

Weights

Dimensions

* Developed by FPT Industrial
** Biodiesel blend must fully comply with the latest fuel specification EN14214:2009 and operation is in accordance with operator manual guidelines
