Workmaster™ 95, 105 and 120

Workmaster™ 95, 105 and 120

white dots
BEST-IN-CLASS VALUE CAB Value and comfort are not mutually exclusive. The all-weather WORKMASTER four-post cab protects you from the elements and is loaded with comfort features not found on other value cabs.
EXCEPTIONAL VIEW Enjoy the added ease and confidence that come with an exceptional view to your work. The WORKMASTER cab boasts 316-degree visibility and an optional high-visibility roof panel, so you can look overhead to a raised loader when stacking or dumping.
POWERFULLY EFFICIENT WORKMASTER 95, 105 and 120 tractors are powered by 207-cubic-inch (3.4L), 4-cylinder engines built by Fiat Powertrain Technologies (FPT). These engines are Tier 4B emission compliant, and deliver clean, fuel-efficient power.
HIGH-PRODUCTIVITY POWER SHUTTLE The 12x12 transmission with steering column mounted hydraulic power shuttle provides fingertip access during jobs that require frequent forward-reverse shifting, like loading, grading and mowing.
Workmaster™ 95, 105 and 120

THE TRADITION OF VALUE CONTINUES

WORKMASTER™ tractors meet the needs of a wide range of customers. Designed for those with a keen eye for value, the new WORKMASTER 95, 105 and 120 provide unmatched comfort, simplicity and visibility with a low cost of ownership.

Features

  • POWERFULLY EFFICIENT

    WORKMASTER 95, 105 and 120 tractors are powered by 207-cubic-inch (3.4L), 4-cylinder engines built by Fiat Powertrain Technologies (FPT). These free breathing engines use 4 values per cylinder and a high pressure common rail, direct injected, electronically controlled, fuel system to deliver clean, fuel-efficient power.
  • HIGH-PRODUCTIVITY POWER SHUTTLE

    The 12x12 hydraulic power shuttle transmission provides four synchronized gears in three non-synchronized ranges, and a 19-mph (30-kph) travel speed. It is the perfect solution for customers looking for maximum productivity in a utility tractor, or for those who make direction changes often in applications such as loader work.

  • TRACTION ENHANCING FOUR-WHEEL DRIVE (4WD)

    Every WORKMASTER comes standard with traction enhancing four-wheel drive (4WD) as standard equipment to help power you through tough spots.
  • INDEPENDENT POWER TAKE OFF (PTO)

    WORKMASTER 95, 105 and 120 tractors feature a robustly designed, fully independent, multi-plate wet clutch PTO (power take off) for years of reliable service. Choose from 540-rpm, 540-rpm with fuel saving 540E (economy) or reversible 540/1000 rpm to best suit your implements and attachments.

  • HEAVY-DUTY DESIGN, EASY HOOK-UP

    A 3,200-pound rear hitch lift capacity allows your WORKMASTER tractor to handle large implements while standard draft control allows more efficient use of ground engaging tools. Add the optional auxiliary lift ram to increase capacity to 6,200 pounds. Standard draft control, flexible link ends and telescopic stabilizers make implement hookup a breeze.

  • BEST-IN-CLASS VALUE CAB

    Value and comfort are not mutually exclusive. The all-weather WORKMASTER four-post cab protects you from the elements and is loaded with comfort features not found on other value cabs. The wide-entry and flat deck allows for easy entry and exit and provides added foot room. There’s comfortable seating for two with a cloth high-back, air suspension seat and instructor seat that folds back for additional storage when not in use.
  • COMFORTABLE OPEN STATION PLATFORM

    For added economy, a flat-deck all purpose ROPS platform configuration is available. The semi-straddle platform is ergonomically designed to ensure all-day comfort. The right-hand console contains most controls close to the operator, with more commonly used controls right up front where needed. This console also contains a cup holder, cell phone slot and two USB ports, so you can stay hydrated and connected throughout the day.

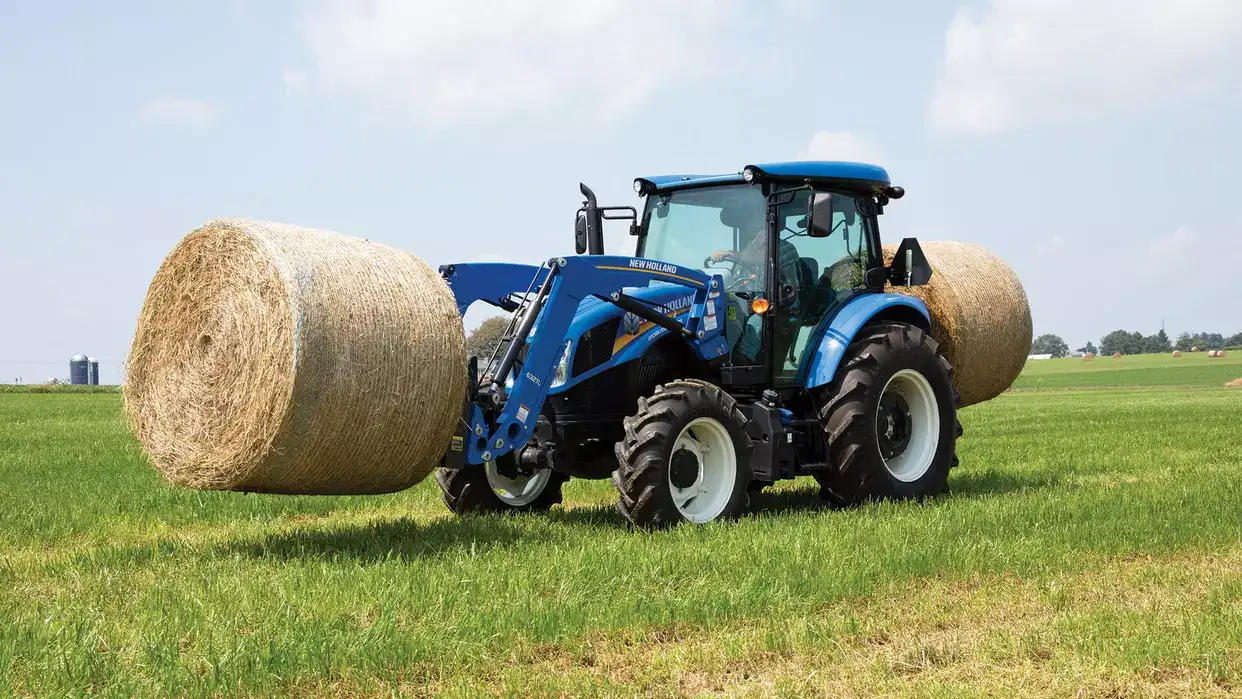

  • PERFORMANCE MATCHED LOADER

    WORKMASTER utility tractors are ideal loader tractors. Installed at the New Holland factory, the non self-leveling 632TL front loader integrates perfectly with the WORKMASTER 95, 105 and 120. A mechanical self-leveling 637TL is also available for those who want to enhance their productivity serious work done.

  • EASY SERVICING

    A WORKMASTER™ is the best tractor for saving you time and money when it comes to maintenance.  Convenient access to service points makes fueling up and performing routine maintenance quick and easy. Even when a loader is attached, it’s easy to get under the hood of your WORKMASTER. Just open the hood to access the engine, radiator, air cleaner and more.

MODELS

Explore available models

TECHNICAL SPECIFICATIONS
agriculture-tractors-workmaster-95

WORKMASTER 95

Type
4-cylinder diesel
Standard
12X12 Power Shuttle
agriculture-tractors-workmaster-105

WORKMASTER 105

Type
4-cylinder diesel
Standard
12X12 Power Shuttle
agriculture-tractors-workmaster-120

WORKMASTER 120

Type
4-cylinder diesel
Standard
12X12 Power Shuttle

Technical specifications

Engine

Make
Type
Displacement cu. in. (L)
Gross engine horsepower
PTO horsepower
Rated Engine Speed rpm
Emissions Tier 4B

Transmissions

3-Point Hitch

Hydraulics

PTO

Dimensions

– Not available
* 19.5L24 R4 rear tires

Download brochures
